Main dimensions

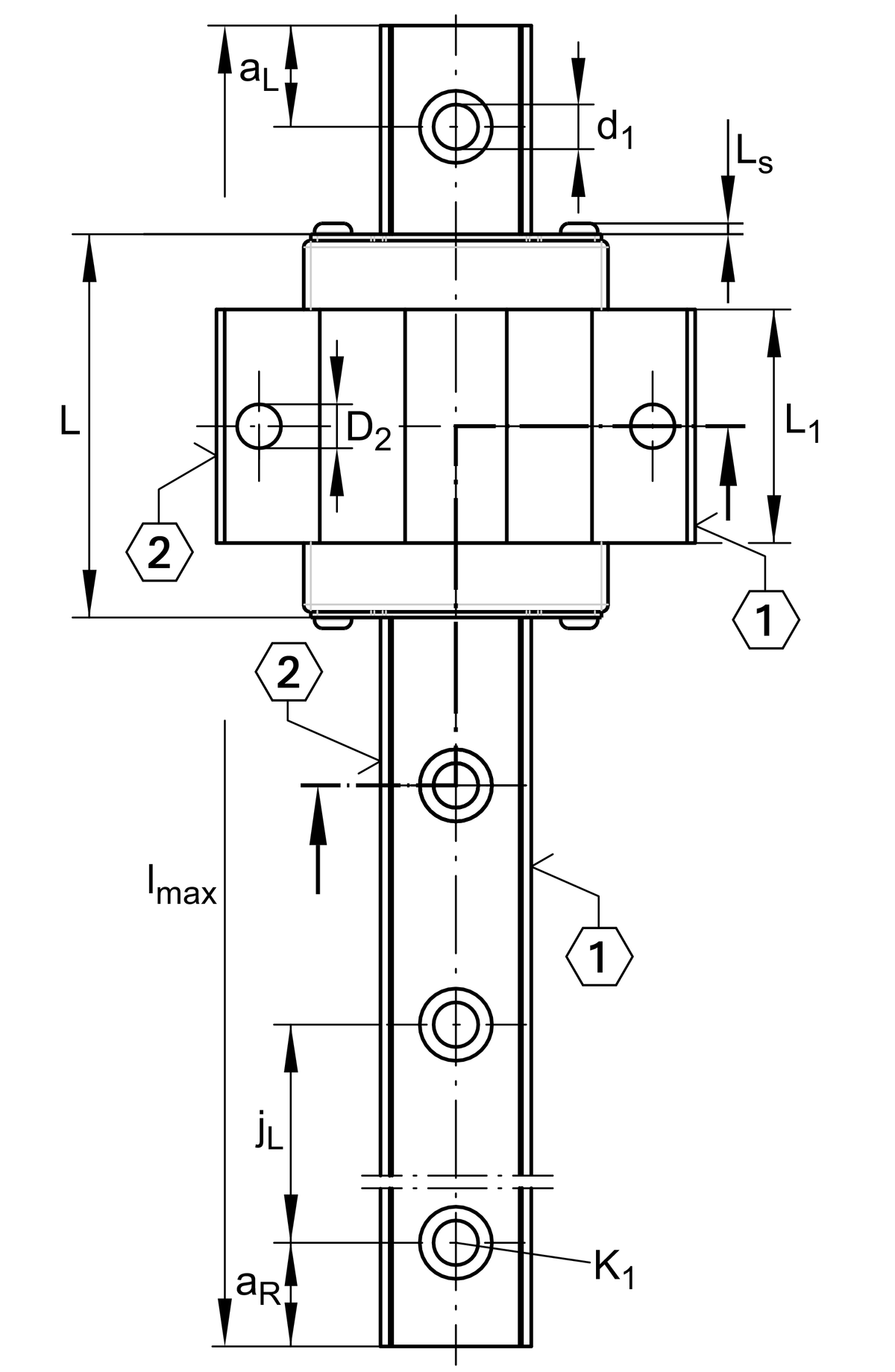

| lmax | 5,860 mm | Max length single piece guideway 1 |

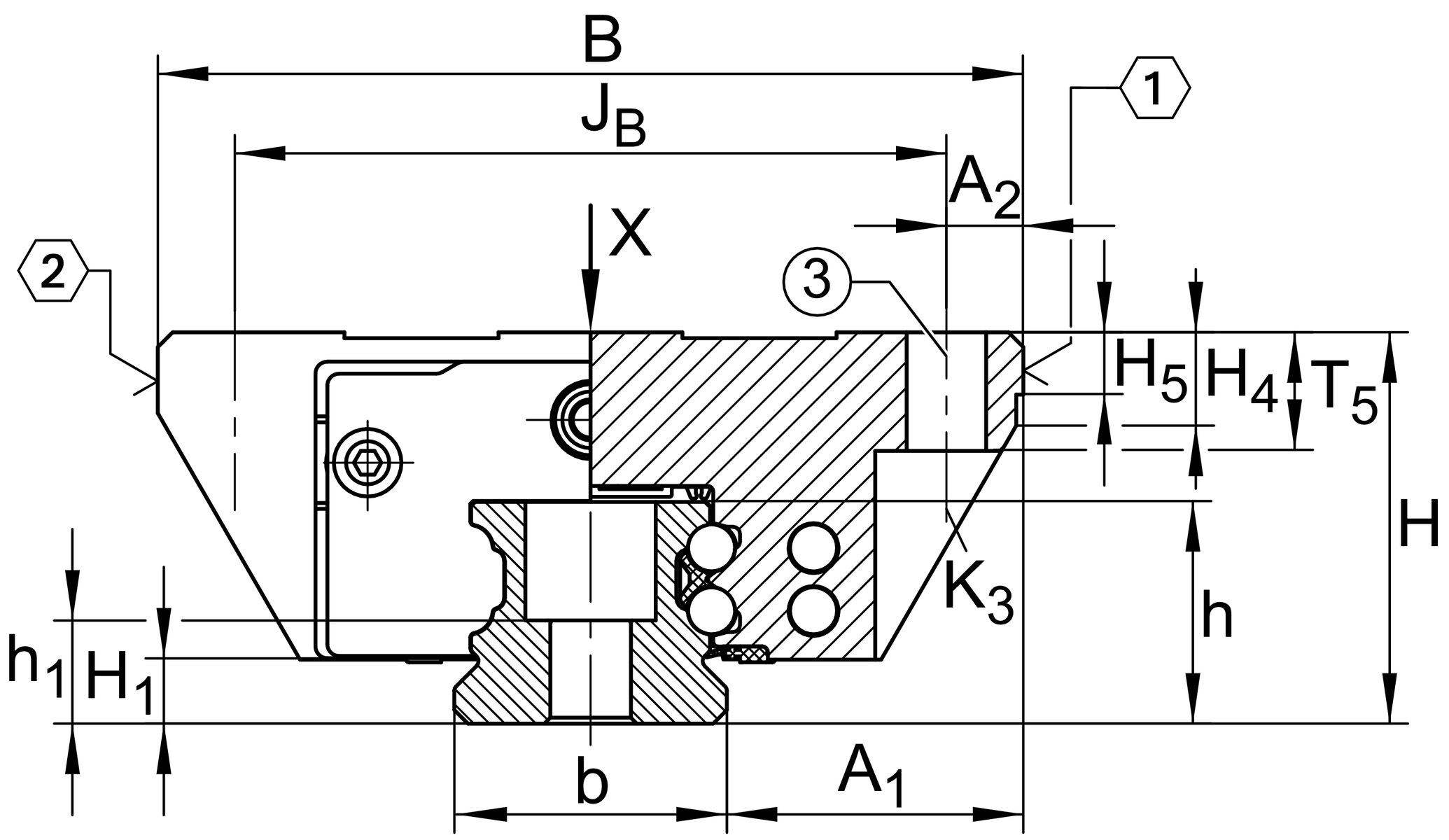

| H | 48 mm | height system |
| B | 100 mm | width carriage |
| L | 76.2 mm | overall length carriage |
科技數據
| C | 24,600 N | dynamic load rating 2 |
| C0 | 39,000 N | static load rating 2 |
| M0x | 790 Nm | static moment rating about X axis |
| M0y | 330 Nm | static moment rating about Y axis |
| M0z | 330 Nm | static moment rating about Z axis |
安裝尺寸
| A1 | 33 mm | |
| JB | 82 mm | |
| b | 34 mm | width rail |
| Tolb | -0.005 mm | 公差上限 |
| Tolb | -0.03 mm | 較低的公差 |
| A2 | 9 mm | |
| L1 | 44.2 mm | |
| Ls | 1.65 mm | |
| jL | 80 mm | |
| aL min | 20 mm | 3 |
| aL max | 71 mm | 3 |
| aR min | 20 mm | 3 |
| aR max | 71 mm | 3 |
| H1 | 6.7 mm | |
| H4 | 14.3 mm | |
| H5 | 6.75 mm | |
| T5 | 13.5 mm | |
| h | 27 mm | |
| h1 | 14.5 mm | |
| K1 | M8 | fixing screws |
| K1 MA | 41 Nm | maximum tightening torque 4 |
| K3 | M8 | fixing screws |
| K3 MA | 41 Nm | maximum tightening torque 4 |
| d1 | 9 mm | |
| D2 | 8.6 mm | |

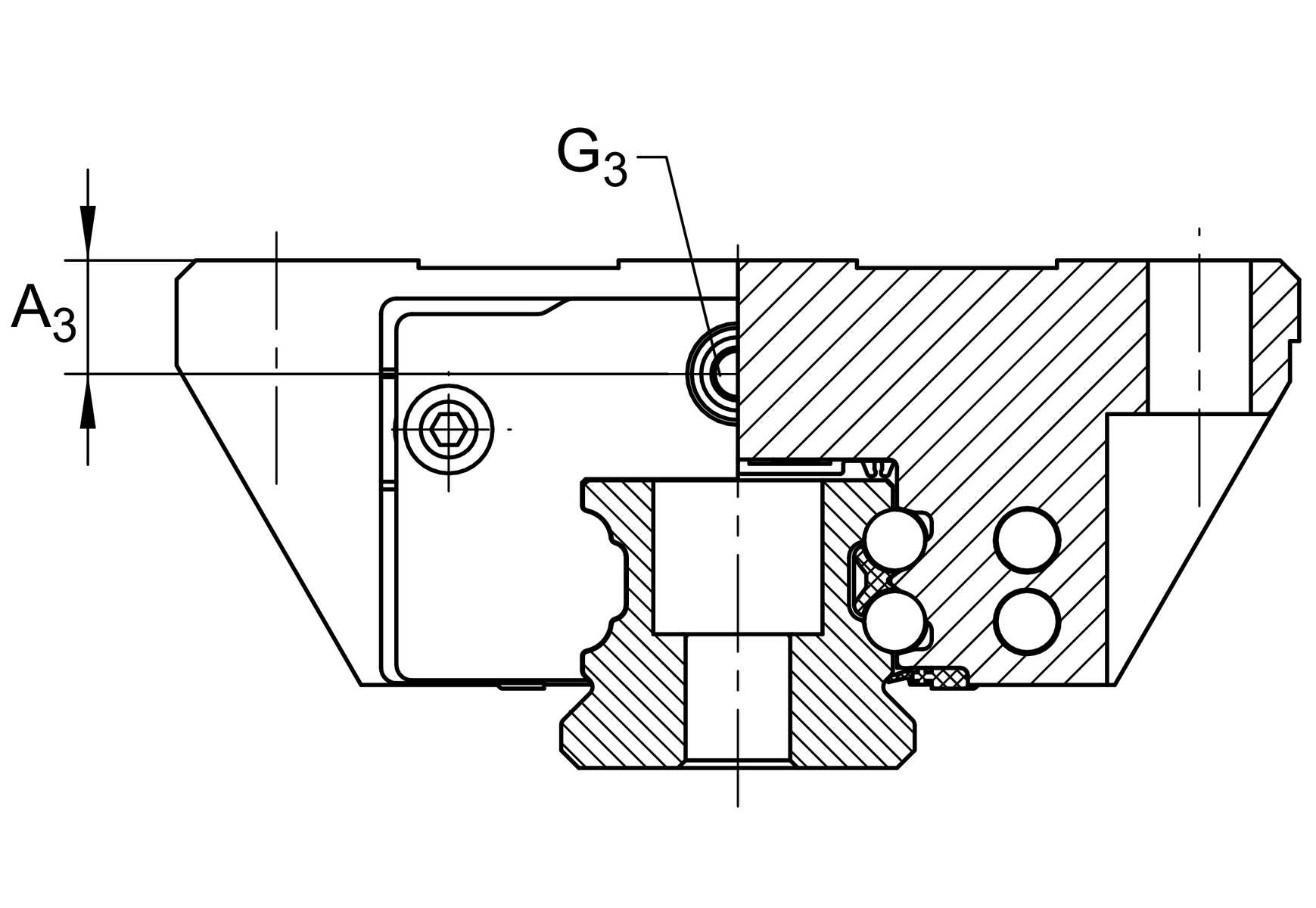

| A3 | 12.3 mm | |
| G3 | M6 | |
| t G3 | 7 mm | 5 |

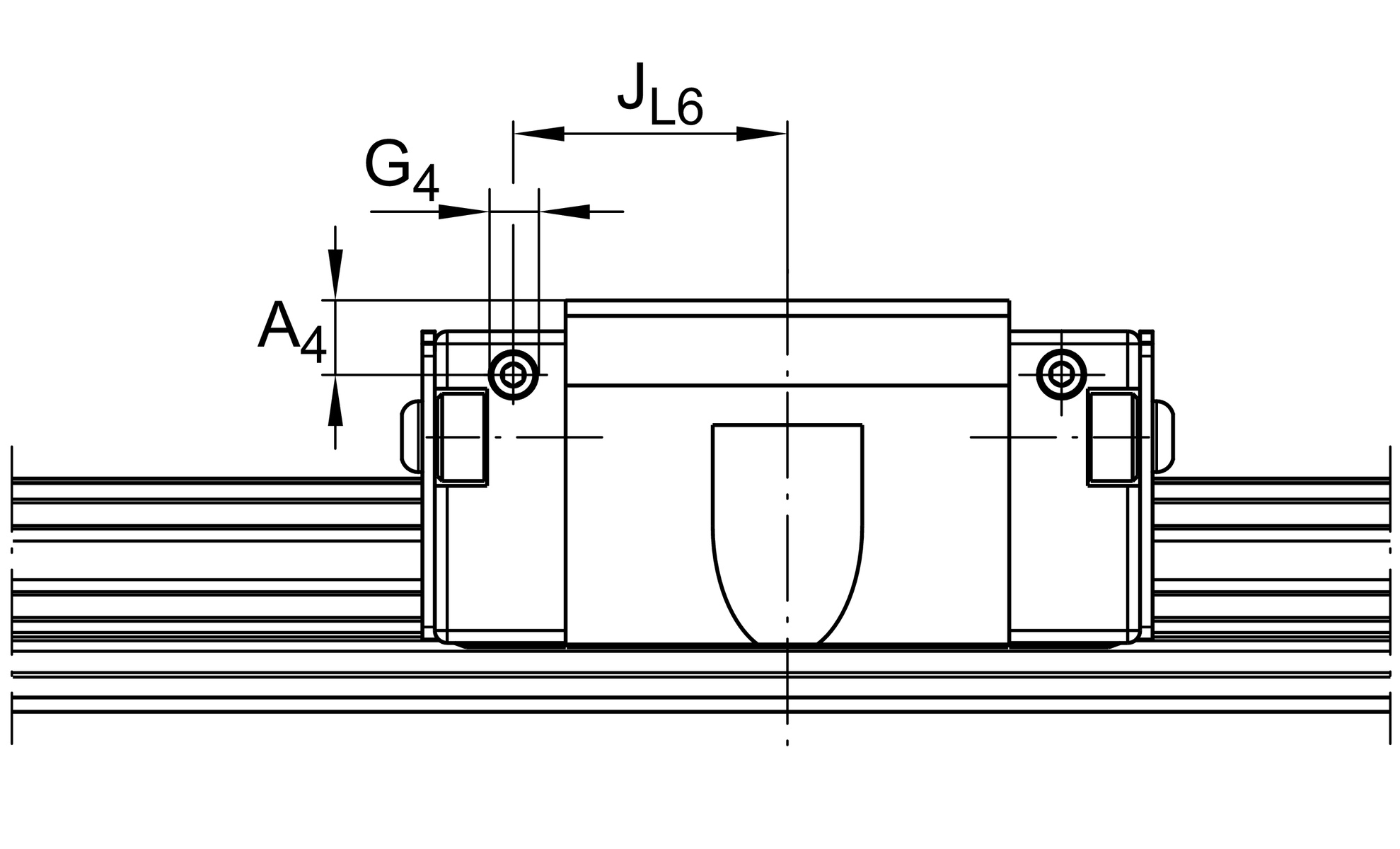

| A4 | 11 mm | |
| G4 | M6 | |
| t G4 | 7 mm | 5 |
| JL6 | 29.1 mm |
Related products
KWVE35-B-EC | Carriage | |
TKVD35 | suitable Guide Rail |
您目前的產品型號
| Size code | 35 | |
| Carriage design | EC | Expanded design, short carriage (carriage 沒有 screw threads) |
| Version | B |
