KUVE30-W
Ball monorail guidance system KUVE30-W
加入詢價

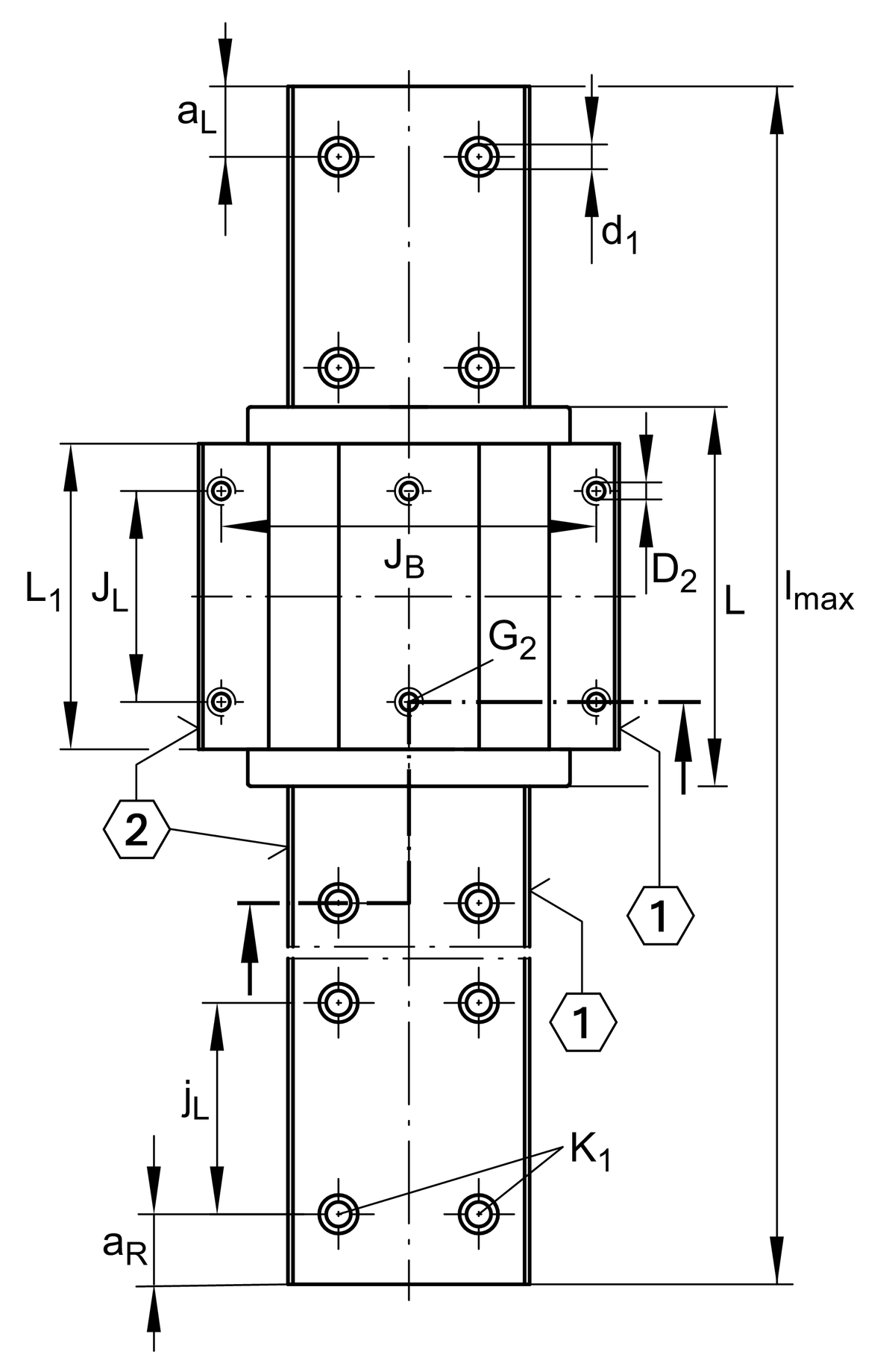

Main dimensions
lmax
5,860 mm
Max length single piece guideway 1
H
42 mm
height system
B
142 mm
width carriage
L
97.5 mm
overall length carriage

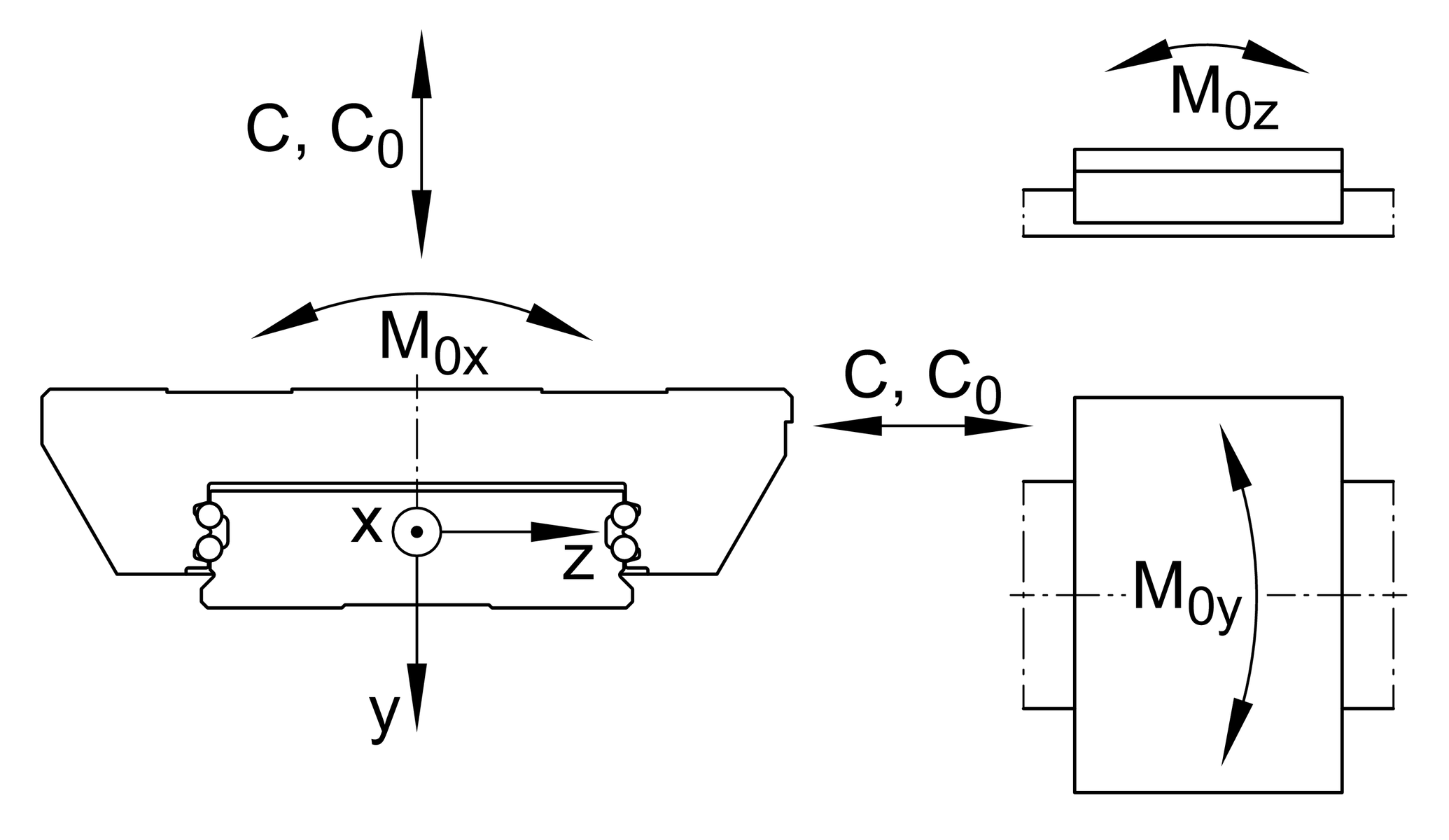

科技數據
C
27,500 N
dynamic load rating 2
C0
55,000 N
static load rating 2
M0x
2,660 Nm
static moment rating about X axis
M0y
700 Nm
static moment rating about Y axis
M0z
700 Nm
static moment rating about Z axis

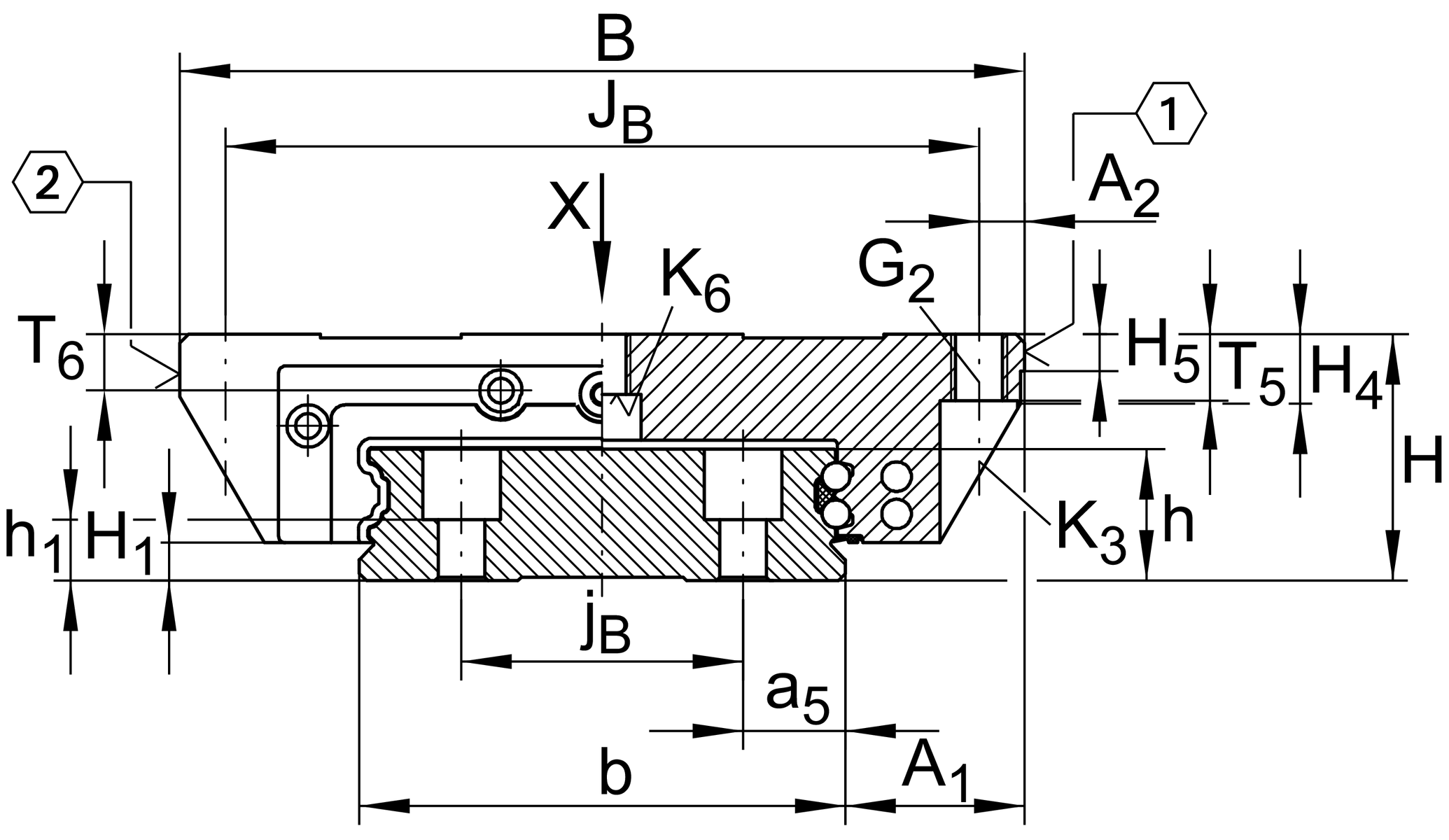

安裝尺寸
A1
31 mm
JB
124 mm
jB
50 mm
b
80 mm
width rail
a5
15 mm
A2
9 mm
L1
72 mm
JL
52 mm
jL
80 mm
aL min
20 mm
 3
aL max
71 mm
 3
aR min
20 mm
 3
aR max
71 mm
 3
H1
6 mm
H4
13.8 mm
H5
6 mm
T5
12 mm
T6
12 mm
h
23.5 mm
h1
11 mm
G2
M10
fixing screws
G2 MA
41 Nm
maximum tightening torque 4
K1
M8
fixing screws
K1 MA
41 Nm
maximum tightening torque 4
K3
M8
fixing screws
K3 MA
41 Nm
maximum tightening torque 4
K6
M8
fixing screws
K6 MA
12 Nm
maximum tightening torque
d1
9 mm
D2
8.6 mm

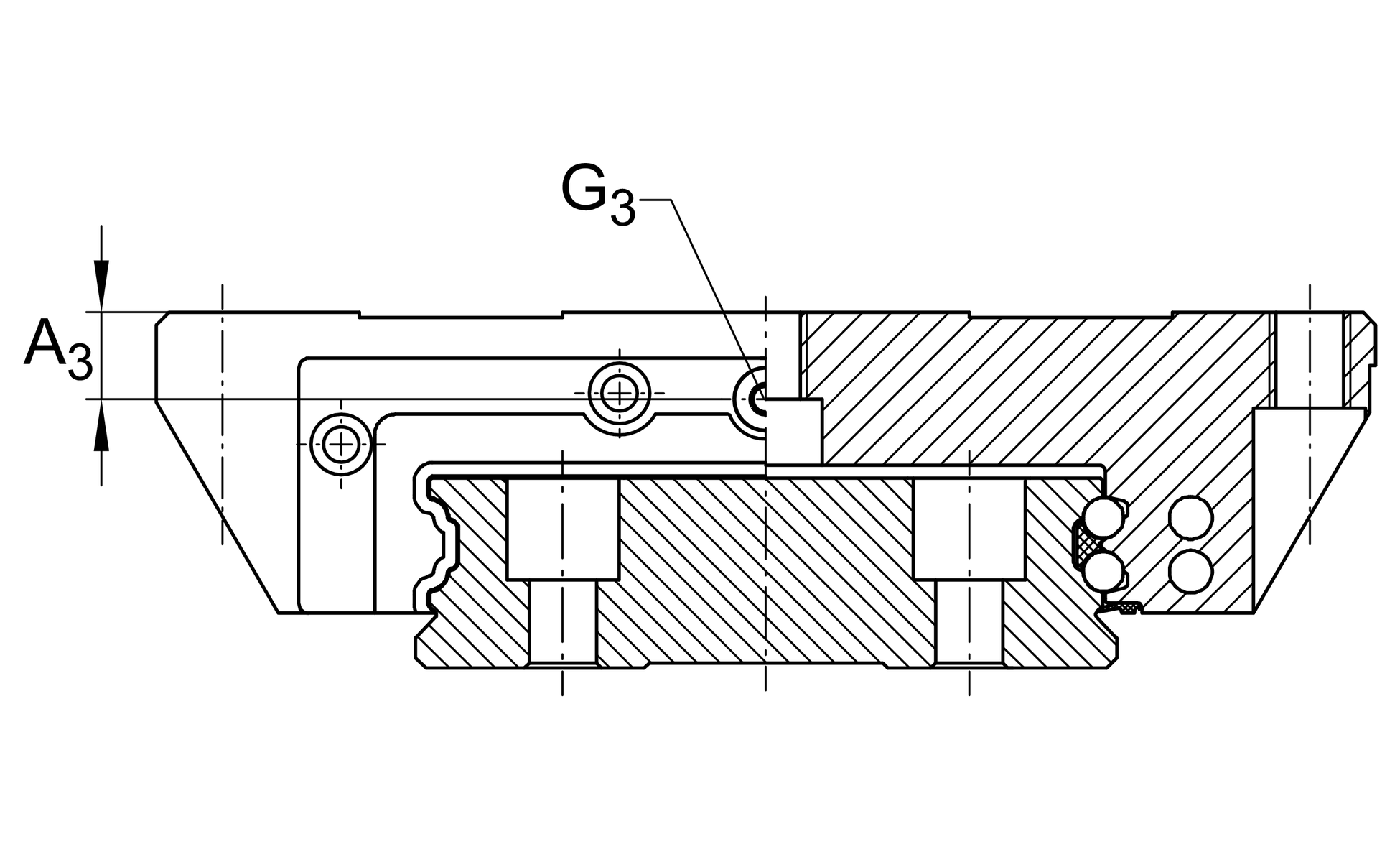

A3
11.25 mm
G3
M6
t G3
6 mm
 5
