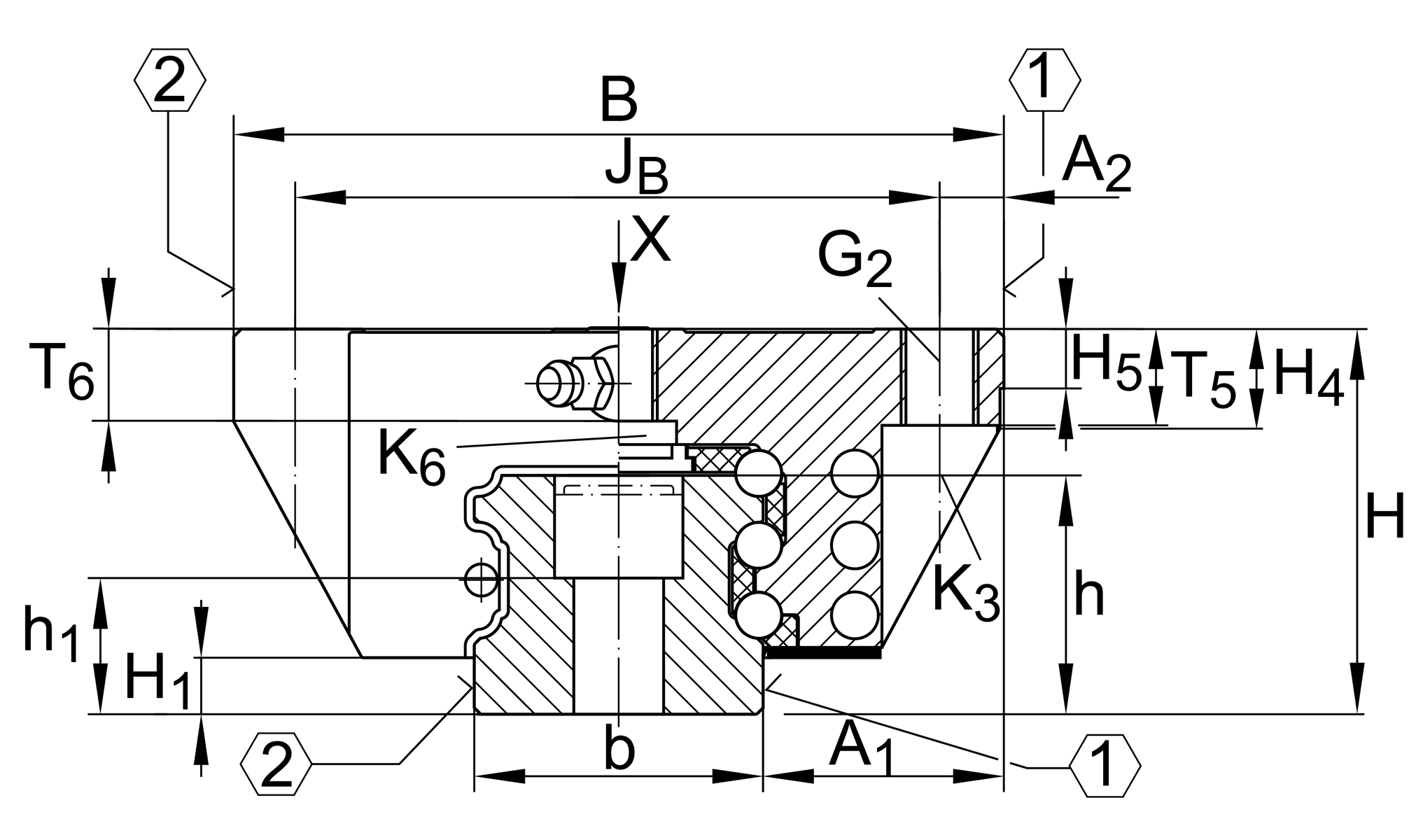

安裝尺寸
| A1 | 37.5 mm | |
| JB | 100 mm | |
| b | 45 mm | width rail |
| Tolb | -0.005 mm | 公差上限 |
| Tolb | -0.03 mm | 較低的公差 |
| A2 | 10 mm | |

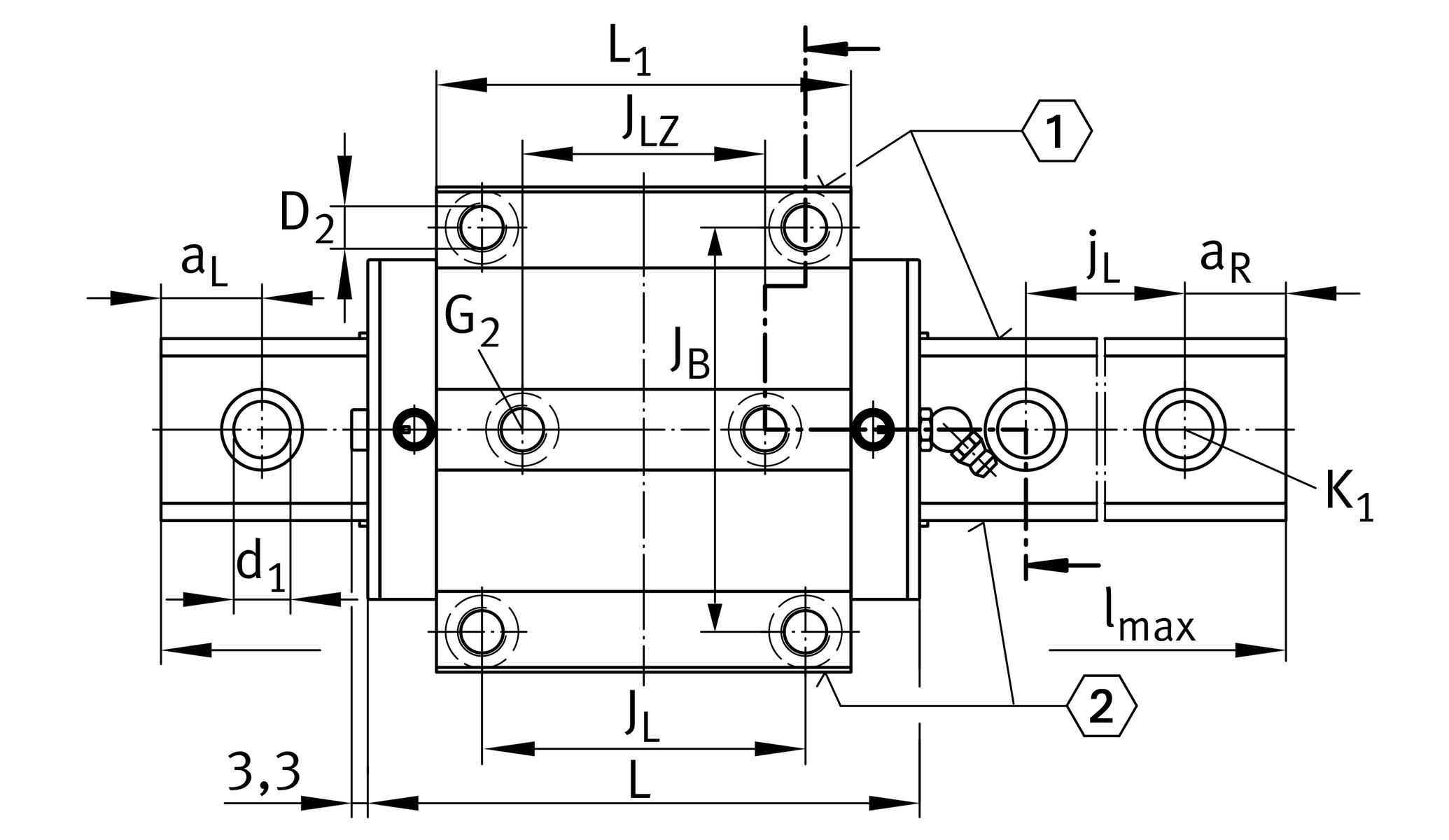

| L1 | 138.7 mm | |
| JL | 80 mm | |
| JLZ | 60 mm | |
| jL | 105 mm | |
| aL min | 20 mm | 1 |
| aL max | 94 mm | 1 |
| aR min | 20 mm | 1 |
| aR max | 94 mm | 1 |
| H1 | 8.6 mm | |
| H4 | 9 mm | |
| H5 | 17.7 mm | |
| T5 | 15 mm | |
| T6 | 15 mm | |
| h | 37.2 mm | |
| h1 | 18.7 mm | |
| Tol h1 | 0.5 mm | 公差上限 |
| Tol h1 | -0.5 mm | 距離 距離 |
| G2 | M12 | fixing screws |
| G2 MA | 83 Nm | maximum tightening torque |
| K1 | M12 | fixing screws |
| K1 MA | 140 Nm | maximum tightening torque 2 |
| K3 | M10 | fixing screws |
| K3 MA | 83 Nm | maximum tightening torque 2 |
| K6 | M10 | fixing screws |
| K6 MA | 48 Nm | maximum tightening torque 2 |
| d1 | 13.4 mm | |
| D2 | 10.6 mm | |

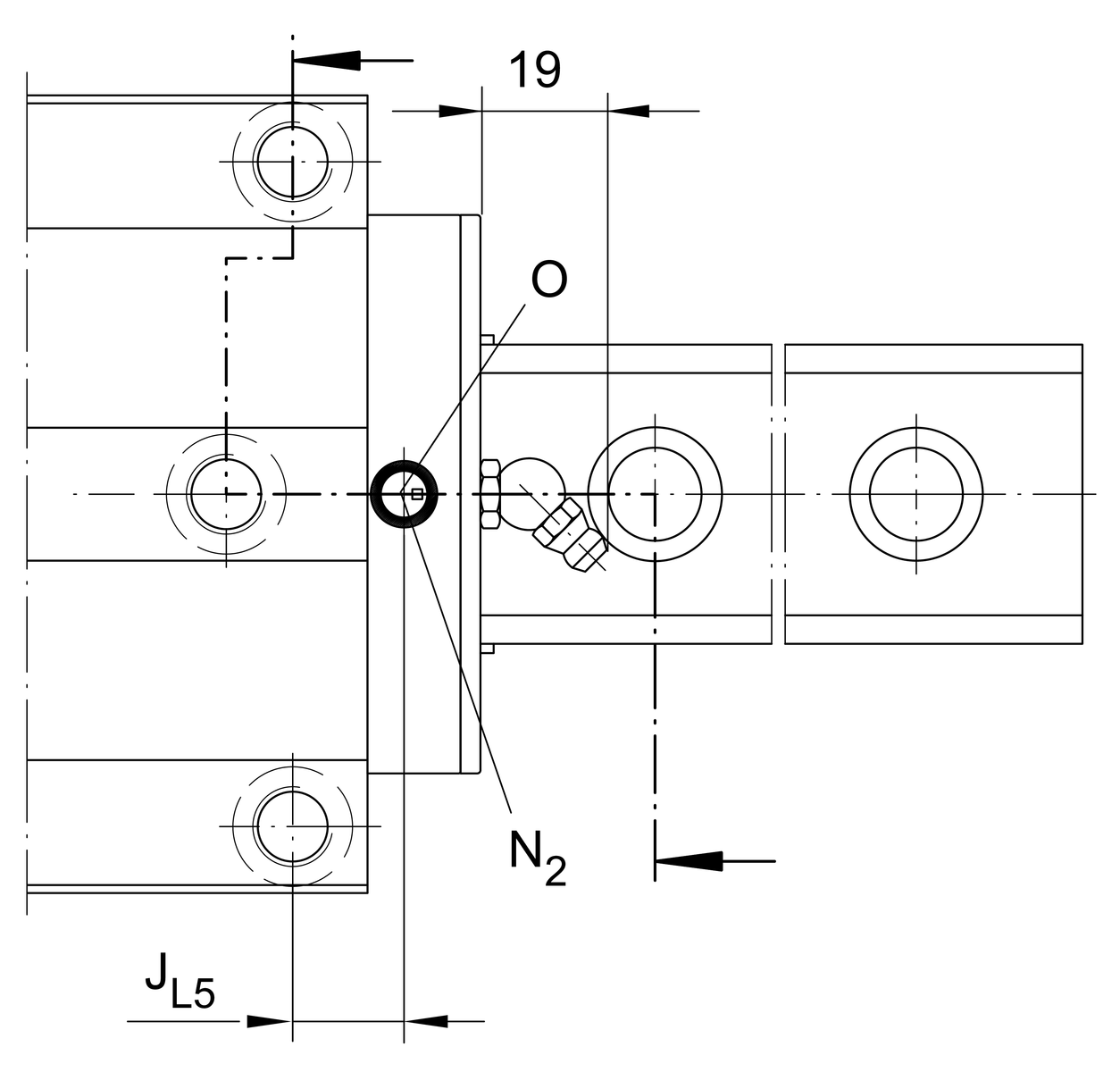

| N2 max | 6 mm | |
| JL5 | 33.45 mm | |

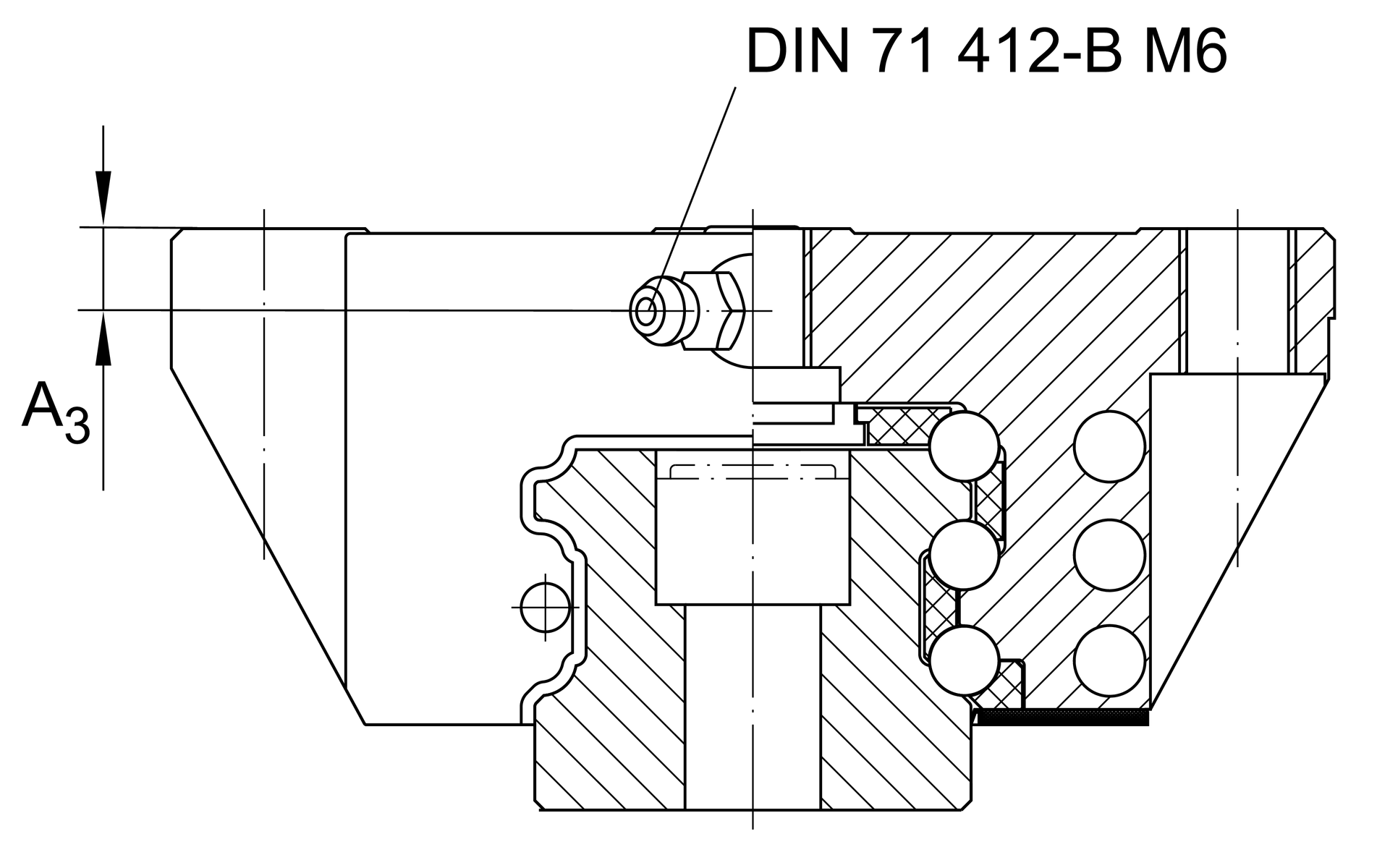

| A3 | 8.5 mm | |
| O | 7x1,5 | O-Ring DIN 3771 |
Main dimensions
| Imax | 5,835 mm | Max length single piece guideway |
| H | 60 mm | height system |
| B | 120 mm | width carriage |
| L | 174.3 mm | overall length carriage 3 |
科技數據

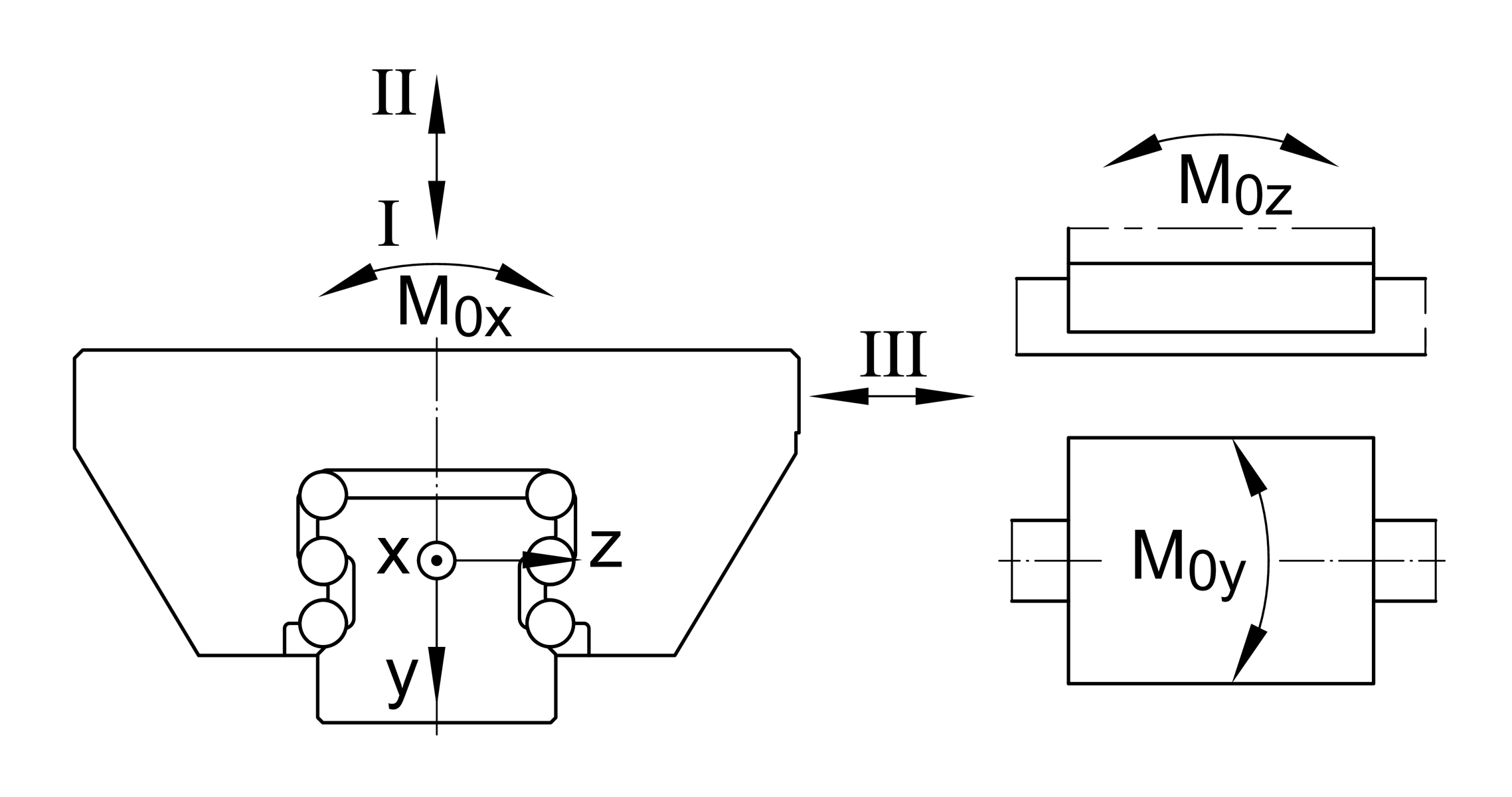

| I: C | 128,000 N | Load direction I: compressive load 4 |
| I: C0 | 291,500 N | Load direction I: compressive load 4 |
| II: C | 89,000 N | Load direction II: tensile load 4 |
| II: C0 | 159,000 N | Load direction II: tensile load 4 |
| III: C | 93,400 N | Load direction III: lateral load 4 |
| III: C0 | 168,000 N | Load direction III: lateral load 4 |
| M0x | 6,200 Nm | static moment rating about X axis |
| M0y | 4,050 Nm | static moment rating about Y axis |
| M0z | 3,650 Nm | static moment rating about Z axis |
Related products
KWSE45-L | Carriage | |
TKSD45 | Guideway |
您目前的產品型號
| Size code | 45 | |
| Carriage design | L | Long carriage |
