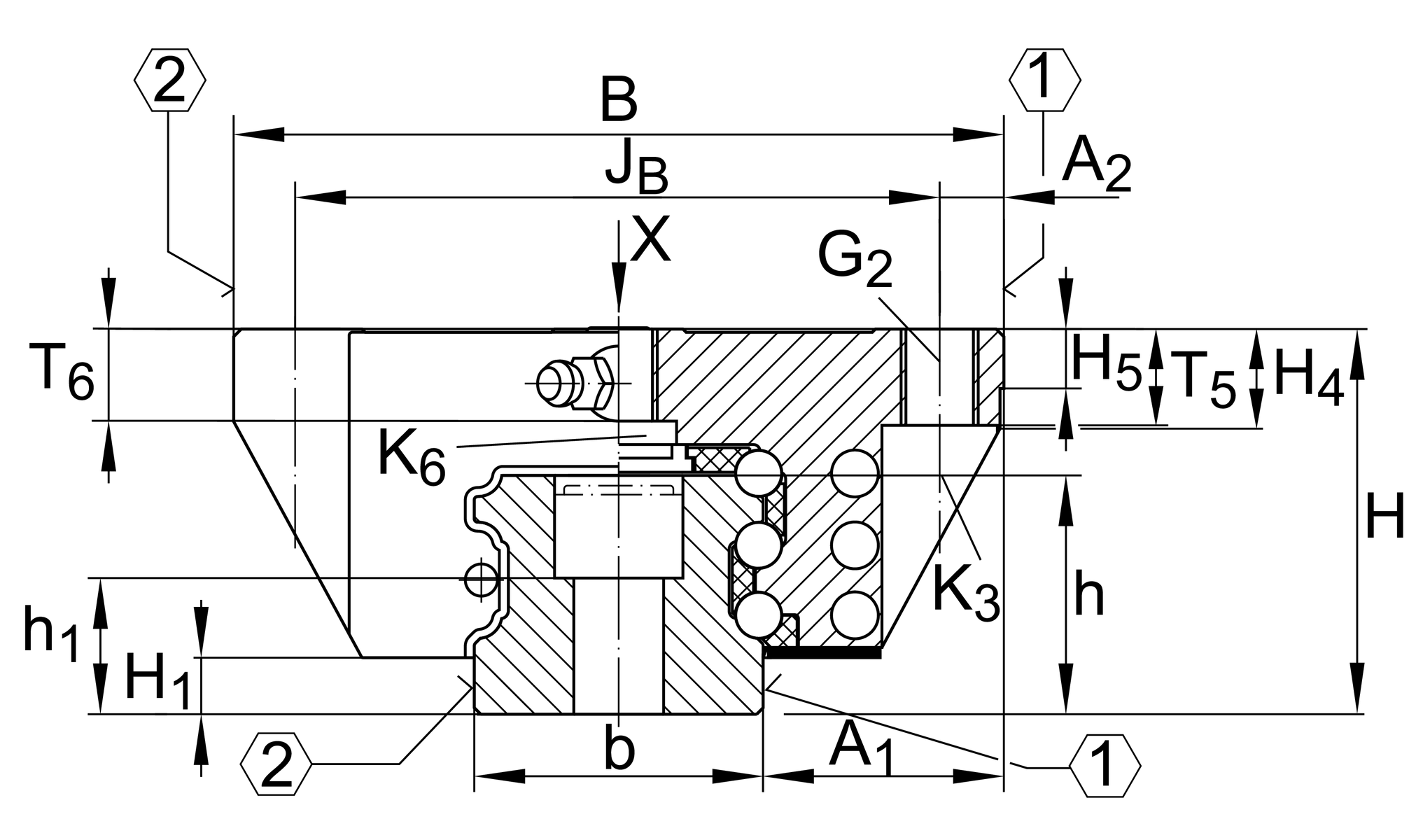

安裝尺寸
| A1 | 33 mm | |
| JB | 82 mm | |
| b | 34 mm | width rail |
| Tolb | -0.005 mm | 公差上限 |
| Tolb | -0.03 mm | 較低的公差 |
| A2 | 9 mm | |

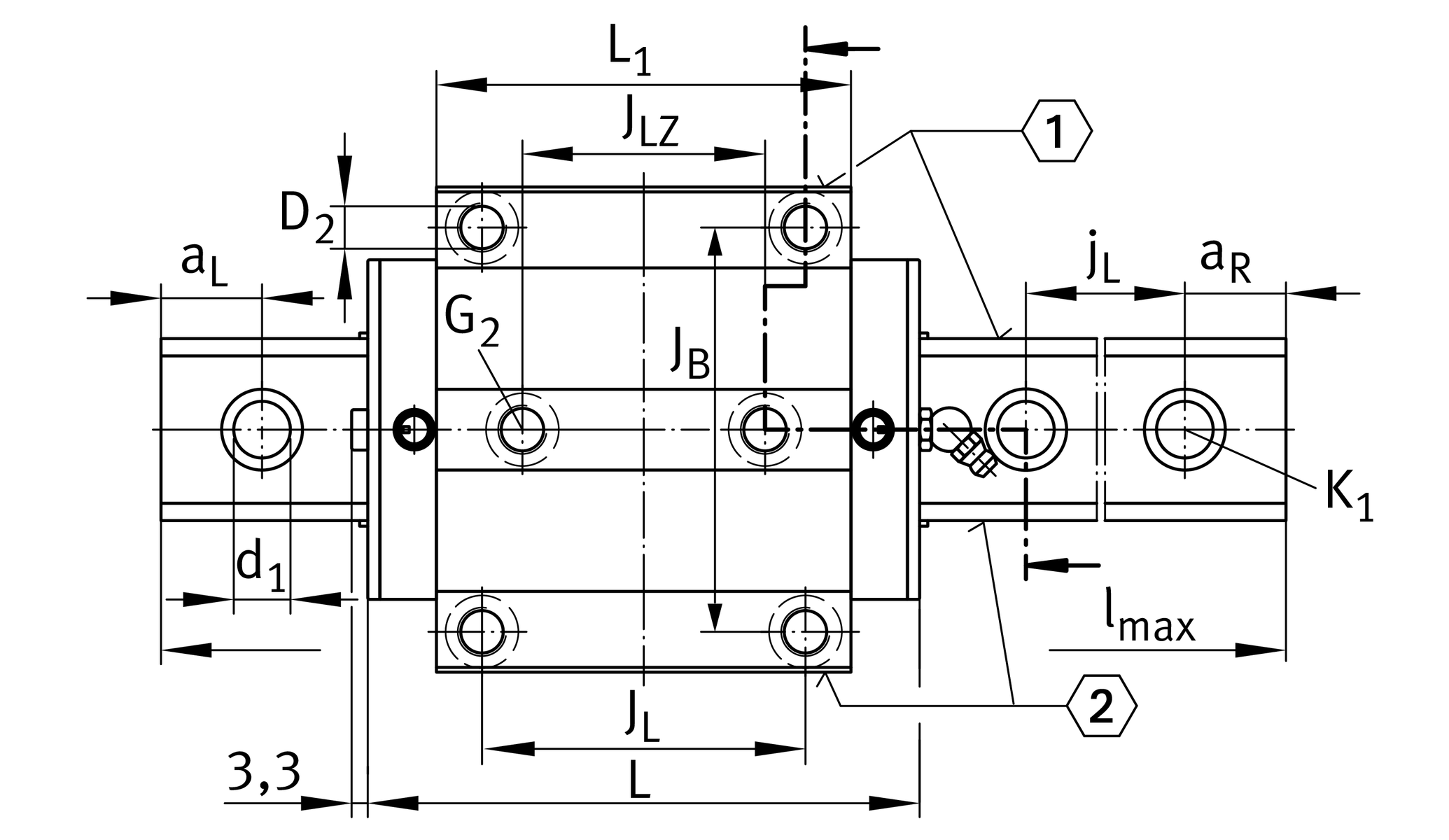

| L1 | 78.3 mm | |
| JL | 62 mm | |
| JLZ | 52 mm | |
| jL | 80 mm | |
| aL min | 20 mm | 1 |
| aL max | 71 mm | 1 |
| aR min | 20 mm | 1 |
| aR max | 71 mm | 1 |
| H1 | 6.6 mm | |
| H4 | 13.3 mm | |
| H5 | 6.5 mm | |
| T5 | 13 mm | |
| T6 | 12 mm | |
| h | 29.7 mm | |
| h1 | 17.2 mm | |
| Tol h1 | 0.5 mm | 公差上限 |
| Tol h1 | -0.5 mm | 距離 距離 |
| G2 | M10 | fixing screws |
| G2 MA | 41 Nm | maximum tightening torque |
| K1 | M8 | fixing screws |
| K1 MA | 41 Nm | maximum tightening torque 2 |
| K3 | M8 | fixing screws |
| K3 MA | 41 Nm | maximum tightening torque 2 |
| K6 | M8 | fixing screws |
| K6 MA | 24 Nm | maximum tightening torque 2 |
| d1 | 9 mm | |
| D2 | 8.6 mm | |

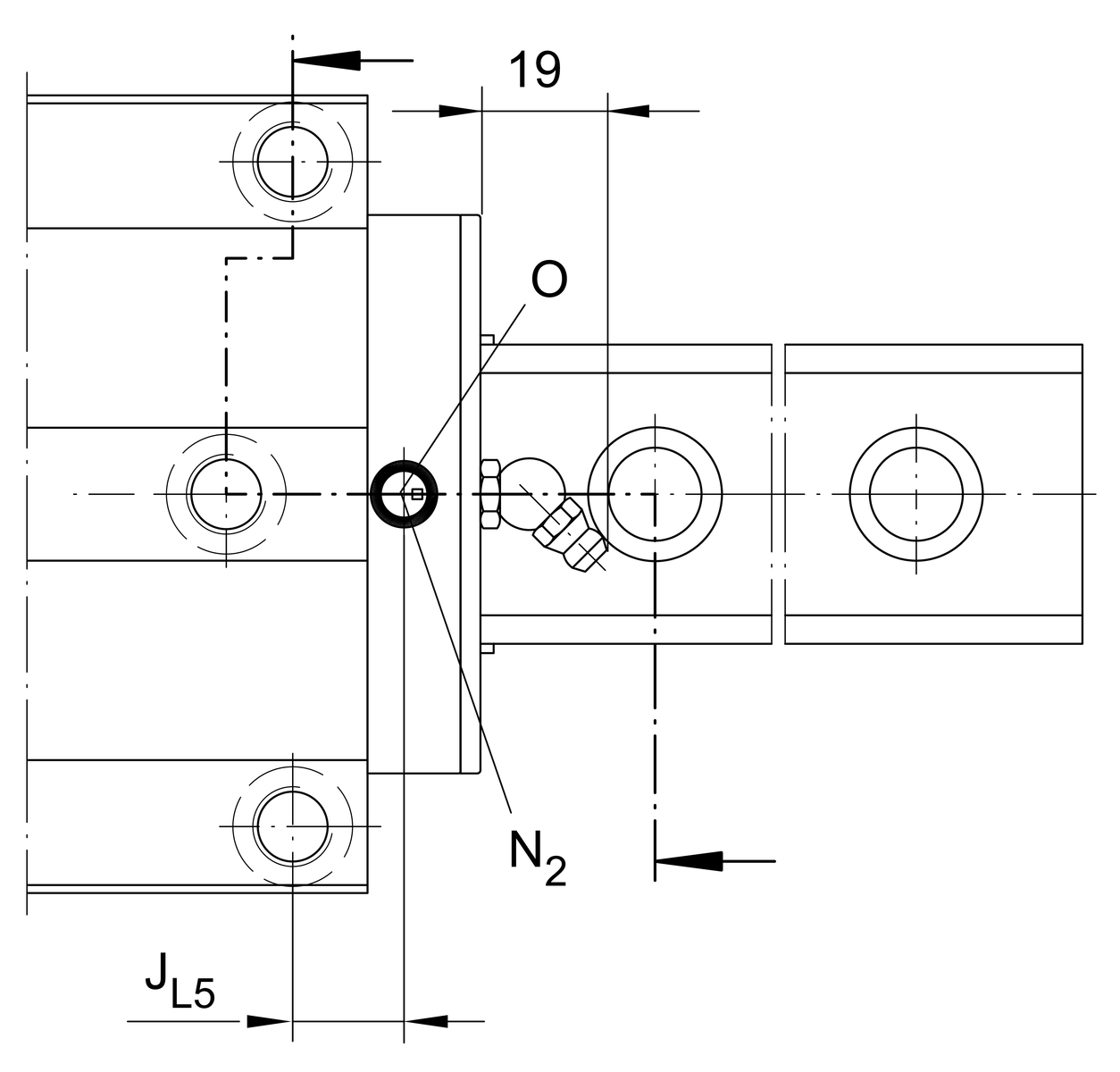

| N2 max | 4.5 mm | |
| JL5 | 11.93 mm | |

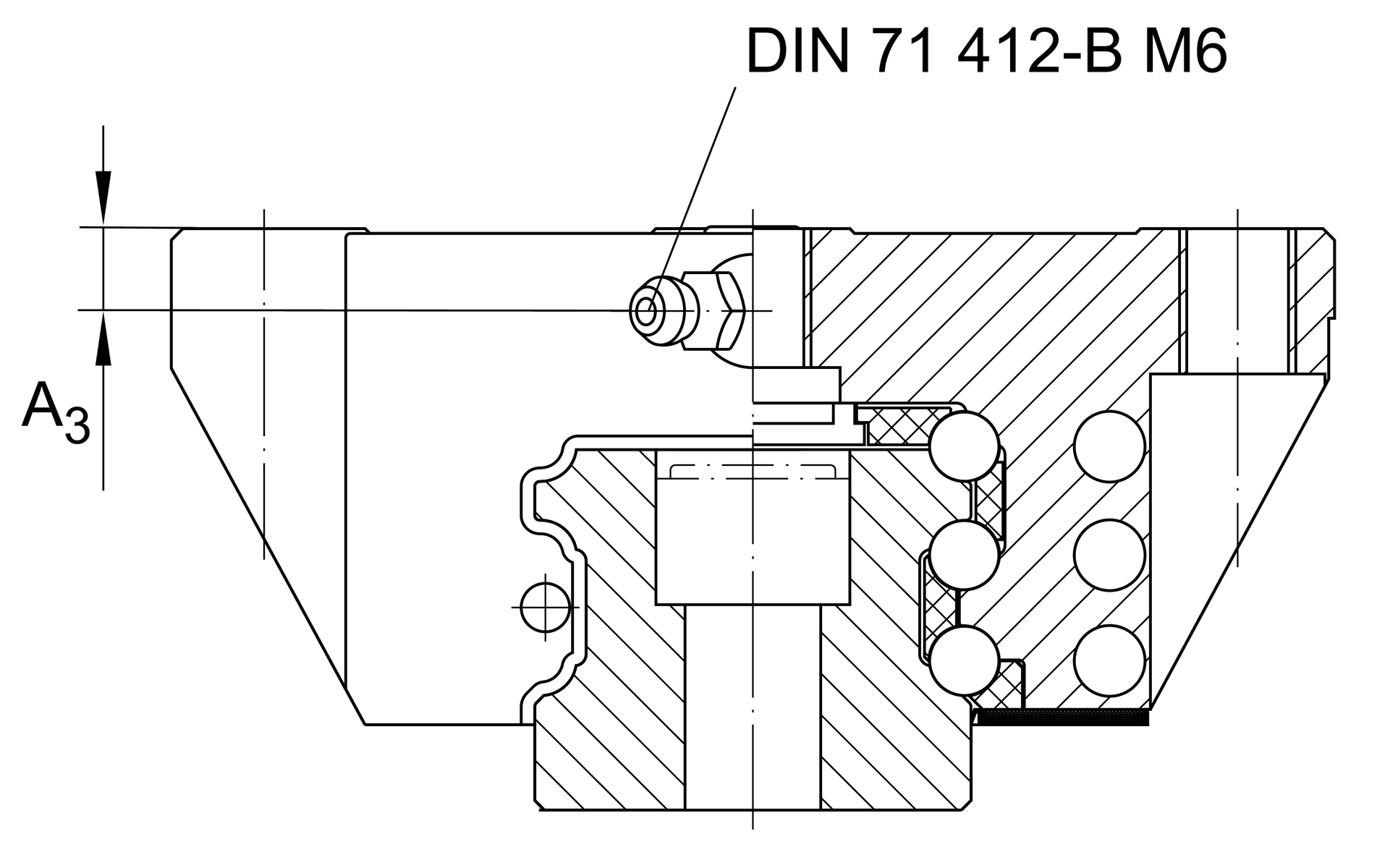

| A3 | 7.2 mm | |
| O | 4,5x1,5 | O-Ring DIN 3771 |
Main dimensions
| Imax | 5,860 mm | Max length single piece guideway |
| H | 48 mm | height system |
| B | 100 mm | width carriage |
| L | 107.2 mm | overall length carriage 3 |
科技數據

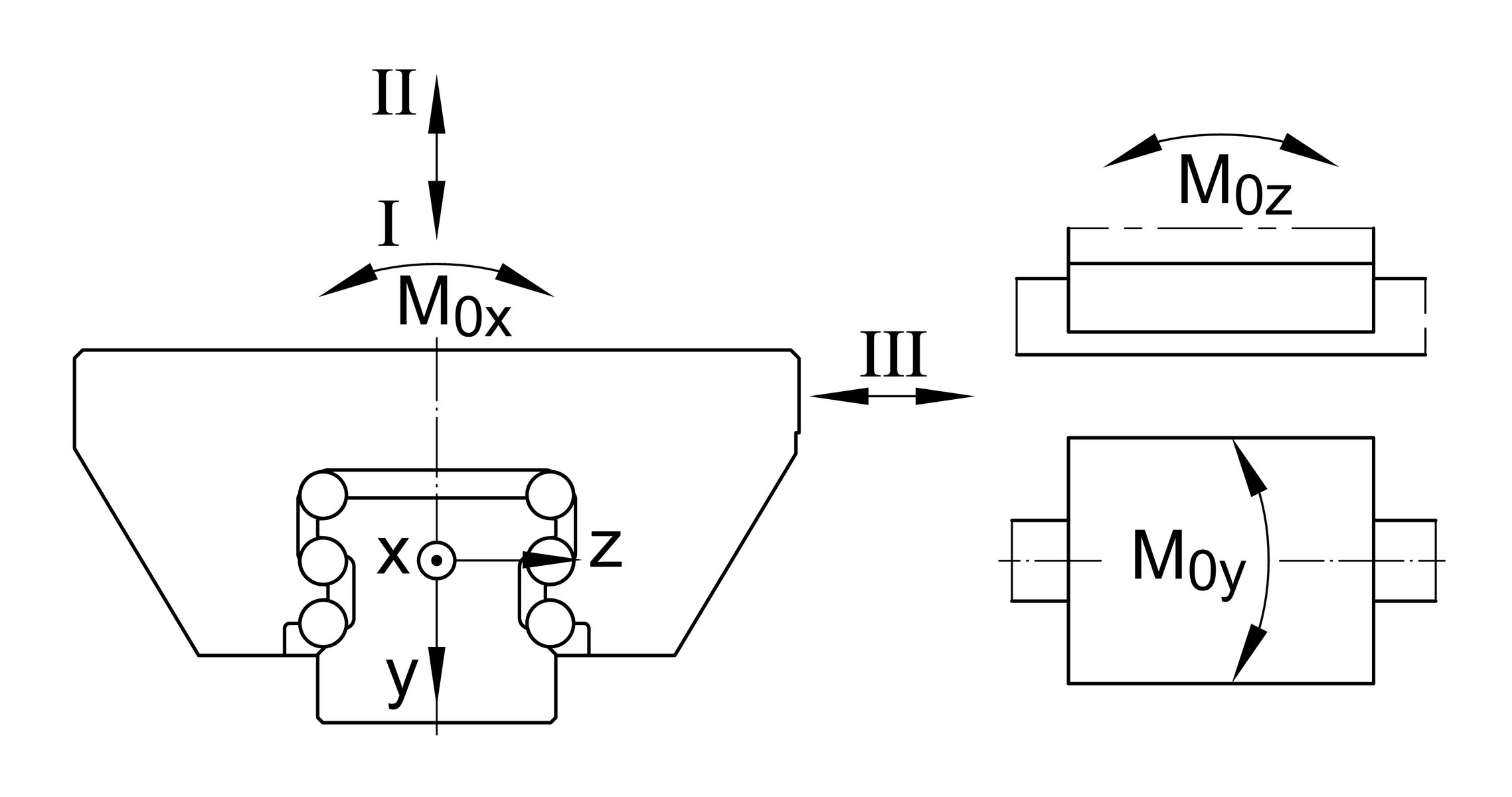

| I: C | 76,100 N | Load direction I: compressive load 4 |
| I: C0 | 150,000 N | Load direction I: compressive load 4 |
| II: C | 53,300 N | Load direction II: tensile load 4 |
| II: C0 | 82,400 N | Load direction II: tensile load 4 |
| III: C | 56,600 N | Load direction III: lateral load 4 |
| III: C0 | 89,150 N | Load direction III: lateral load 4 |
| M0x | 2,300 Nm | static moment rating about X axis |
| M0y | 1,300 Nm | static moment rating about Y axis |
| M0z | 1,140 Nm | static moment rating about Z axis |
Related products
KWSE35 | Carriage | |
TKSD35 | Guideway |
您目前的產品型號
| Size code | 35 |
