KUME12-C

Ball monorail guidance system KUME12-C

加入詢價

主要尺寸與性能資料

H	13 mm	Height system
B	27 mm	Width carriage
L	35.8 mm	Overall length carriage

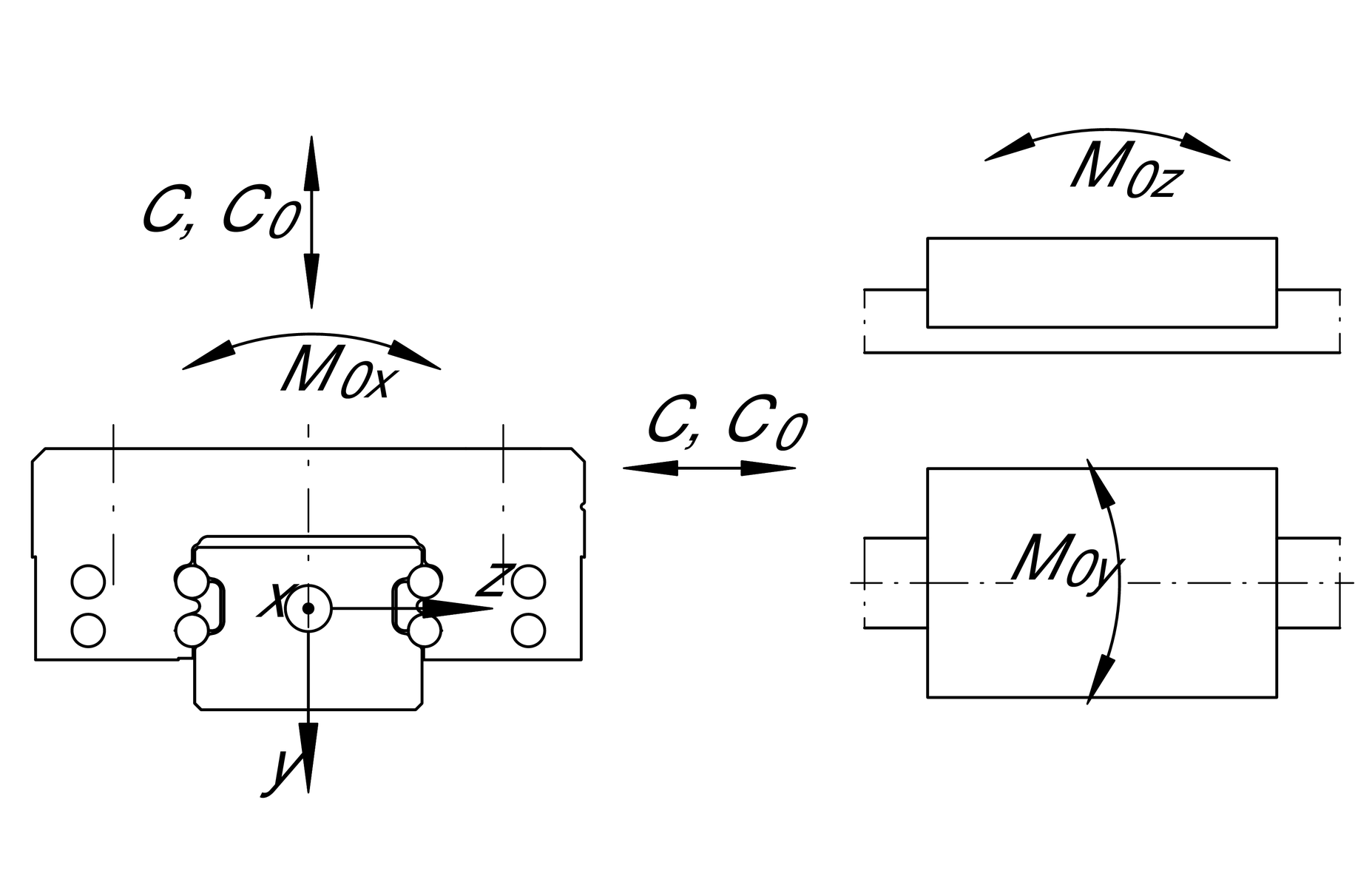

C	2,900 N	Dynamic load rating
C₀	5,200 N	Static load rating
M_0x	33 Nm	Static moment rating about X axis
M_0y	17 Nm	Static moment rating about Y axis
M_0z	17 Nm	Static moment rating about Z axis

安裝尺寸

G₂	M3	Fixing screws ¹
G2 M_A	2.2 Nm	Maximum tightening torque
K₁	M3	Fixing screws ¹
K1 M_A	2.2 Nm	Tightening torque

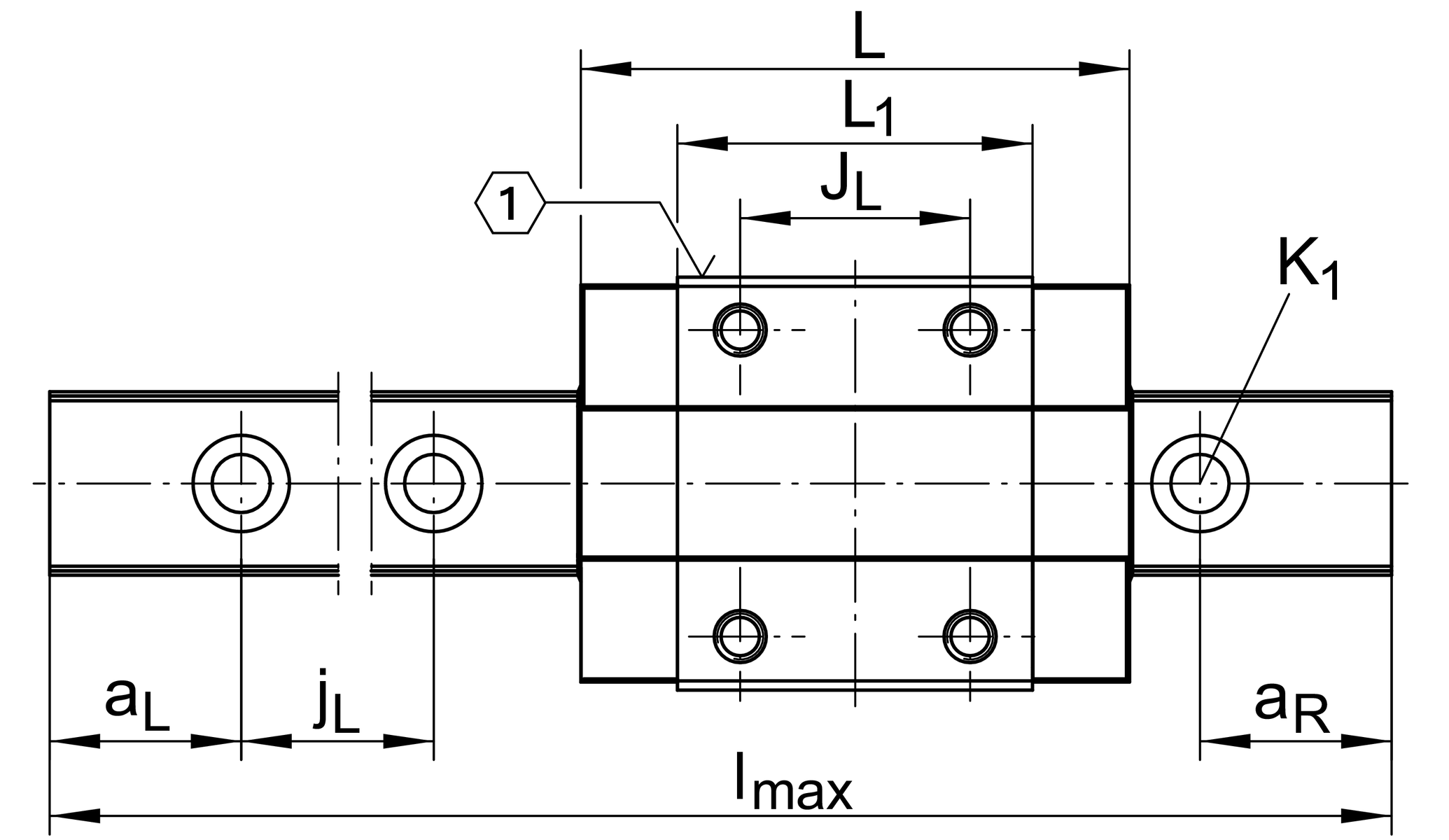

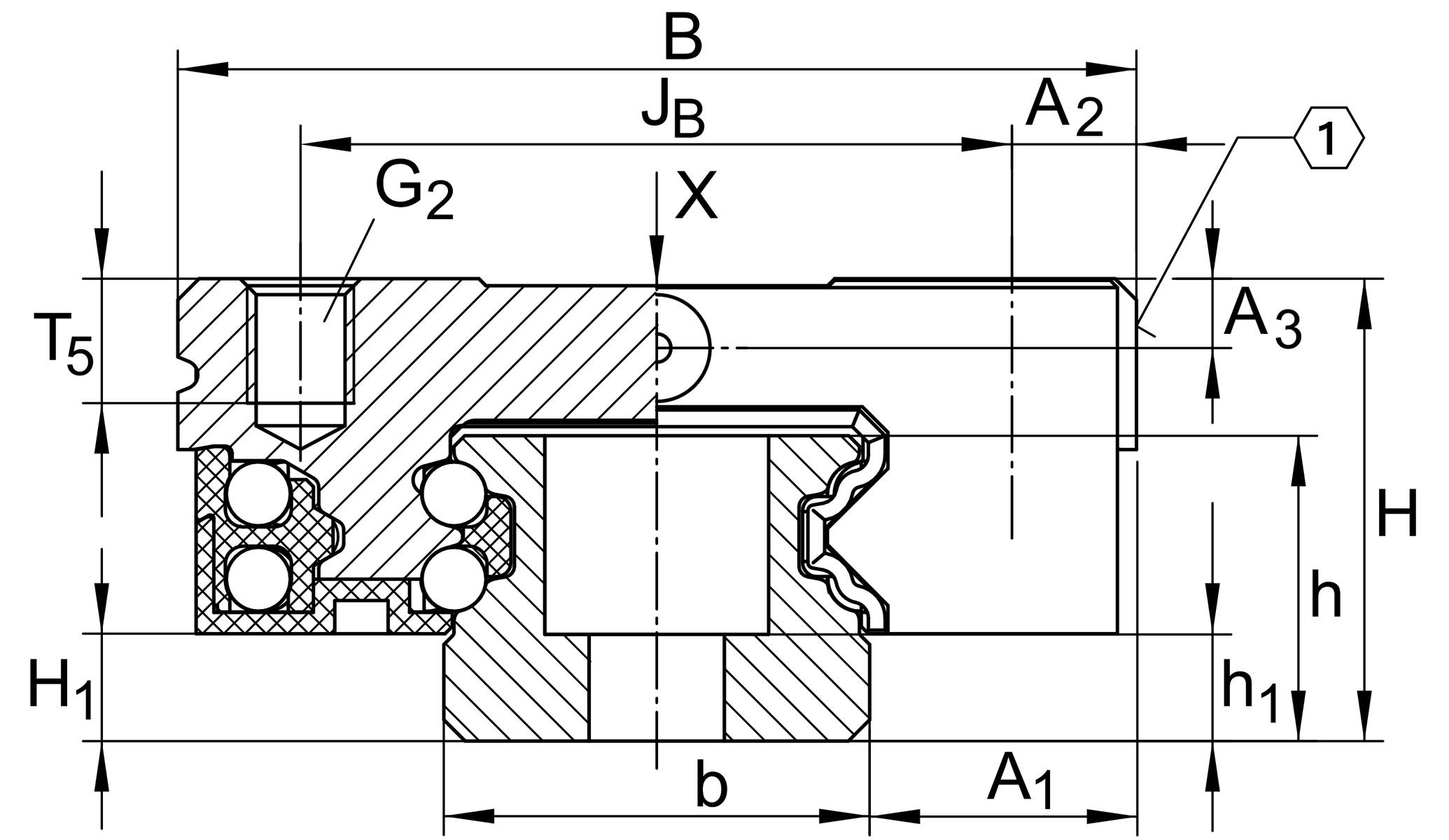

尺寸

A₁	7.5 mm	Distance
A₂	3.5 mm	Distance
A₃	1.95 mm	Position lubrication connector
a_{L max}	20 mm	Distance ²
a_{L min}	5 mm	Distance ²
a_{R max}	20 mm	Distance ²
a_{R min}	5 mm	Distance ²
b	12 mm	Width rail
H₁	3 mm	Distance
h	8.6 mm	高度
h₁	3 mm	長度
J_B	20 mm	Mounting dimension
J_L	15 mm	Mounting dimension
j_L	25 mm	增量
L₁	23.2 mm	Carrier length
l_max	1,000 mm	Length maximum ³
T₅	3.5 mm	螺紋長度

您目前的產品型號

Size code	12
Version	C
