安裝尺寸
6.6 mm | 內徑 sensor SRMH | |
29 mm | Bore pitch width sensor SRMH | |
| ≈m | 38 g | 重量 |
Main dimensions
48.5 mm | Length SRMH total | |
35 mm | Length SRMH excluding plugs | |
25 mm | Length SRMH 圓柱 軸承座 | |

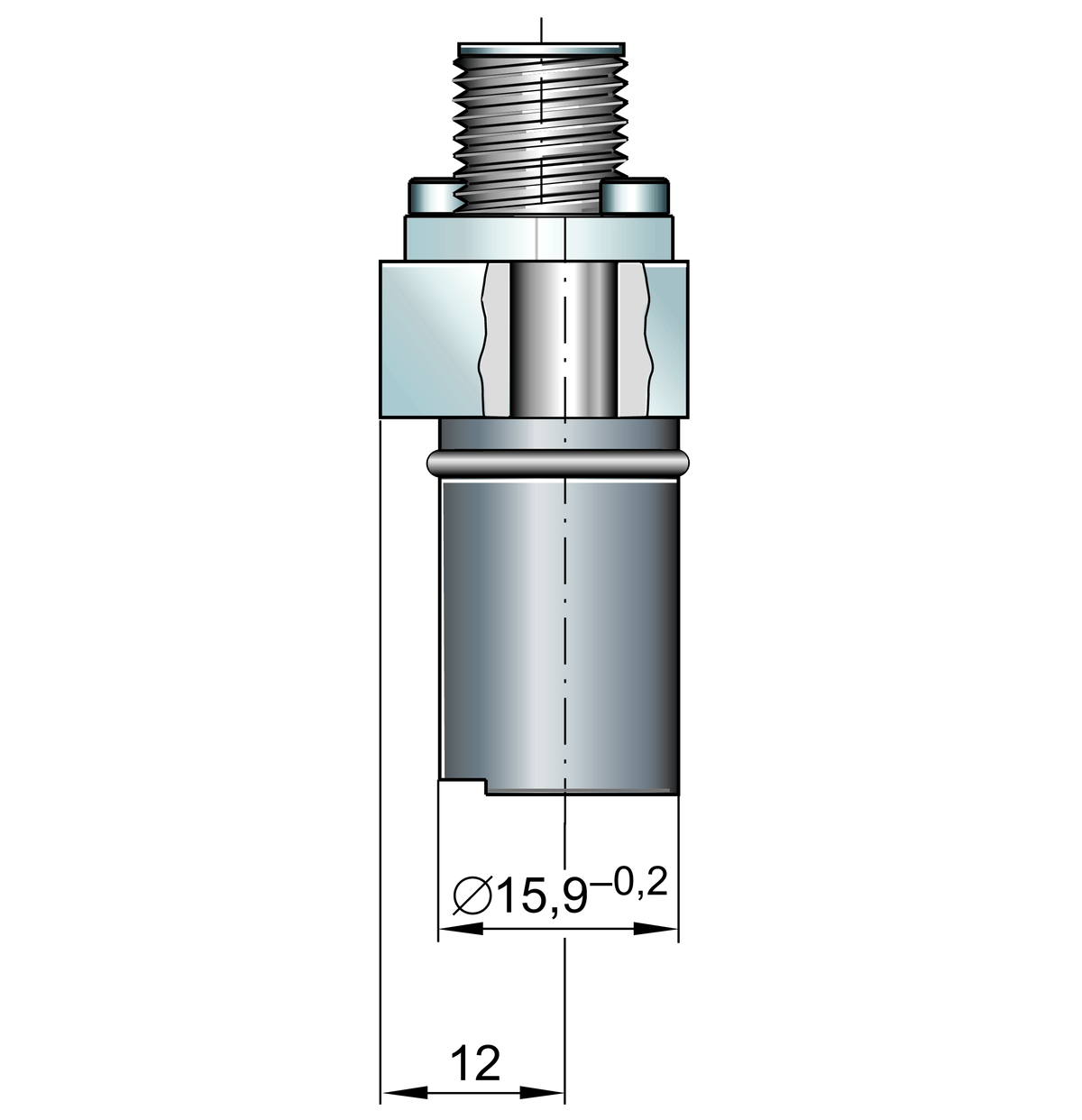

15.9 mm | Diameter sensor 軸承座 SRMH | |

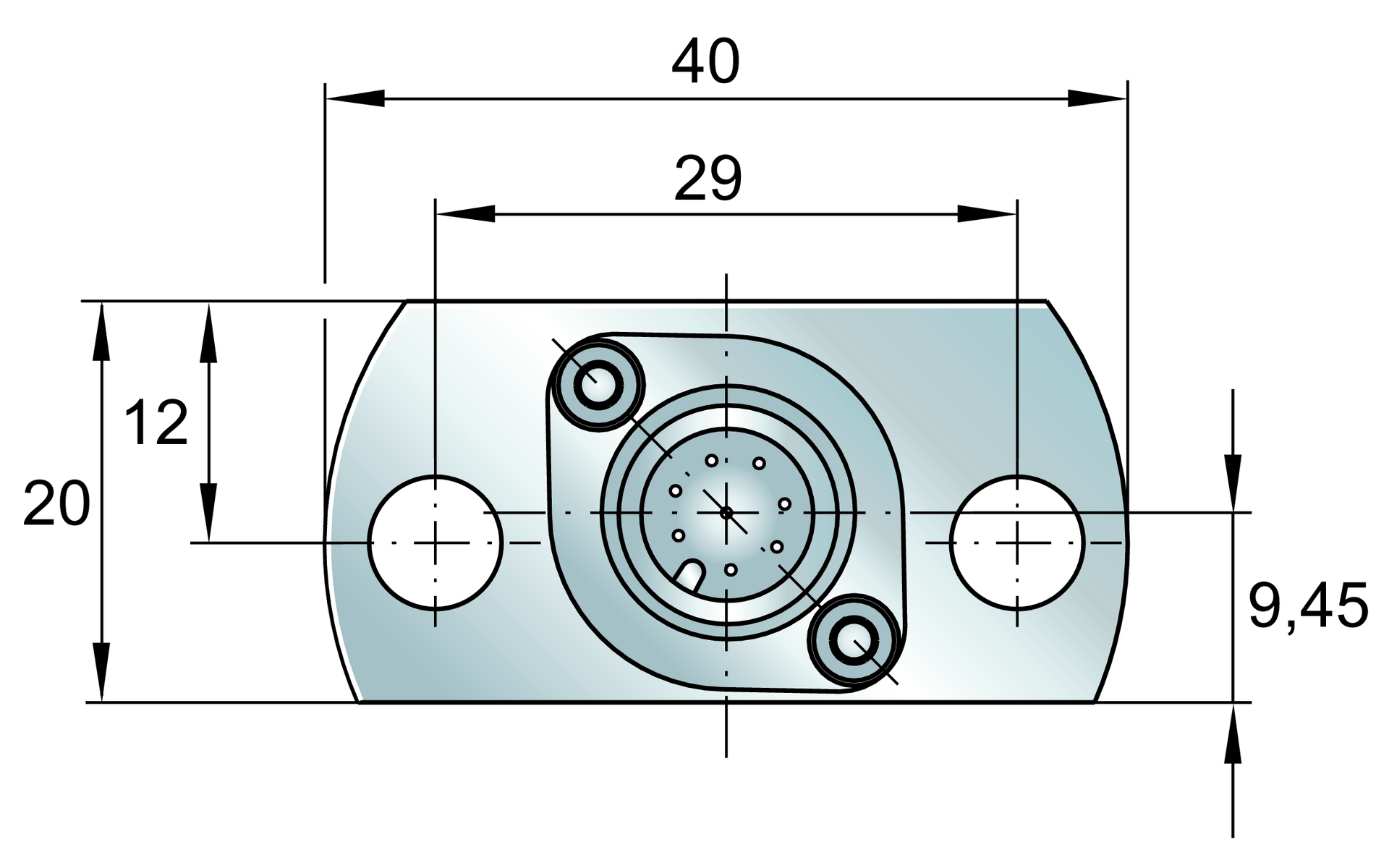

40 mm | Flange length sensor SRMH | |
20 mm | 法蘭寬度 sensor SRMH |
溫度範圍
70 °C | Operating temperature max | |
IP67 | Ingress protection | |
0 °C | Operating temperature min |
附加資訊
yellow | Colour | |
ISO4762 M6x20-8.8 | Cylinder head screws SRMH | |
10 Nm | Bolting torque max | |
9 Nm | Bolting torque min |
