Digital Output
SIN COS 1Vpp + reference signal | Electronic interface | |
| ≈m | 450 g | 重量 |
Power Supply
5 Vdc | Supply voltage | |
280 mA | Current consumption |

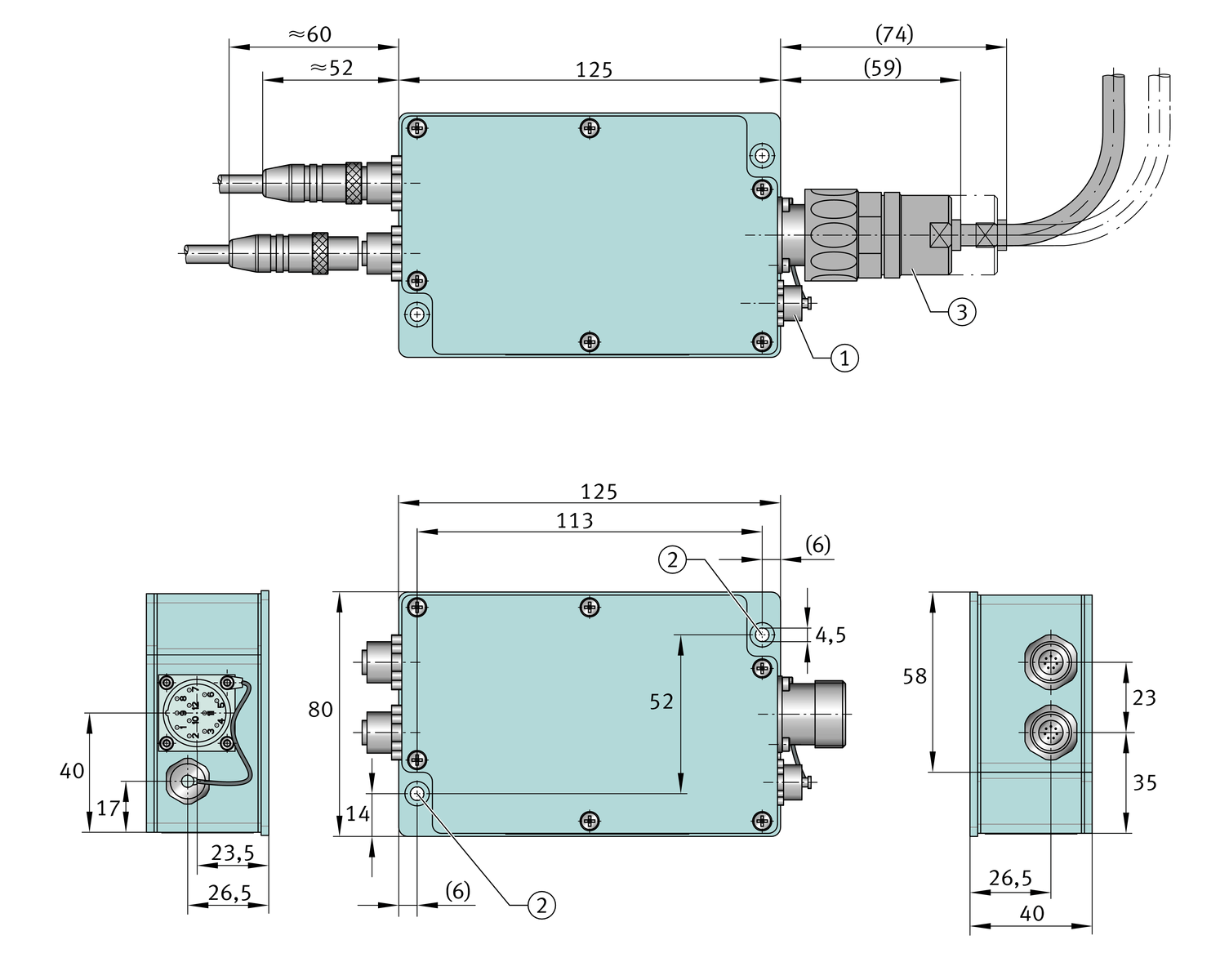

Main dimensions
125 mm | Length SRMB exclud plugs | |
80 mm | Width SRMB | |
40 mm | Height SRMB | |
236 mm | Length SRMB total |
溫度範圍
70 °C | Operating temperature max | |
IP 65 | Ingress protection | |
0 °C | Operating temperature min |
附加資訊
ISO4762 M4X10-8.8 | Cylinder head screws SRMB |
Cable
M23x1 | Thread plug connector | |
12 | Number pins plug connector |
