主要尺寸與性能資料
| H | 77 mm | Total Height |
| B1 | 180 mm | Total Width |
| L | 180 mm | Length of carriage |

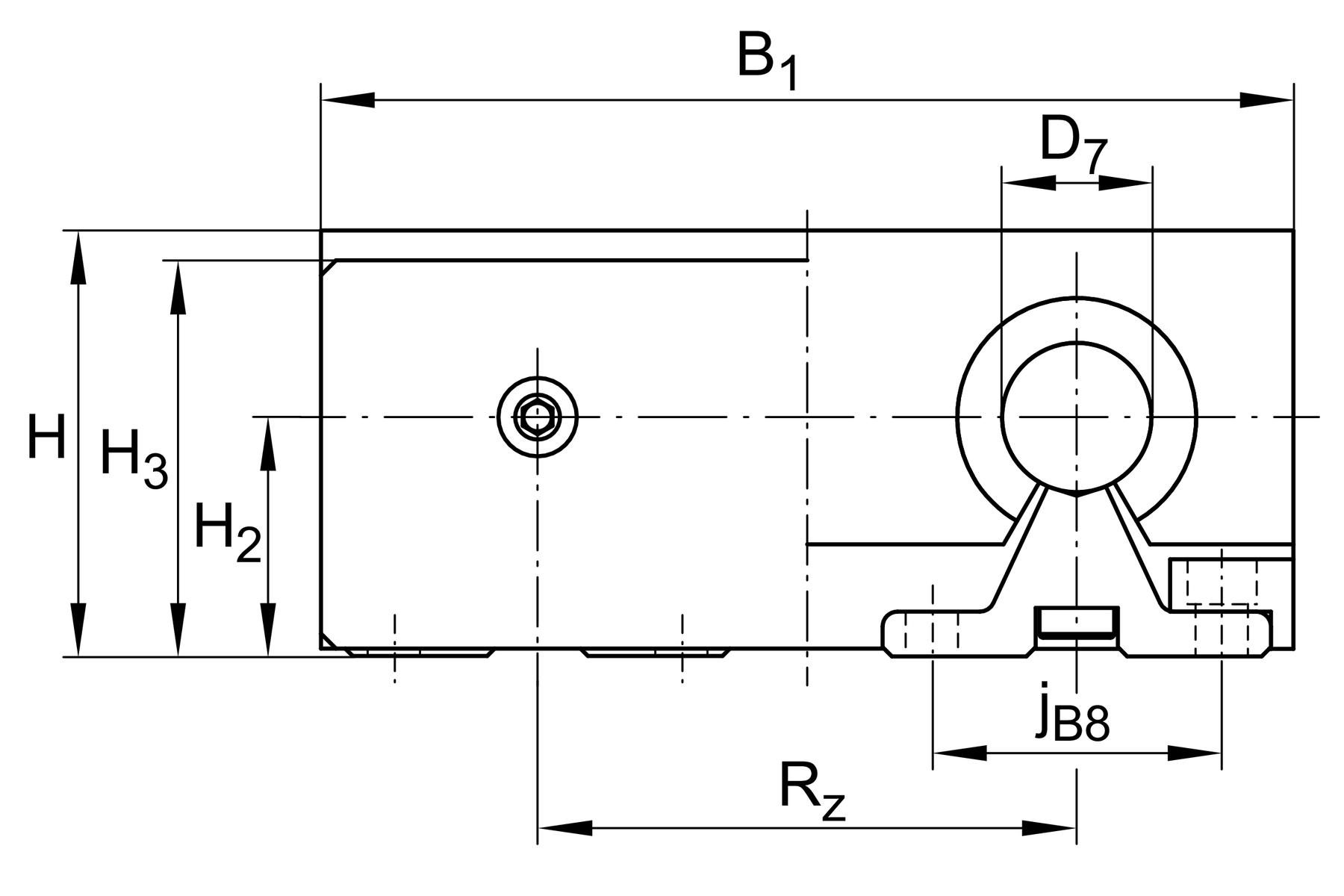

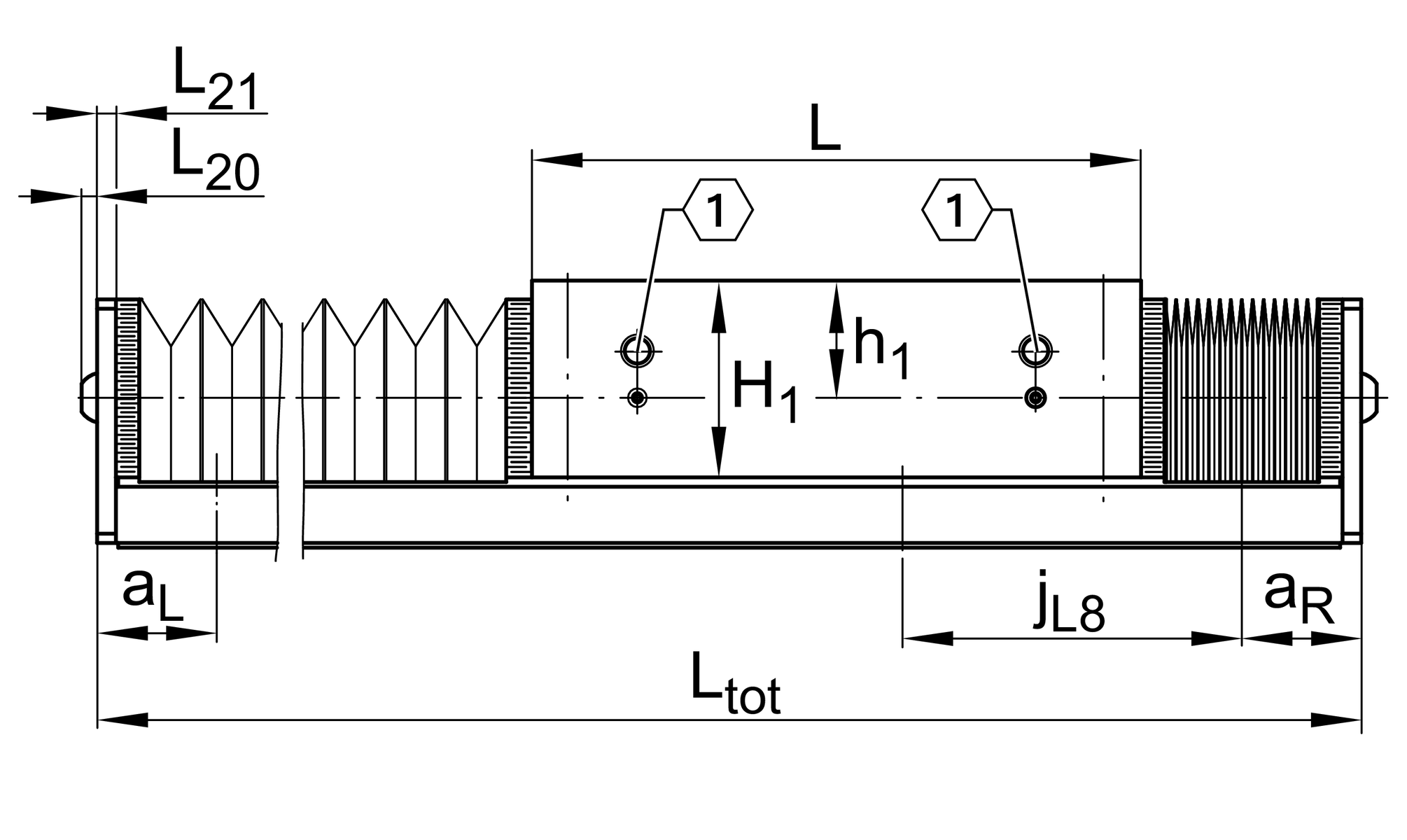

安裝尺寸
| D7 | 30 mm | Tolerance h7 |
| D8 | 9 mm | |
| H1 | 60 mm | Height of carriage |
| H12 | 16 mm | |
| H2 | 42 mm | |
| H3 | 71 mm | |
| JB43 | 158 mm | |
| jB8 | 51 mm | |
| jL8 | 150 mm | |
| K43 | M10 | |
| L20 | 4.4 mm | |
| L21 | 4 mm | |
| Ltot | 5,400 mm | maximum length |
| Rx | 98.6 mm | |
| S | 15 mm | |
| T8 | 7.5 mm | |
| t43 | 26 mm | Depth of Thread |
| BB | 29 mm | Length of Bellows Fastener |
| FBL | 1.26 mm | Effective length factor of bellow |
| G43 | M12 | 線 |
| JL43 | 158 mm |
尺寸
| H7 | 7 mm | |
| h1 | 35 mm | |
| Rz | 96 mm |
科技數據
| mLAW | 4.4 kg | Mass of Carriage |
| vmax | 5 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |
| CI | 9,760 N | Load direction I: compressive load |
| C0I | 12,000 N | Load direction I: compressive load |
| CII | 5,930 N | Load direction II: tensile load |
| C0II | 7,600 N | Load direction II: tensile load |
| CIII | 8,970 N | Load direction III: lateral load |
| C0III | 10,700 N | Load direction III: lateral load 1 |
| M0x | 340 Nm | Max. permissible static moment per Carriage 2 |
| M0y | 450 Nm | Max. permissible static moment per Carriage 2 |
| M0z | 345 Nm | Max. permissible static moment per Carriage 2 |
附加資訊
KBO30-PP-AS | Bearing 1 |
溫度範圍
| min | 0 °C | Minimum operating Temperatur |
| max | 80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 30 | |
| Drive type | OA | 沒有 drive |
| Length of carriage | 180 | 180 mm |
| Bellow | 1 | Yes |
