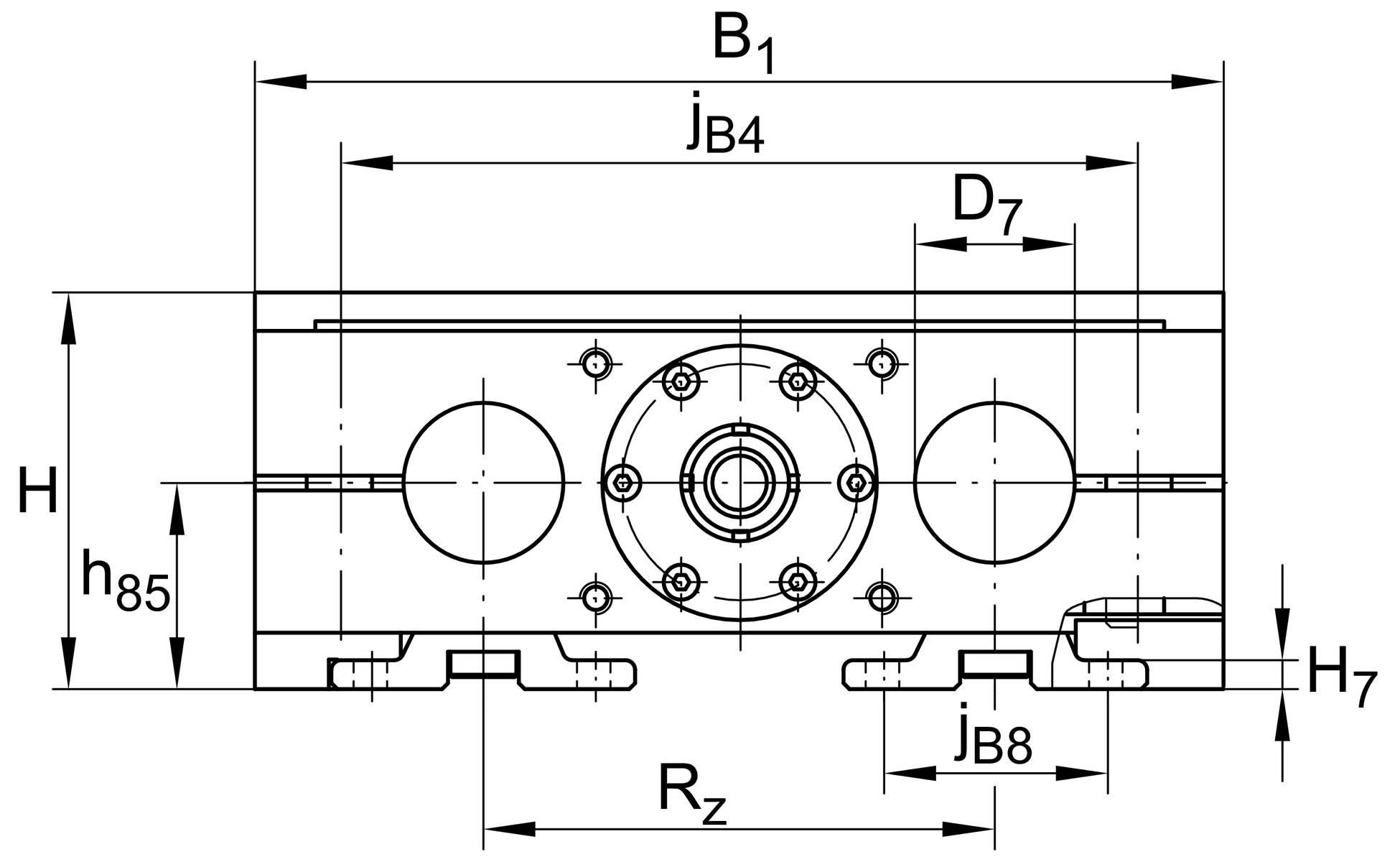

主要尺寸與性能資料
| H | 66 mm | Total Height |
| B1 | 160 mm | Total Width |
| L | 160 mm | Length of carriage |

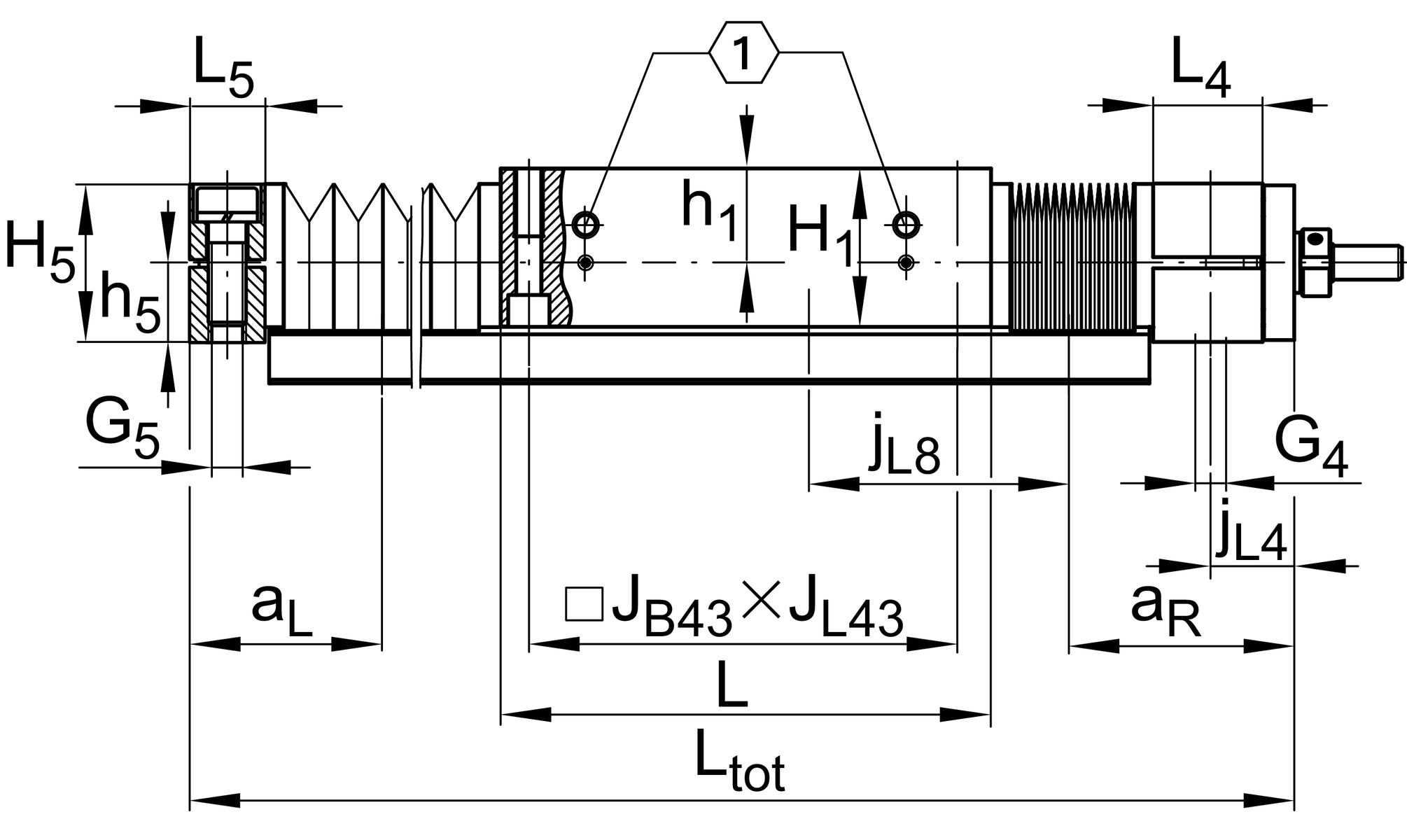

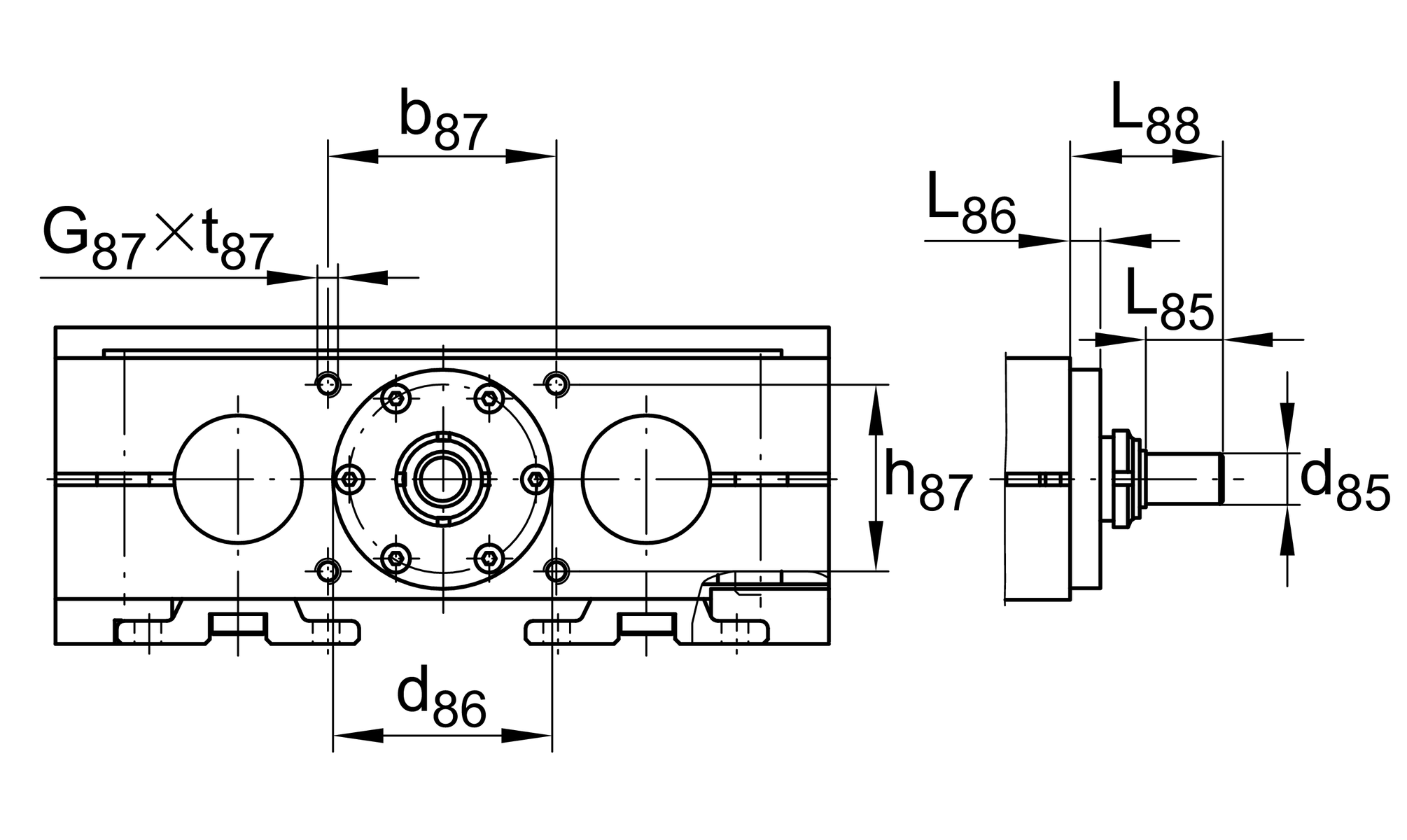

安裝尺寸
| D7 | 25 mm | Tolerance h7 |
| D8 | 6.6 mm | |
| H1 | 51 mm | Height of carriage |
| H12 | 14 mm | |
| JB43 | 140 mm | |
| jB8 | 42 mm | |
| jL8 | 120 mm | |
| K43 | M8 | |
| Ltot | 4,400 mm | maximum length |
| Rx | 88.6 mm | |
| S | 5 mm | Safety distance |
| S | 11 mm | |
| T8 | 6.1 mm | |
| t43 | 22 mm | Depth of Thread |
| t87 | 15 mm | Depth of Thread |
| BB | 21 mm | Length of Bellows Fastener |
| FBL | 1.34 mm | Effective length factor of bellow |
| b87 | 64 mm | Tolerance ±0,2 |
| d85 | 9 mm | Diameter drive shaft, Tolerance h7 1 |
| d86 | 52 mm | Tolerance g7 |
| G4 | M12 | 線 |
| G5 | M12 | 線 |
| G87 | M6 | 線 |
| G43 | M10 | 線 |
| h5 | 26 mm | |
| h85 | 36 mm | |
| h87 | 38 mm | Tolerance ±0,2 |
| JL43 | 140 mm | |
| jB4 | 132 mm | |
| JL4 | 12.5 mm |
尺寸
| H7 | 6 mm | |
| h1 | 30 mm | |
| L4 | 33 mm | Length of Shaft Support Block with Drive System |
| L5 | 25 mm | Length of Shaft Support Block 沒有 drive System |
| L88 | 34.5 mm | |
| L86 | 7 mm | |
| Rz | 88 mm | |
| H5 | 52 mm | Height of Shaft Support Blocks |
科技數據
| mLAW | 2.9 kg | Mass of Carriage |
| vmax | 0.25 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |
| d0 | 16 mm | ø Spindle |
| P | 5 mm | Spindle Pitch |
| Is | 0.313 kg*cm2 | 質量慣性矩 of threaded Spindle |
| CI | 7,520 N | Load direction I: compressive load |
| C0I | 9,200 N | Load direction I: compressive load |
| CII | 4,550 N | Load direction II: tensile load |
| C0II | 6,000 N | Load direction II: tensile load |
| CIII | 6,930 N | Load direction III: lateral load |
| C0III | 8,200 N | Load direction III: lateral load 2 |
| C | 9,300 N | Load capacity Spindle Nut dyn 3 |
| C0 | 13,100 N | Load capacity Spindle Nut stat 4 |
| Ca | 13,400 N | Load capacity fixed Spindle bearing dyn |
| C0a | 18,800 N | Load capacity fixed Spindle bearing stat |
| M0x | 240 Nm | Max. permissible static moment per Carriage 4 |
| M0y | 312 Nm | Max. permissible static moment per Carriage 4 |
| M0z | 240 Nm | Max. permissible static moment per Carriage 4 |
附加資訊
6 Nm | Max. permissible drive torque | |
ZKLN1034.2RS-PE | Rolling Bearings | |
0.05 mm | Repeat Accurancy ± | |
0.313 kg*cm2 | 質量慣性矩 of threaded Spindle | |
KBO25-PP-AS | Bearing 2 |
溫度範圍
| min | 0 °C | Minimum operating Temperatur |
| max | 80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 25 | |
| Drive type | KGT | Ball screw drive |
| Length of carriage | 160 | 160 mm |
| Spindle diameter | 16 | 16mm |
| Spindle pitch | 5 | 5 mm |
| Spindle nut design | M | Cylinder nut |
| Bellow | 1 | Yes |
