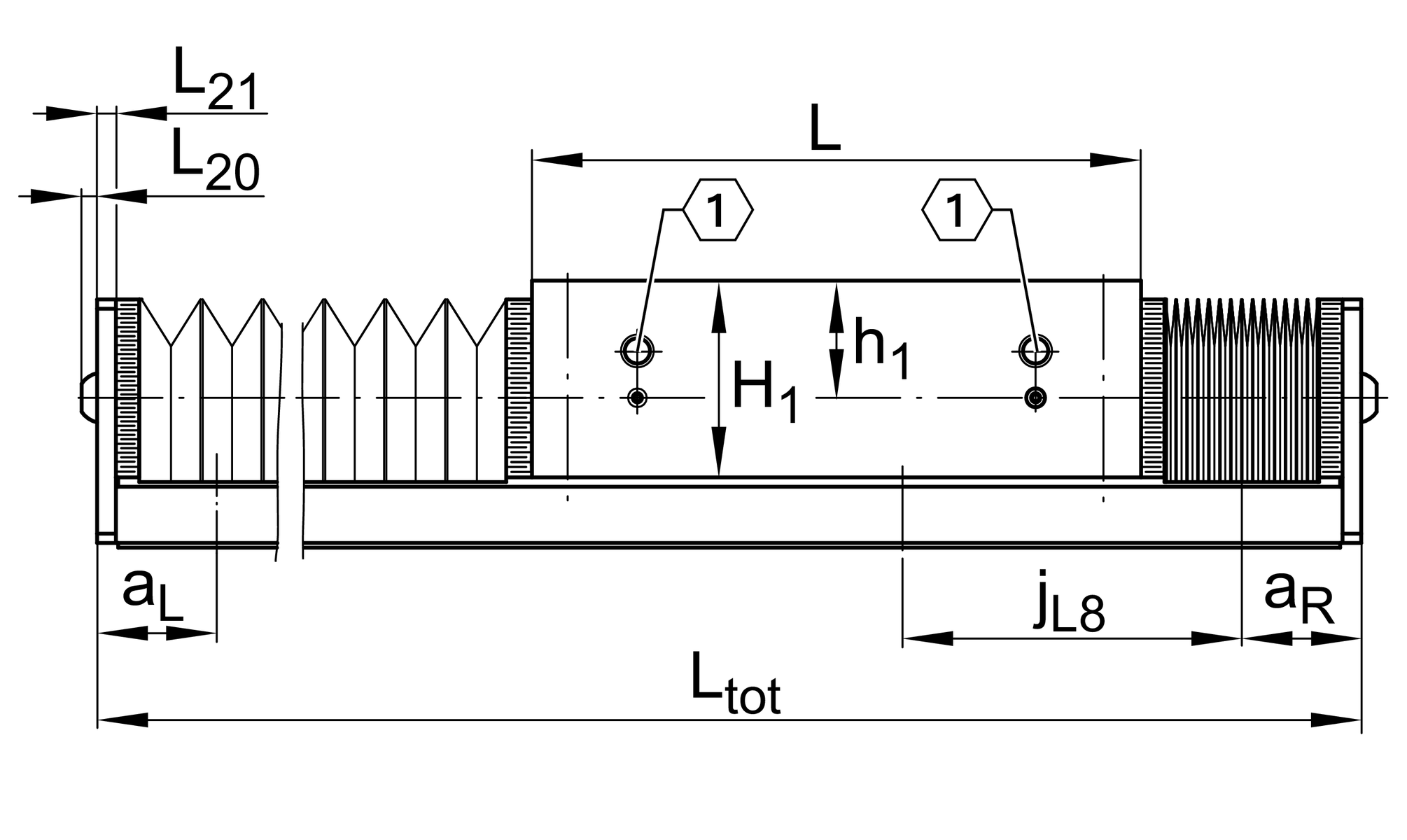

主要尺寸與性能資料
| H | 66 mm | Total Height |
| B1 | 160 mm | Total Width |
| L | 160 mm | Length of carriage |
安裝尺寸
| D7 | 25 mm | Tolerance h7 |
| D8 | 6.6 mm | |
| H1 | 51 mm | Height of carriage |
| H12 | 14 mm | |
| H2 | 36 mm | |
| H3 | 62 mm | |
| JB43 | 140 mm | |
| jB8 | 42 mm | |
| jL8 | 120 mm | |
| K43 | M8 | |
| L20 | 3.3 mm | |
| L21 | 4 mm | |
| Ltot | 4,400 mm | maximum length |
| Rx | 88.6 mm | |
| S | 11 mm | |
| T8 | 6.1 mm | |
| t43 | 22 mm | Depth of Thread |
| BB | 29 mm | Length of Bellows Fastener |
| FBL | 1.34 mm | Effective length factor of bellow |
| G43 | M10 | 線 |
| JL43 | 140 mm |
尺寸
| H7 | 6 mm | |
| h1 | 30 mm | |
| Rz | 88 mm |
科技數據
| mLAW | 3 kg | Mass of Carriage |
| vmax | 5 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |
| CI | 7,520 N | Load direction I: compressive load |
| C0I | 9,200 N | Load direction I: compressive load |
| CII | 4,550 N | Load direction II: tensile load |
| C0II | 6,000 N | Load direction II: tensile load |
| CIII | 6,930 N | Load direction III: lateral load |
| C0III | 8,200 N | Load direction III: lateral load 1 |
| M0x | 240 Nm | Max. permissible static moment per Carriage 2 |
| M0y | 312 Nm | Max. permissible static moment per Carriage 2 |
| M0z | 240 Nm | Max. permissible static moment per Carriage 2 |
附加資訊
KBO25-PP-AS | Bearing 1 |
溫度範圍
| min | 0 °C | Minimum operating Temperatur |
| max | 80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 25 | |
| Drive type | OA | 沒有 drive |
| Length of carriage | 160 | 160 mm |
| Bellow | 1 | Yes |
