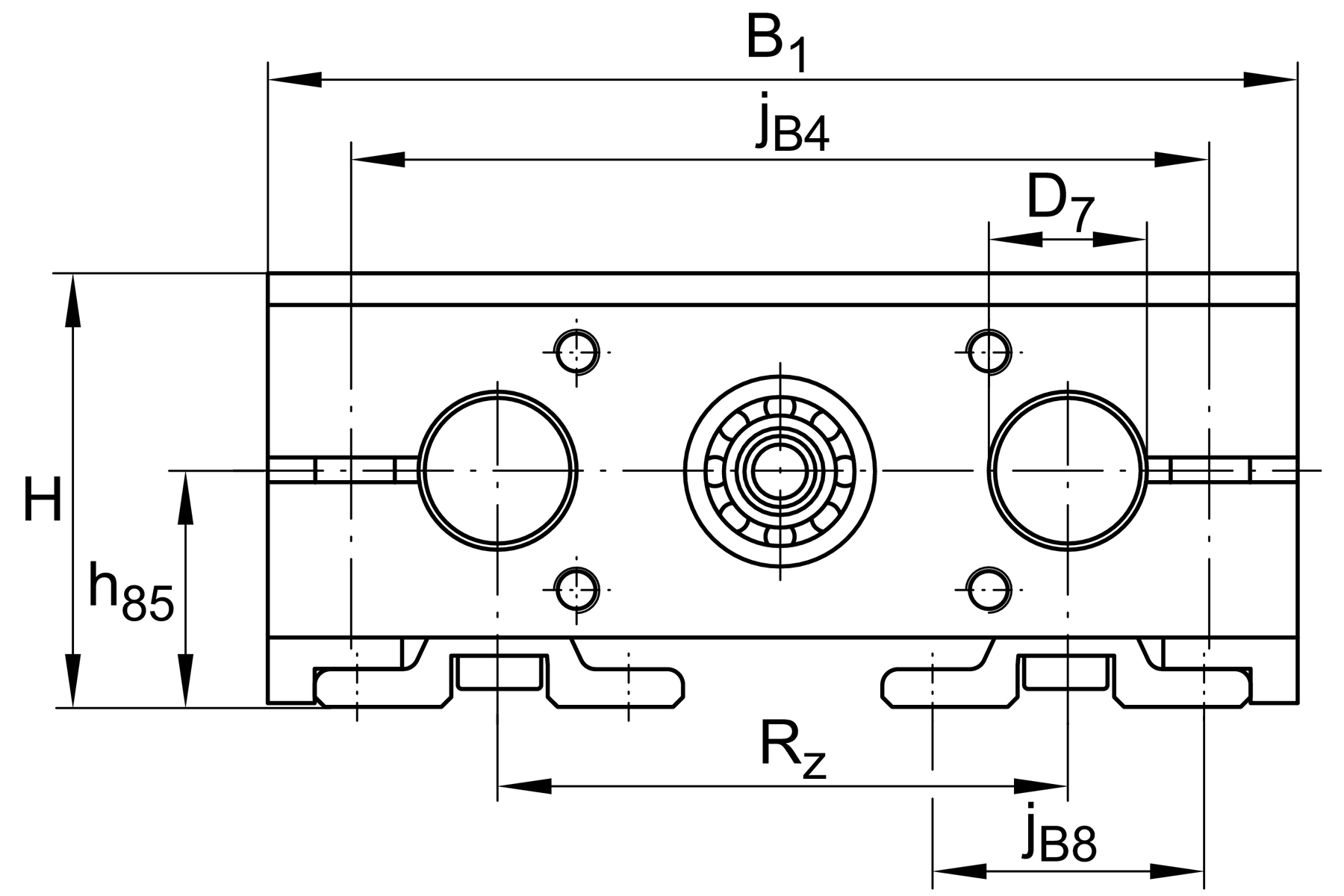

主要尺寸與性能資料
| H | 57 mm | Total Height |
| B1 | 130 mm | Total Width |
| L | 130 mm | Length of carriage |

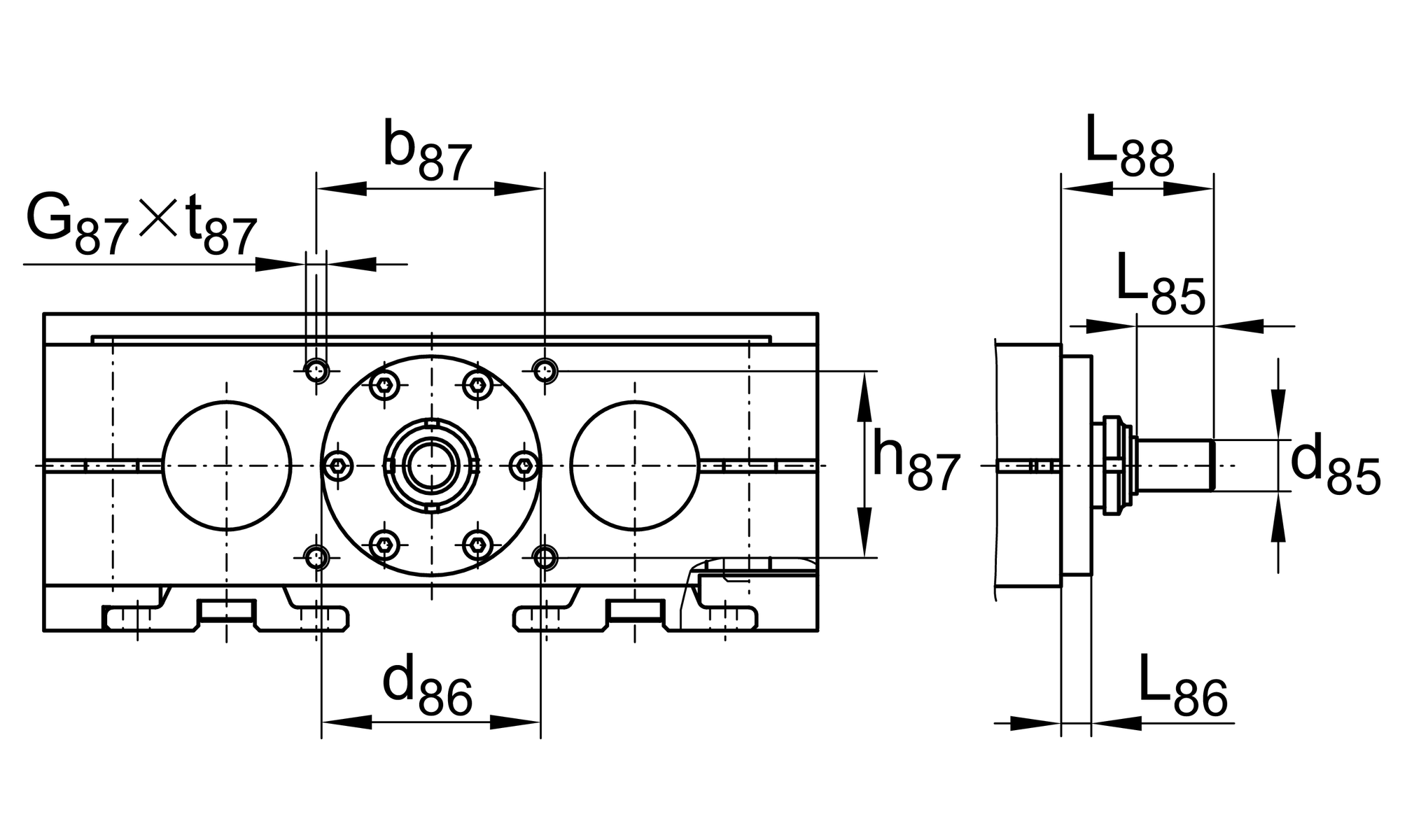

安裝尺寸
| D7 | 20 mm | Tolerance h7 |
| D8 | 6.6 mm | |
| H1 | 42 mm | Height of carriage |
| H12 | 13 mm | |
| JB43 | 115 mm | |
| jB8 | 37 mm | |
| jL8 | 100 mm | |
| K43 | M6 | |
| Ltot | 2,900 mm | maximum length |
| Rx | 74.6 mm | |
| S | 4 mm | Safety distance |
| S | 11 mm | |
| T8 | 6.1 mm | |
| T86 | 2.8 mm | |
| t43 | 18 mm | Depth of Thread |
| t87 | 15 mm | Depth of Thread |
| BB | 21 mm | Length of Bellows Fastener |
| FBL | 1.43 mm | Effective length factor of bellow |
| b87 | 62 mm | Tolerance ±0,2 |
| d85 | 9 mm | Diameter drive shaft, Tolerance h7 1 |
| D86 | 30 mm | Tolerance H7 |
| G4 | M10 | 線 |
| G5 | M10 | 線 |
| G87 | M6 | 線 |
| G43 | M8 | 線 |
| h5 | 21 mm | |
| h85 | 32 mm | |
| h87 | 30 mm | Tolerance ±0,2 |
| JL43 | 115 mm | |
| jB4 | 108 mm | |
| JL4 | 10 mm |
尺寸
| H7 | 6 mm | |
| h1 | 25 mm | |
| L4 | 29 mm | Length of Shaft Support Block with Drive System |
| L5 | 20 mm | Length of Shaft Support Block 沒有 drive System |
| L88 | 37 mm | |
| Rz | 72 mm | |
| H5 | 42 mm | Height of Shaft Support Blocks |
科技數據
| mLAW | 1.6 kg | Mass of Carriage |
| vmax | 0.1 m/s | Maximum Speed |
| amax | 2.5 m/s2 | Maximum Acceleration |
| d0 | 16 mm | ø Spindle |
| P | 4 mm | Spindle Pitch |
| Is | 0.3 kg*cm2 | 質量慣性矩 of threaded Spindle |
| CI | 4,220 N | Load direction I: compressive load |
| C0I | 5,120 N | Load direction I: compressive load |
| CII | 2,500 N | Load direction II: tensile load |
| C0II | 3,280 N | Load direction II: tensile load |
| CIII | 3,880 N | Load direction III: lateral load |
| C0III | 4,600 N | Load direction III: lateral load 2 |
| C0 | 2,250 N | Load capacity Spindle Nut stat 3 |
| C0a | 2,250 N | Load capacity fixed Spindle bearing stat |
| M0x | 109 Nm | Max. permissible static moment per Carriage 3 |
| M0y | 130 Nm | Max. permissible static moment per Carriage 3 |
| M0z | 100 Nm | Max. permissible static moment per Carriage 3 |
附加資訊
3 Nm | Max. permissible drive torque | |
2x7200-2RS | Rolling Bearings | |
0.3 kg*cm2 | 質量慣性矩 of threaded Spindle | |
KBO20-PP-AS | Bearing 2 |
溫度範圍
| min | 0 °C | Minimum operating Temperatur |
| max | 80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 20 | |
| Drive type | TGT | Trapezoidal screw drive |
| Length of carriage | 130 | 130 mm |
| Spindle diameter | 16 | 16mm |
| Spindle pitch | 04 | 4 mm |
| Spindle nut design | M | Cylinder nut |
| Bellow | 1 | Yes |
