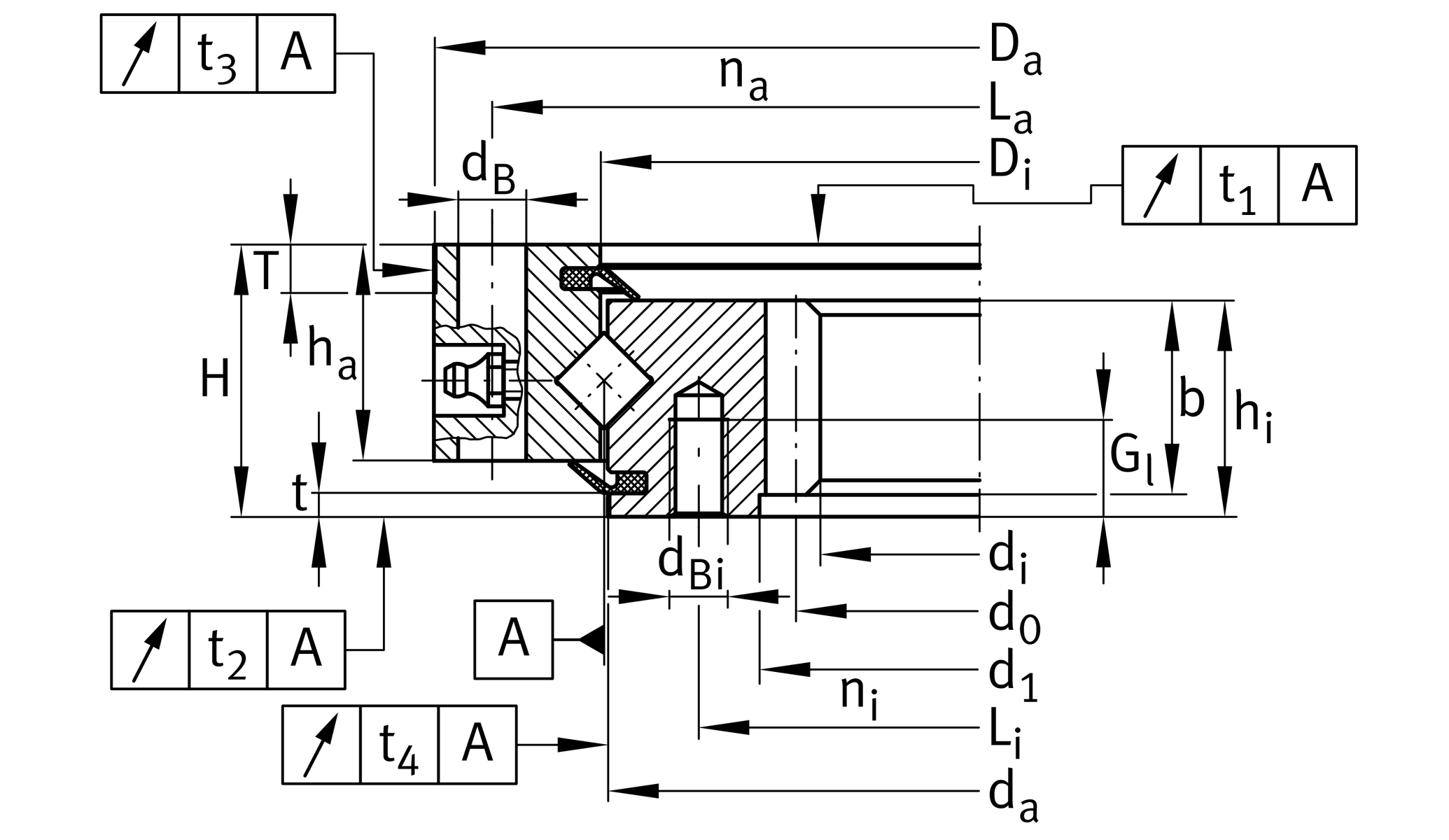

主要尺寸與性能資料
| di | 325 mm | 內徑 |
| da ZT | 411 mm | Diameter centring inner ring |
-IT7 | Diameter centring inner ring tolerance | |
| t | 4.5 mm | Length centering inner ring |
| Da ZT | 484 mm | Diameter centring outer ring |
-IT7 | Diameter centring outer ring tolerance | |
| T | 10 mm | Length centering outer ring |
| H | 56 mm | 高度 |
| ≈m | 31.051 kg | 重量 |
尺寸
| Di | 415 mm | 外圈內徑 |
0.5 mm | 外圈內徑 公差上限 | |
0 mm | 外圈內徑 較低的公差 | |
| ha | 44.5 mm | Width outer ring |
| La | 460 mm | 外圈螺距圓固定孔直徑 |
| na | 24 | 外圈固定孔數 |
| dB | 14 mm | 固定內徑 |
44.5 mm | 內圈寬度 | |
| Li | 375 mm | 內圈螺距圓直徑固定孔 |
| ni | 24 | 內圈固定孔數 |
M12 | Tread 固定內徑 | |
| tG | 20 mm | Thread depth oil connector |
| d1 | 350 mm | Diameter turning inner ring |
0.5 mm | Diameter turning inner ring 公差上限 | |
0 mm | Diameter turning inner ring 較低的公差 | |
| b | 40 mm | Width gearing |
| m | 5 mm | Modul of gearing |
| z | 67 | Number of teeth |
| d0 | 335 mm | Pitch circle diameter gearing |
| Fz norm | 17,700 N | Max. tooth force root fatigue strenght |
| Fz max | 26,200 N | Max. tooth force against tooth fracture |
0.04 mm | Running accuracy | |
0.04 mm | Running accuracy | |
0.06 mm | Running accuracy | |
0.06 mm | Running accuracy |
溫度範圍
| Tmin | -25 °C | 最低工作溫度 |
| Tmax | 80 °C | 最高操作溫度 |
計算參數s
| Ca | 200,000 N | 基本額定動載荷，軸向 |
| C0a | 540,000 N | 基本額定靜態載荷，軸向 |
| Cr | 143,000 N | 基本額定動載荷，徑向（僅適用於徑向載荷） |
| C0r | 265,000 N | 基本額定靜態負荷，徑向（僅適用於徑向負荷） |
| VSPmax | 0.03 mm | Maximum bearing preload |
| VSPmin | 0.01 mm | Min. bearing preload |
| Fr zul | 99,100 N | Max. radial load fixing screws (friction locking) |
您目前的產品型號
| Gearing | N | Normalized gear teeth on bearing ring |
