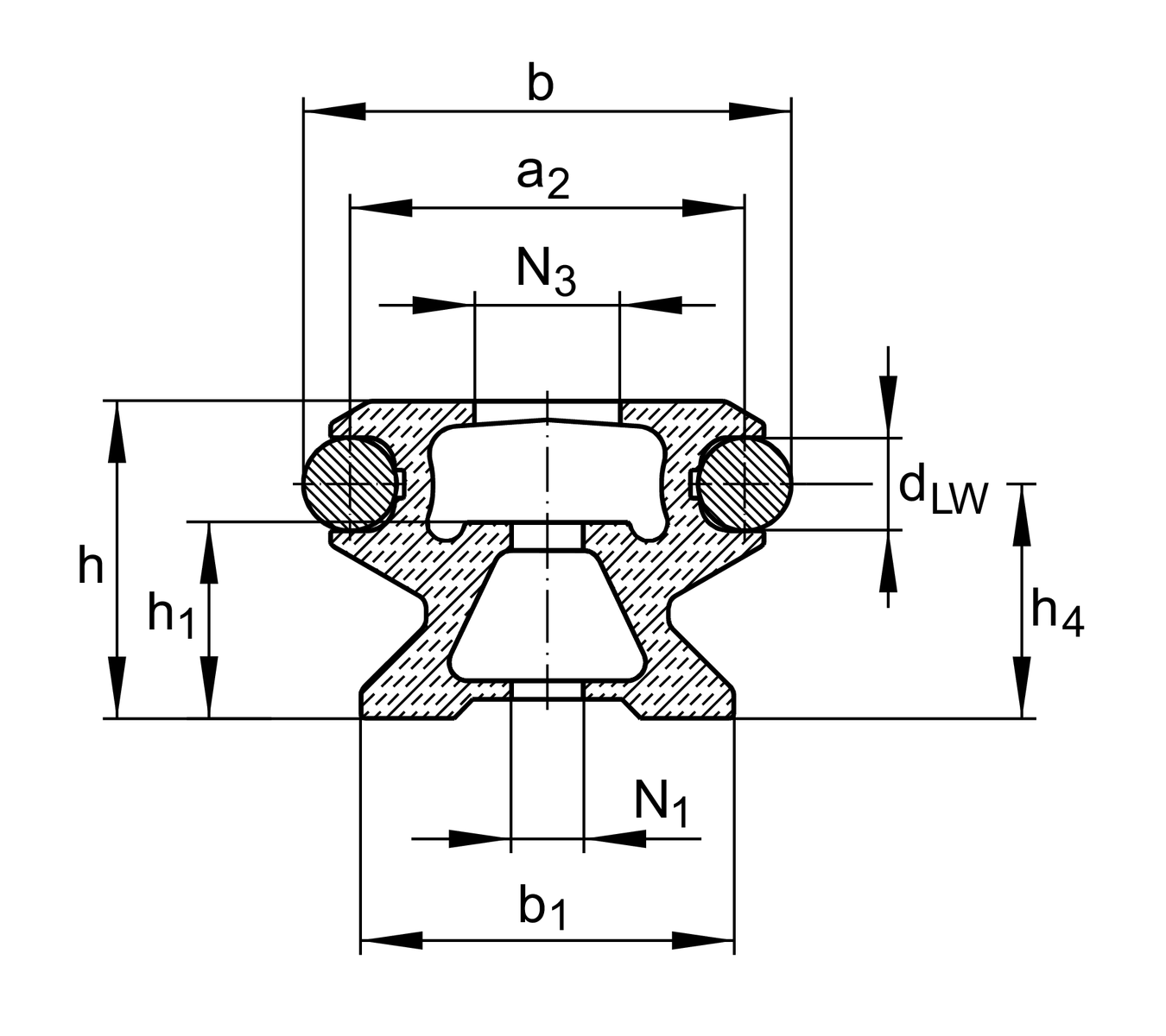

主要尺寸與性能資料
| h | 34 mm | 高度 |
| b | 52 mm | 寬度 |
| lmax | 6,000 mm | Length maximum 1 |
| ly | 113,821 mm⁴ | Second moment of area |
| lz | 74,878 mm⁴ | Second moment of area |
| LFQ | 649 mm² | Cross-sectional area 2 |
| Wy | 4,896 mm³ | Wider resistance torque |
| Wz | 4,378 mm³ | Wider resistance torque |
安裝尺寸
| N1 | 11 mm | 內徑 3 |
| N3 | 19 mm | 內徑 4 |

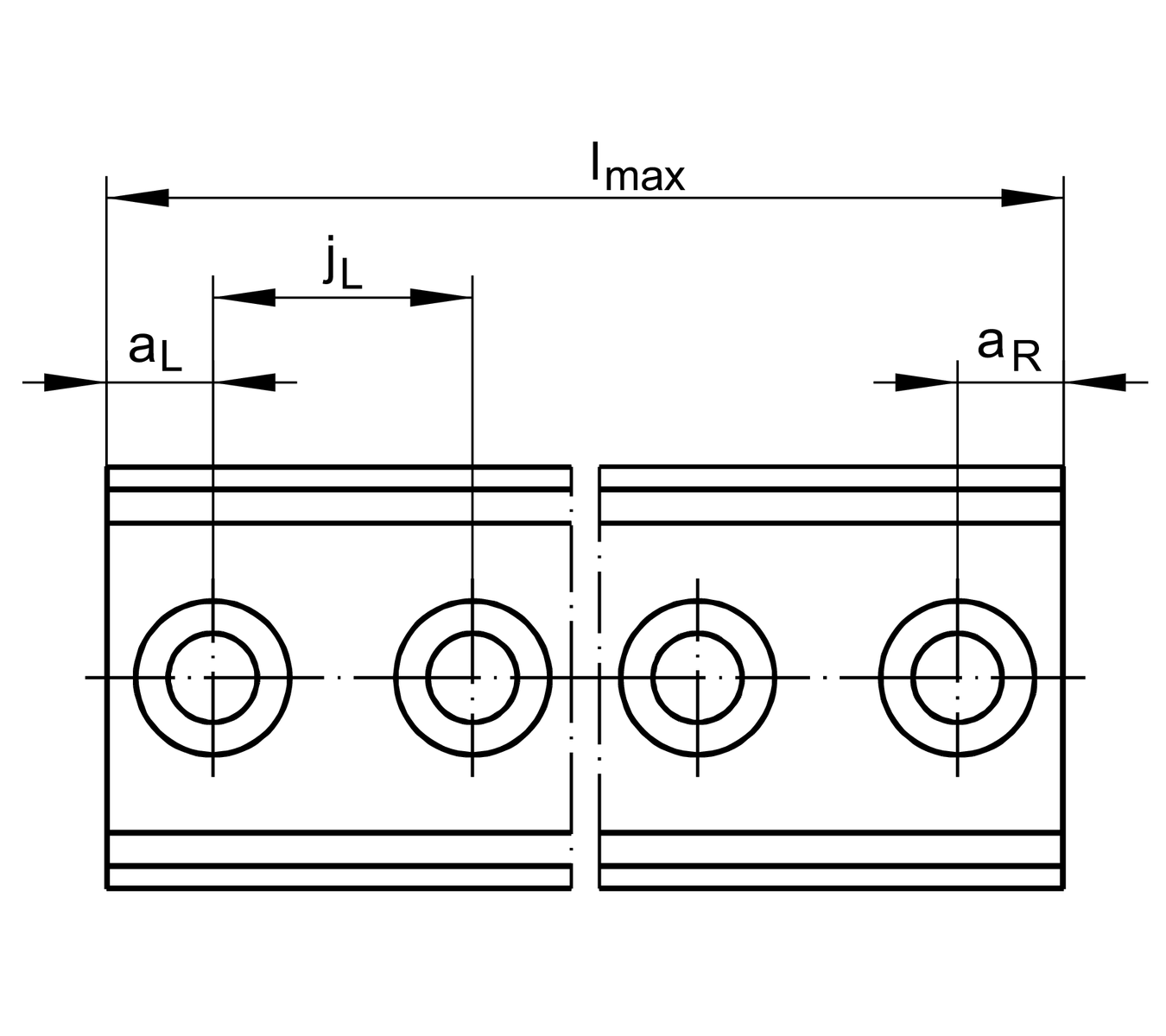

尺寸
| a2 | 42 mm | Distance |
| aL max | 235 mm | Distance 5 |
| aL min | 17 mm | Distance 5 |
| aR max | 235 mm | Distance 5 |
| aR min | 17 mm | Distance 5 |
| b1 | 40 mm | 寬度 |
| dLW | 10 mm | Diameter |

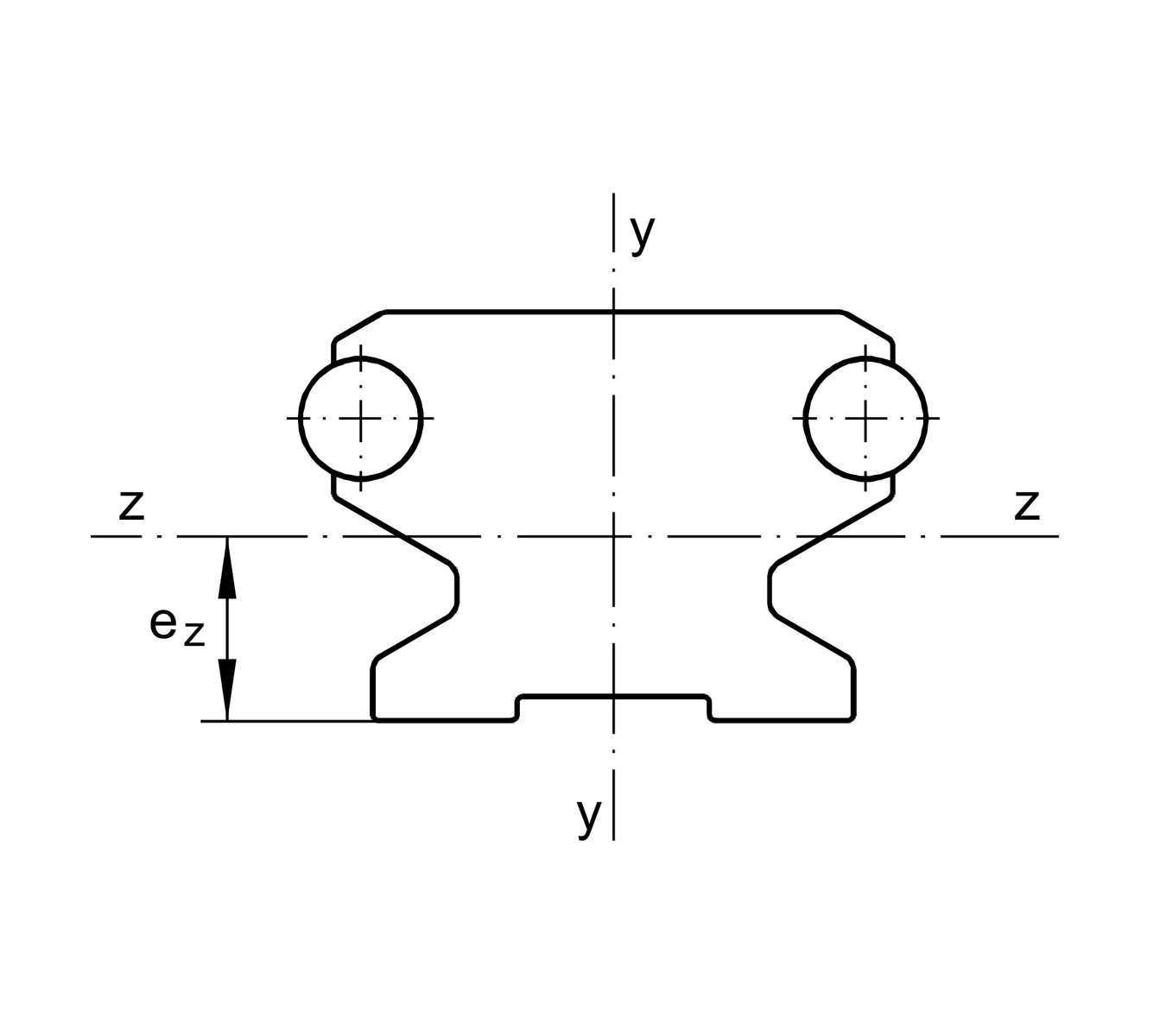

| eZ | 17.1 mm | Distance |
| h1 | 21 mm | Height 6, 7 |
| h4 | 25.1 mm | 高度 |
| jL | 250 mm | Increment 8 |
您目前的產品型號
| Size code | 52 | |
| Design | C | hollow section profile |
