主要尺寸與性能資料

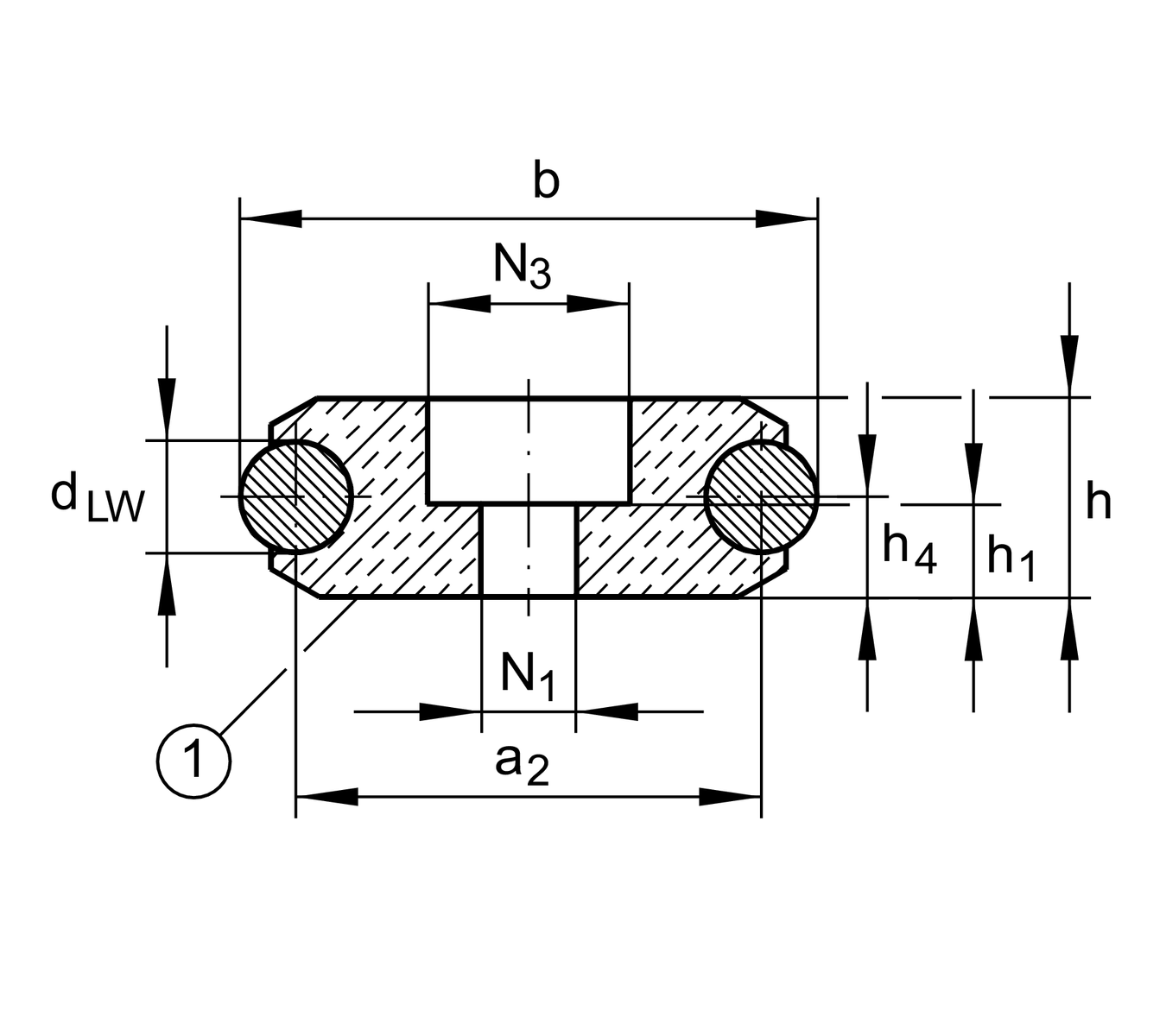

| h | 10 mm | 高度 |
| b | 32 mm | 寬度 |
| lmax | 4,000 mm | Length maximum 1 |
| ly | 11,300 mm⁴ | Second moment of area |
| lz | 2,190 mm⁴ | Second moment of area |
| LFQ | 230 mm² | Cross-sectional area 2 |
| Wy | 810 mm³ | Wider resistance torque |
| Wz | 438 mm³ | Wider resistance torque |
安裝尺寸
| N1 | 6.5 mm | 內徑 3 |
| N3 | 12 mm | 內徑 4 |
尺寸
| a2 | 26 mm | Distance |
| aL max | 116 mm | Distance 5 |
| aL min | 11 mm | Distance 5 |
| aR max | 116 mm | Distance 5 |
| aR min | 11 mm | Distance 5 |
| dLW | 6 mm | Diameter |

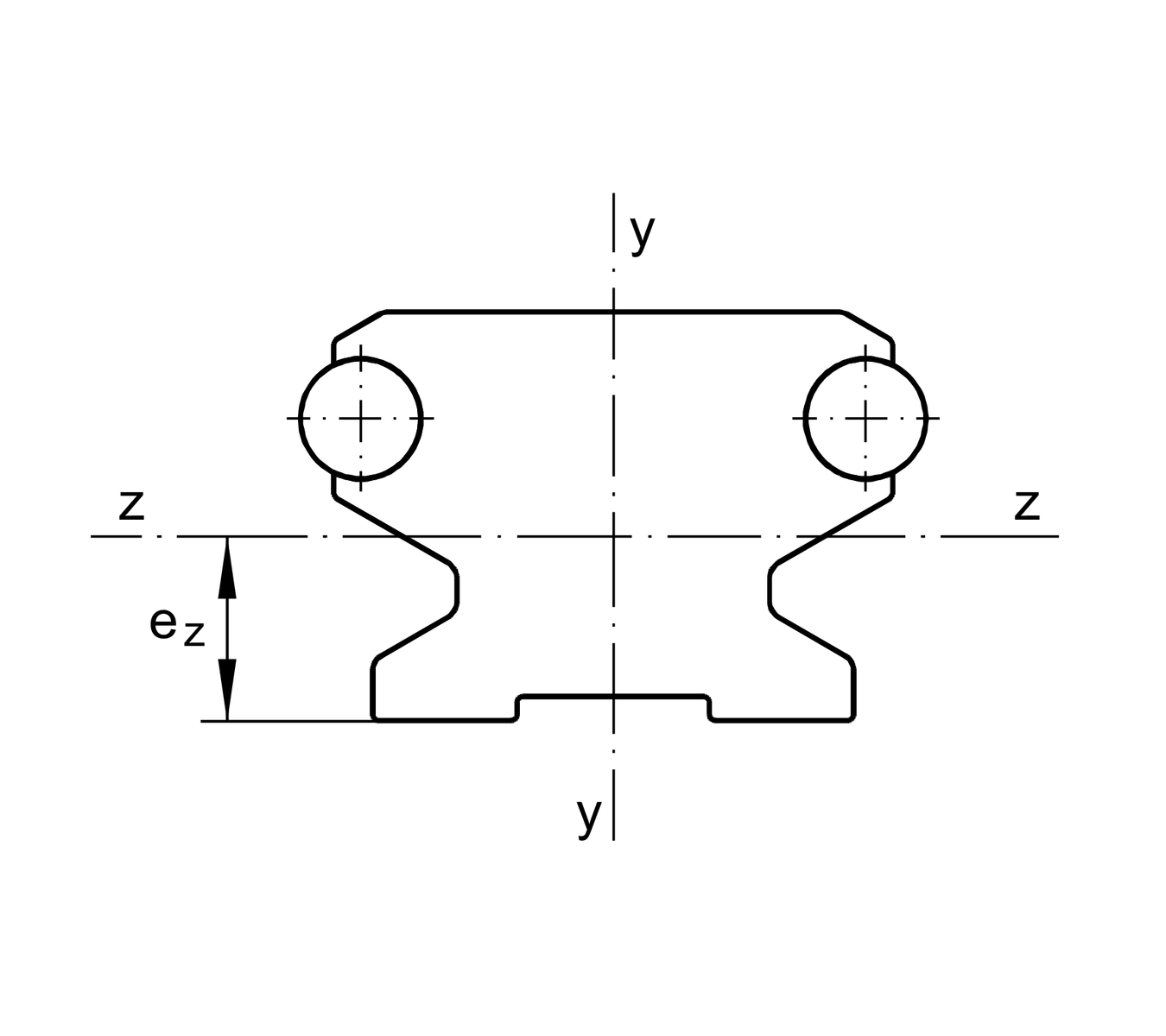

| eZ | 5 mm | Distance |
| h1 | 3.5 mm | Height 6, 7 |
| h4 | 5 mm | 高度 |

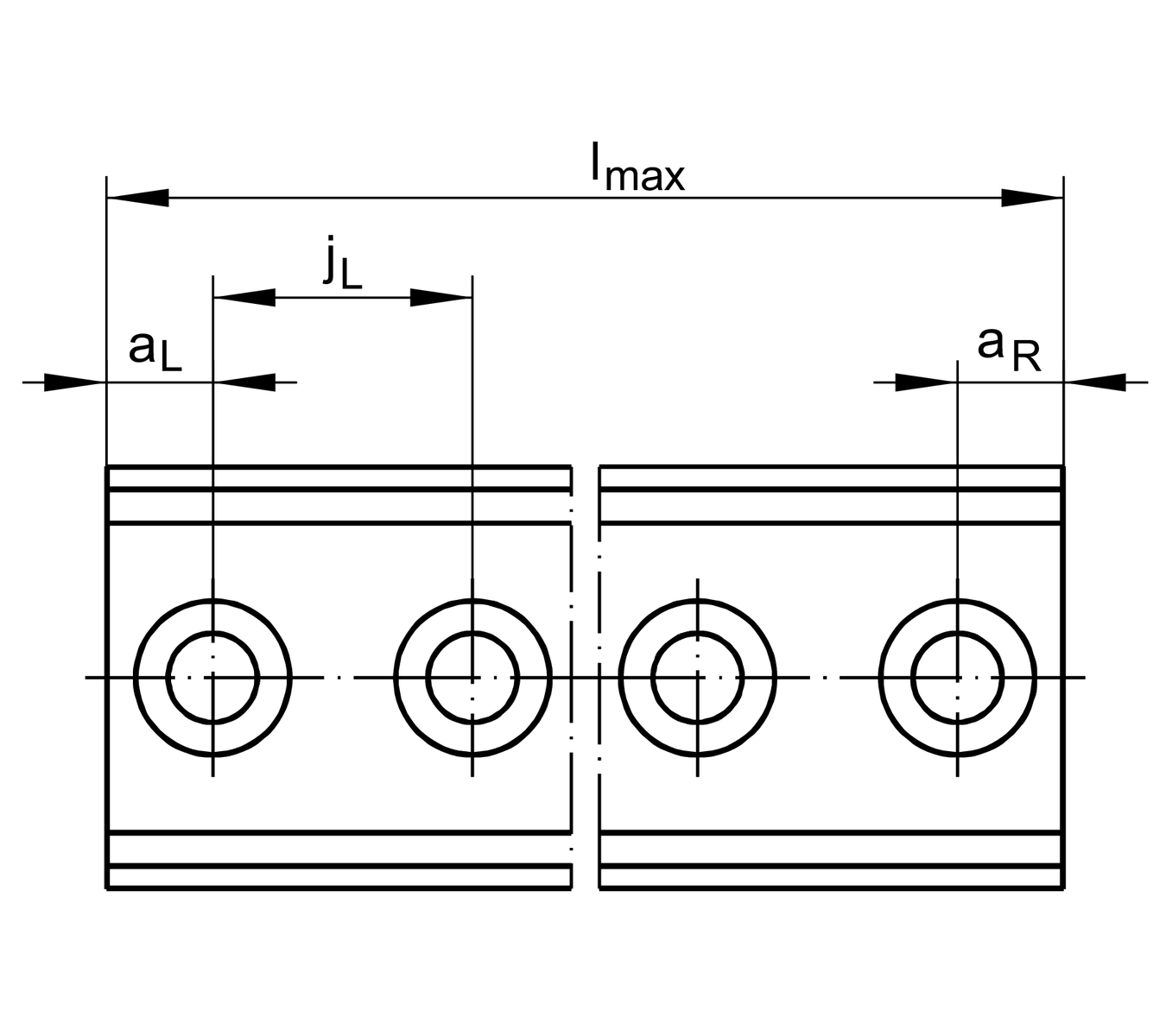

| jL | 125 mm | Increment 8 |
您目前的產品型號
| Size code | 32 | |
| Design | F | flat solid profile |
