主要尺寸與性能資料
| h | 20 mm | 高度 |
| b | 32 mm | 寬度 |
| lmax | 6,000 mm | Length maximum 1 |
| ly | 18,305 mm⁴ | Second moment of area |
| lz | 10,072 mm⁴ | Second moment of area |
| LFQ | 261 mm² | Cross-sectional area 2 |
| Wy | 1,165 mm³ | Wider resistance torque |
| Wz | 995 mm³ | Wider resistance torque |

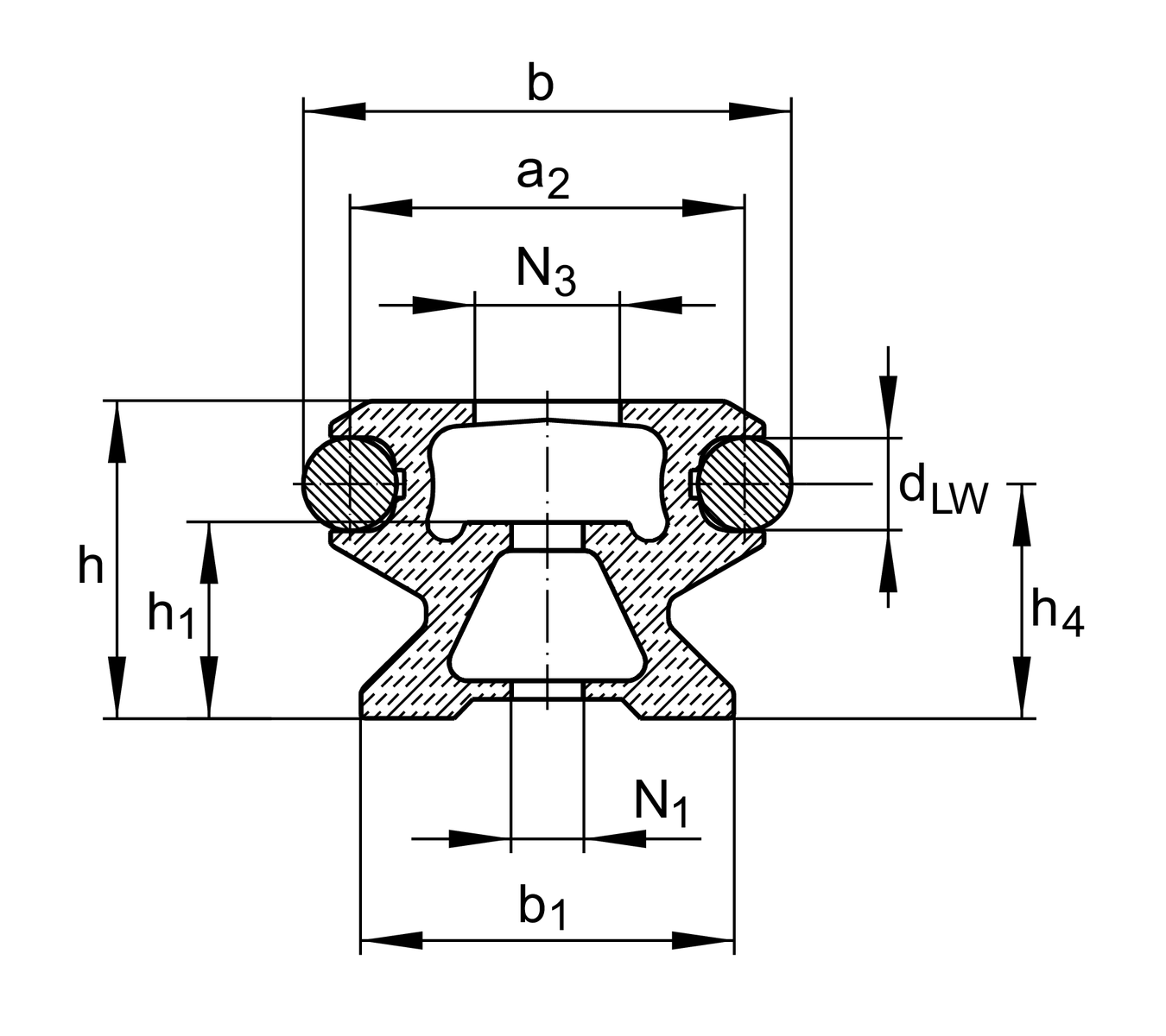

安裝尺寸
| N1 | 6.5 mm | 內徑 3 |
| N3 | 12 mm | 內徑 4 |
尺寸

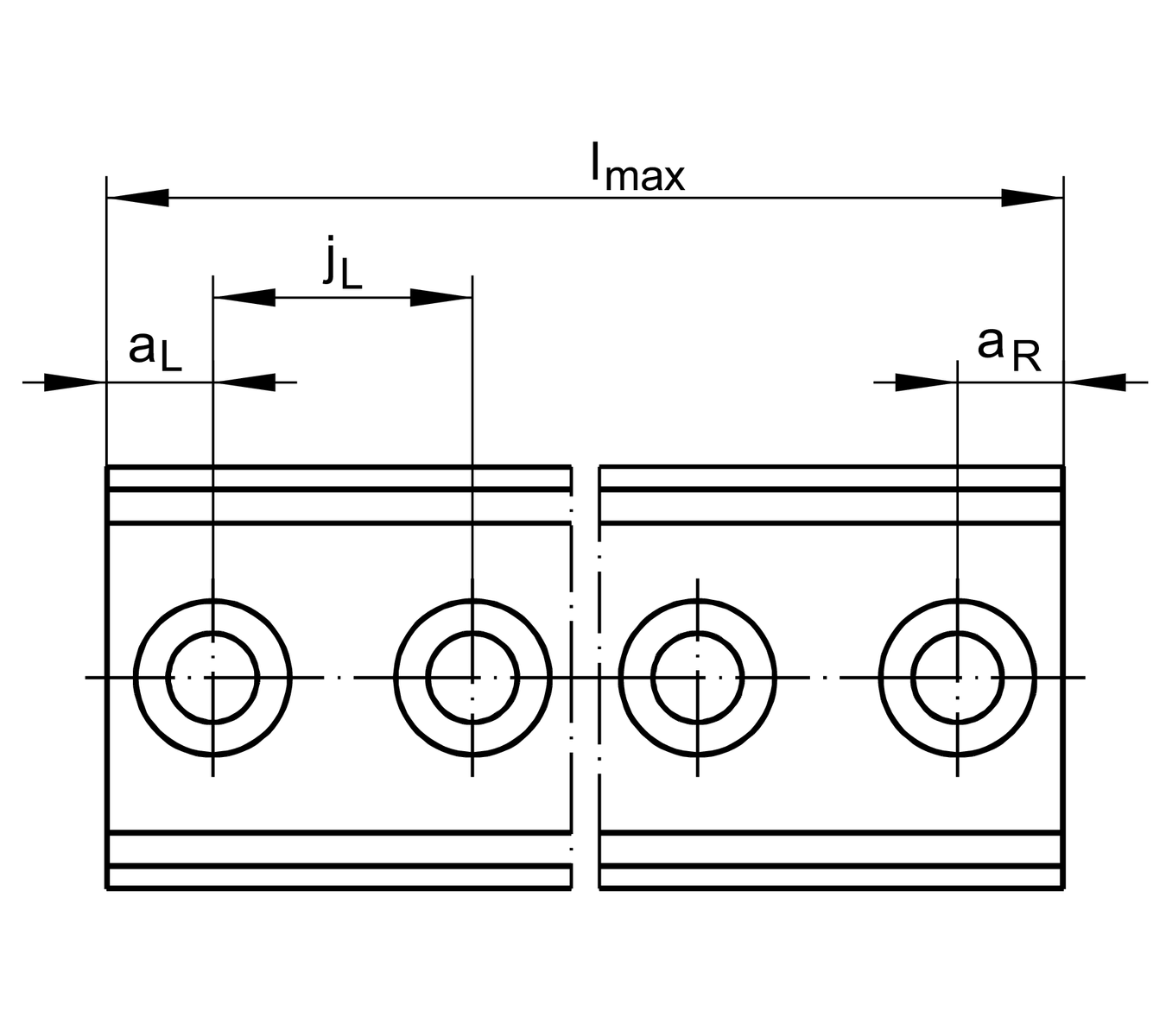

| a2 | 26 mm | Distance |
| aL max | 116 mm | Distance 5 |
| aL min | 11 mm | Distance 5 |
| aR max | 116 mm | Distance 5 |
| aR min | 11 mm | Distance 5 |
| b1 | 24 mm | 寬度 |
| dLW | 6 mm | Diameter |

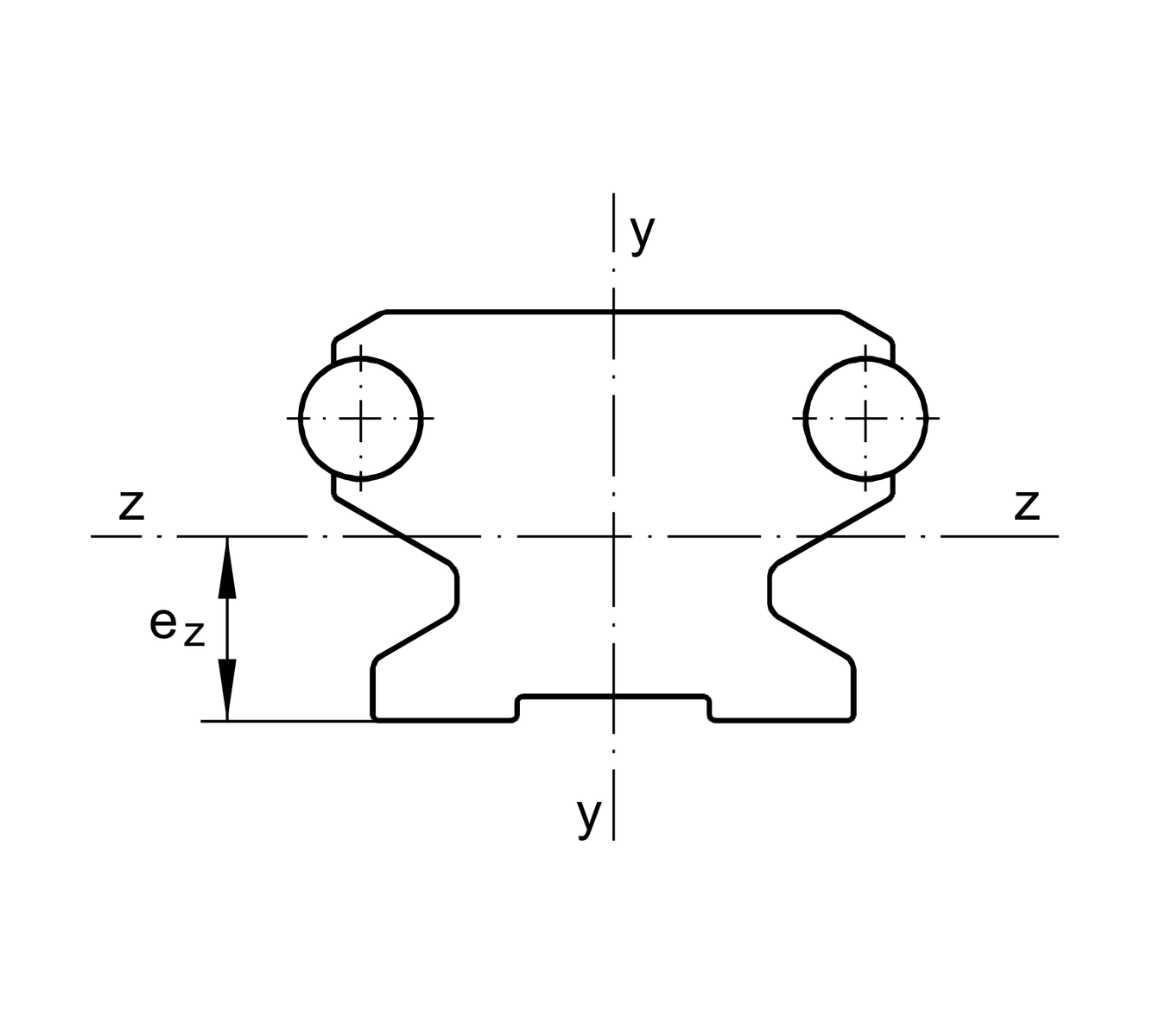

| eZ | 10.1 mm | Distance |
| h1 | 12 mm | Height 6, 7 |
| h4 | 15 mm | 高度 |
| jL | 125 mm | Increment 8 |
您目前的產品型號
| Size code | 32 | |
| Design | C | hollow section profile |
