主要尺寸與性能資料
| h | 25 mm | 高度 |
| b | 120 mm | 寬度 |
| lmax | 8,000 mm | Length maximum 1 |
| ly | 2,330,980 mm⁴ | Second moment of area |
| lz | 9,365 mm⁴ | Second moment of area |
| LFQ | 2,468 mm² | Cross-sectional area 2 |
| Wy | 40,751 mm³ | Wider resistance torque |
| Wz | 117,074 mm³ | Wider resistance torque |
安裝尺寸
| N1 | 11 mm | 內徑 3 |
| N3 | 19 mm | 內徑 4 |

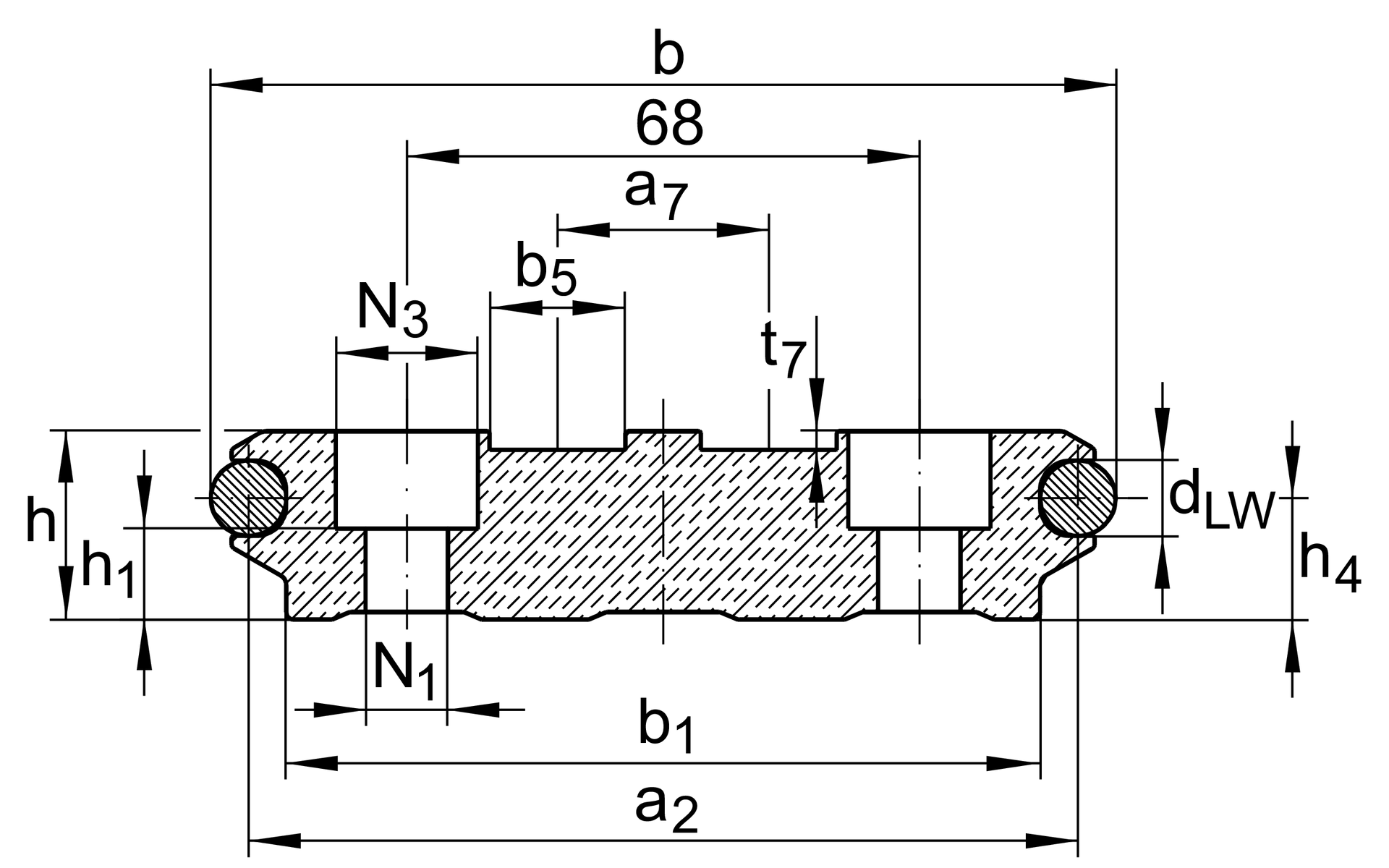

尺寸
| a2 | 110 mm | Distance |
| a7 | 28 mm | Distance |
| aL max | 110 mm | Distance 5 |
| aL min | 17 mm | Distance 5 |
| aR max | 110 mm | Distance 5 |
| aR min | 17 mm | Distance 5 |
| b1 | 100 mm | 寬度 |
| b5 | 18 mm | 寬度 |
| dLW | 10 mm | Diameter |

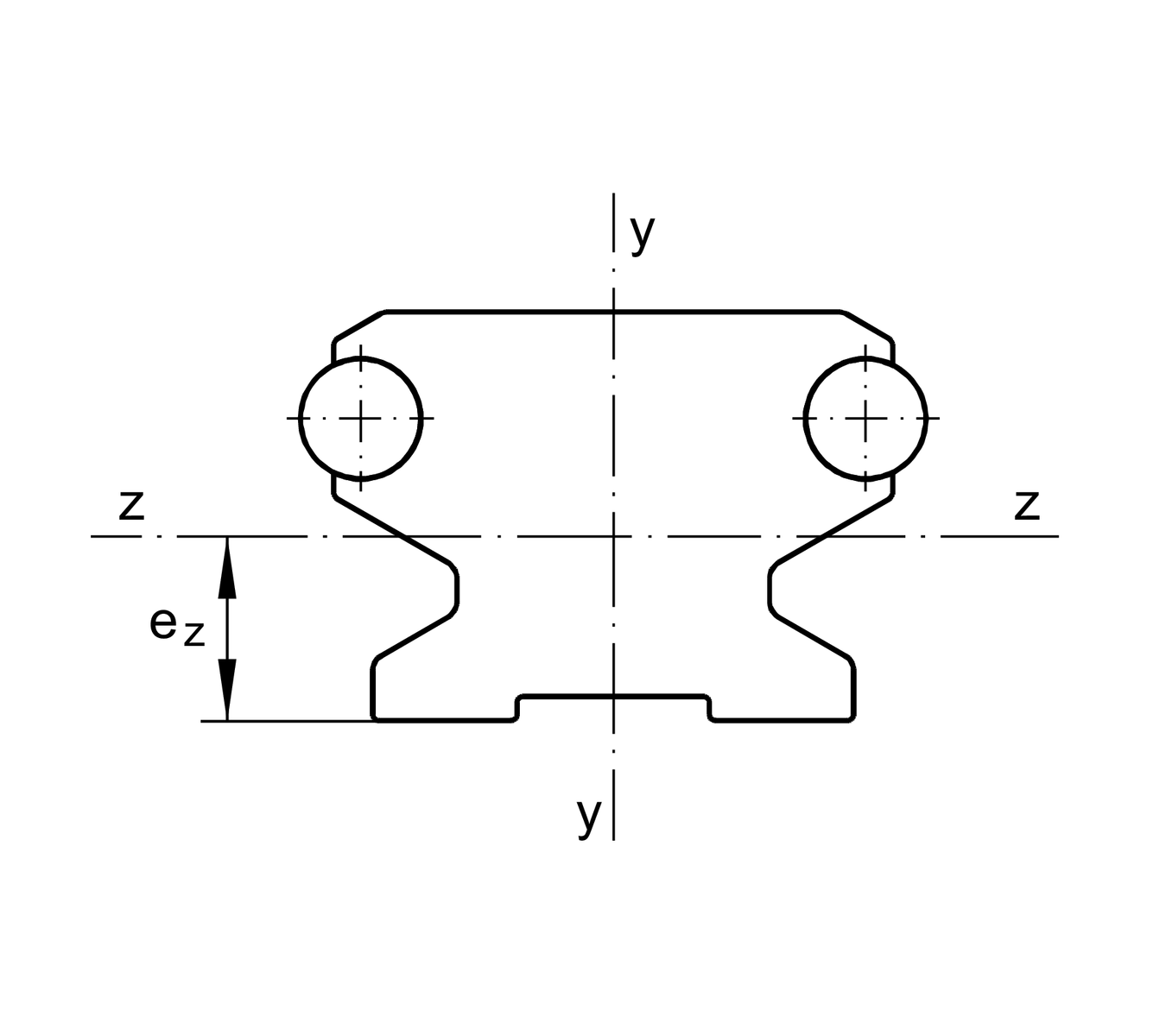

| eZ | 12.5 mm | Distance |
| h1 | 12 mm | Height 6, 7 |
| h4 | 16.1 mm | 高度 |
| jL | 125 mm | Increment 8 |
| t7 | 2.5 mm | 深度 |
您目前的產品型號
| Size code | 120 | |
| Locationg guideway | E | fixing hole spacing half of standard |
