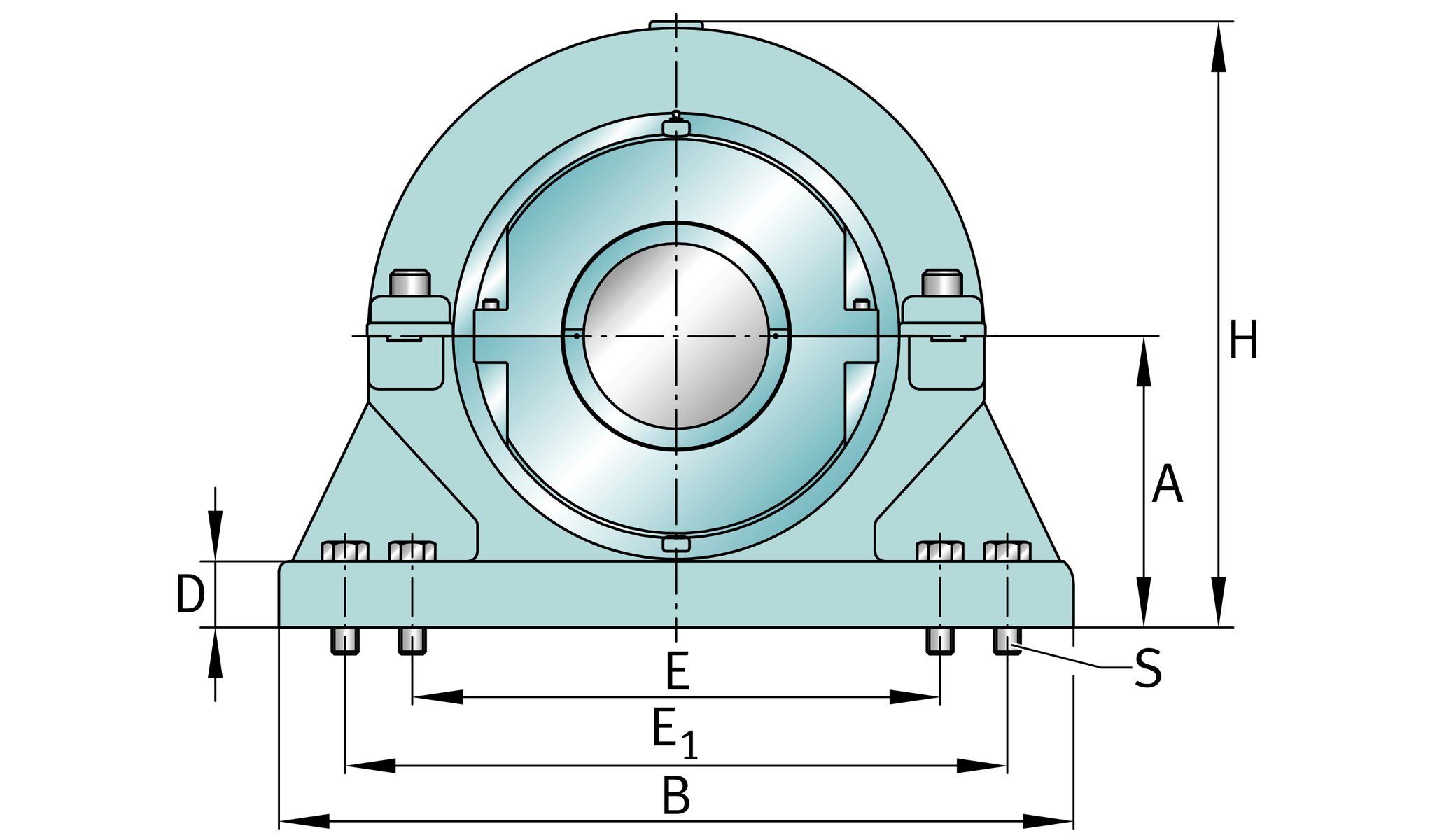

主要尺寸與性能資料
| d | 8.5 in | Shaft diameter |
| H | 28.75 in | 軸承座 height |
| B | 37.5 in | Length base |
| ≈m | 1,658.996 lbs | 重量 |
尺寸
S3BCH-808-FL | Complete unit float | |
S3BCH-808-HD | Complete unit held | |
PH-314 | 軸承座 designation | |
| A | 13.75 in | Center height |
| C | 11 in | Base width |
| D | 3 in | Base height |
| Emin | 28.25 in | Base hole distance 1 min |
| Emax | 29.75 in | Base hole distance 1 max |
| F | 7 in | Base hole distance 2 |
| s | 4 | # of mounting bolts |
| s | 1.75 in | Mounting bolt diameter |
S3BC-808-FL | Cartridge float bearing | |
S3BC-808-HD | Cartridge held bearing | |
S3C-900 | Cartridge | |
| G | 13.1875 in | Lenght through bore |
| L | 21.5 in | 外徑 cartridge |
15 lbs | Grease capacity | |
719 lbs | Cartridge weight | |
S3B-808-FL | Bearing float | |
S3B-808-HD | Bearing held | |
342 lbs | Bearing weight | |
900 Grp | Bearing Group | |
| Cr | 367,400 lbf | 基本額定動載荷，徑向 |
| C0r | 586,233 lbf | 基本額定靜態負荷，徑向 |
| Ca | 18,652 lbf | 基本額定動載荷，軸向 |
972 1/min | 極限轉速 | |
| D0 | 18.5 in | 外徑 bearing |
| C0 | 8.346 in | 內圈寬度 |
| B0 | 5.185 in | Width outer ring |
