主要尺寸與性能資料
| d | 7 in | Shaft diameter |
| H | 22.875 in | 軸承座 height |
| B | 30 in | Length base |
| ≈m | 889.998 lbs | 重量 |

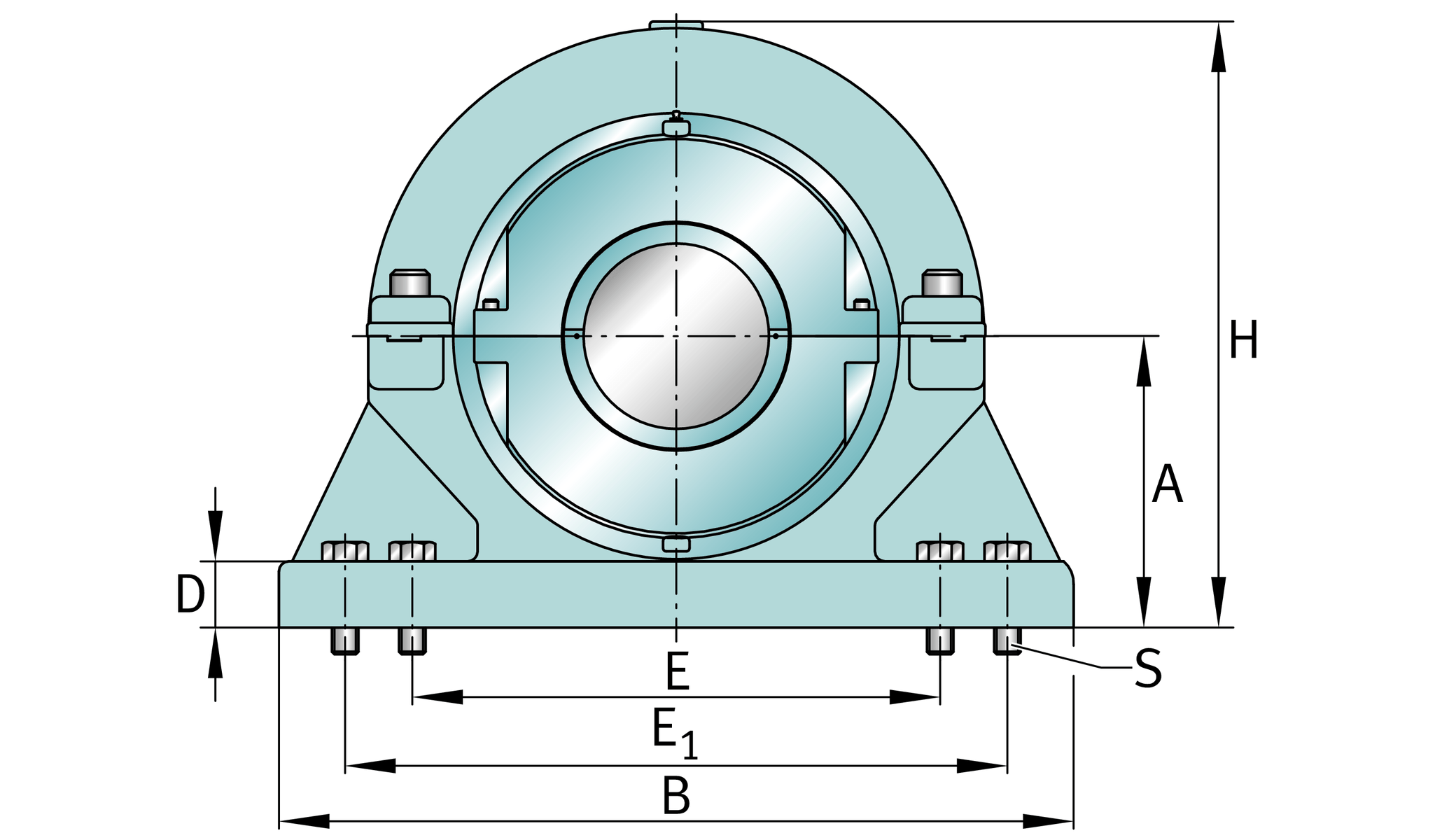

尺寸
S3BCH-700-FL | Complete unit float | |
S3BCH-700-HD | Complete unit held | |
PH-312 | 軸承座 designation | |
| A | 11 in | Center height |
| C | 10 in | Base width |
| D | 2.5 in | Base height |
| Emin | 24.25 in | Base hole distance 1 min |
| Emax | 25.75 in | Base hole distance 1 max |
| F | 6 in | Base hole distance 2 |
| s | 4 | # of mounting bolts |
| s | 1.25 in | Mounting bolt diameter |
S3BC-700-FL | Cartridge float bearing | |
S3BC-700-HD | Cartridge held bearing | |
S3C-700 | Cartridge | |
| G | 11.1875 in | Lenght through bore |
| L | 17 in | 外徑 cartridge |
10 lbs | Grease capacity | |
398 lbs | Cartridge weight | |
S3B-700-FL | Bearing float | |
S3B-700-HD | Bearing held | |
184 lbs | Bearing weight | |
700 Grp | Bearing Group | |
| Cr | 250,948 lbf | 基本額定動載荷，徑向 |
| C0r | 385,223 lbf | 基本額定靜態負荷，徑向 |
| Ca | 15,614 lbf | 基本額定動載荷，軸向 |
1,227 1/min | 極限轉速 | |
| D0 | 14.75 in | 外徑 bearing |
| C0 | 7.008 in | 內圈寬度 |
| B0 | 4.28 in | Width outer ring |
