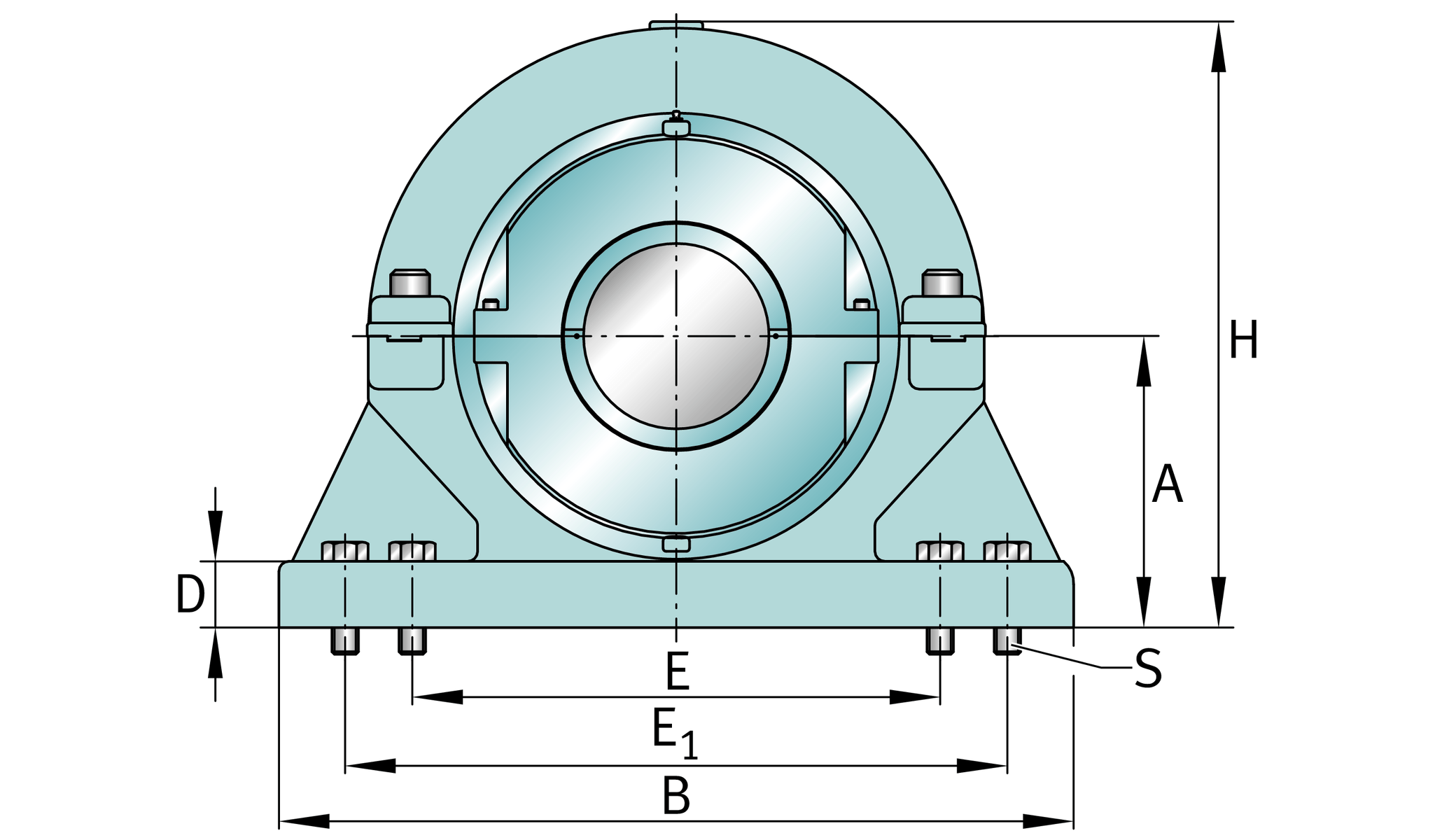

主要尺寸與性能資料
| d | 6.5 in | Shaft diameter |
| H | 22.5 in | 軸承座 height |
| B | 29 in | Length base |
| ≈m | 787.997 lbs | 重量 |
尺寸
S3BCH-608-FL | Complete unit float | |
S3BCH-608-HD | Complete unit held | |
PH-311 | 軸承座 designation | |
| A | 10.5 in | Center height |
| C | 9 in | Base width |
| D | 2.375 in | Base height |
| Emin | 24 in | Base hole distance 1 min |
| Emax | 25.5 in | Base hole distance 1 max |
| F | 5.5 in | Base hole distance 2 |
| s | 4 | # of mounting bolts |
| s | 1.25 in | Mounting bolt diameter |
S3BC-608-FL | Cartridge float bearing | |
S3BC-608-HD | Cartridge held bearing | |
S3C-608 | Cartridge | |
| G | 10.5625 in | Lenght through bore |
| L | 16.625 in | 外徑 cartridge |
8 lbs | Grease capacity | |
368 lbs | Cartridge weight | |
S3B-608-FL | Bearing float | |
S3B-608-HD | Bearing held | |
169 lbs | Bearing weight | |
608 Grp | Bearing Group | |
| Cr | 237,189 lbf | 基本額定動載荷，徑向 |
| C0r | 360,515 lbf | 基本額定靜態負荷，徑向 |
| Ca | 15,462 lbf | 基本額定動載荷，軸向 |
1,305 1/min | 極限轉速 | |
| D0 | 14 in | 外徑 bearing |
| C0 | 6.72 in | 內圈寬度 |
| B0 | 4.063 in | Width outer ring |
