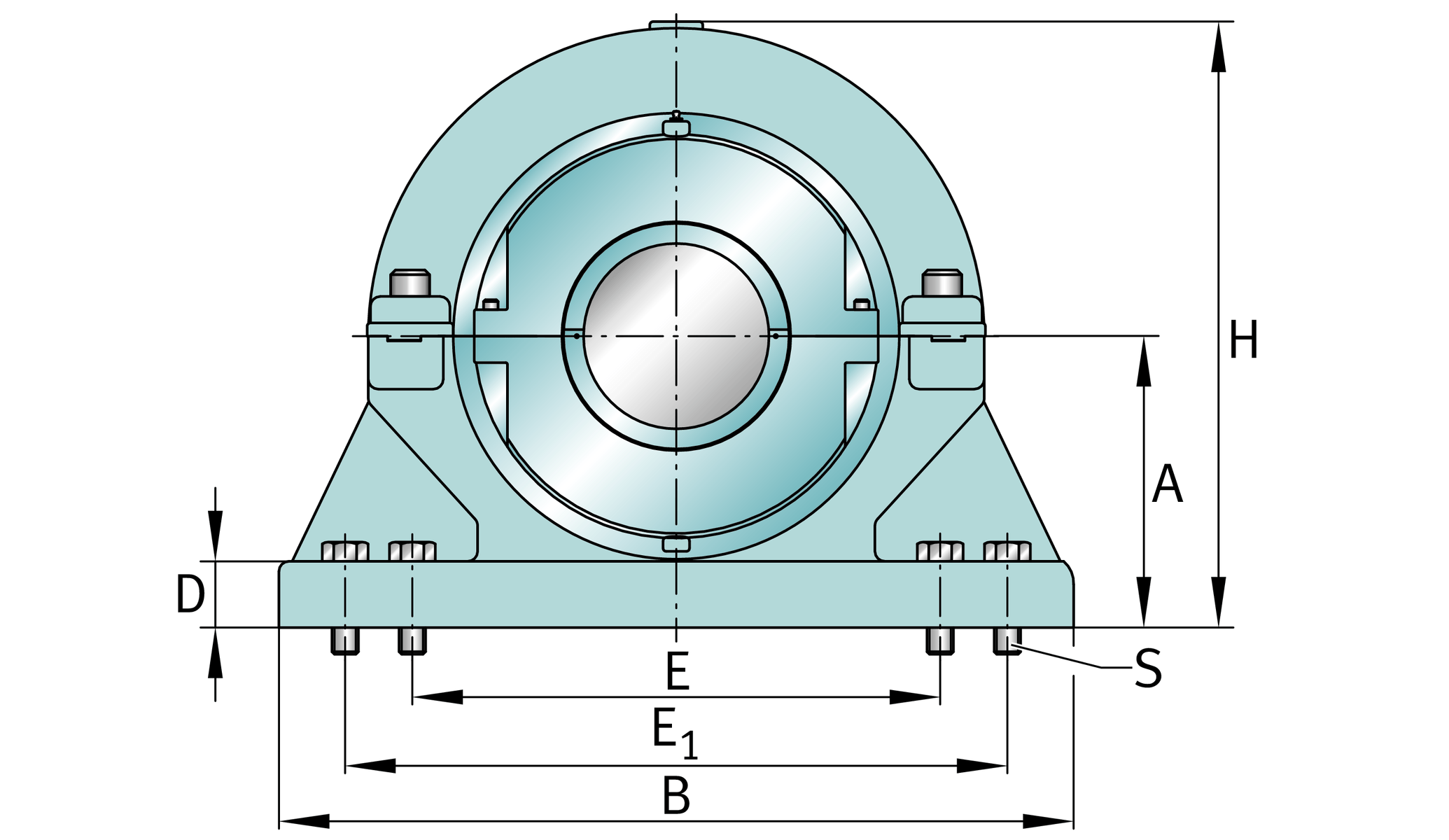

主要尺寸與性能資料
| d | 6 in | Shaft diameter |
| H | 21 in | 軸承座 height |
| B | 26.25 in | Length base |
| ≈m | 697.998 lbs | 重量 |
尺寸
S3BCH-600-FL | Complete unit float | |
S3BCH-600-HD | Complete unit held | |
PH-310 | 軸承座 designation | |
| A | 10 in | Center height |
| C | 8 in | Base width |
| D | 2.25 in | Base height |
| Emin | 21.25 in | Base hole distance 1 min |
| Emax | 22.75 in | Base hole distance 1 max |
| F | 4.75 in | Base hole distance 2 |
| s | 4 | # of mounting bolts |
| s | 1.25 in | Mounting bolt diameter |
S3BC-600-FL | Cartridge float bearing | |
S3BC-600-HD | Cartridge held bearing | |
S3C-600 | Cartridge | |
| G | 10 in | Lenght through bore |
| L | 15.5 in | 外徑 cartridge |
6 lbs | Grease capacity | |
305 lbs | Cartridge weight | |
S3B-600-FL | Bearing float | |
S3B-600-HD | Bearing held | |
131 lbs | Bearing weight | |
600 Grp | Bearing Group | |
| Cr | 237,427 lbf | 基本額定動載荷，徑向 |
| C0r | 340,048 lbf | 基本額定靜態負荷，徑向 |
| Ca | 15,899 lbf | 基本額定動載荷，軸向 |
1,407 1/min | 極限轉速 | |
| D0 | 13 in | 外徑 bearing |
| C0 | 6.299 in | 內圈寬度 |
| B0 | 3.813 in | Width outer ring |
