主要尺寸與性能資料
| d1 | 200 mm | 內徑 |
0.004 mm | 內徑公差上限 | |
-0.024 mm | 內徑公差下限 | |
| Da | 250 mm | 外徑 |
0 mm | 外徑，公差上限 | |
-0.029 mm | 外徑公差下限 | |
| H | 24 mm | Height of the assembled bearing |
| hi | 24 mm | heigth inner ring |
0.1 mm | 寬度上限公差 | |
-0.1 mm | 寬度下限公差 | |
| ≈m | 2.957 kg | 重量 |

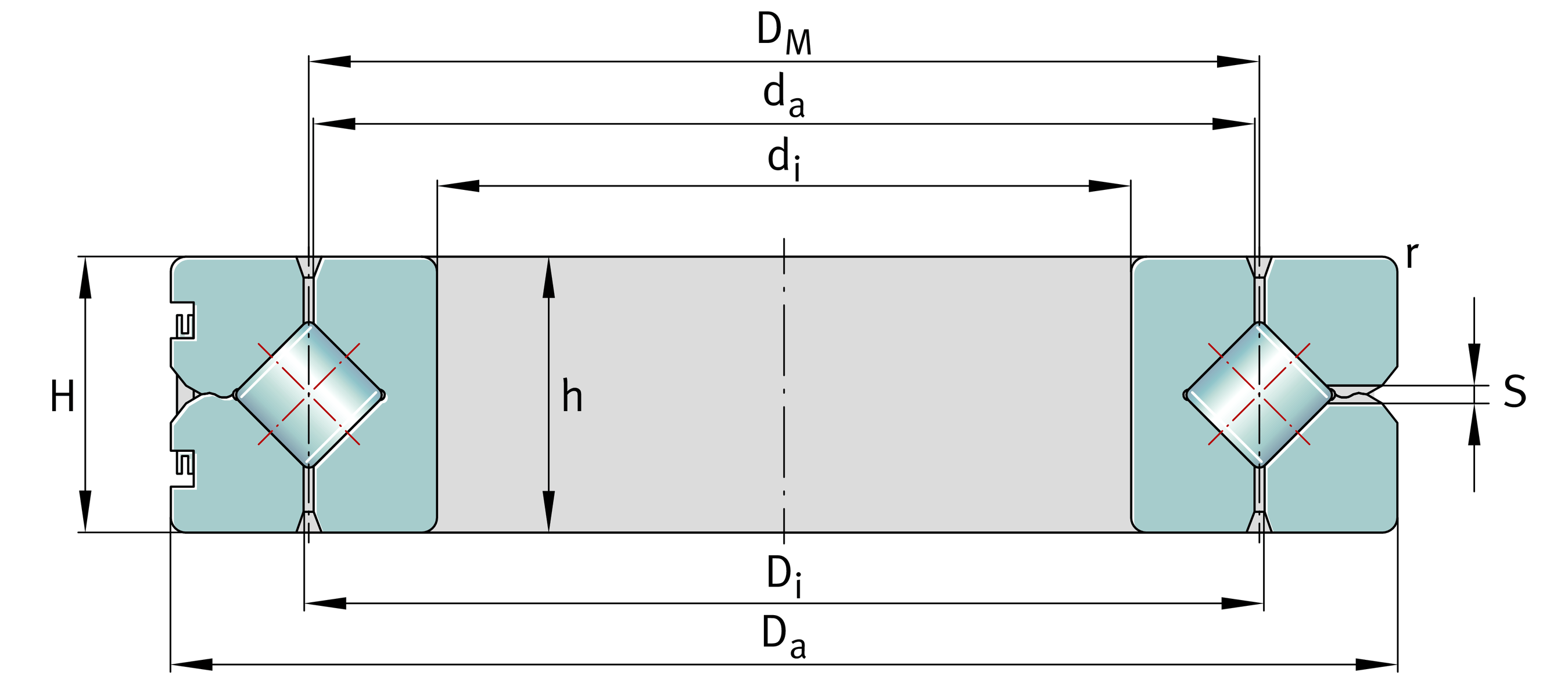

尺寸
| Di | 225.8 mm | 外圈內徑 |
| DM | 225 mm | rolling element pitch circle diameter |
| da | 224.2 mm | 外徑 inner ring |
| h | 24 mm | height of individual ring |
0 mm | Height of individual ring 公差上限 | |
-0.025 mm | Height of individual ring 較低的公差 | |
| rmin | 1.5 mm | chamfer dimension |
| S | 2 mm | diameter of lubrication hole |
溫度範圍
| Tmin | -30 °C | 最低工作溫度 |
| Tmax | 80 °C | 最高操作溫度 |
計算參數s
0.015 mm | Running accuracy, radial | |
0.01 mm | Running accuracy, axial | |
| Sr min | 0.005 mm | Minimum radial bearing clearance, at standard bearing clearance |
| Sr max | 0.025 mm | Maximum radial bearing clearance, at standard bearing clearance |
| Sk min | 0.01 mm | Minimum axial tilting clearance, at standard bearing clearance |
| Sk max | 0.05 mm | Maximum axial tilting clearance, at standard bearing clearance |
| RLOmax | 0.005 mm | Low clearance: 徑向間隙 |
| RLOmax | 0.01 mm | Low clearance: Preload |
| VSPmin | 0.005 mm | Minimum bearing preload |
| VSPmax | 0.025 mm | Maximum bearing preload |
| Ca | 104,000 N | 基本額定動載荷，軸向 |
| C0a | 400,000 N | 基本額定靜態載荷，軸向 |
| Cr | 74,000 N | 基本額定動載荷，徑向（僅適用於徑向載荷） |
| C0r | 197,000 N | 基本額定靜態負荷，徑向（僅適用於徑向負荷） |
| NG oil | 680 1/min | 油潤滑極限轉速 with normal clearance |
| NG Grease | 340 1/min | 脂潤滑的極限轉度 with normal clearance |
| NG oil | 340 1/min | 油潤滑極限轉速 with preload |
| NG Grease | 170 1/min | 脂潤滑的極限轉度 with preload |
61840 | Dimensions identical to ISO dimension series 18 |
