FAG
H3396-HG
Adapter sleeve H3396-HG
加入詢價

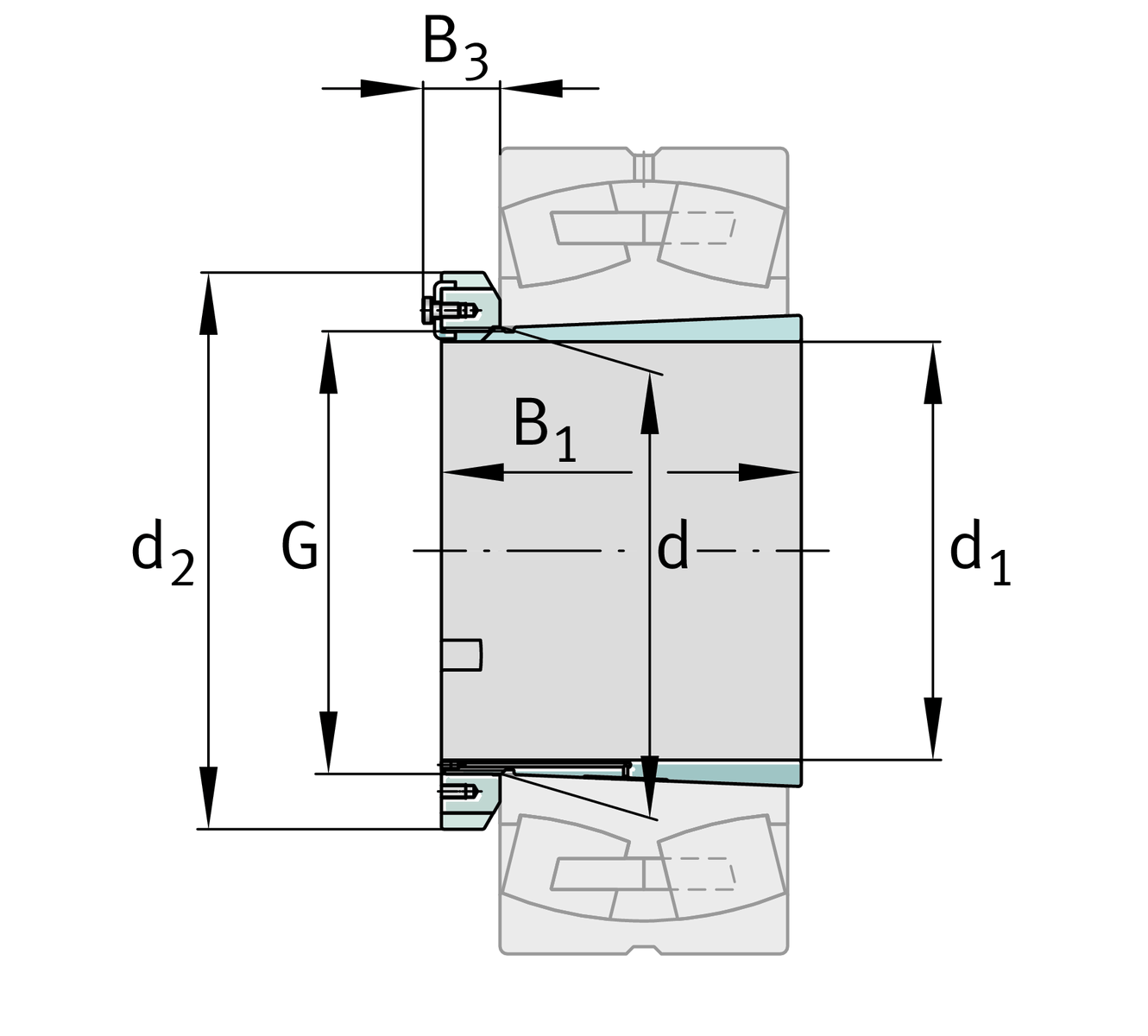

主要尺寸與性能資料
| d1 | 450 mm | 內徑 |
| G | Tr480X5 | 線 |
| B1 | 462 mm | sleeve length |
| ≈m | 177 kg | 重量 |
安裝尺寸
| G1 | M8 | Thread oil connector |
| a | 6.5 mm | Distance oil connector |
| IG1 | 12 mm | Thread depth oil connector |
尺寸
| d | 480 mm | 內徑 |
| d2 | 620 mm | 外徑 |
| B3 | 93 mm | Width nut and lock |
附加資訊
| HM3196 | Locknut |
| MS3196 | Fuse |
| 1:12 | Taper |
