FAG
H3368-HG
Adapter sleeve H3368-HG
加入詢價

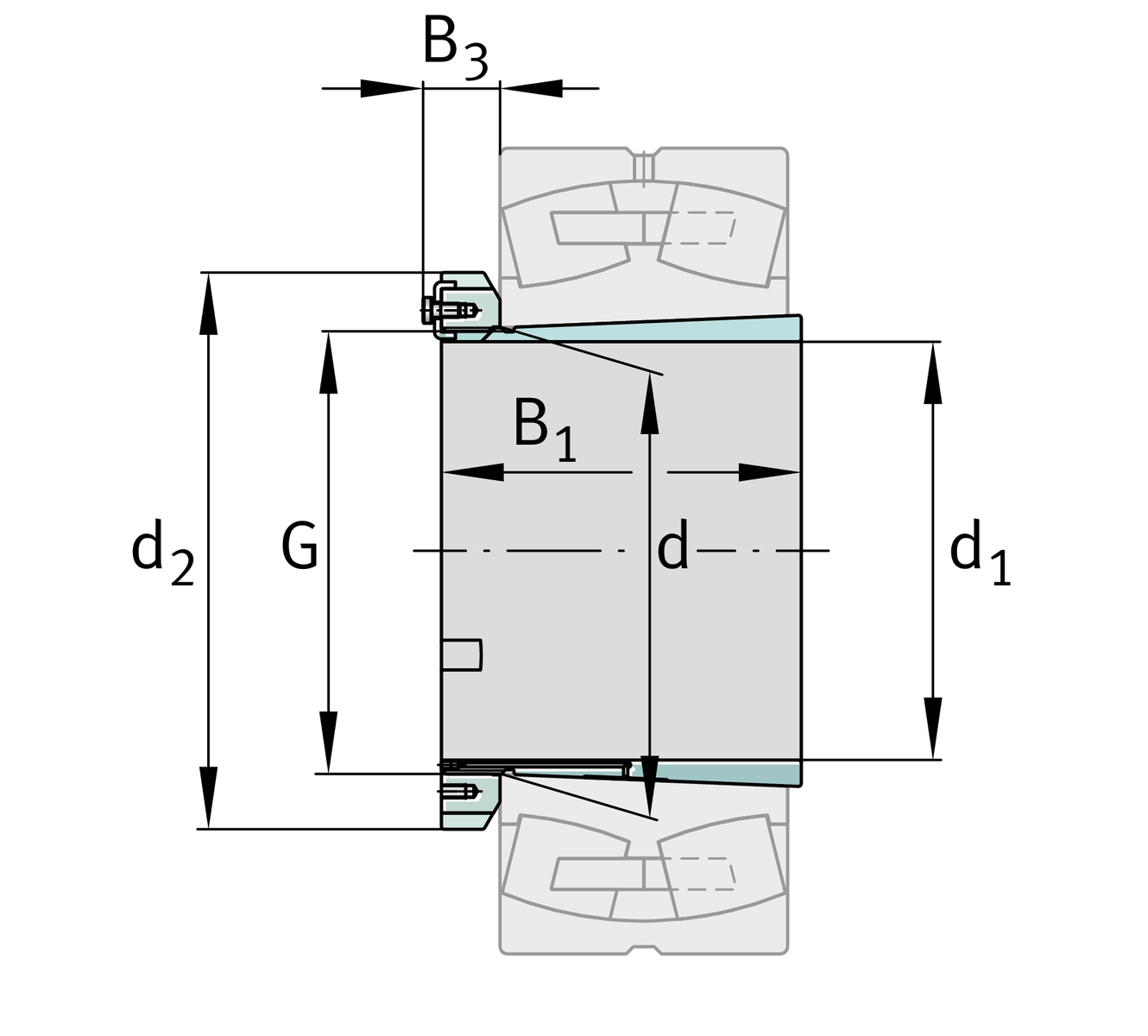

主要尺寸與性能資料
| d1 | 320 mm | 內徑 |
| G | Tr340X5 | 線 |
| B1 | 336 mm | sleeve length |
| ≈m | 63.6 kg | 重量 |
安裝尺寸
| G1 | M6 | Thread oil connector |
| a | 3.5 mm | Distance oil connector |
| IG1 | 7 mm | Thread depth oil connector |
尺寸
| d | 340 mm | 內徑 |
| d2 | 440 mm | 外徑 |
| B3 | 70 mm | Width nut and lock |
附加資訊
| HM3168 | Locknut |
| MS3168 | Fuse |
| 1:12 | Taper |
