FAG
H3338-HG
Adapter sleeve H3338-HG
加入詢價

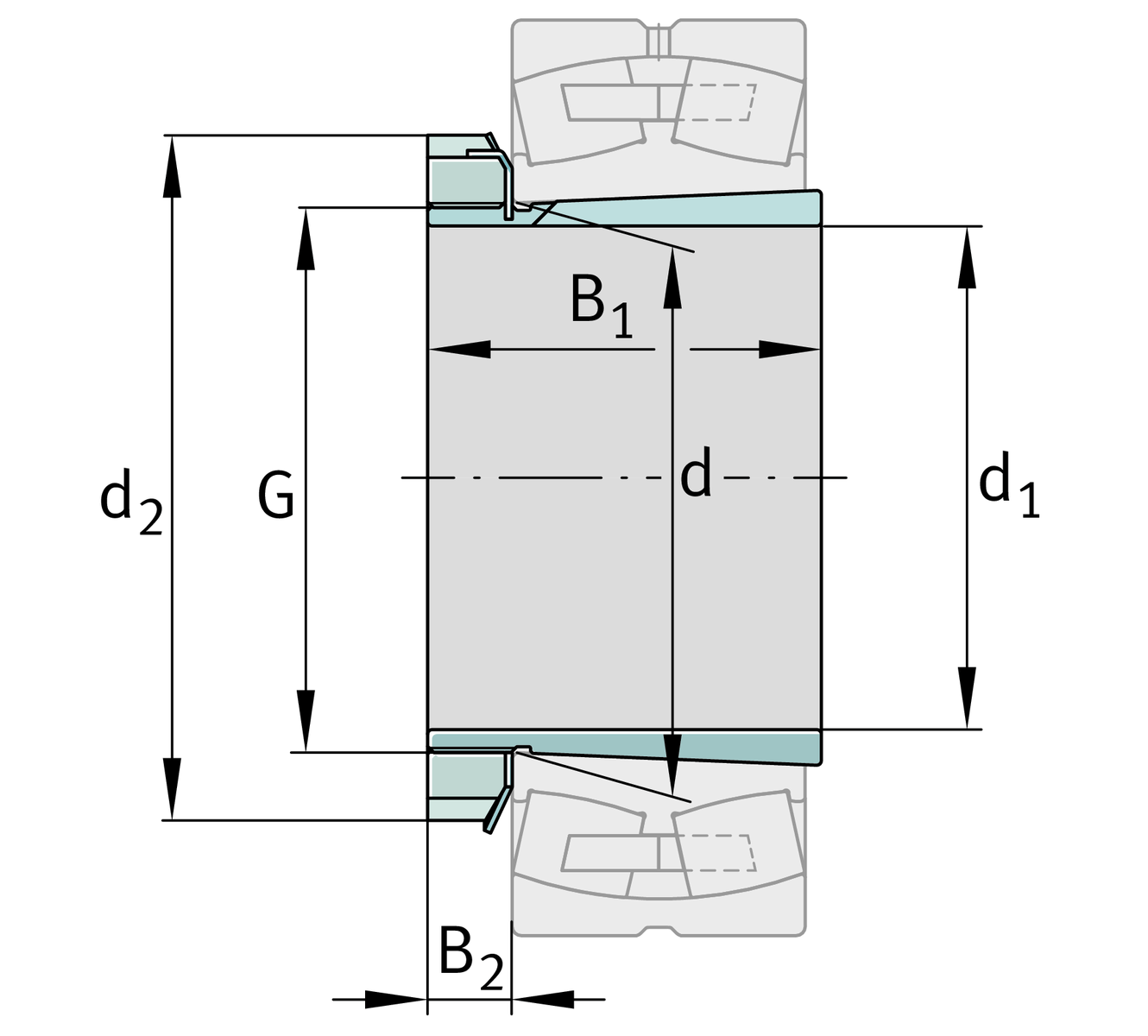

主要尺寸與性能資料
| d1 | 170 mm | 內徑 |
| G | M190x3 | 線 |
| B1 | 193 mm | sleeve length |
| ≈m | 14.7 kg | 重量 |
安裝尺寸
| G1 | M6 | Thread oil connector |
| a | 4.2 mm | Distance oil connector |
| IG1 | 7 mm | Thread depth oil connector |
尺寸
| d | 190 mm | 內徑 |
| d2 | 240 mm | 外徑 |
| B2 | 30.5 mm | Width nut and lock |
附加資訊
| KM38 | Locknut |
| MB38 | Fuse |
| 1:12 | Taper |
