主要尺寸與性能資料
| L | 141 mm | length max |
| H | 30 mm | heigth min |
| B | 50 mm | 寬度 |
| ≈m | 1.37 kg | 重量 |

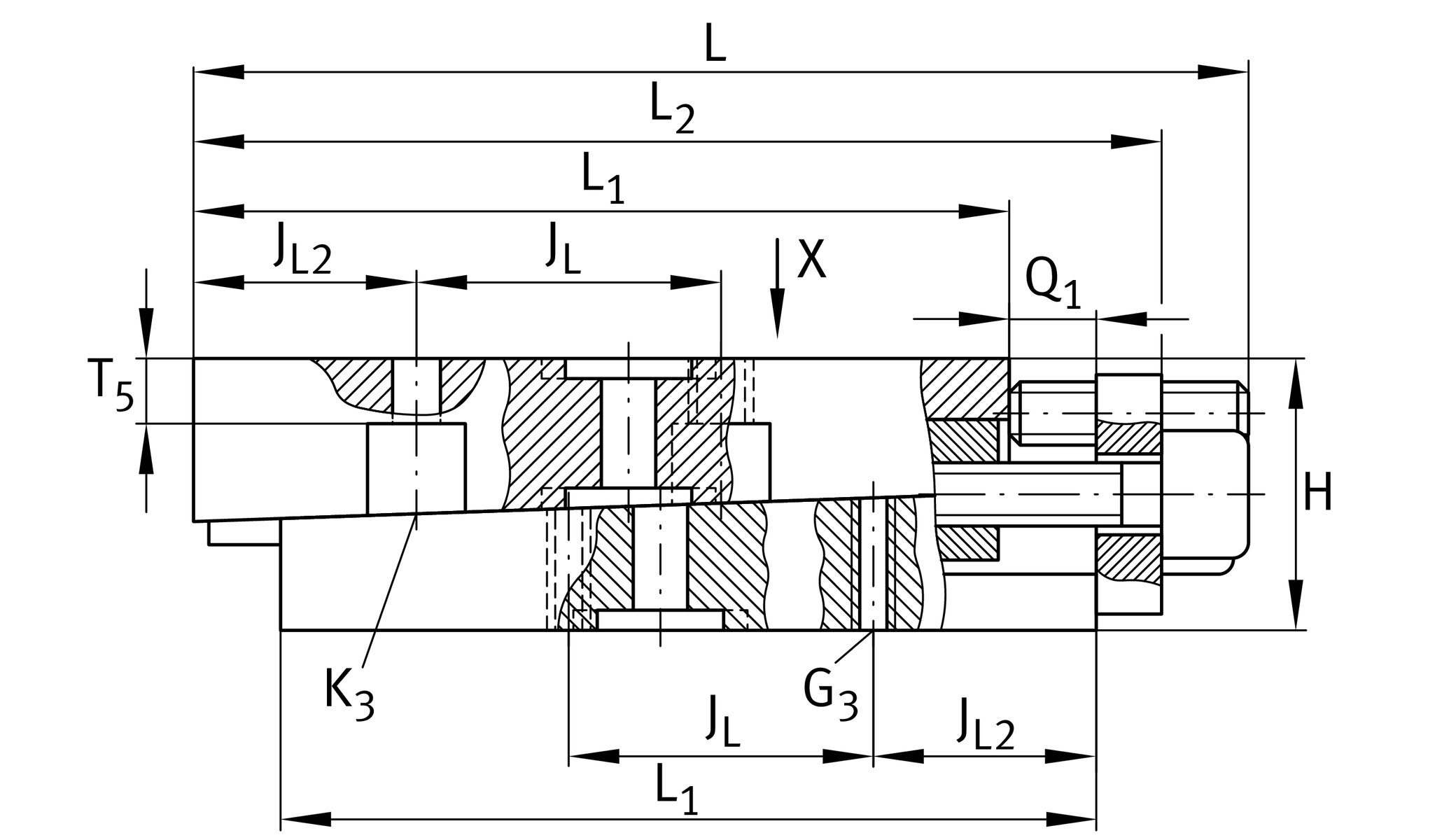

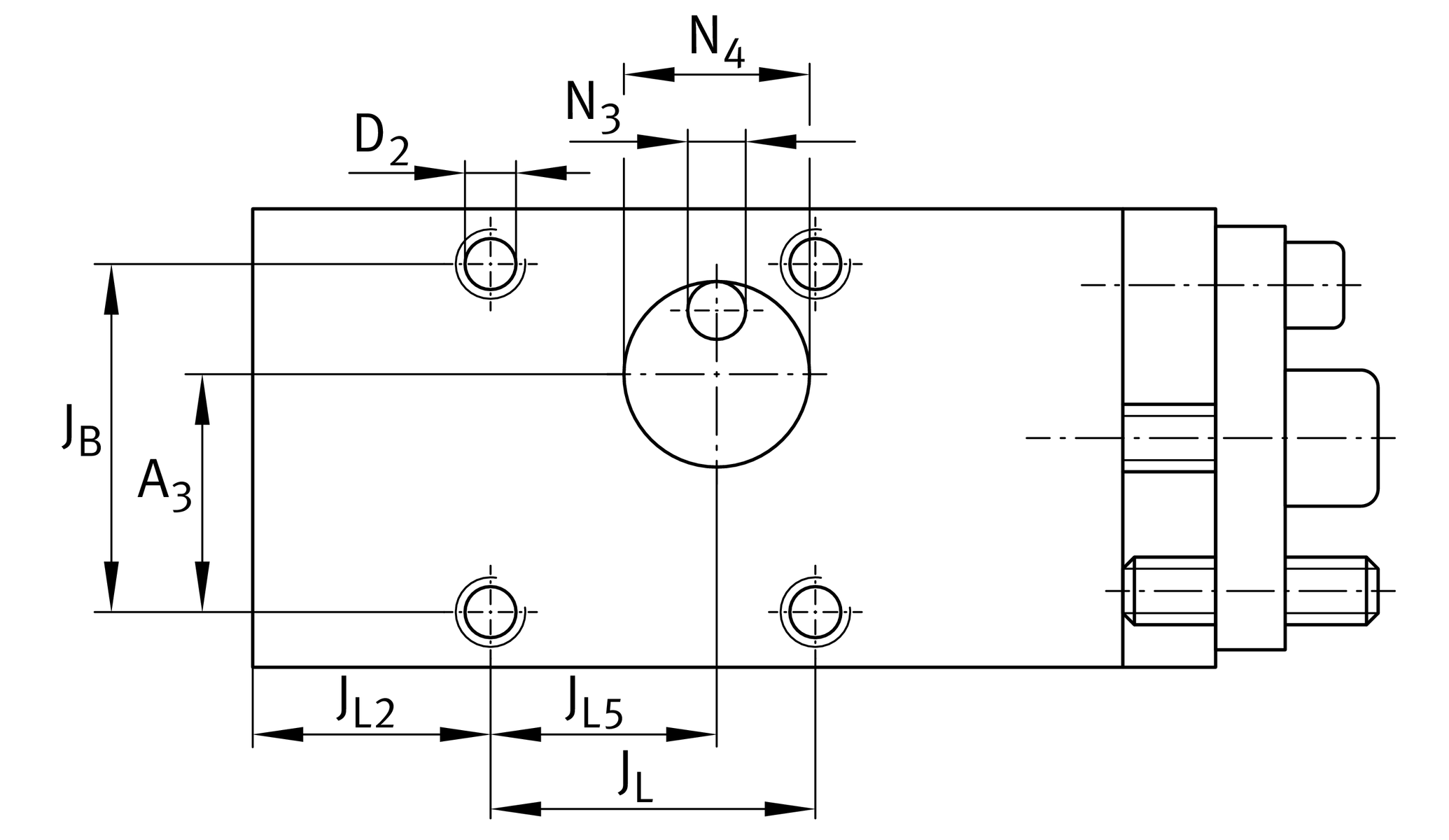

安裝尺寸
| L1 | 115 mm | |
| L2 | 131 mm | max |
| JB | 41 mm | |
| TolJB | +0,1 | 公差上限 |
| TolJB | -0,1 | 較低的公差 |
| JL | 51 mm | |
| TolJL | +0,1 | 公差上限 |
| TolJL | -0,1 | 較低的公差 |
| JL2 | 28 mm | |
| JL5 | 30.5 mm | |
| Q1 | 8 mm | max |
| A3 | 28.5 mm | |
| N3 | 5 mm | 1 |
| N4 | 22 mm | |
| T5 | 7 mm |
附加資訊

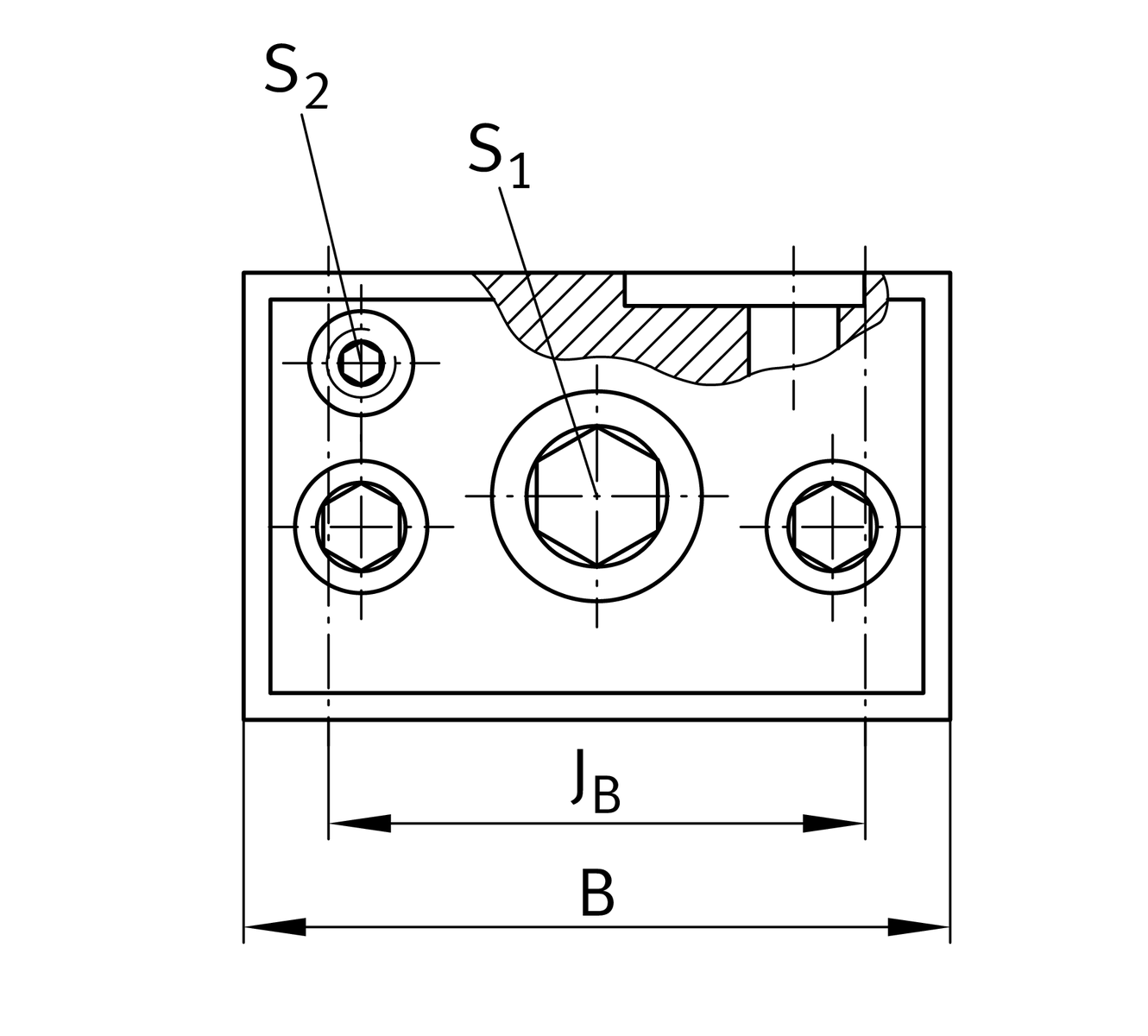

| S1 | 8 mm | adjustment screw 內六角套筒 |
| S2 | 4 mm | locking/extraction screw 內六角套筒 2 |
| G3 | M5 | fixing screws DIN ISO4762-12.9 |
| MA G3 | 10 Nm | tightening torque |
| K3 | M5 | fixing screws DIN ISO4762-12.9 |
| MA K3 | 10 Nm | tightening torque |
| D2 | 6 mm | core hole |
| Δh | 0.4 mm | adjustment max |
0.062 mm | adjustment per screw revolution |
Related products
PR14089 | for linear roller bearing |
您目前的產品型號
| Size code | 24084 | |
| Version | A |
