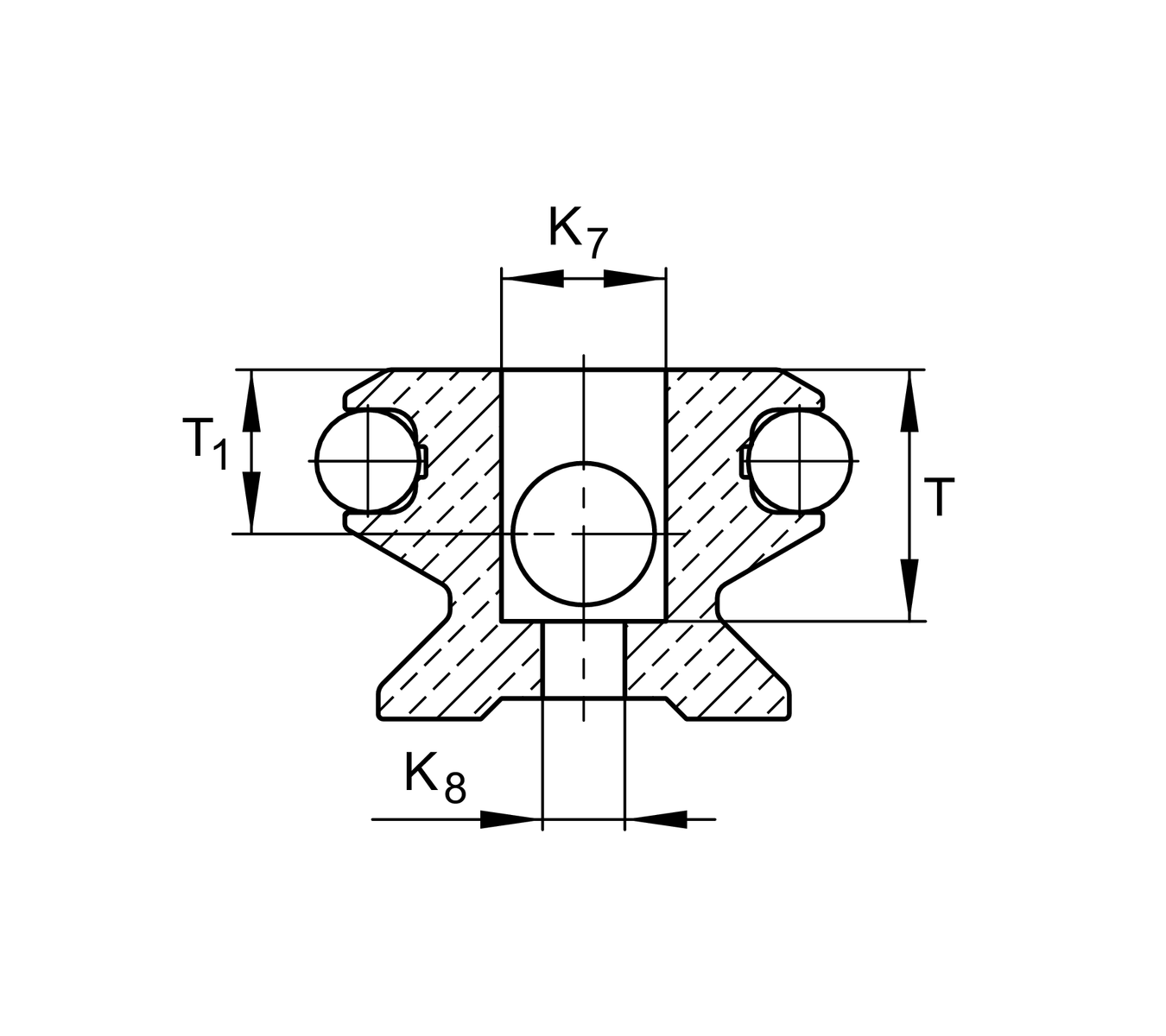

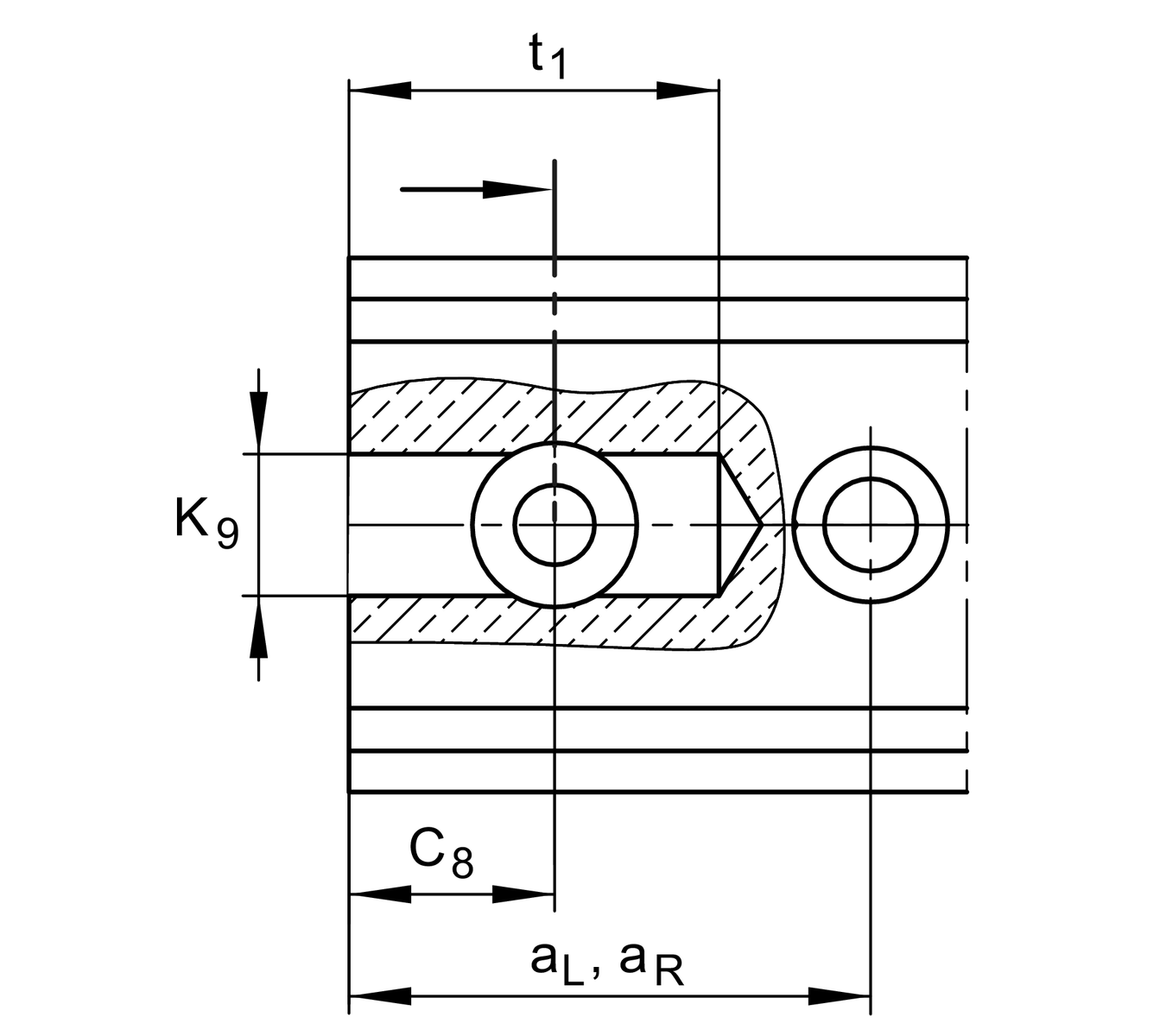

主要尺寸與性能資料
| aL min | 30 mm | |
| aR min | 30 mm | |
| C8 | 15 mm | |
| C8 Tol | 0.1 mm | |
| C8 Tol | -0.1 mm | |
| K7 | 12 mm | |
| K7 Tol | 0.2 mm | |
| K8 | 6.5 mm | |
| K9 | 9 mm | |
| K9 Tol | 0.5 mm | |
| T | 16.5 mm | |
| T1 | 10 mm | |
| T1 Tol | 0.1 mm | |
| T1 Tol | -0.1 mm | |
| t1 | 25 mm | |
| t1 Tol | 0.5 mm | |
| ≈m | 35 g | 重量 |
Related products
LFS32 | Compatible with the following guide rail | |
LFS32-E | Compatible with the following guide rail |
您目前的產品型號
| Size code | 32 |
