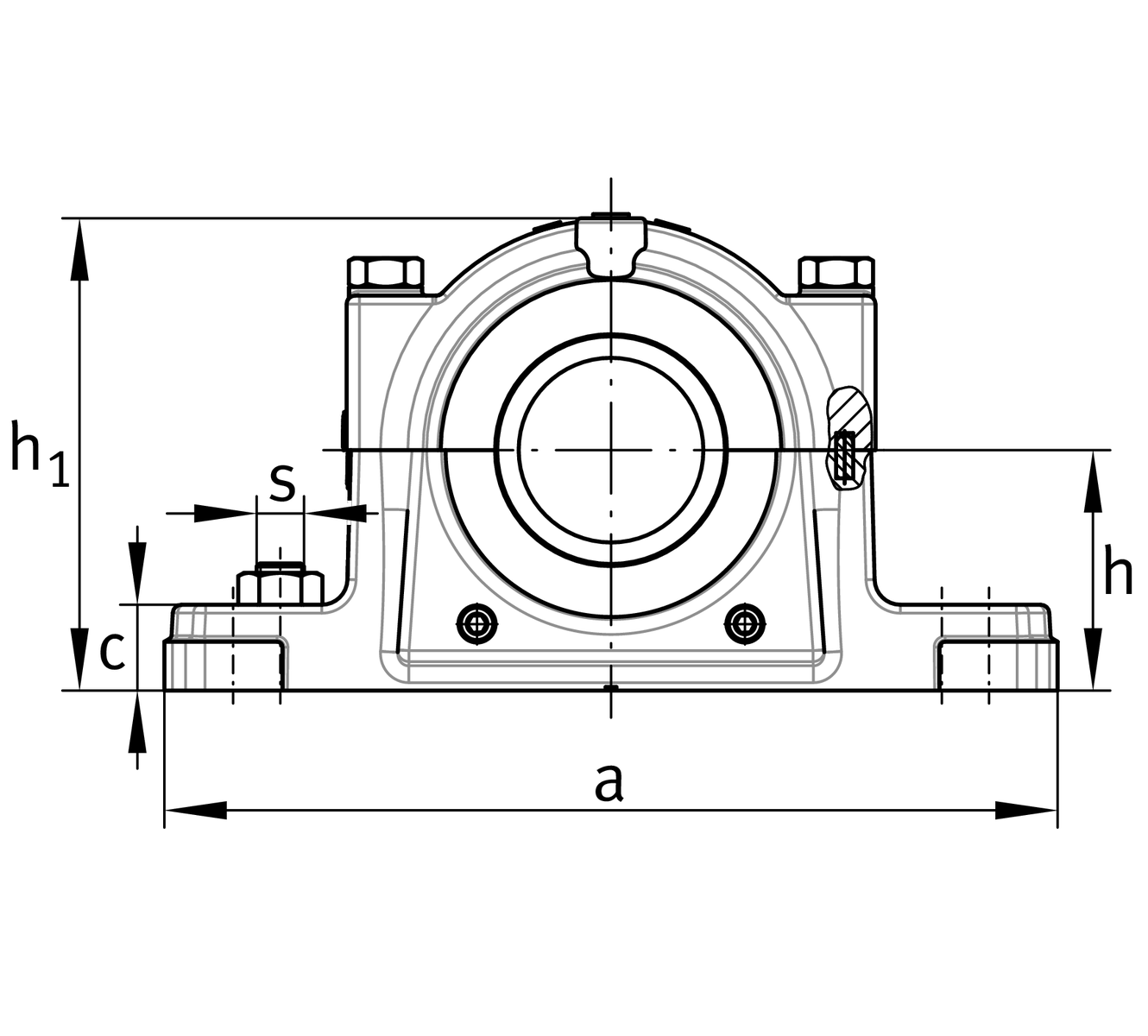

主要尺寸與性能資料
| d1 | 150.813 mm | Shaft diameter inch |
| d1 | 150.8125 mm | Shaft diameter |
| a | 628.65 mm | Length foot |
| h1 | 360.362 mm | Total height |
| g | 234.95 mm | Width 軸承座 body |
| ≈m | 89.5 kg | 重量 |

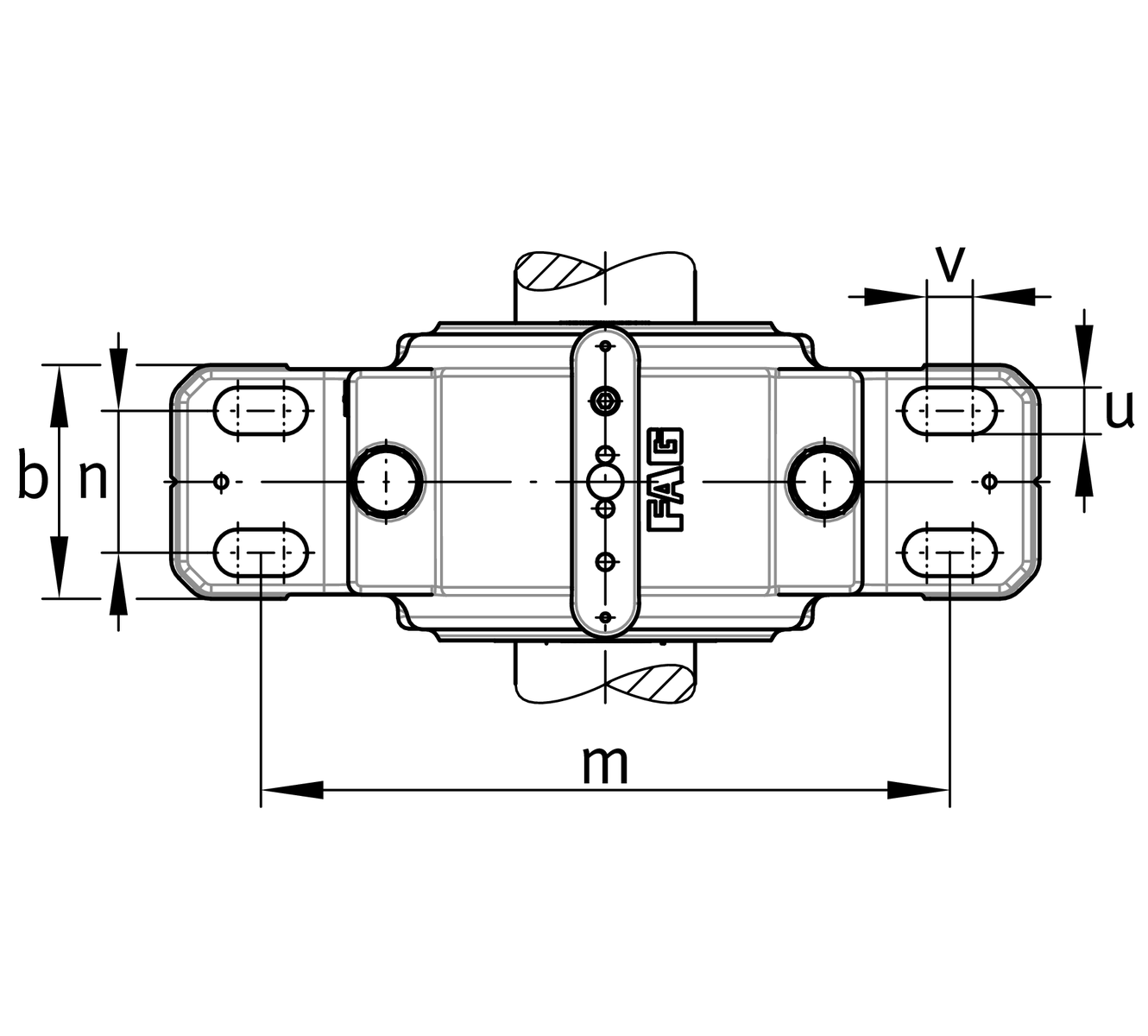

尺寸
| b | 171.45 mm | Width foot |
| c | 69.85 mm | Height foot |
| D | 310 mm | 外徑 bearing |
| e | 5.08 mm | Offset Bearing centre |
| h | 179.387 mm | Distance shaft axis |
| k | 95.8 mm | Width bearing seat |
| m | 520.7 mm | Distance mounting holes |
| n | 107.95 mm | Width bore spacing |
| s | 25.4 mm | screw size |
| v | 28.575 mm | Width oblong hole |
| v | 28.575 mm | Length oblong hole |
