主要尺寸與性能資料
| d1 | 100.012 mm | Shaft diameter inch |
| d1 | 100.0125 mm | Shaft diameter |
| a | 419.1 mm | Length foot |
| h1 | 244.475 mm | Total height |
| g | 163.512 mm | Width 軸承座 body |
| ≈m | 31.7 kg | 重量 |

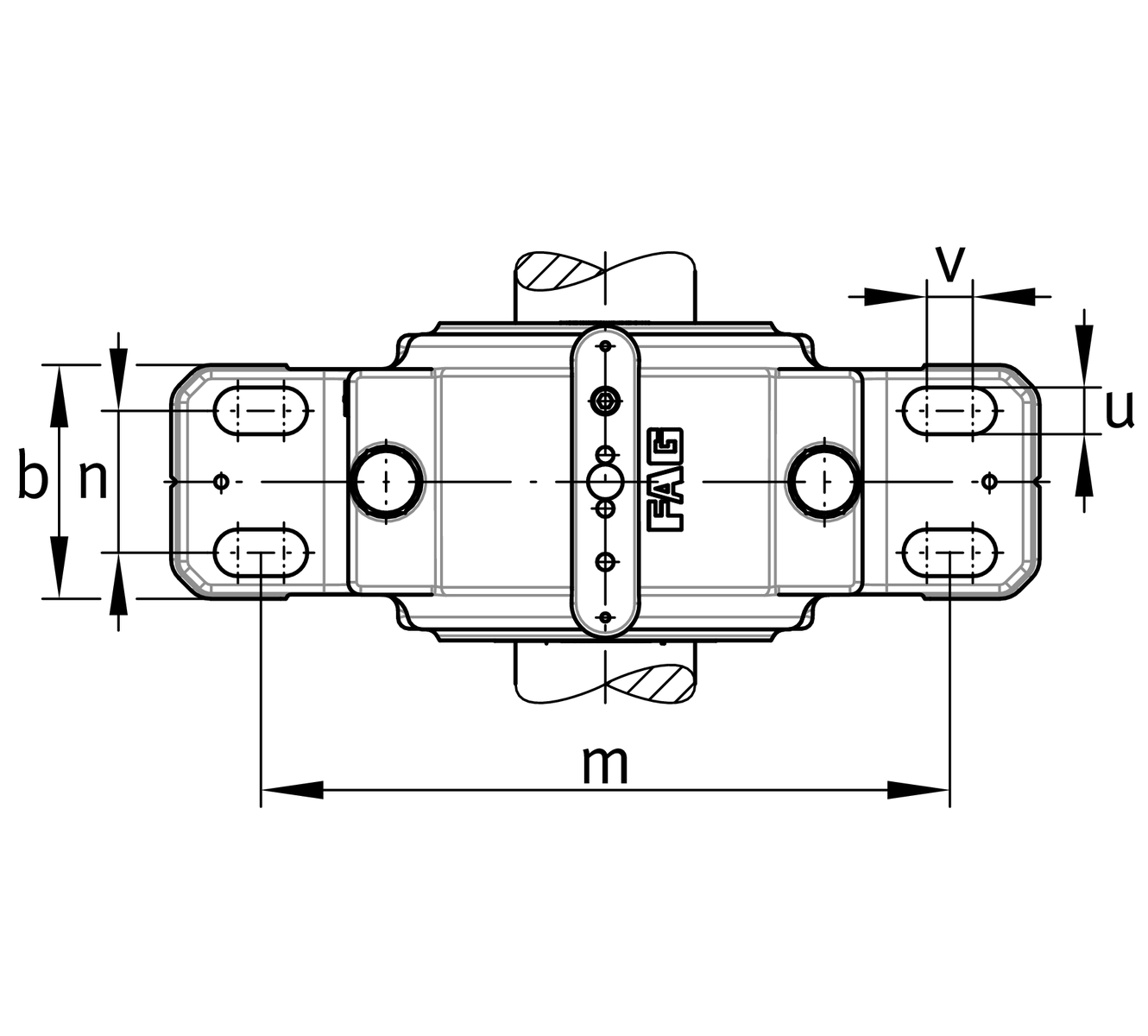

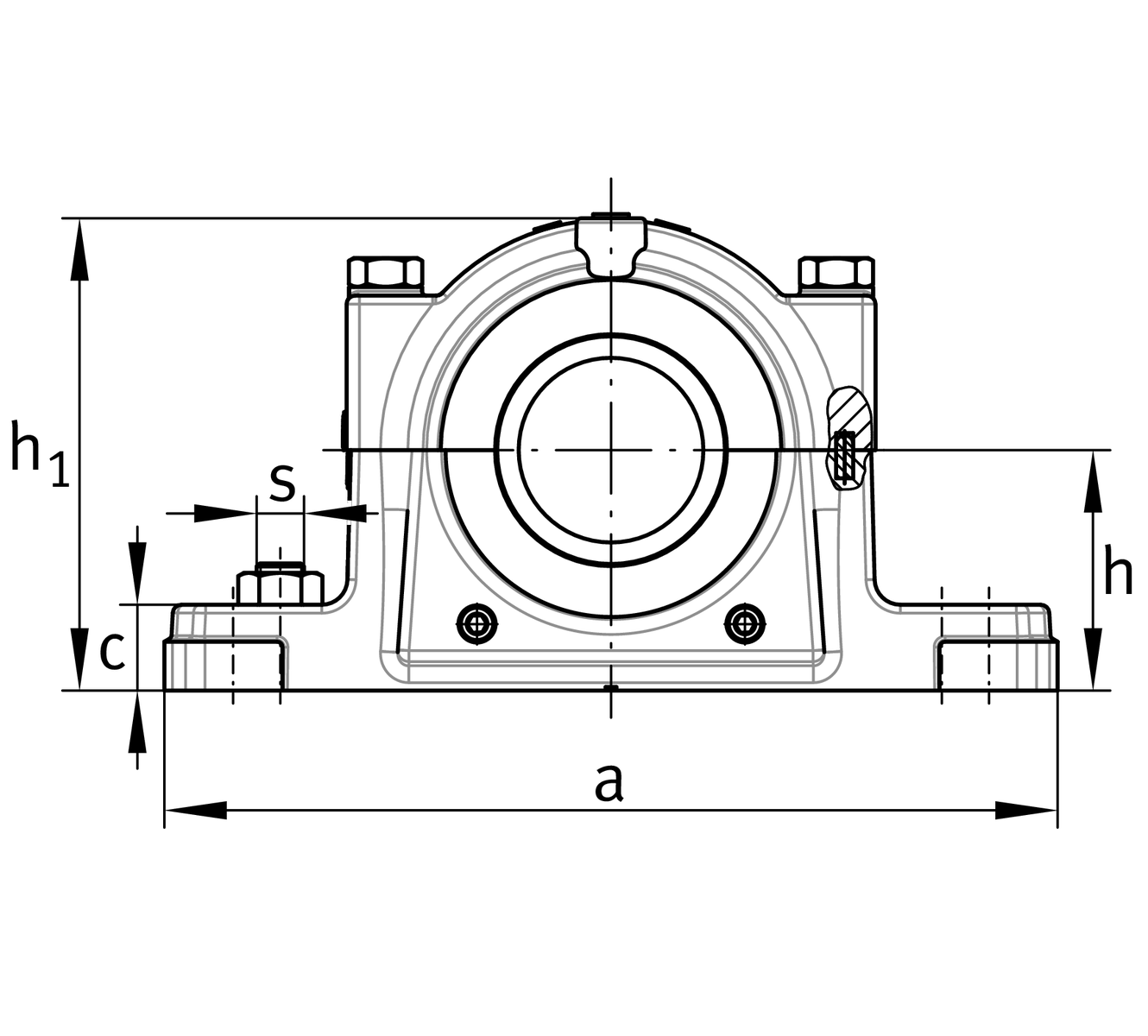

尺寸
| b | 120.65 mm | Width foot |
| c | 50.8 mm | Height foot |
| D | 200 mm | 外徑 bearing |
| e | 5.08 mm | Offset Bearing centre |
| h | 125.412 mm | Distance shaft axis |
| k | 62.8 mm | Width bearing seat |
| m | 344.487 mm | Distance mounting holes |
| n | 69.85 mm | Width bore spacing |
| s | 19.05 mm | screw size |
| v | 22.225 mm | Width oblong hole |
| v | 23.813 mm | Length oblong hole |
