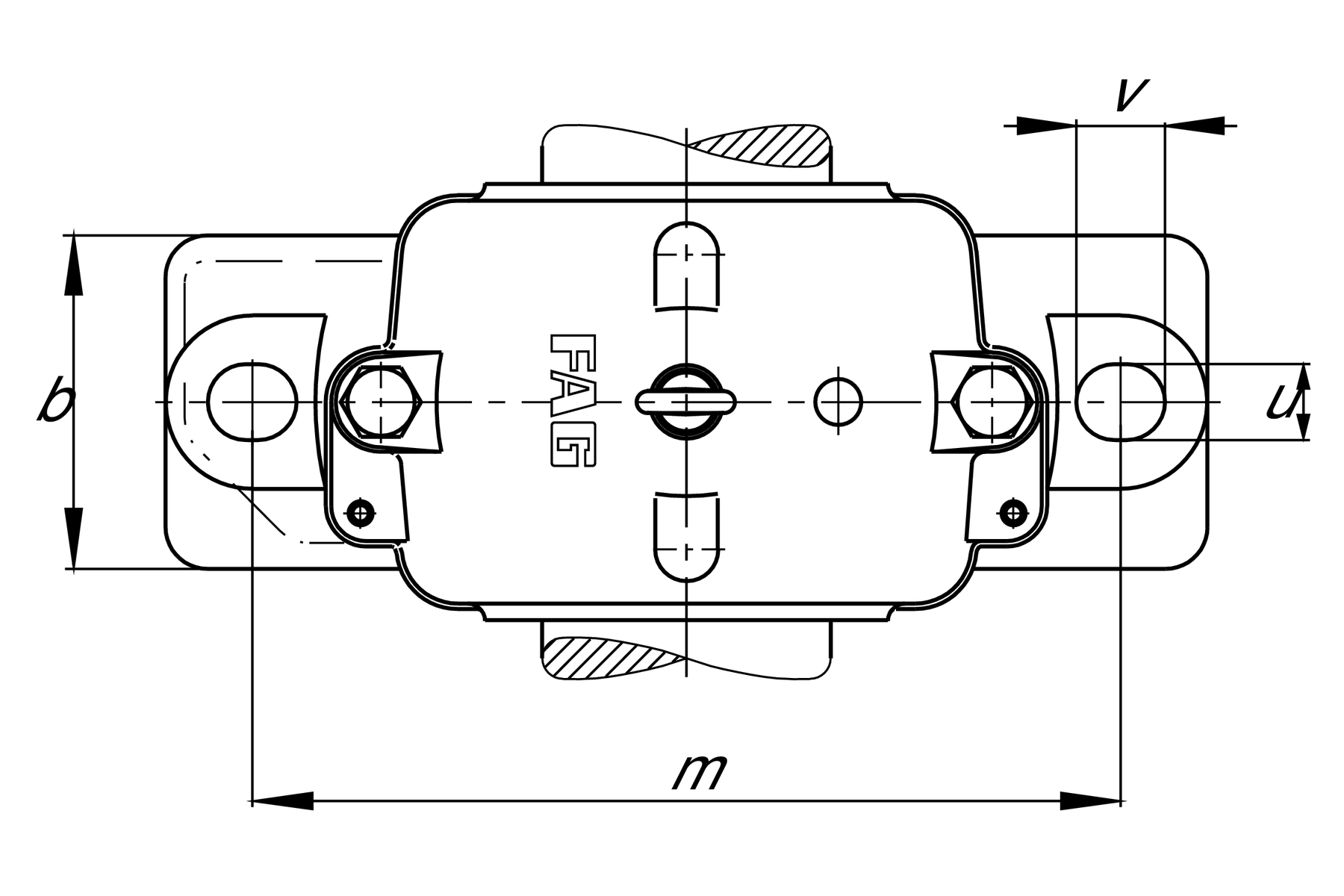

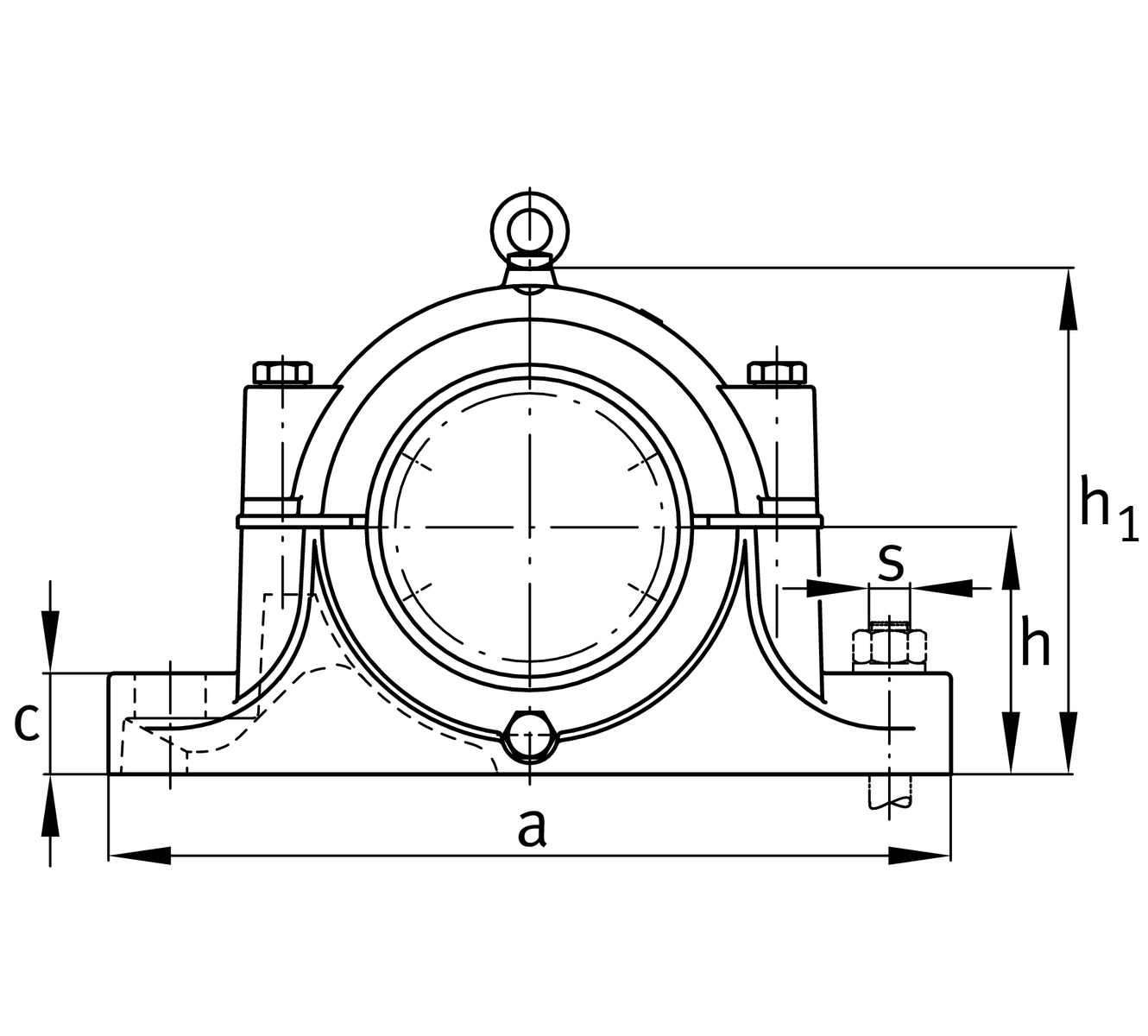

主要尺寸與性能資料
| d1 | 115 mm | shaft diameter |
| a | 420 mm | Length base |
| h1 | 239 mm | total height |
| g | 160 mm | Width 軸承座 |
| ≈m | 24.254 kg | 重量 |
尺寸
M10x1 | 用於潤滑的連接螺紋 | |
| b | 120 mm | Width base |
| c | 45 mm | Height foot |
| D | 200 mm | 外徑 bearing |
| g3 | 18 mm | 壁厚 g3 |
| h | 125 mm | Distance shaft axis |
| m | 350 mm | 固定內孔距離 |
| s | M24 | size of fixing screw |
| s | 25.4 mm | Screw size |
| u | 30 mm | Width oblong hole |
| v | 36 mm | Lenght oblong hole |
