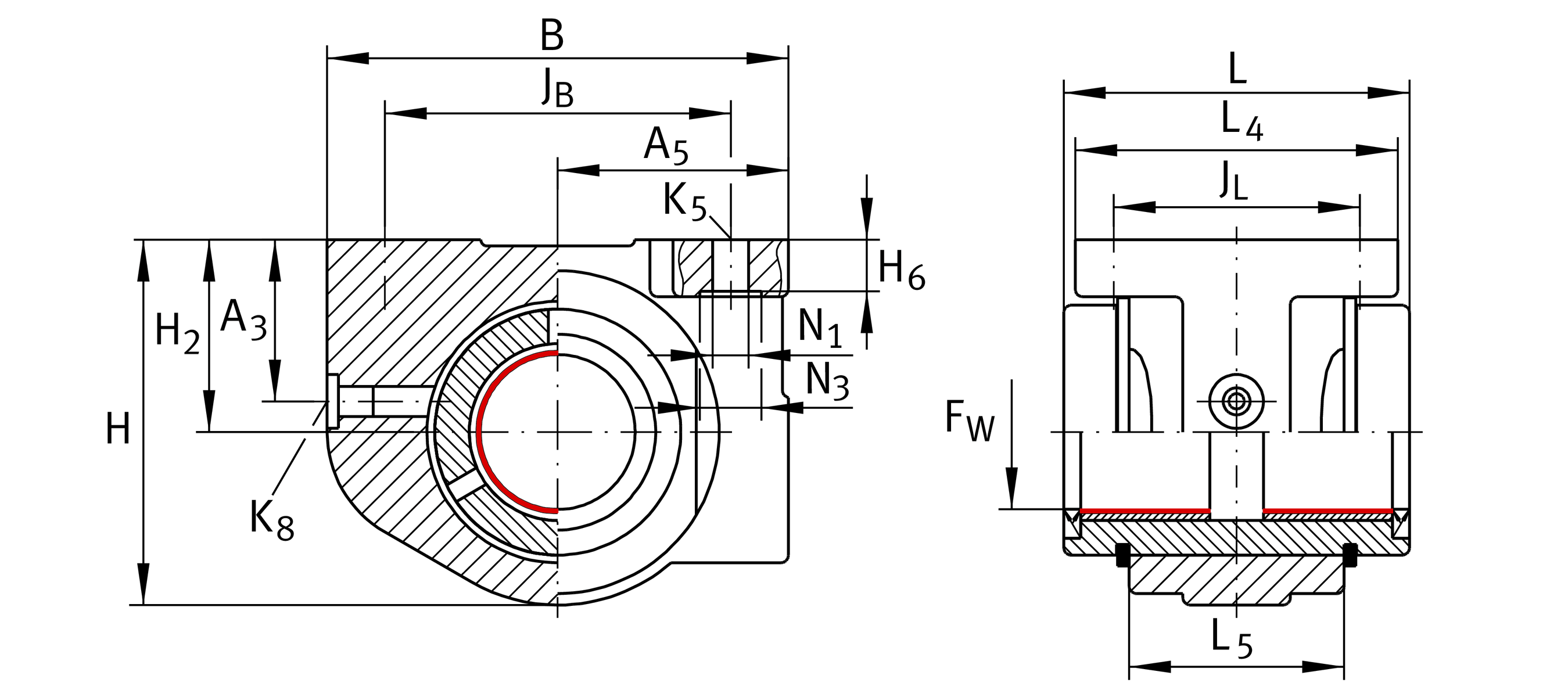

主要尺寸與性能資料
| FW | 16 mm | Diameter of ball complement |
| H | 36.8 mm | heigth |
| L | 36 mm | 長度 |
| TolL | h12 | tolerance |
| B | 50 mm | 寬度 |
| ≈m | 90 g | 重量 |

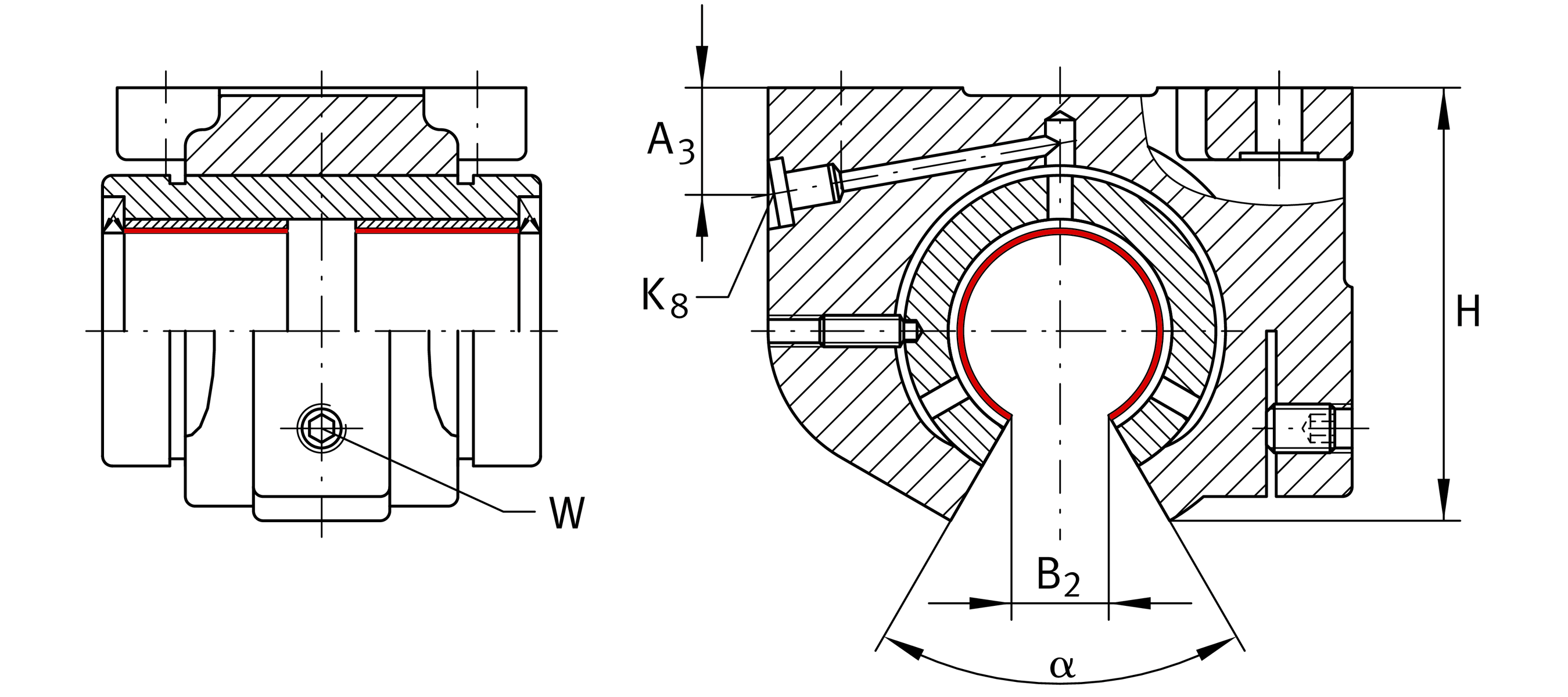

安裝尺寸
| JB | 40 mm | |
| Tol JB | +0,15 | 公差上限 |
| Tol JB | -0,15 | 較低的公差 |
| A5 | 25 mm | |
| B2 | 10.1 mm | 1 |
| L4 | 35 mm | |
| L5 | 22 mm | |
| JL | 26 mm | |
| Tol JL | +0,15 | 公差上限 |
| Tol JL | -0,15 | 較低的公差 |
| H2 | 22 mm | Center height |
| A3 | 10 mm | |
| H6 | 5.4 mm | |
| Tol H6 | -0,5 | tolerance |
| N1 | 4.7 mm | 2 |
| N3 | 8 mm | 2 |
| K5 | M4 | |
| K8 | NIPA1 | Lubrication nipple |
| W | 2.5 mm | 平面寬度s 3 |
| M Wmax | 1.5 Nm | max. tightening torque |
| α | 78 ° | Angle |
您目前的產品型號
| Size code | 16 | |
| Seal | PP | |
| Relubrication feature | AS |
