主要尺寸與性能資料
| d1 | 171 mm | 內徑 |
| diZT | 173 mm | Diameter centring inner ring |
IT8 | Diameter centring inner ring tolerance | |
| t | 6 mm | Length centering inner ring |
| Da | 318.8 mm | 外徑 |
| Di ZT | 238 µm | Diameter centring outer ring |
IT8 | Diameter centring outer ring tolerance | |
| T | 2.6 mm | Length centering outer ring |
| H | 40 mm | 高度 |
| ≈m | 13.2 kg | 重量 |

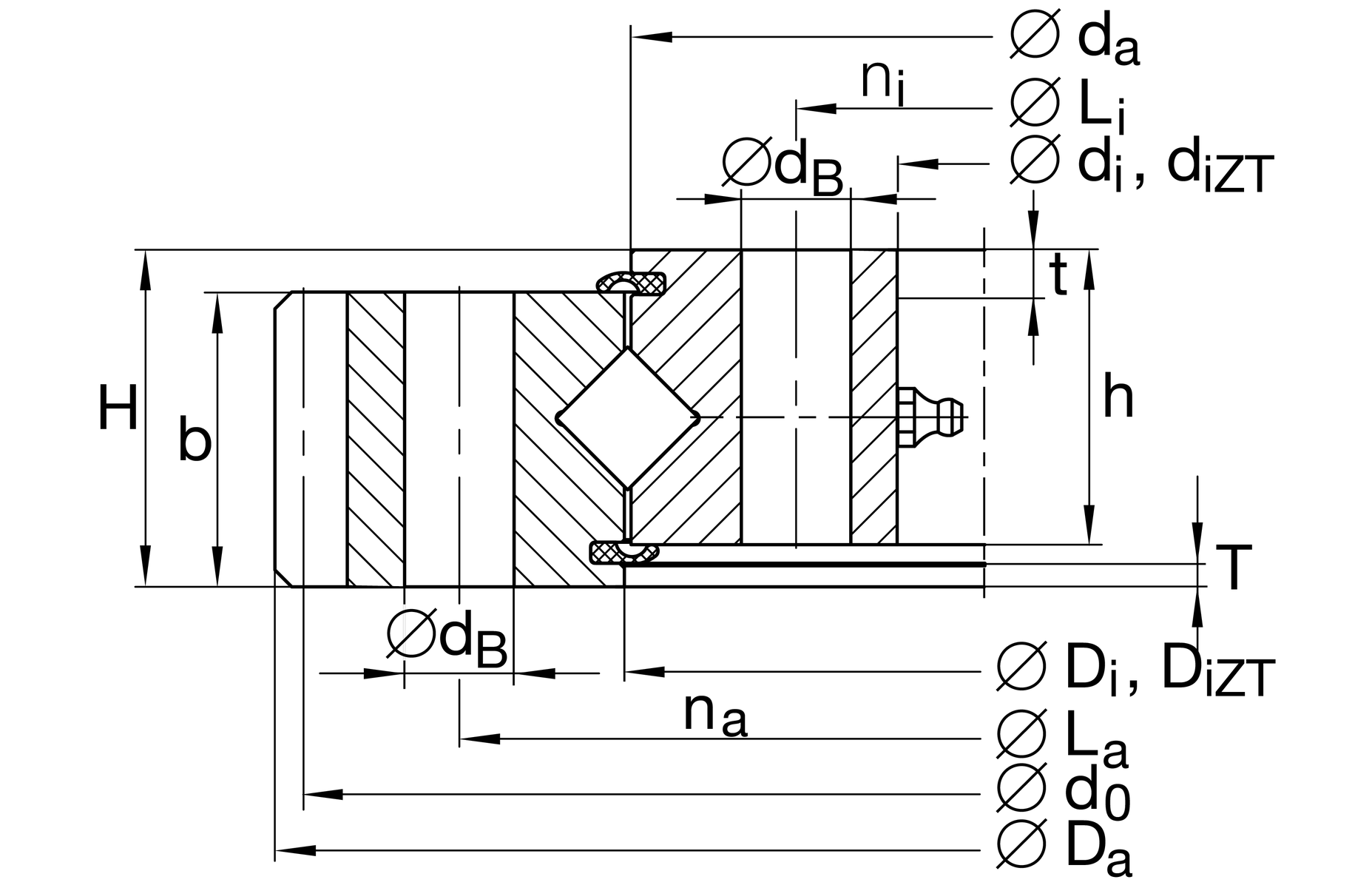

尺寸
| Di | 236 mm | 外圈內徑 |
| ha | 35 mm | Width outer ring |
| La | 275 mm | 外圈螺距圓固定孔直徑 |
| na | 12 | 外圈固定孔數 |
| b | 35 mm | Width gearing |
| m | 4 mm | Modul of gearing |
| z | 78 | Number of teeth |
| d0 | 312 mm | Pitch circle diameter gearing |
| Fz norm | 11,000 N | Max. tooth force root fatigue strenght (at a shock factor of 1,2) |
| Fz max | 16,100 N | Max. tooth force against tooth fracture (at a shock factor of 1,35) |
| da | 234 mm | 內圈外徑 |
0.2 mm | 內圈外徑 公差上限 | |
-0.2 mm | 內圈外徑 較低的公差 | |
| h | 35 mm | height of individual ring |
| dB | 13 mm | 固定內徑 |
| Li | 195 mm | 內圈螺距圓直徑固定孔 |
| ni | 12 | 內圈固定孔數 |
溫度範圍
| Tmin | -30 °C | 最低工作溫度 |
| Tmax | 80 °C | 最高操作溫度 |
計算參數s
| Ca | 129,000 N | 基本額定動載荷，軸向 |
| C0a | 280,000 N | 基本額定靜態載荷，軸向 |
| Cr | 92,000 N | 基本額定動載荷，徑向（僅適用於徑向載荷） |
| C0r | 138,000 N | 基本額定靜態負荷，徑向（僅適用於徑向負荷） |
| VSPmax | 0.02 mm | Maximum bearing preload |
| VSPmin | 0 mm | Min. bearing preload |
| Fr zul | 49,600 N | Max. radial load fixing screws (friction locking) |
您目前的產品型號
| Centering | ZT | Centering on inner and outer ring |
| Gearing | N | Normalized gear teeth on bearing ring |
