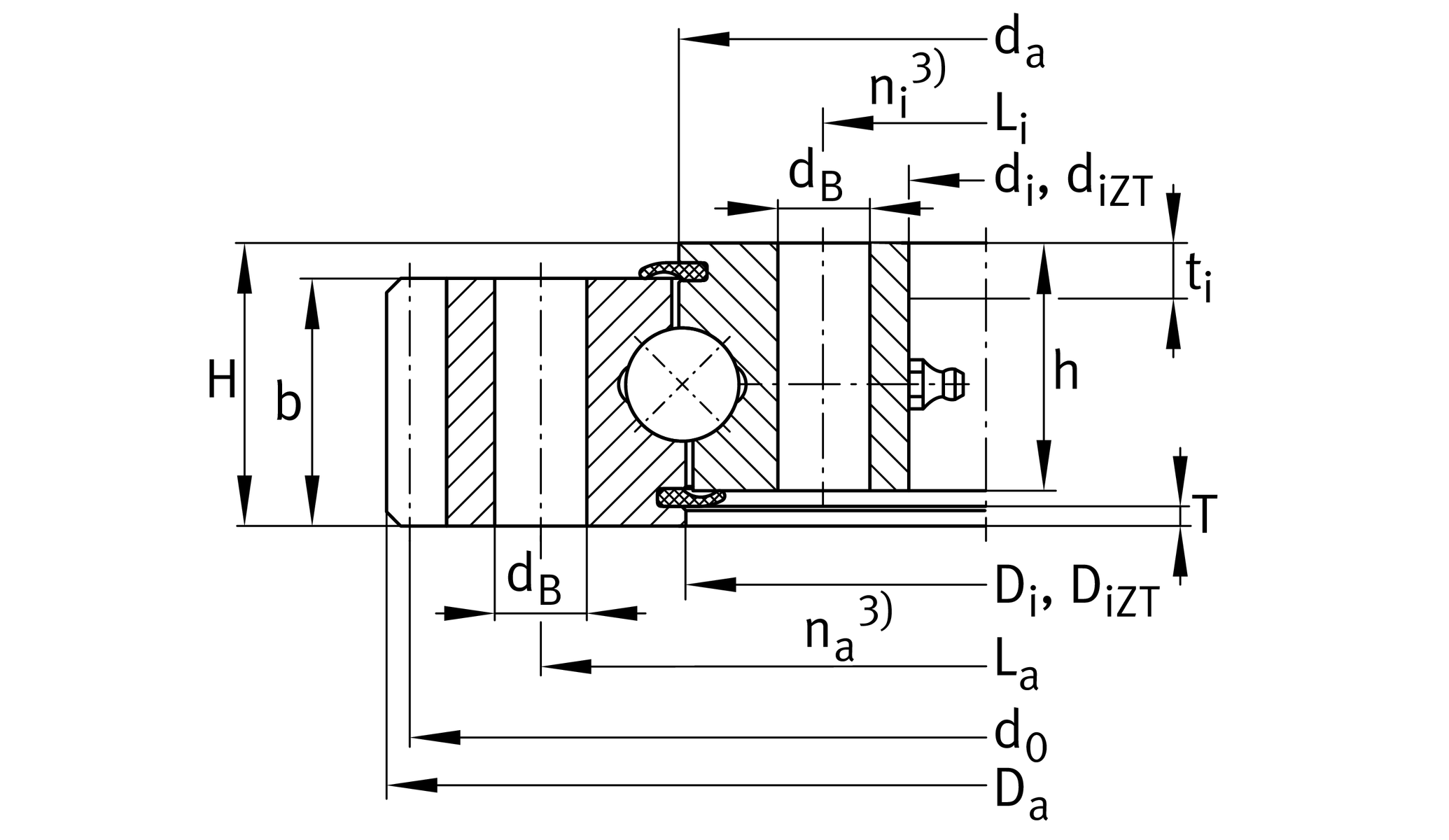

主要尺寸與性能資料
| di | 171 mm | 內徑 |
| H | 40 mm | 高度 |
| Da | 318.6 mm | 外徑 |
| Di ZT | 236 mm | Diameter centring outer ring |
IT8 | Diameter centring outer ring tolerance | |
| T | 2.3 mm | Length centering outer ring |
| t | 6 mm | Length centering inner ring |
| ha | 35 mm | Width outer ring |
| hi | 35 mm | 內圈高度 |
0.04 mm | Normal 徑向間隙 min. | |
0.16 mm | Normal 徑向間隙 max. | |
0.07 mm | Normal axial clearance min. | |
0.26 mm | Normal axial clearance max. | |
| ≈m | 12.901 kg | 重量 |
尺寸
| Di | 234 mm | 外圈內徑 |
| da | 236 mm | 內圈外徑 |
| ni | 12 | 內圈固定孔數 |
| Li | 195 mm | 內圈螺距圓直徑固定孔 |
| dB | 13 mm | 固定內徑 |
| na | 12 | 外圈固定孔數 |
| La | 275 mm | 外圈螺距圓固定孔直徑 |
| Fr zul | 49,600 N | Max. radial load fixing screws (friction locking) |
| d0 | 312 mm | Pitch circle diameter gearing |
| m | 4 mm | Modul of gearing |
| z | 78 | Number of teeth |
| b | 35 mm | Width gearing |
| Fz norm | 11,000 N | Max. tooth force root fatigue strenght (at a shock factor of 1,2) |
| Fz max | 16,100 N | Max. tooth force against tooth fracture (at a shock factor of 1,35) |
溫度範圍
| Tmin | -25 °C | 最低工作溫度 |
| Tmax | 80 °C | 最高操作溫度 |
計算參數s
| Ca | 123,000 N | 基本額定動載荷，軸向 |
| C0a | 460,000 N | 基本額定靜態載荷，軸向 |
| Cr | 112,000 N | 基本額定動載荷，徑向 |
| C0r | 210,000 N | 基本額定靜態負荷，徑向 |
您目前的產品型號
| Gearing | N | Normalized gear teeth on bearing ring |
