主要尺寸與性能資料
| d | 9.5 in | Shaft diameter |
| ≈m | 439.998 lbs | 重量 |

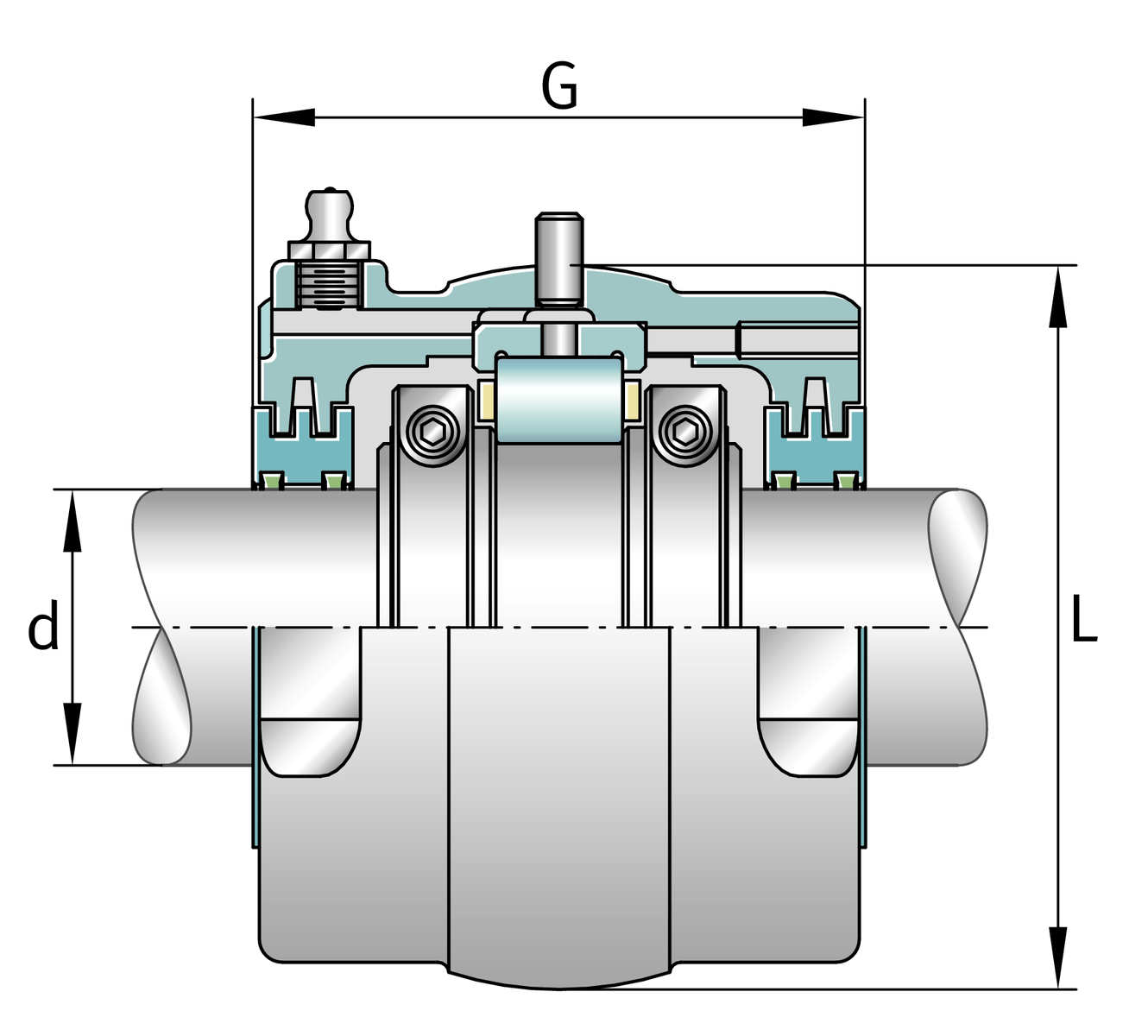

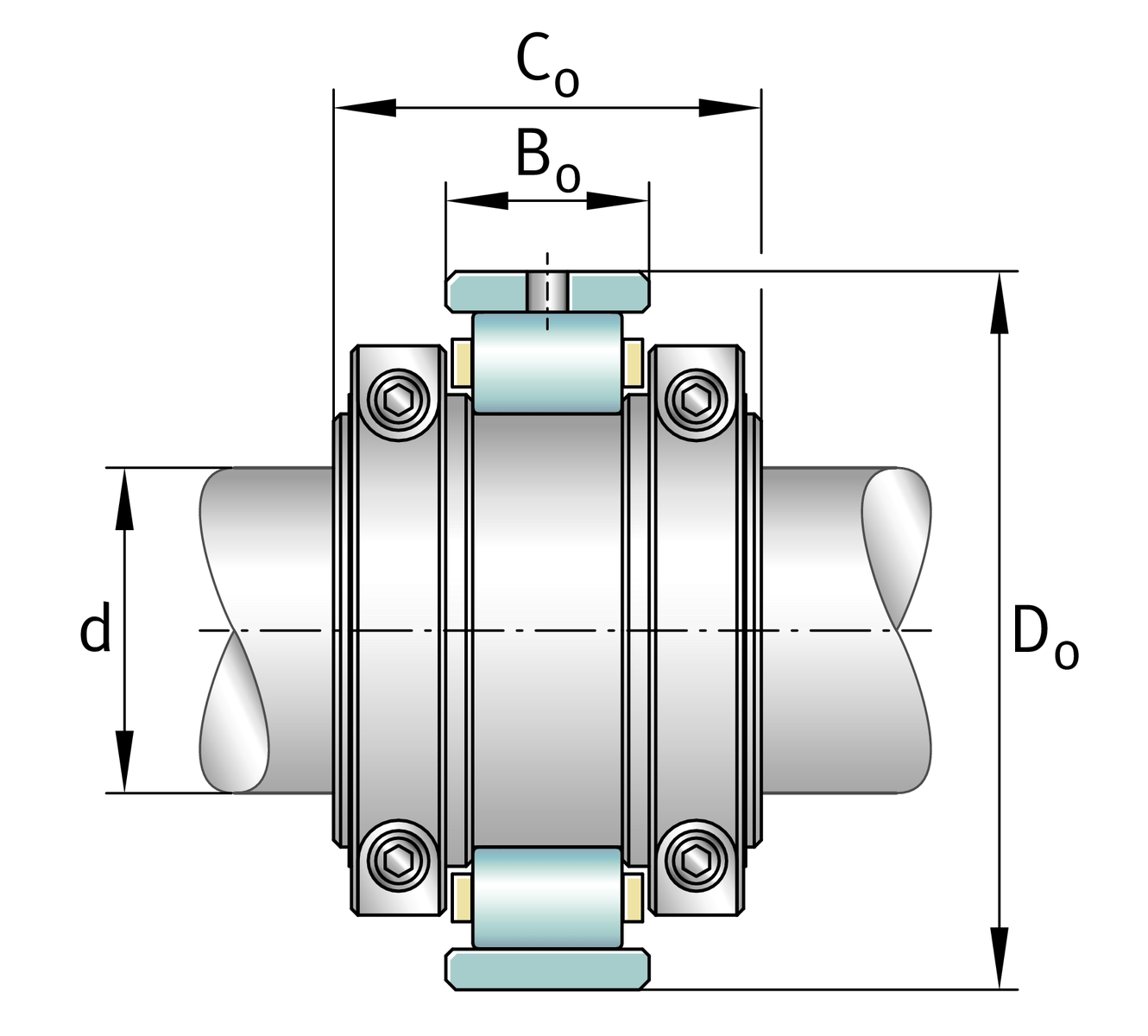

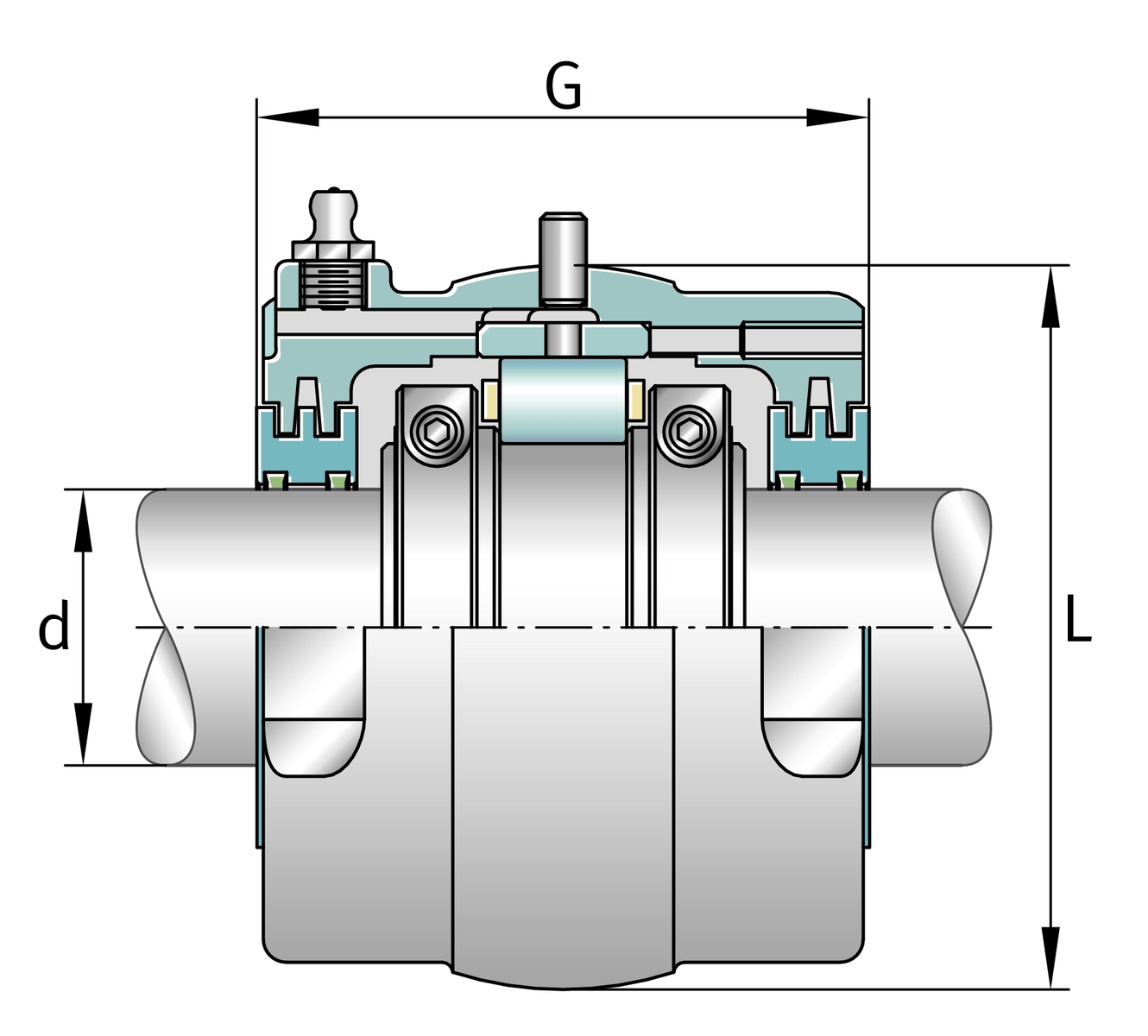

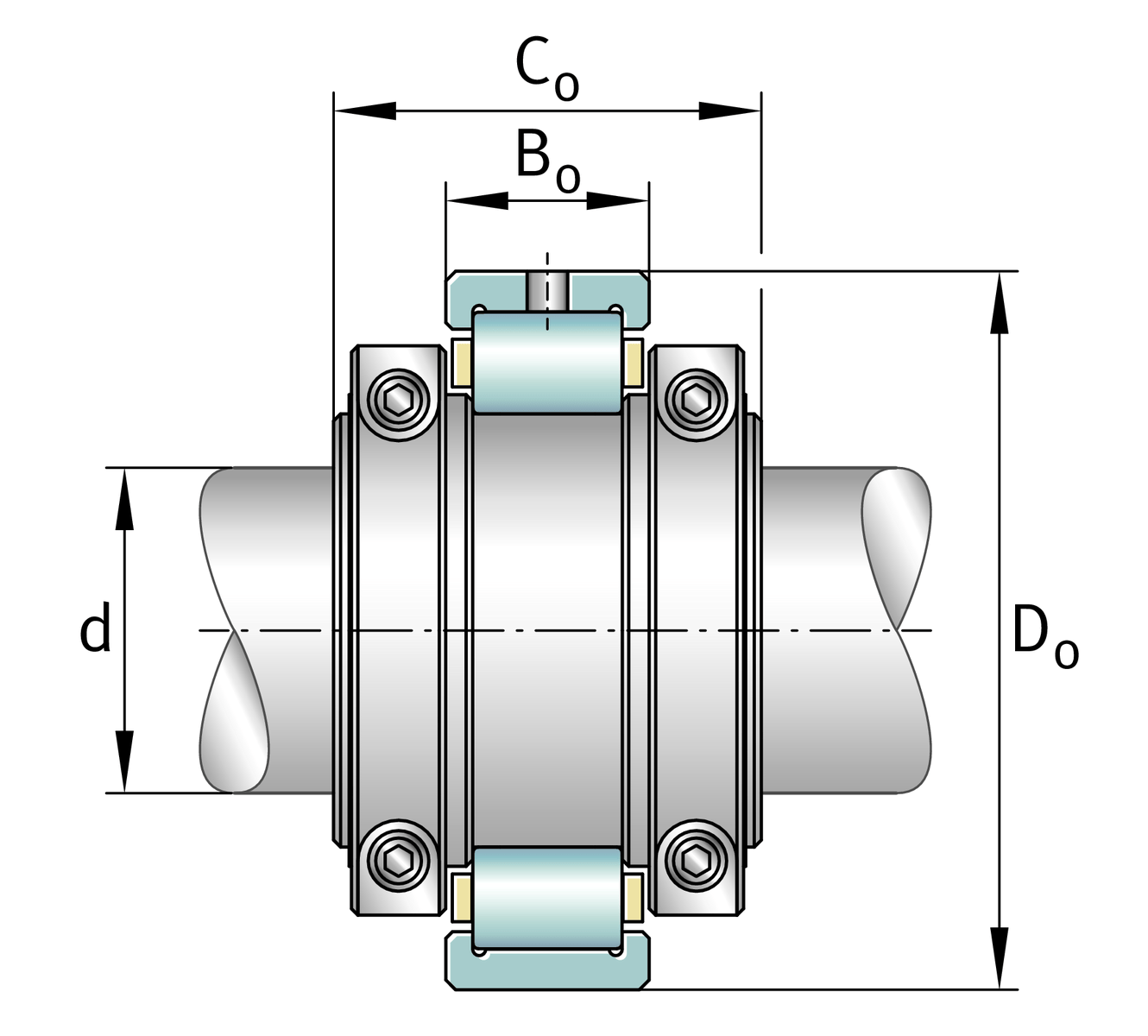

尺寸
S2BC-908-FL | Cartridge float bearing | |
S2BC-908-HD | Cartridge held bearing | |
S2C-1000 | Cartridge | |
| L | 19.5 in | 外徑 cartridge |
| G | 11.0625 in | Lenght through bore |
S2B-908-FL | Bearing float | |
S2B-908-HD | Bearing held | |
186.9 lbs | Bearing weight | |
| Cr | 246,011 lbf | 基本額定動載荷，徑向 |
| Ca | 13,763 lbf | 基本額定動載荷，軸向 |
| C0r | 427,712 lbf | 基本額定靜態負荷，徑向 |
990 1/min | 極限轉速 | |
| D0 | 17 in | 外徑 bearing |
| C0 | 6.668 in | 內圈寬度 |
| B0 | 3.813 in | Width outer ring |
8.9 lbs | Grease capacity |
