主要尺寸與性能資料
| d | 8.5 in | Shaft diameter |
| ≈m | 363.998 lbs | 重量 |
尺寸

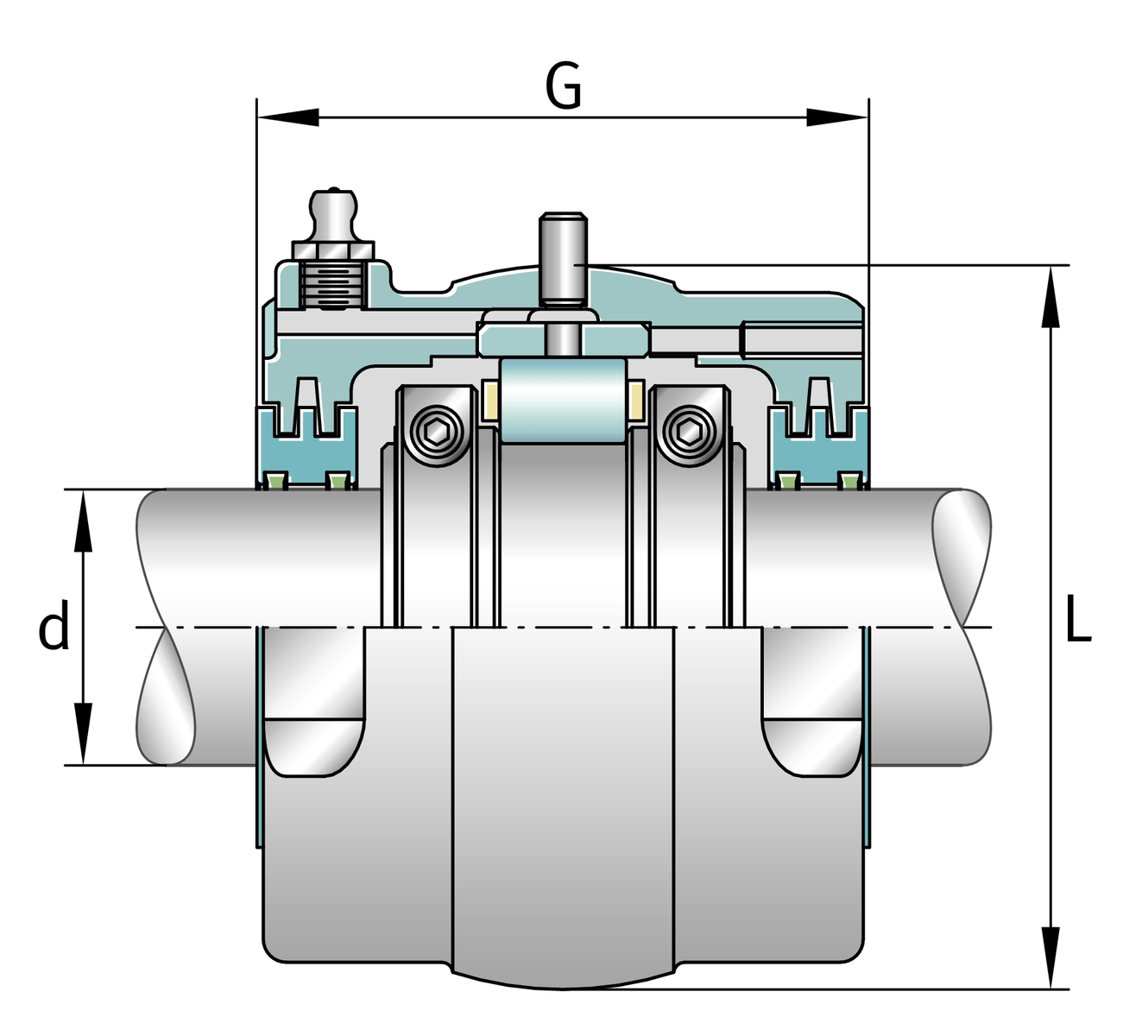

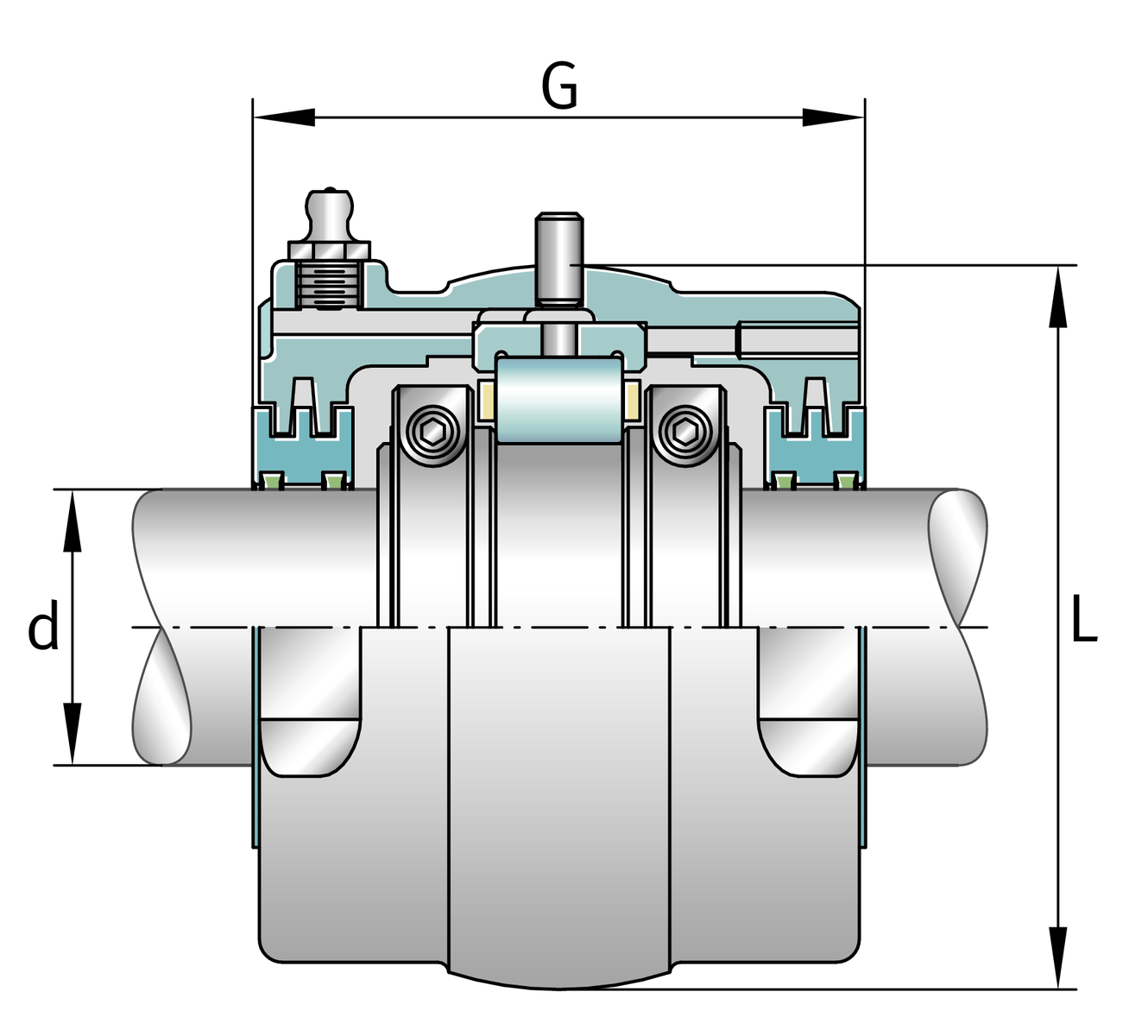

S2BC-808-FL | Cartridge float bearing | |
S2BC-808-HD | Cartridge held bearing | |
S2C-900 | Cartridge | |
| L | 18 in | 外徑 cartridge |
| G | 10.8125 in | Lenght through bore |

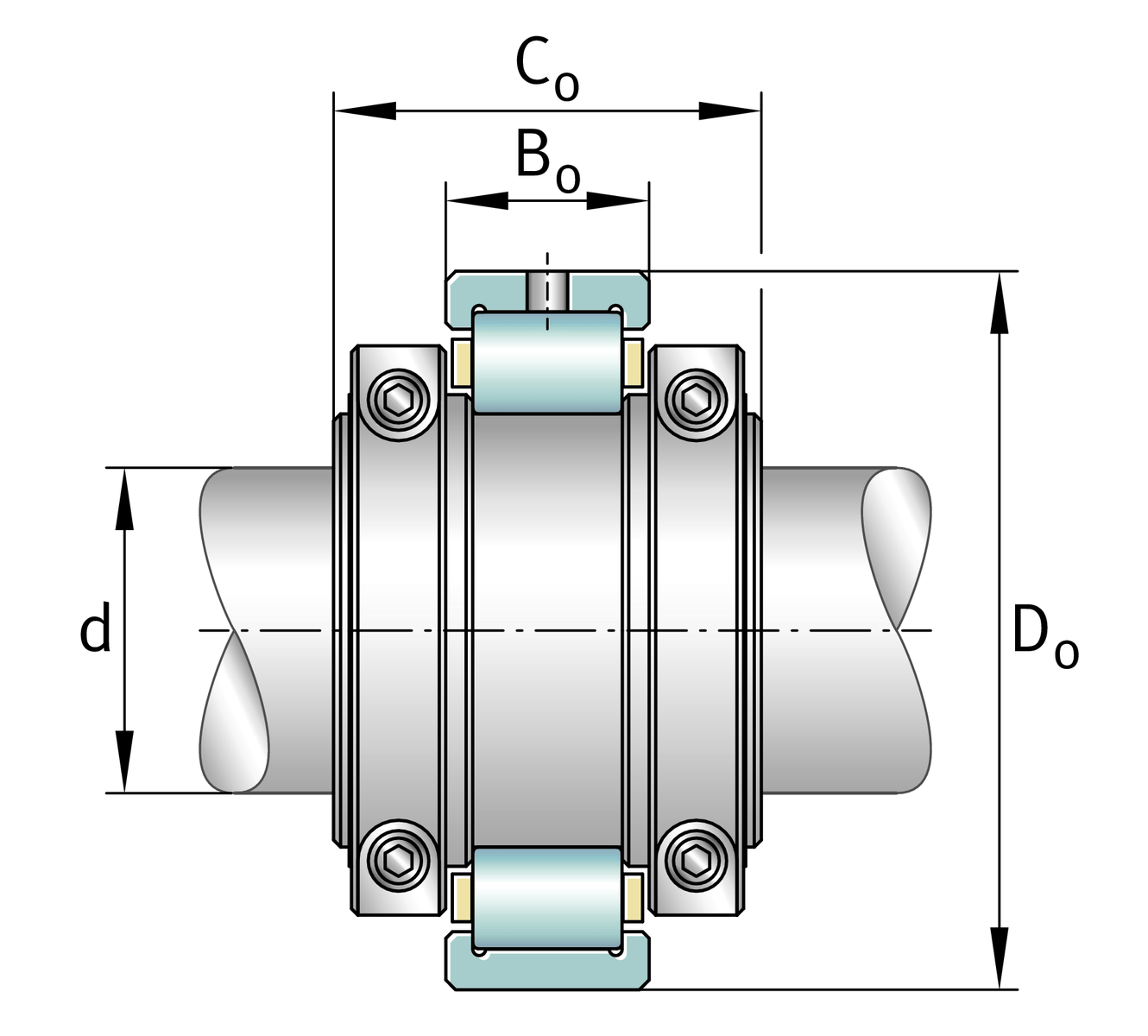

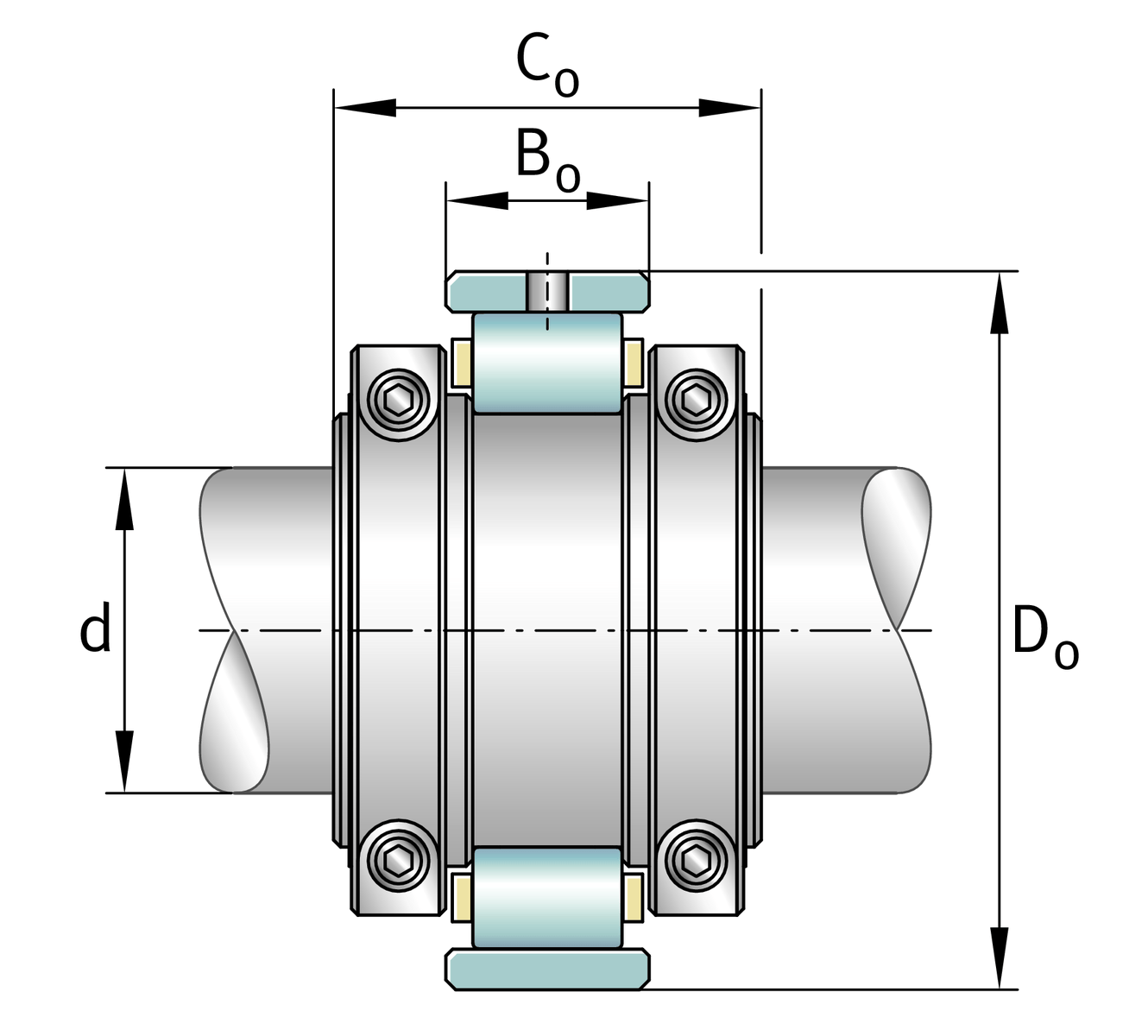

S2B-808-FL | Bearing float | |
S2B-808-HD | Bearing held | |
148 lbs | Bearing weight | |
| Cr | 216,837 lbf | 基本額定動載荷，徑向 |
| Ca | 13,051 lbf | 基本額定動載荷，軸向 |
| C0r | 371,687 lbf | 基本額定靜態負荷，徑向 |
1,091 1/min | 極限轉速 | |
| D0 | 15.5 in | 外徑 bearing |
| C0 | 6.402 in | 內圈寬度 |
| B0 | 3.563 in | Width outer ring |
8 lbs | Grease capacity |
