主要尺寸與性能資料
| d | 7.5 in | Shaft diameter |
| ≈m | 344.999 lbs | 重量 |

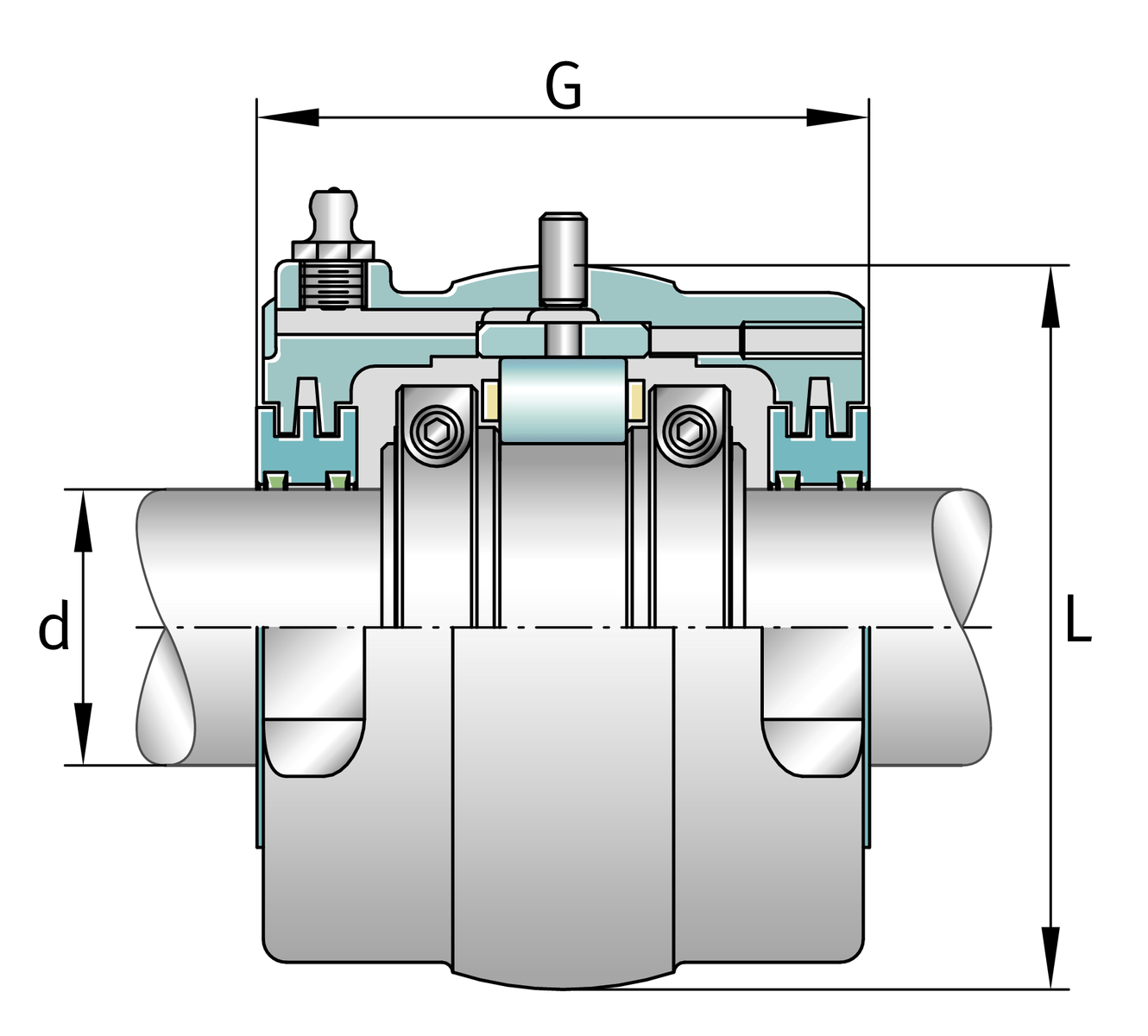

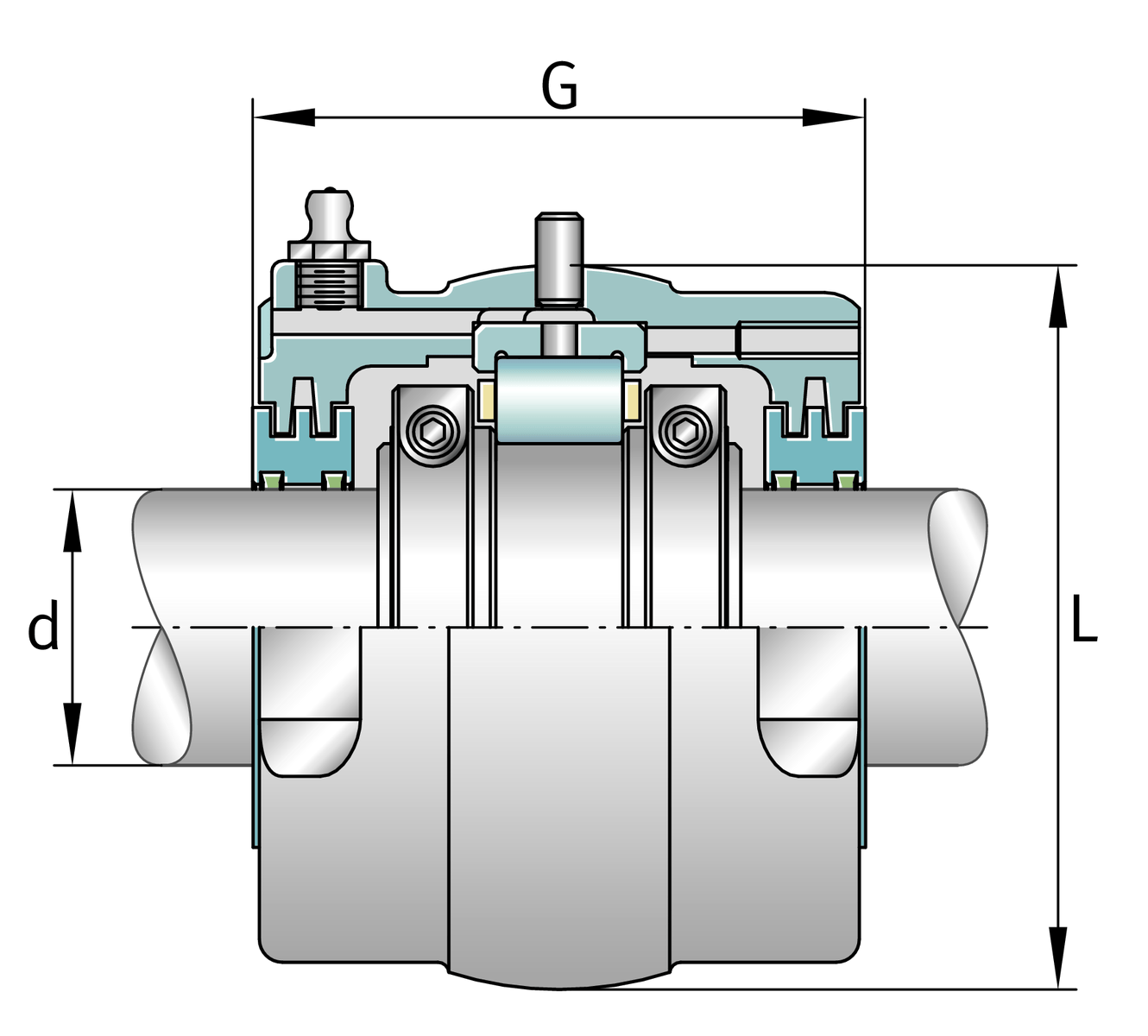

尺寸
S2BC-708-FL | Cartridge float bearing | |
S2BC-708-HD | Cartridge held bearing | |
S2C-800 | Cartridge | |
| L | 16.75 in | 外徑 cartridge |
| G | 10.0625 in | Lenght through bore |
S2B-708-FL | Bearing float | |
S2B-708-HD | Bearing held | |
134 lbs | Bearing weight | |
| Cr | 200,010 lbf | 基本額定動載荷，徑向 |
| Ca | 12,501 lbf | 基本額定動載荷，軸向 |
| C0r | 325,896 lbf | 基本額定靜態負荷，徑向 |
1,188 1/min | 極限轉速 | |

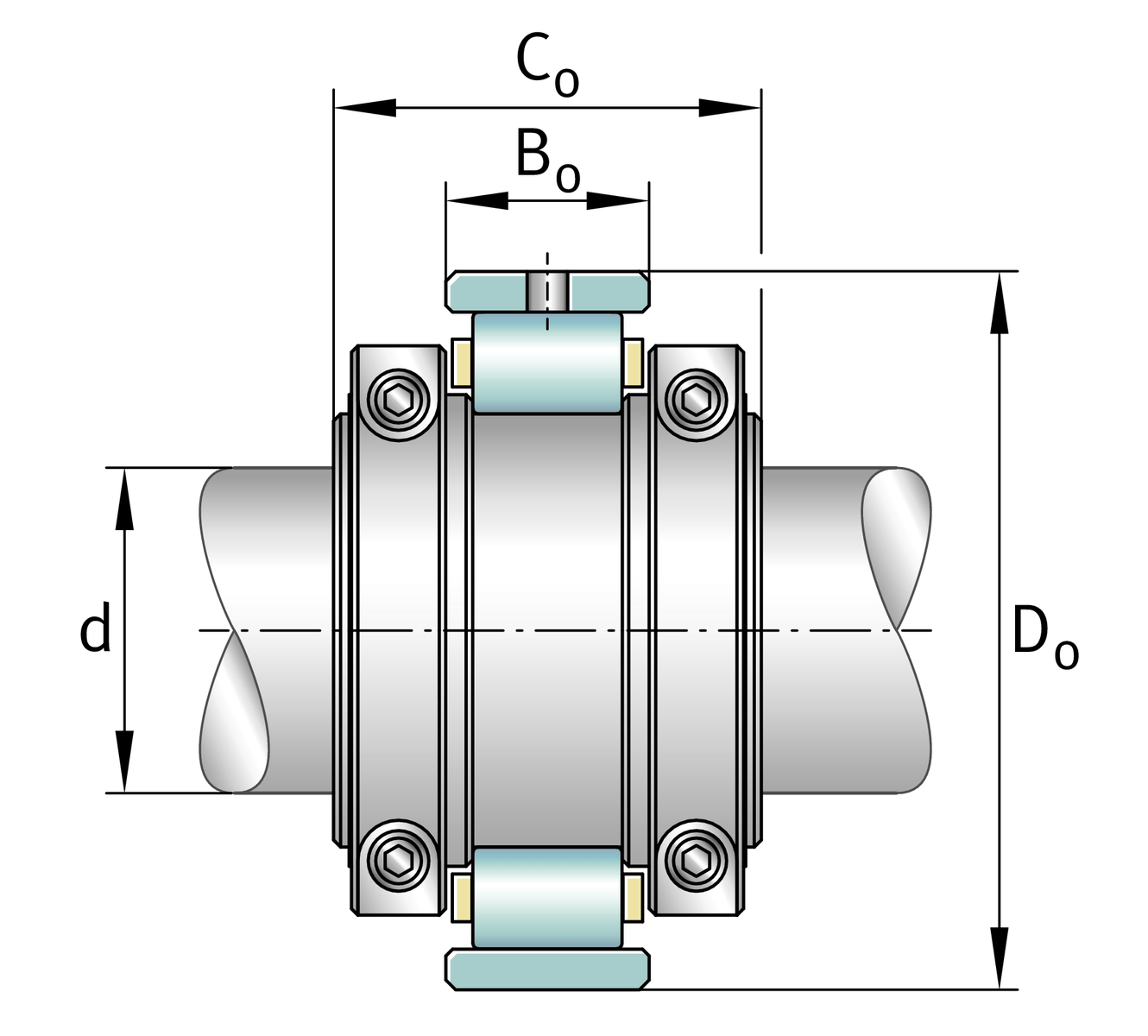

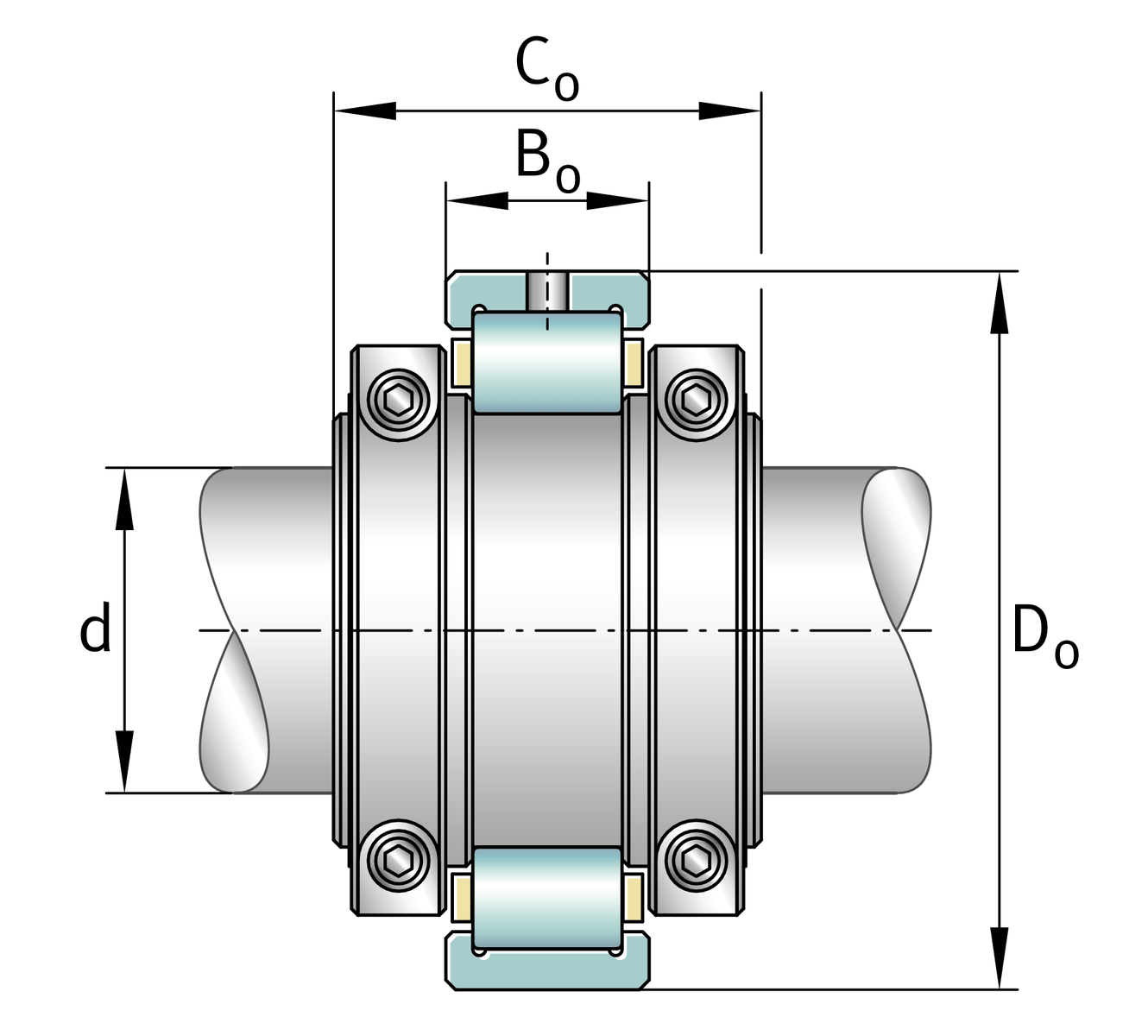

| D0 | 14.5 in | 外徑 bearing |
| C0 | 6.141 in | 內圈寬度 |
| B0 | 3.563 in | Width outer ring |
5.9 lbs | Grease capacity |
