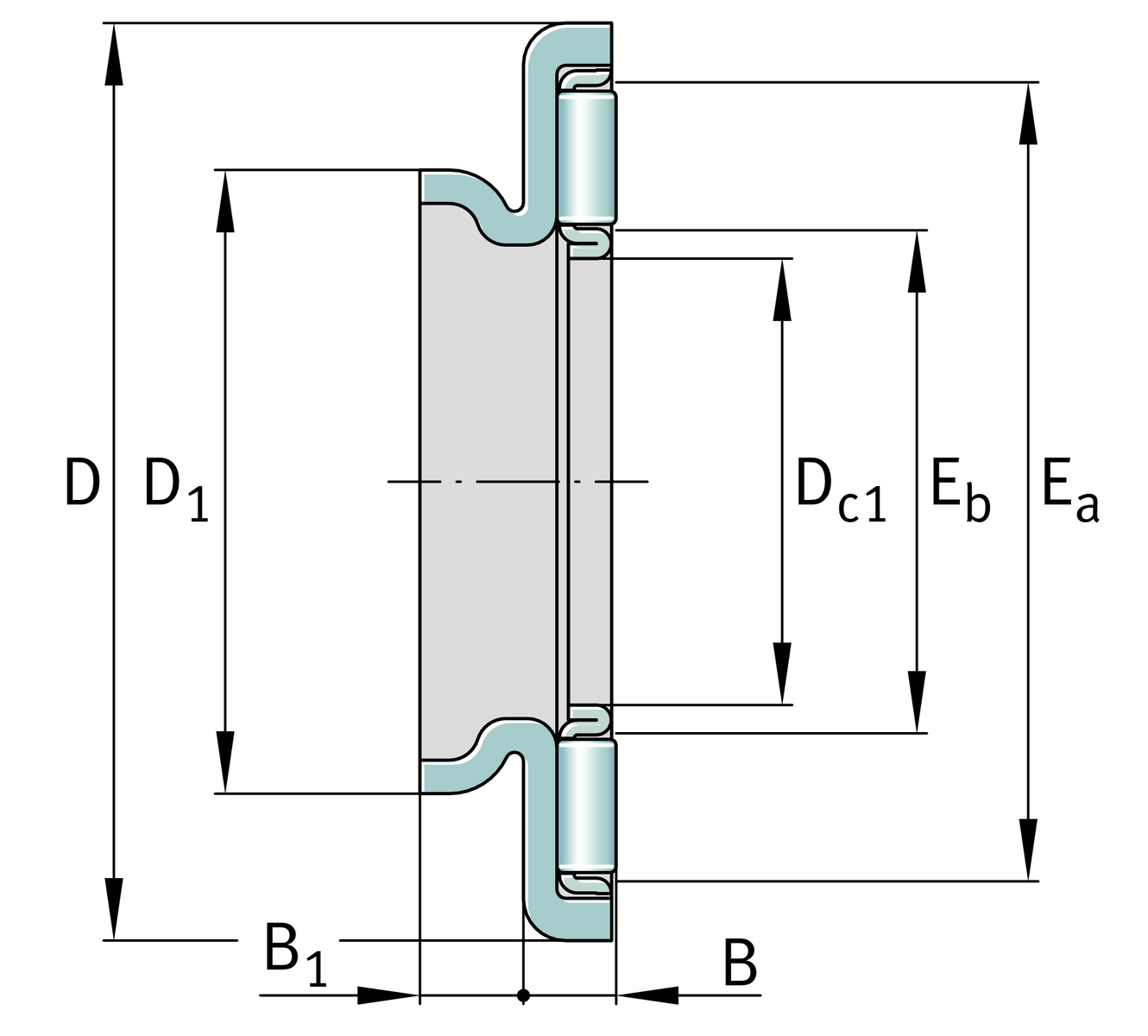

主要尺寸與性能資料
| Dc1 | 35 mm | 內徑 cage |
| D | 55 mm | 外徑 bearing washer |
| B | 3.2 mm | Height bearing |
| B1 | 4 mm | Height centering collar |
| D1 | 42 mm | 外徑 centering collar |
| Ea | 51 mm | Raceway dimension |
| Eb | 39 mm | Raceway dimension |
| C | 17,900 N | 基本額定動載荷，軸向 |
| C0a | 81,000 N | 基本額定靜態載荷，軸向 |
| cua | 8,400 N | 疲勞負荷極限，軸向 |
| nG | 6,600 1/min | 極限轉速 |
| n ϑr | 3,250 1/min | 參考轉速 |
| ≈m | 26.31 g | 重量 |
附加資訊
AS3552 | Axial bearing washer | |
HK3518-RS | Drawn cup needle roller bearings turned | |
HK3516 | Drawn cup needle roller bearings | |
HK3520 | Drawn cup needle roller bearings | |
HK3512 | Drawn cup needle roller bearings for radial bearing arrangement | |
BK3520 | Needle bush | |
NKIS20 | Needle roller bearings with inner ring | |
NA4905 | Needle roller bearings with inner ring | |
NA6905 | Needle roller bearings with inner ring | |
NKI28/20-TV | Needle roller bearings with inner ring | |
NKI28/30 | Needle roller bearings with inner ring | |
NK32/20-TV | Needle roller bearings with out inner ring | |
NK32/30 | Needle roller bearings with out inner ring | |
NKS28 | Needle roller bearings with out inner ring | |
RNA4905 | Needle roller bearings with out inner ring | |
RNA6905 | Needle roller bearings with out inner ring |
