主要尺寸與性能資料
| d | 6.4375 in | Shaft diameter |
| ≈m | 231 lbs | 重量 |
尺寸

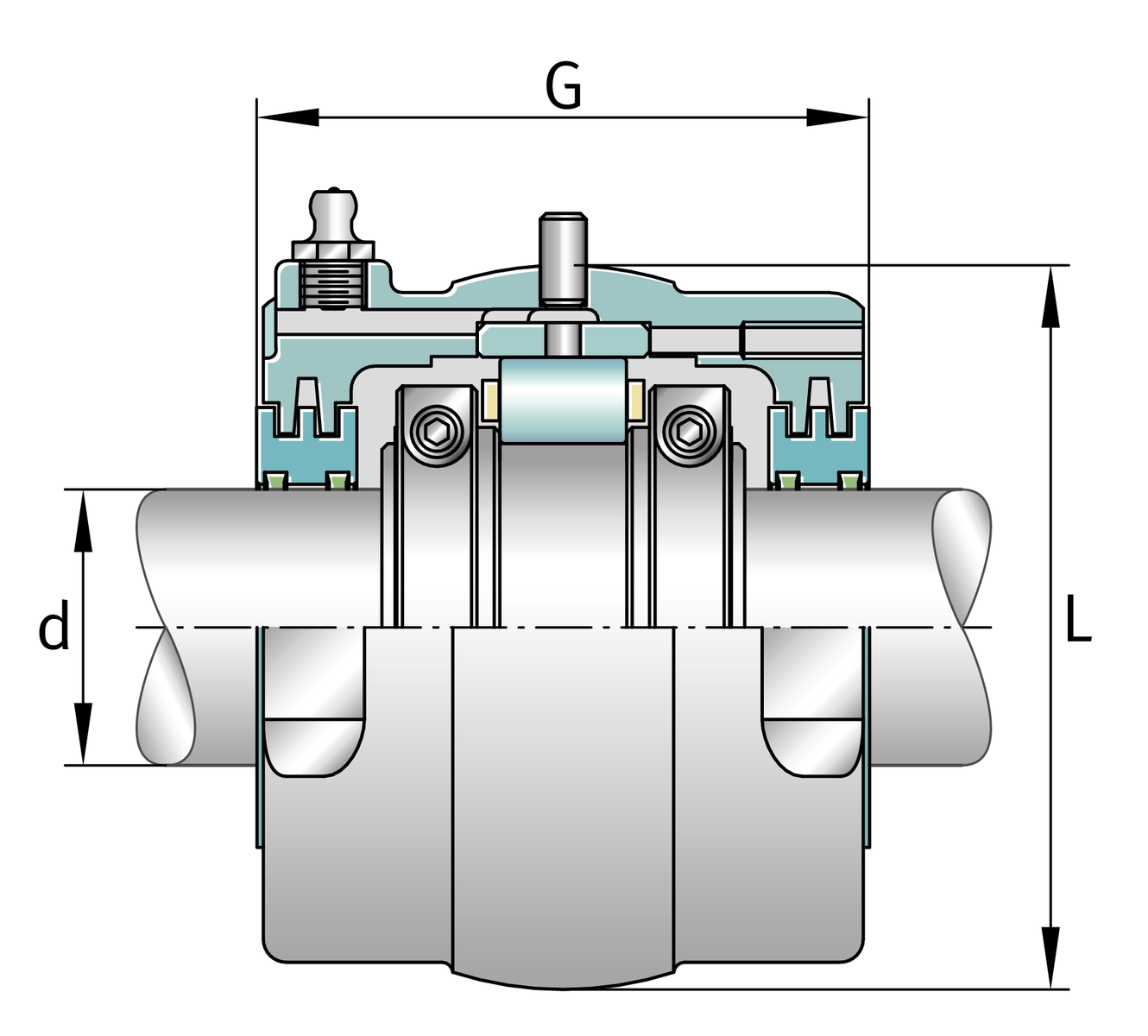

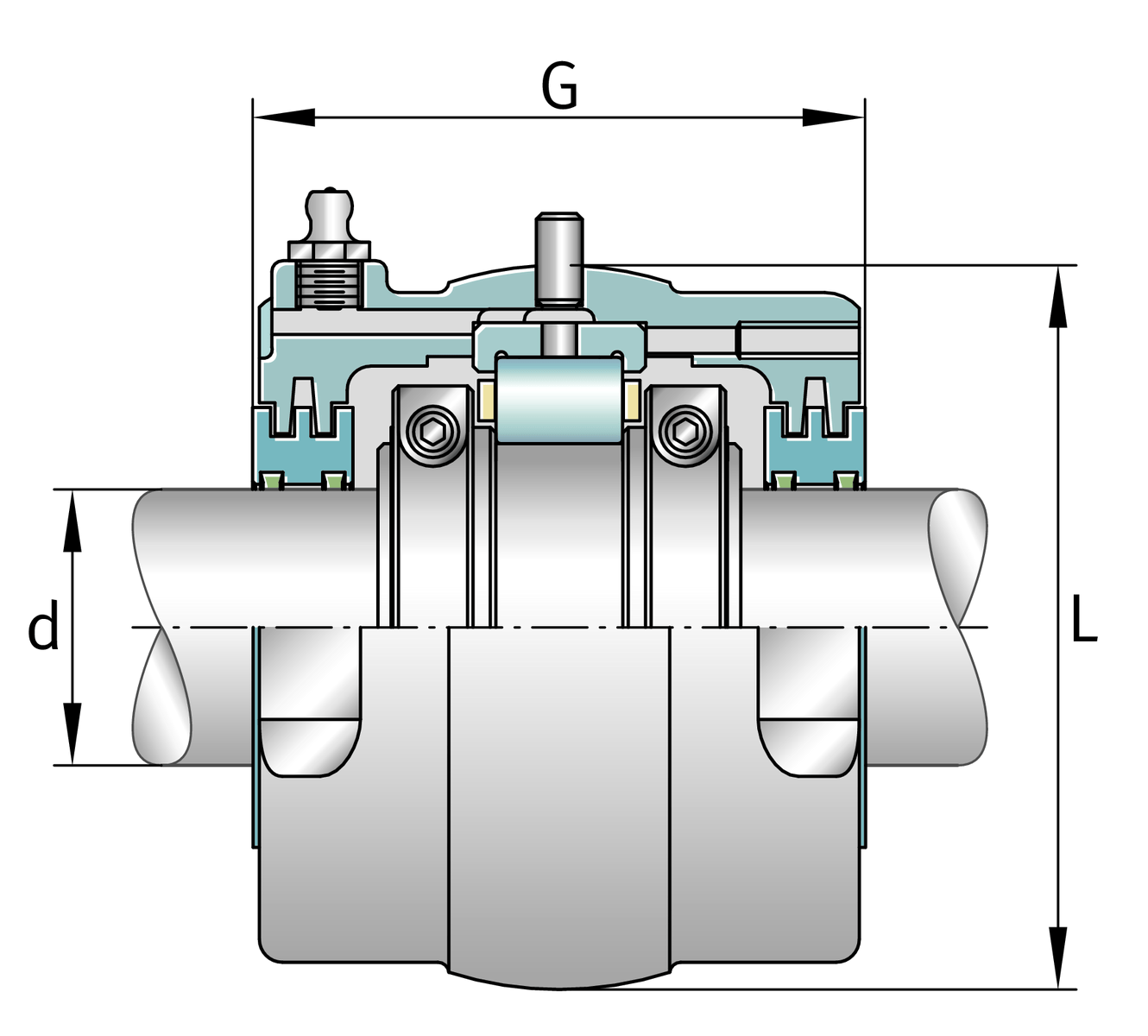

S2BC-607-FL | Cartridge float bearing | |
S2BC-607-HD | Cartridge held bearing | |
S2C-608 | Cartridge | |
| L | 14.5 in | 外徑 cartridge |
| G | 9.125 in | Lenght through bore |

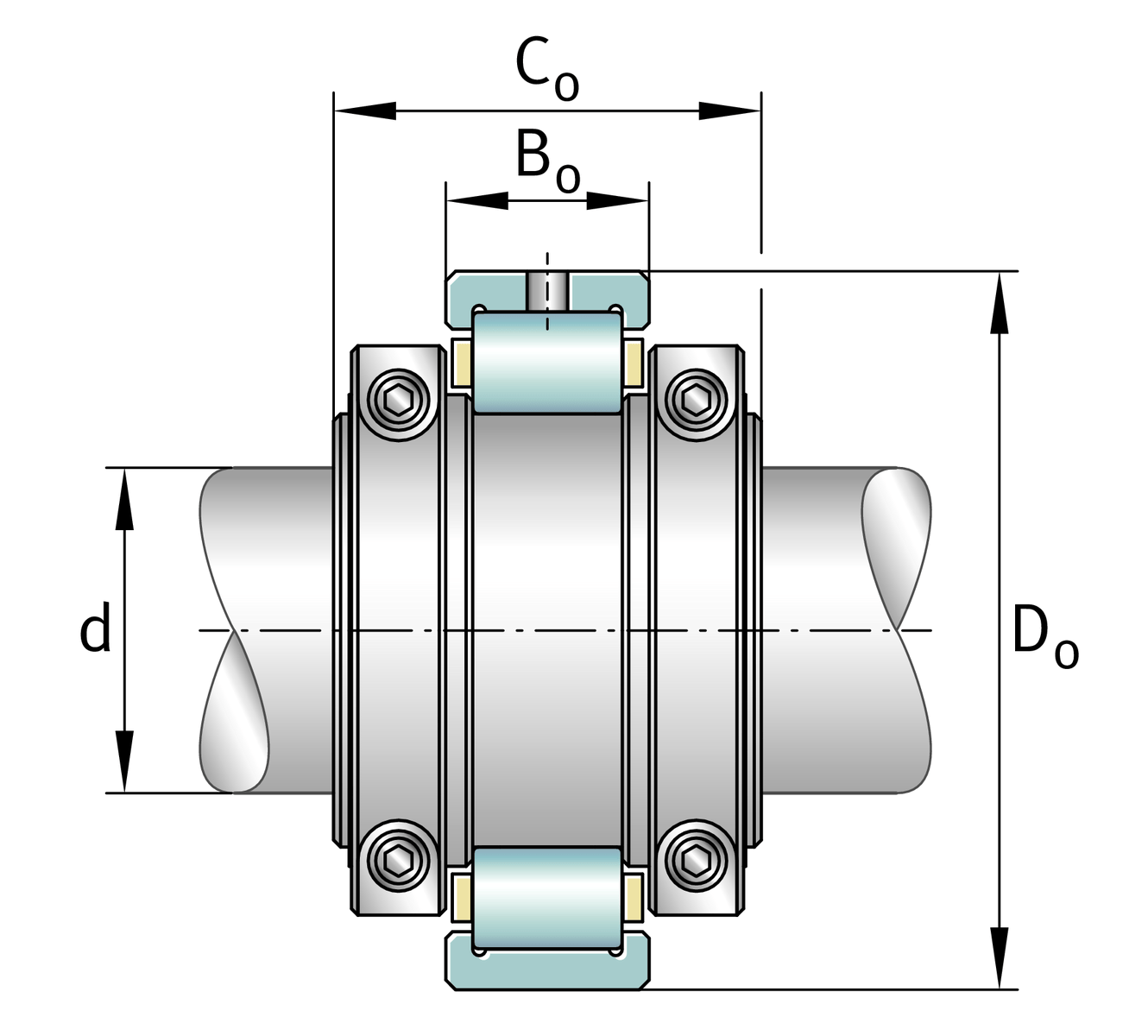

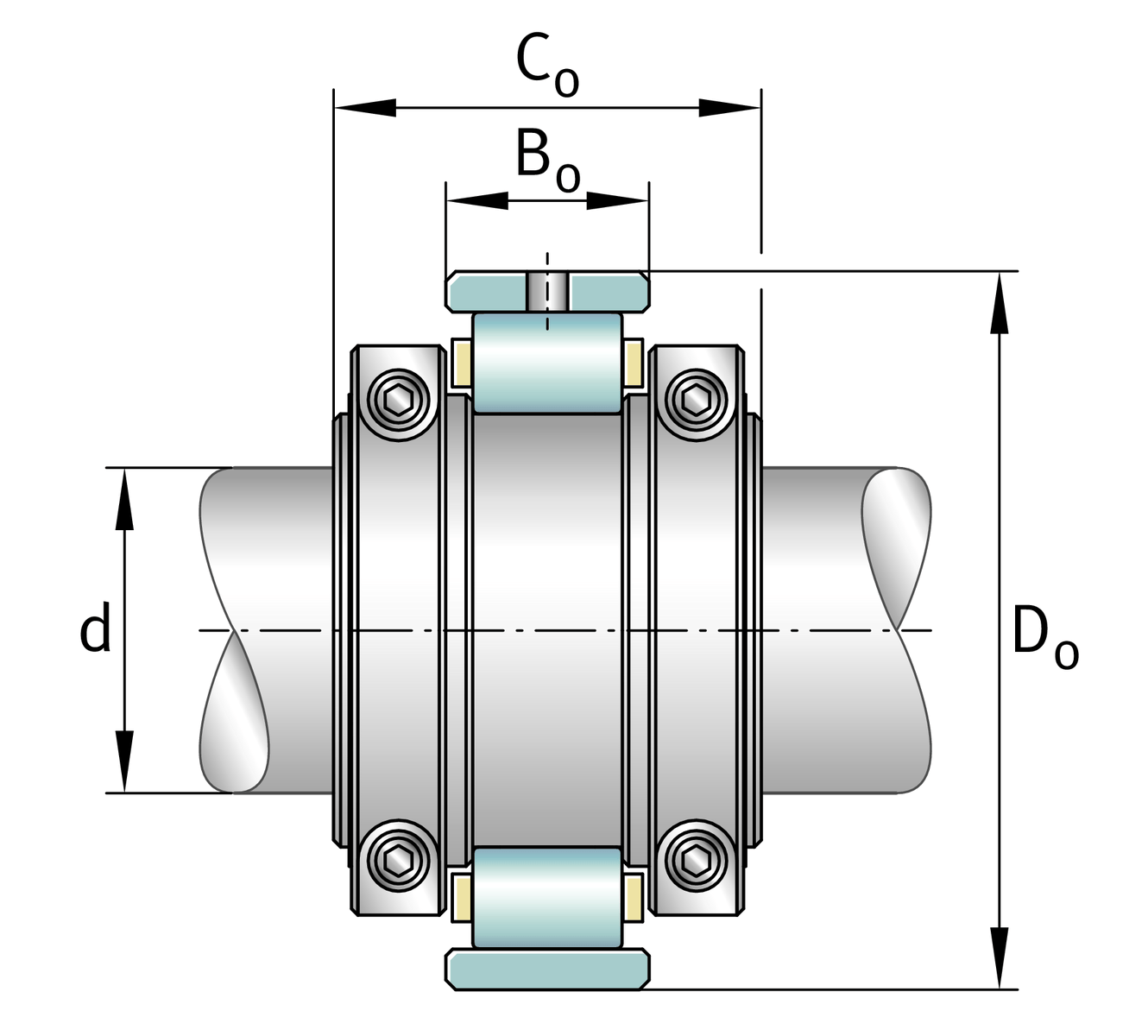

S2B-607-FL | Bearing float | |
S2B-607-HD | Bearing held | |
93.5 lbs | Bearing weight | |
| Cr | 156,220 lbf | 基本額定動載荷，徑向 |
| Ca | 10,907 lbf | 基本額定動載荷，軸向 |
| C0r | 237,758 lbf | 基本額定靜態負荷，徑向 |
1,407 1/min | 極限轉速 | |
| D0 | 12.5 in | 外徑 bearing |
| C0 | 5.5 in | 內圈寬度 |
| B0 | 3.281 in | Width outer ring |
3.2 lbs | Grease capacity |
