主要尺寸與性能資料
| d | 4.25 in | Shaft diameter |
| ≈m | 77.199 lbs | 重量 |
尺寸
S2BC-404-FL | Cartridge float bearing | |
S2BC-404-HD | Cartridge held bearing | |
S2C-408 | Cartridge | |

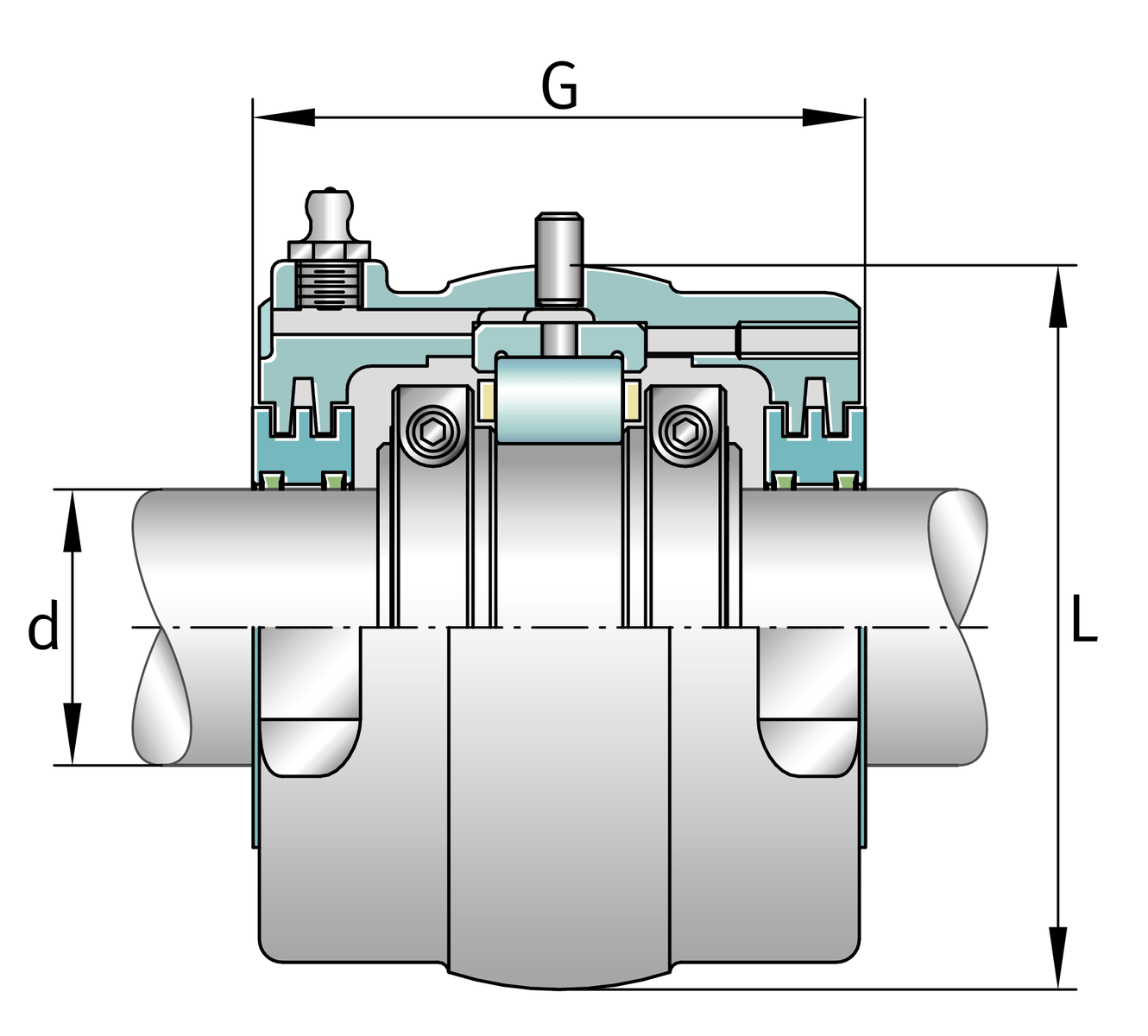

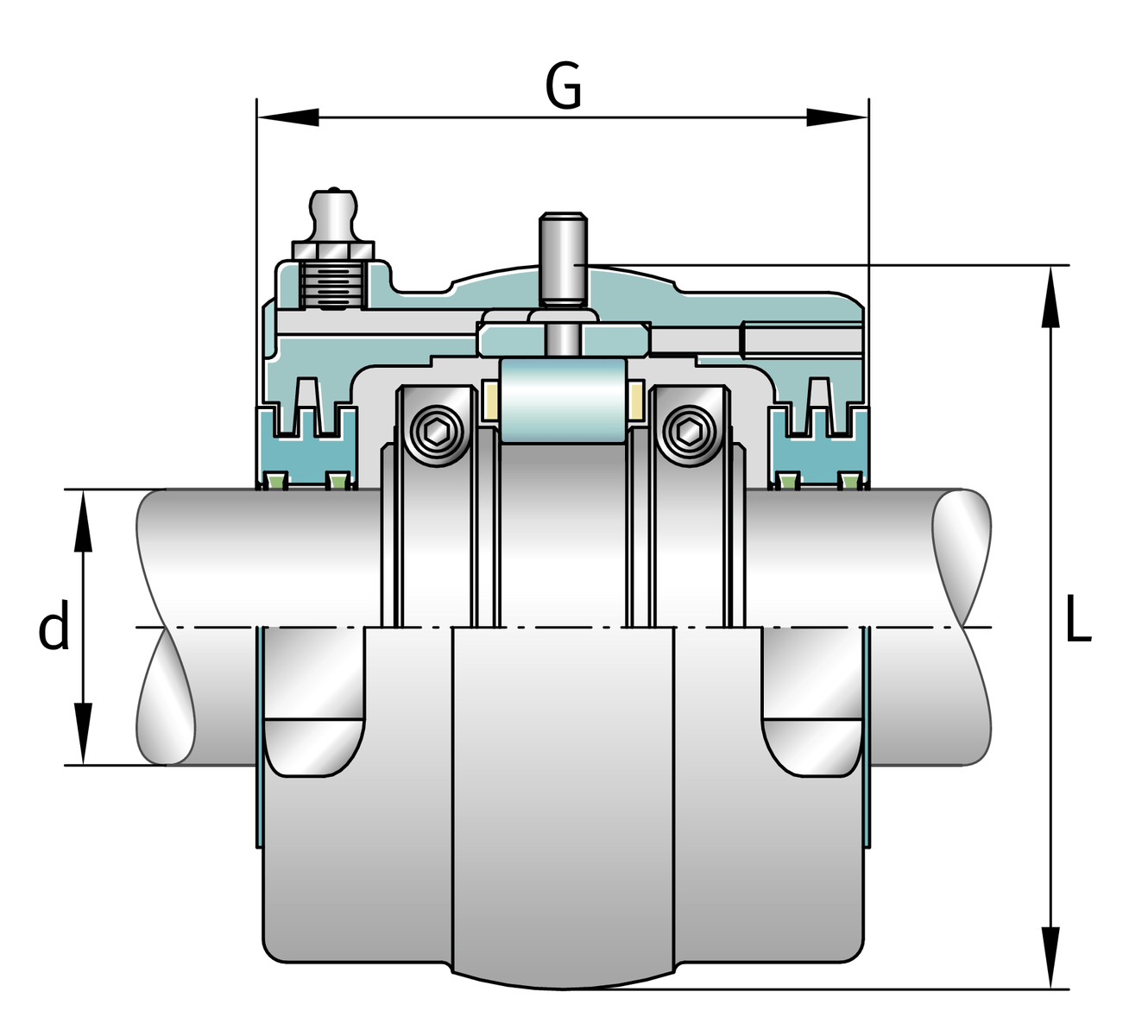

| L | 10.5 in | 外徑 cartridge |
| G | 6.375 in | Lenght through bore |
S2B-404-FL | Bearing float | |
S2B-404-HD | Bearing held | |
38.9 lbs | Bearing weight | |
| Cr | 91,451 lbf | 基本額定動載荷，徑向 |
| Ca | 857 lbf | 基本額定動載荷，軸向 |
| C0r | 131,199 lbf | 基本額定靜態負荷，徑向 |
1,980 1/min | 極限轉速 | |

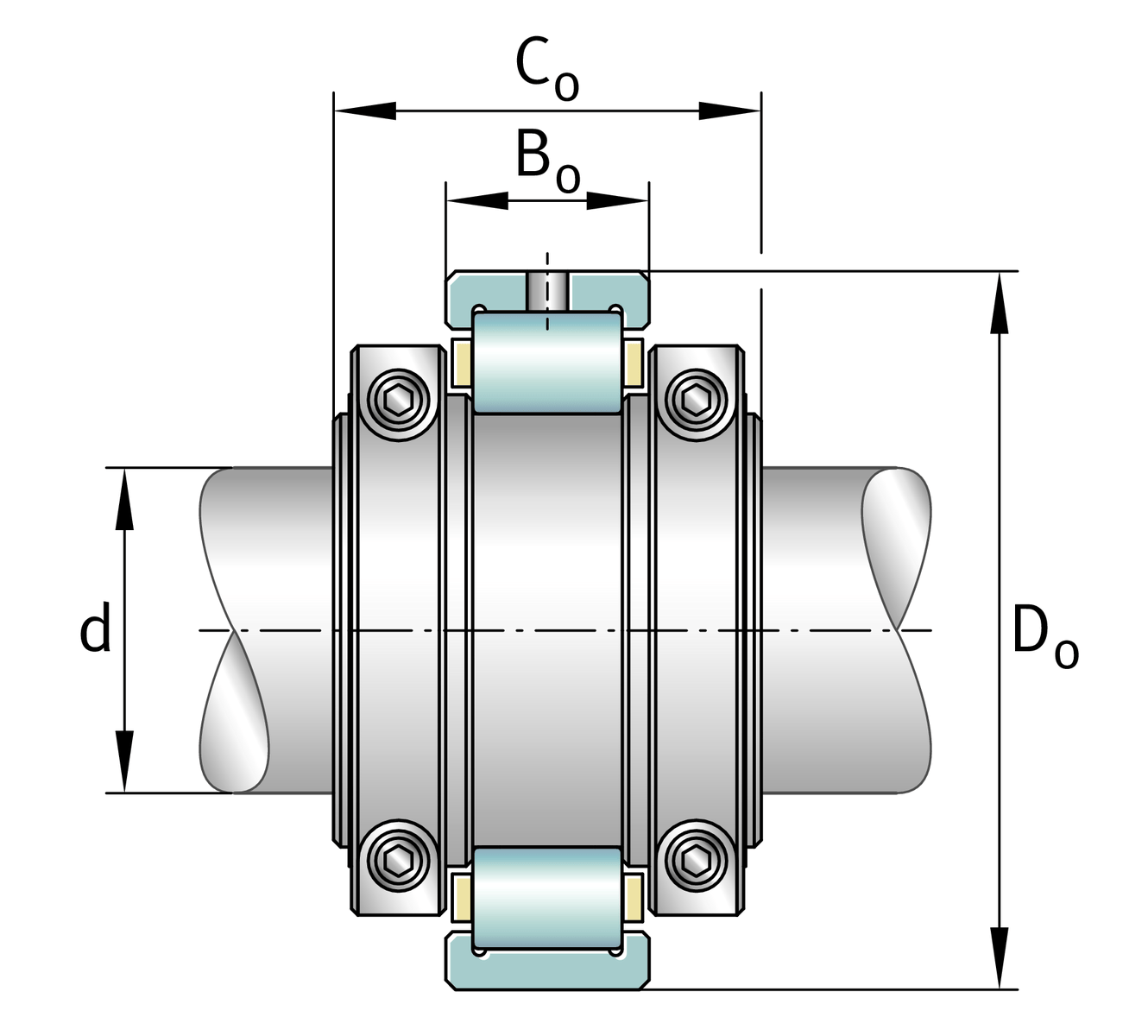

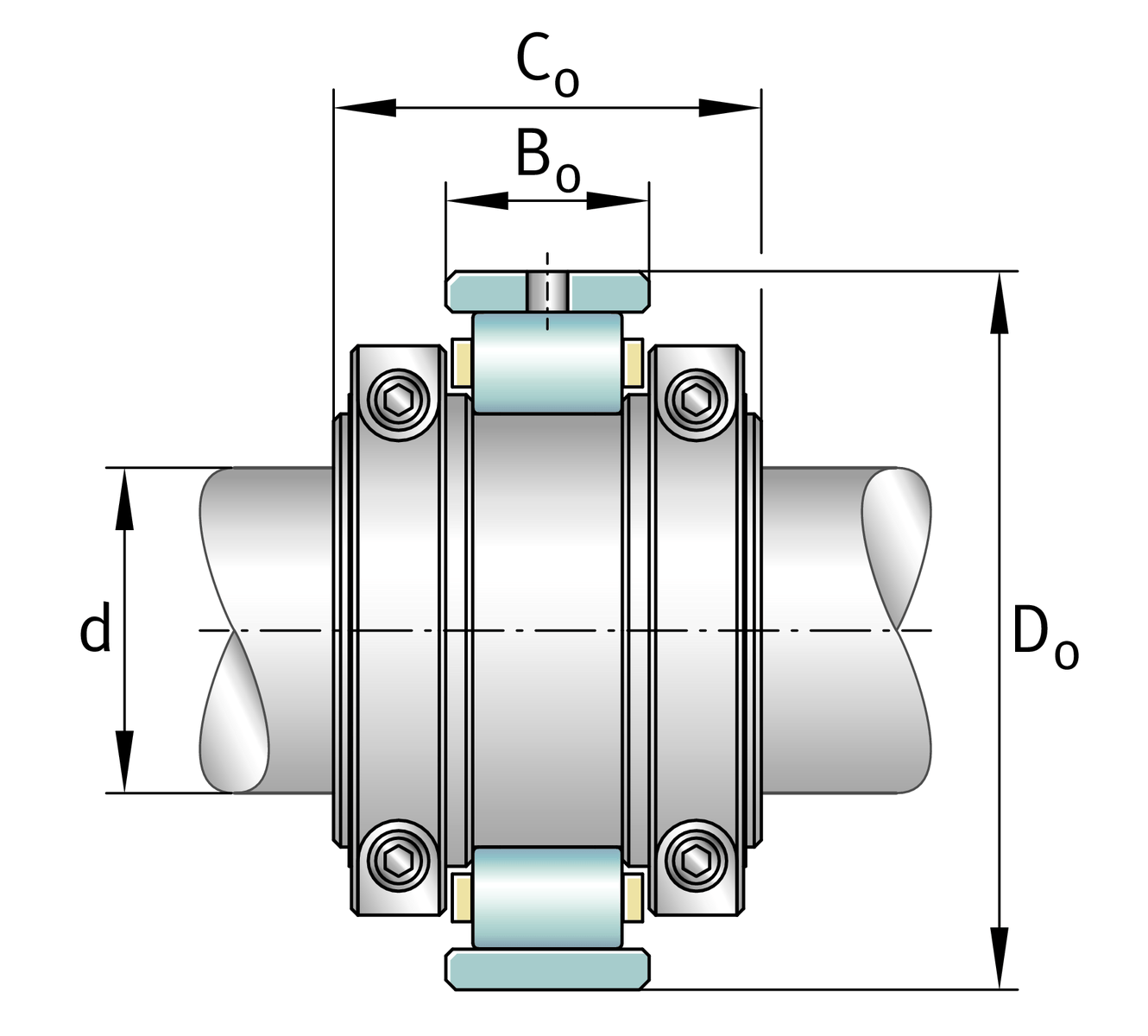

| D0 | 9 in | 外徑 bearing |
| C0 | 3.938 in | 內圈寬度 |
| B0 | 2.25 in | Width outer ring |
2 lbs | Grease capacity |
