主要尺寸與性能資料
| d | 11.811 in | Shaft diameter |
| ≈m | 599.998 lbs | 重量 |
尺寸
S2BC-300MM-FL | Cartridge float bearing | |
S2BC-300MM-HD | Cartridge held bearing | |
S2C-1200 | Cartridge | |

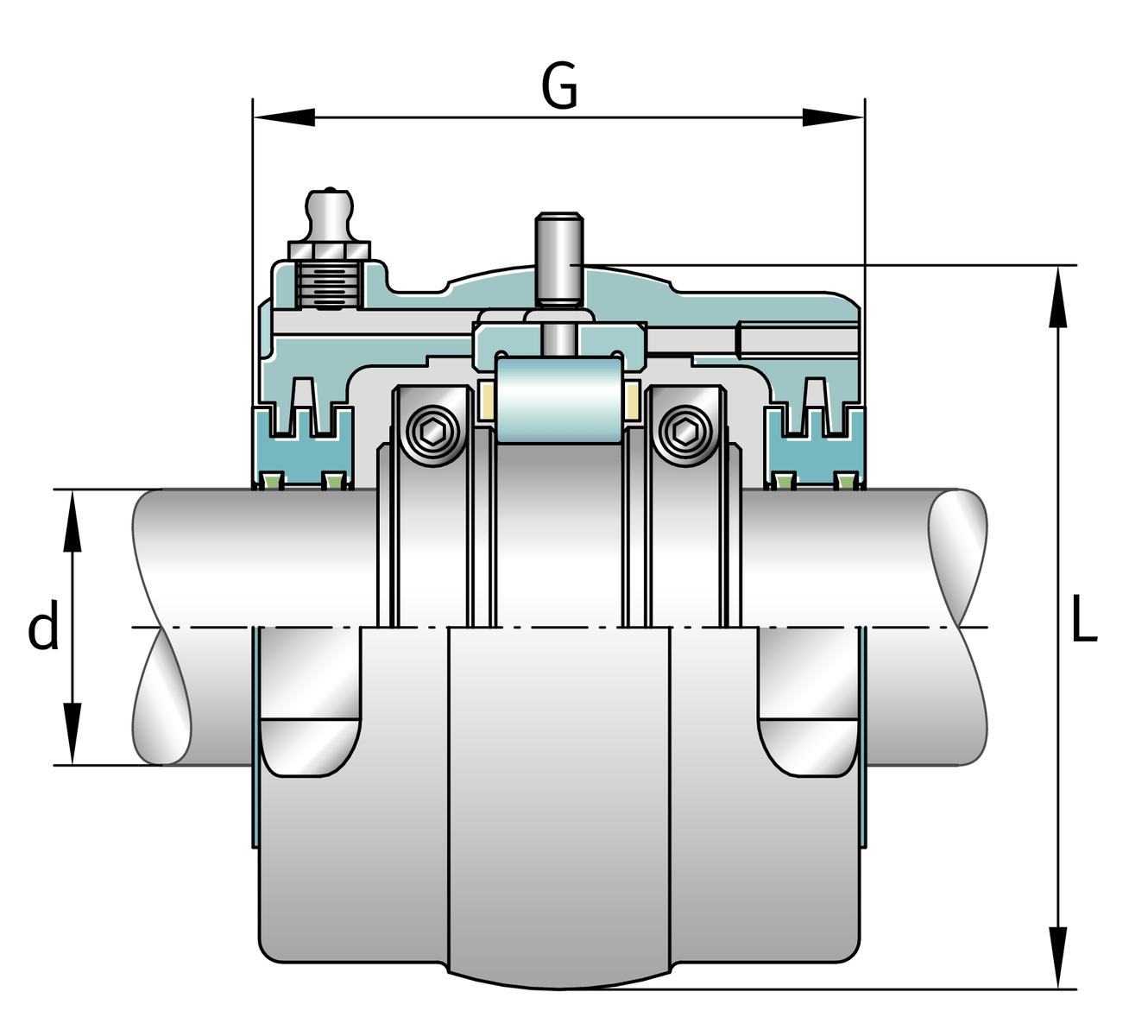

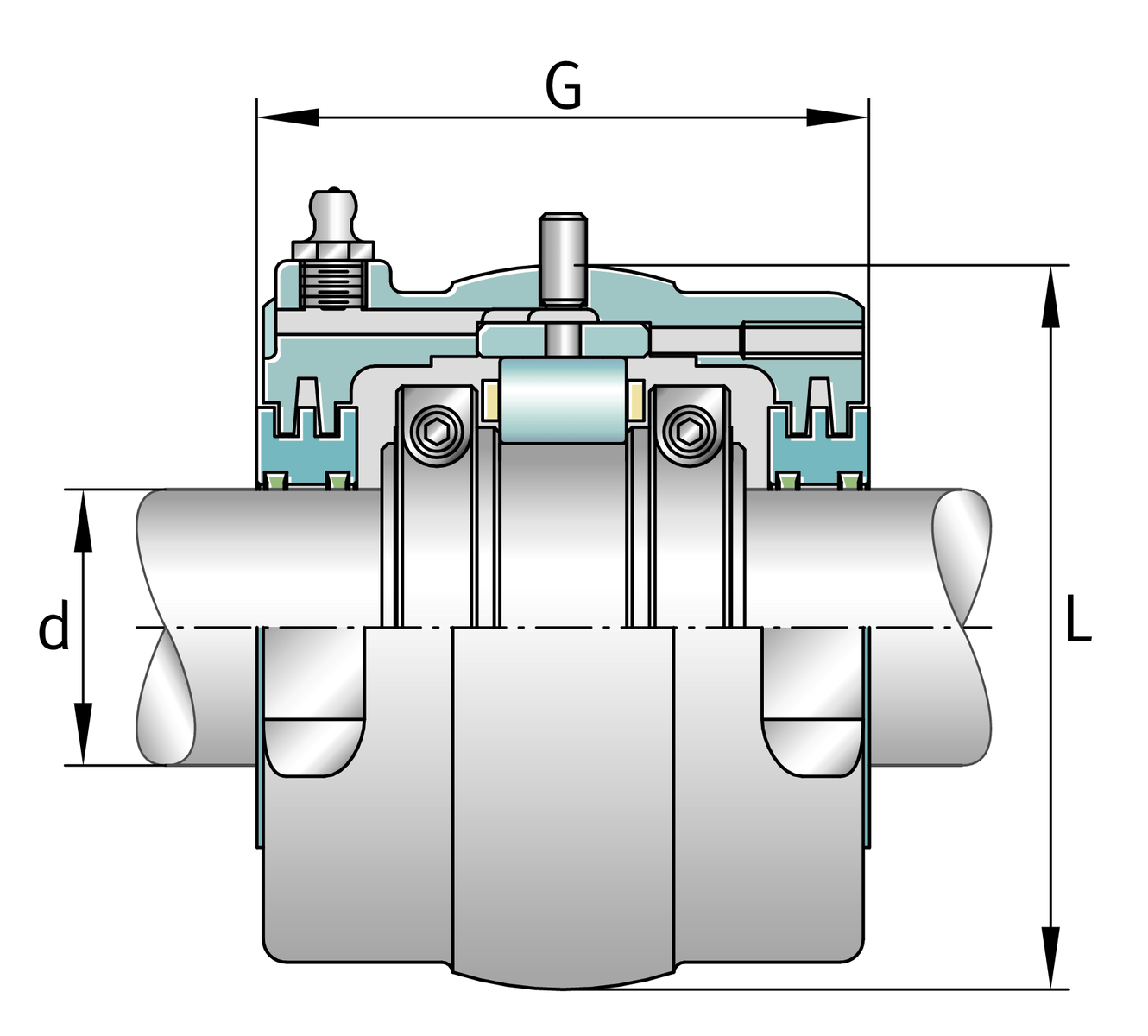

| L | 21.75 in | 外徑 cartridge |
| G | 12.0625 in | Lenght through bore |
S2B-300MM-FL | Bearing float | |
S2B-300MM-HD | Bearing held | |
296.9 lbs | Bearing weight | |
| Cr | 301,125 lbf | 基本額定動載荷，徑向 |
| Ca | 15,192 lbf | 基本額定動載荷，軸向 |
| C0r | 555,316 lbf | 基本額定靜態負荷，徑向 |
850 1/min | 極限轉速 | |

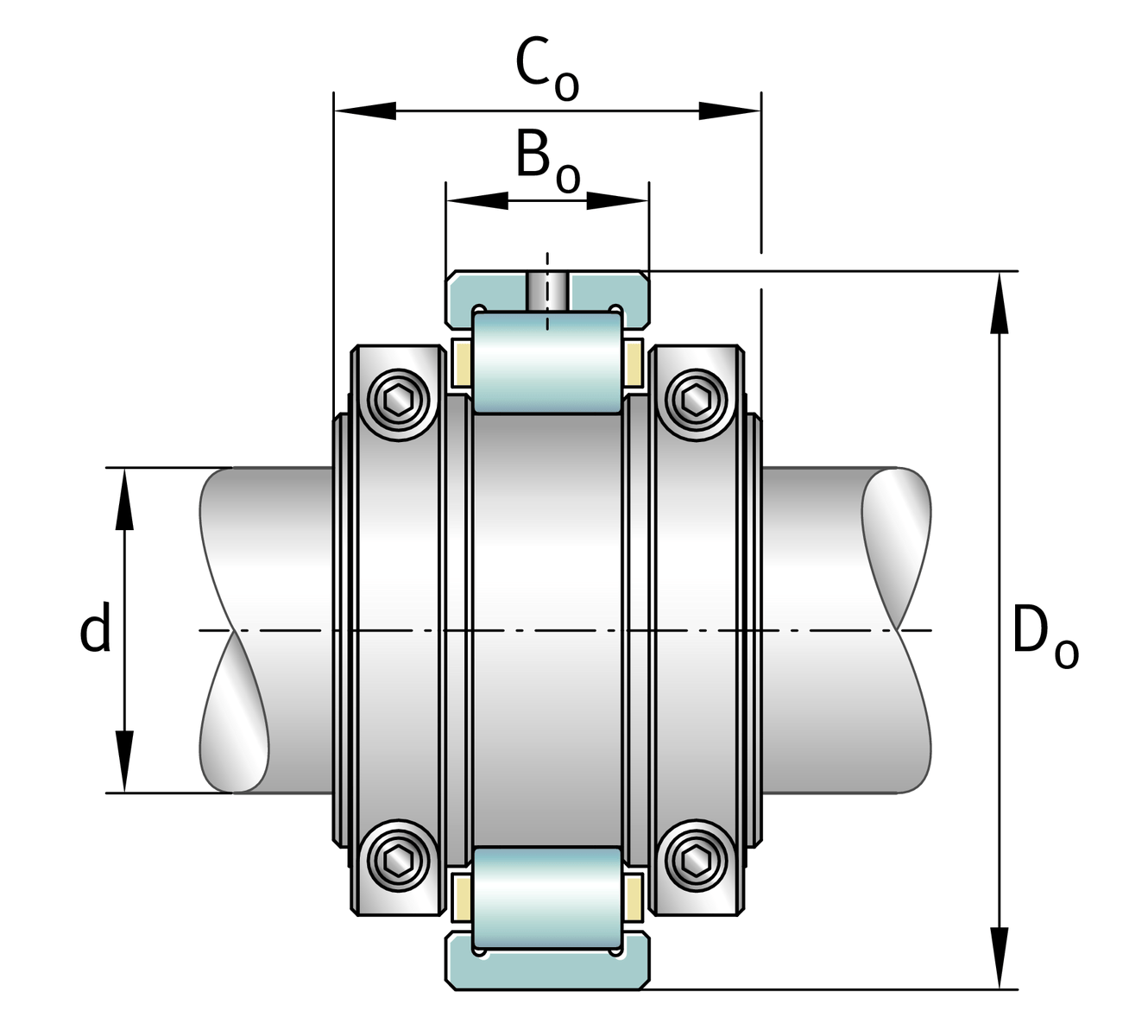

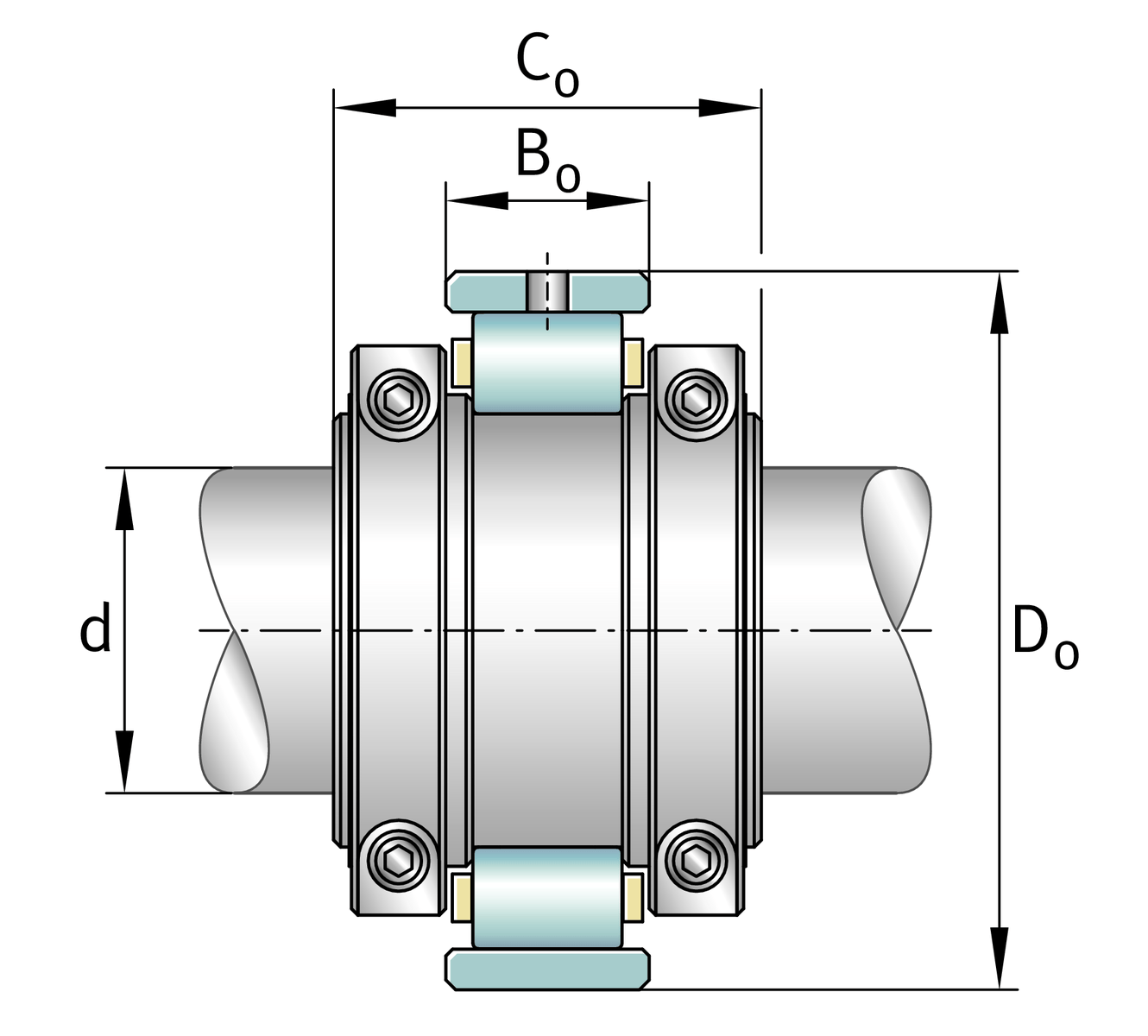

| D0 | 19.5 in | 外徑 bearing |
| C0 | 7.594 in | 內圈寬度 |
| B0 | 4.063 in | Width outer ring |
11.8 lbs | Grease capacity |
