主要尺寸與性能資料
| d | 2.9375 in | Shaft diameter |
| ≈m | 34 lbs | 重量 |
尺寸

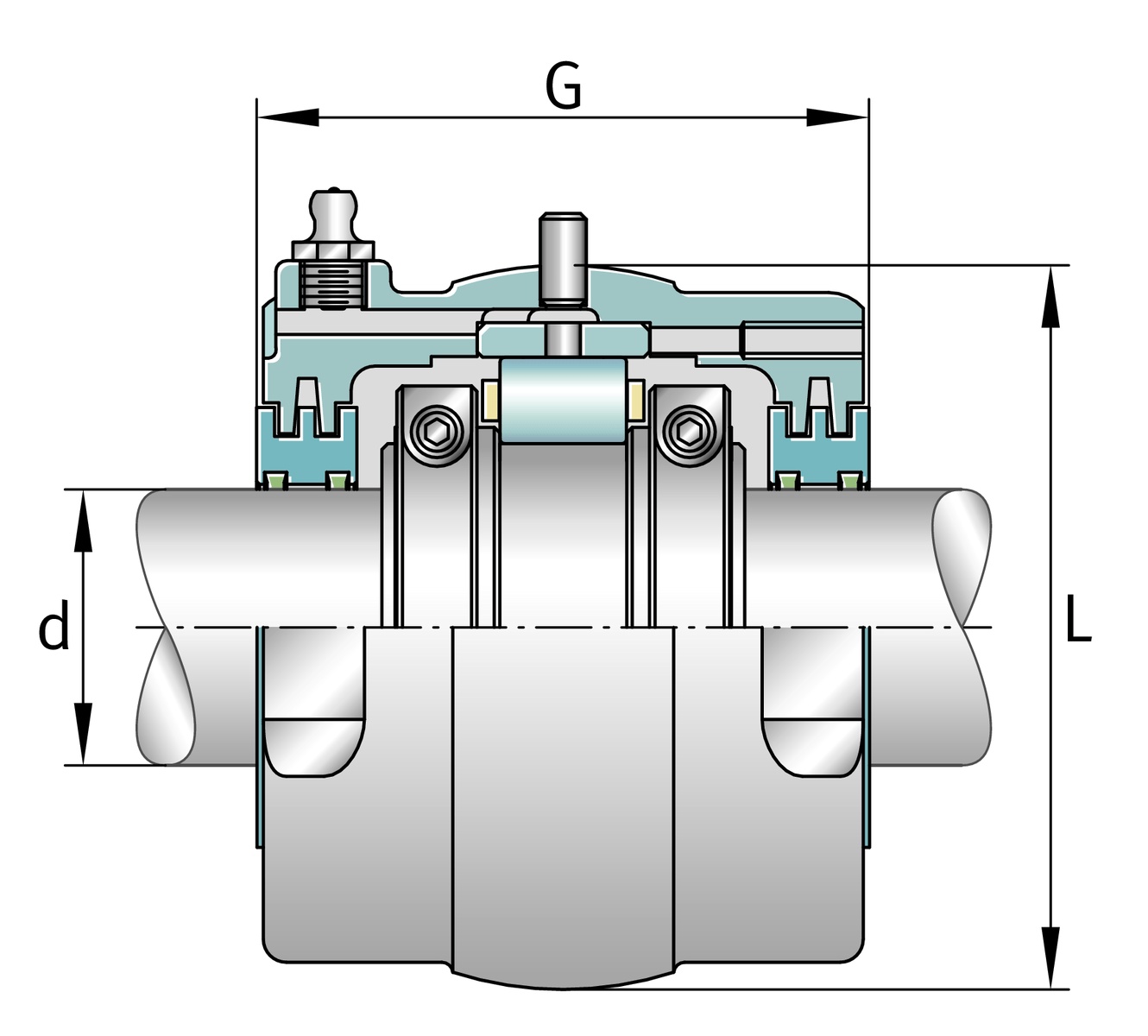

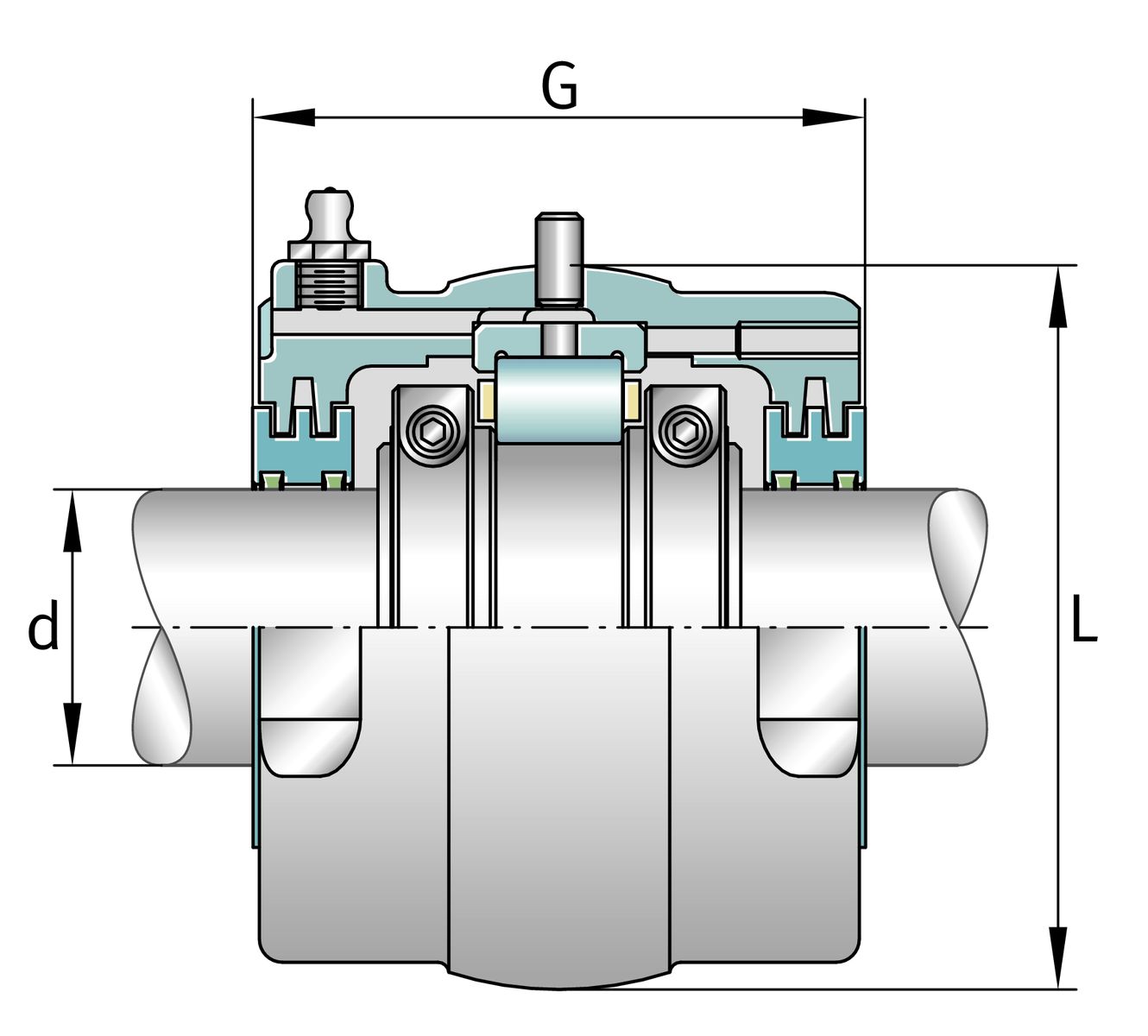

S2BC-215-FL | Cartridge float bearing | |
S2BC-215-HD | Cartridge held bearing | |
S2C-300 | Cartridge | |
| L | 7 in | 外徑 cartridge |
| G | 5.5 in | Lenght through bore |

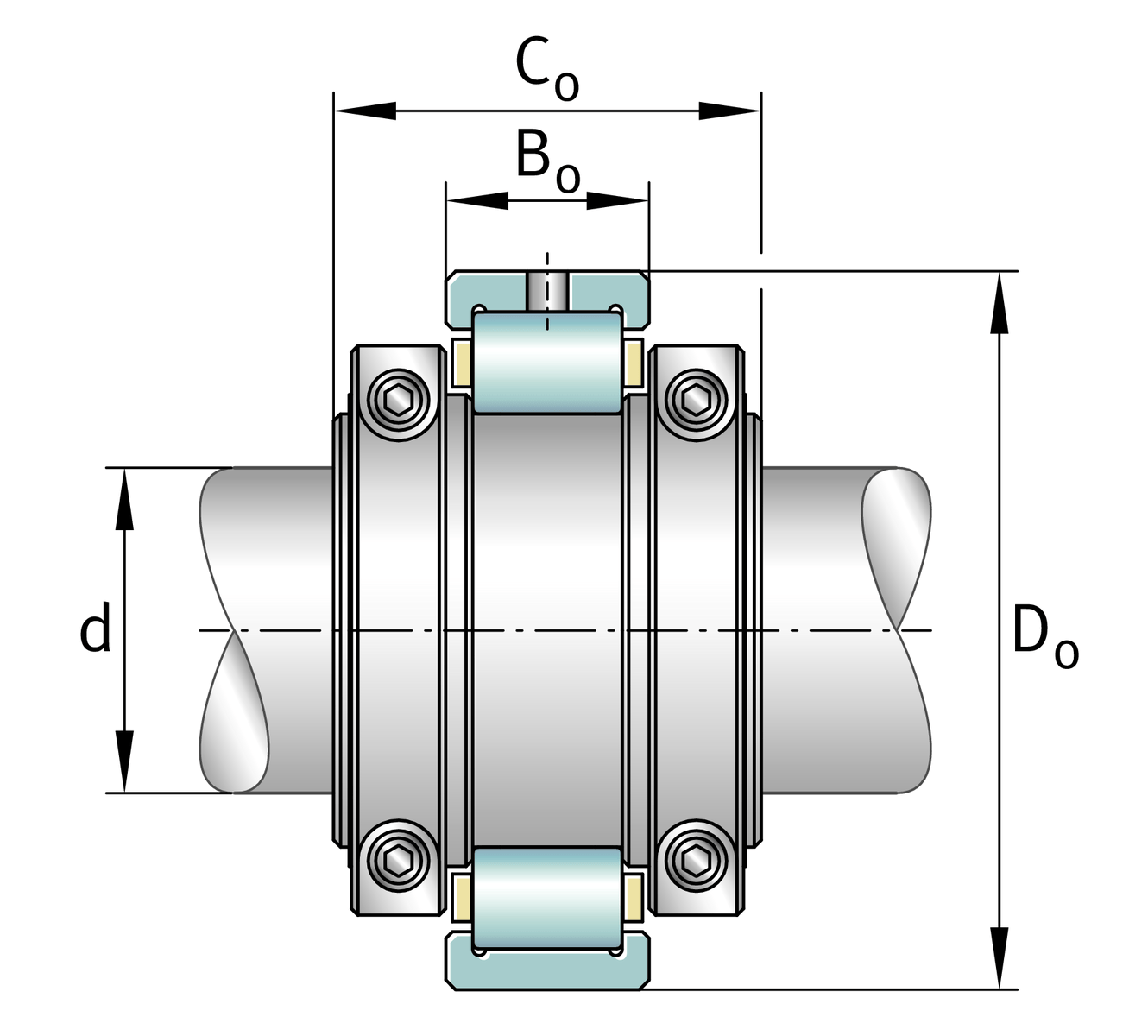

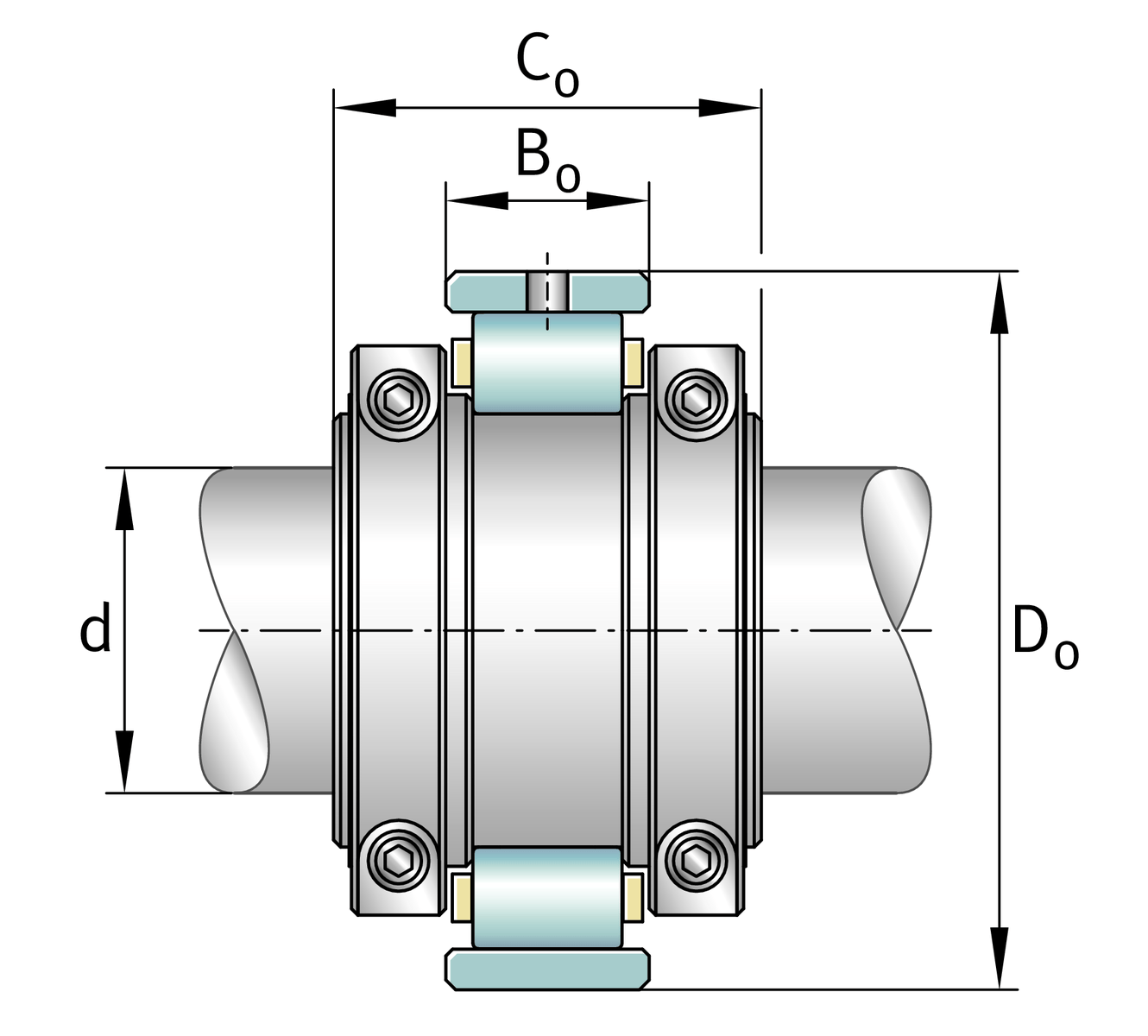

S2B-215-FL | Bearing float | |
S2B-215-HD | Bearing held | |
12.1 lbs | Bearing weight | |
| Cr | 45,440 lbf | 基本額定動載荷，徑向 |
| Ca | 561 lbf | 基本額定動載荷，軸向 |
| C0r | 59,277 lbf | 基本額定靜態負荷，徑向 |
2,930 1/min | 極限轉速 | |
| D0 | 5.875 in | 外徑 bearing |
| C0 | 3.25 in | 內圈寬度 |
| B0 | 1.813 in | Width outer ring |
656.1 lbs | Grease capacity |
