FAG INA Schaeffler
FAG
S2B-515-FL
Plummer block housing unit S2B-515-FL
加入詢價
主要尺寸與性能資料

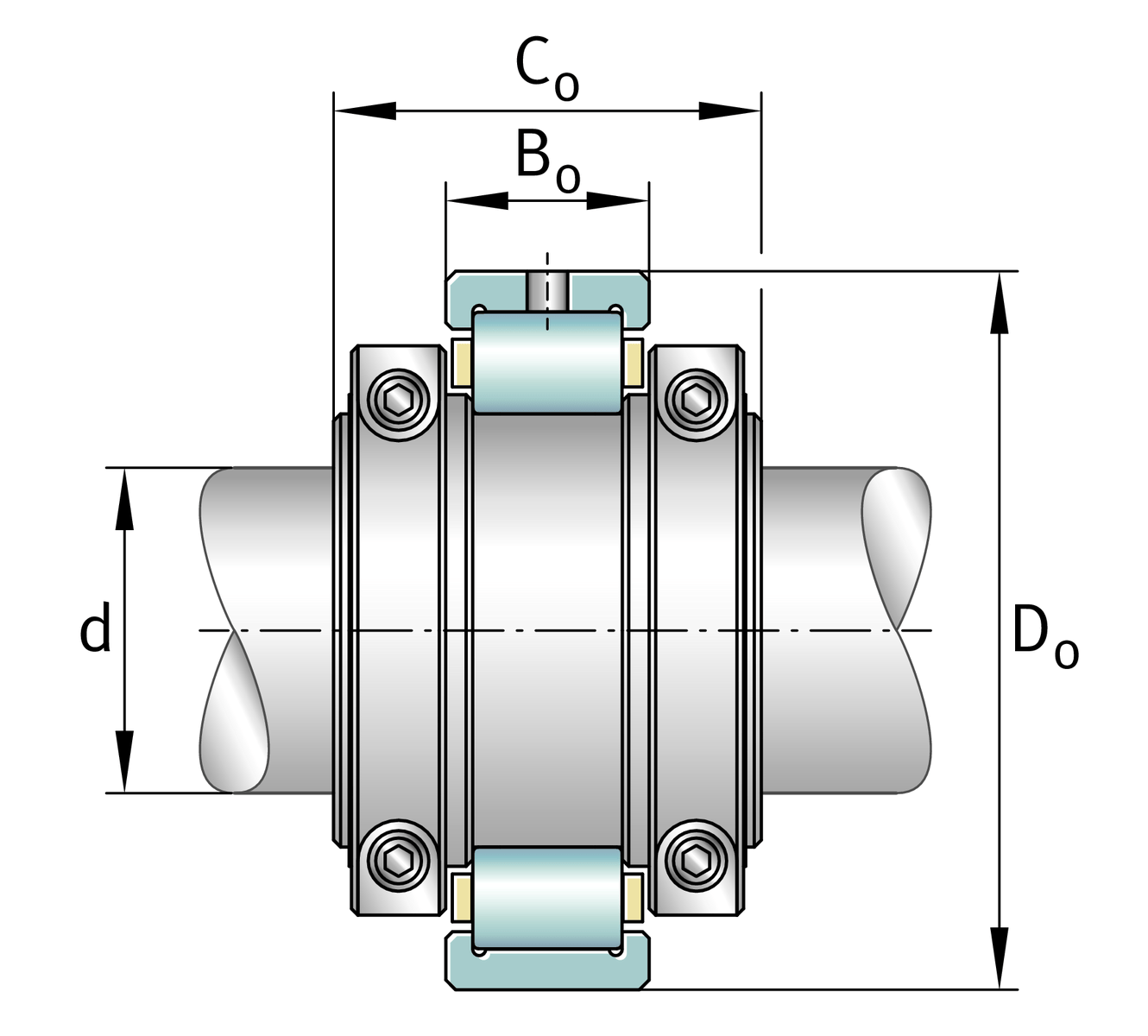

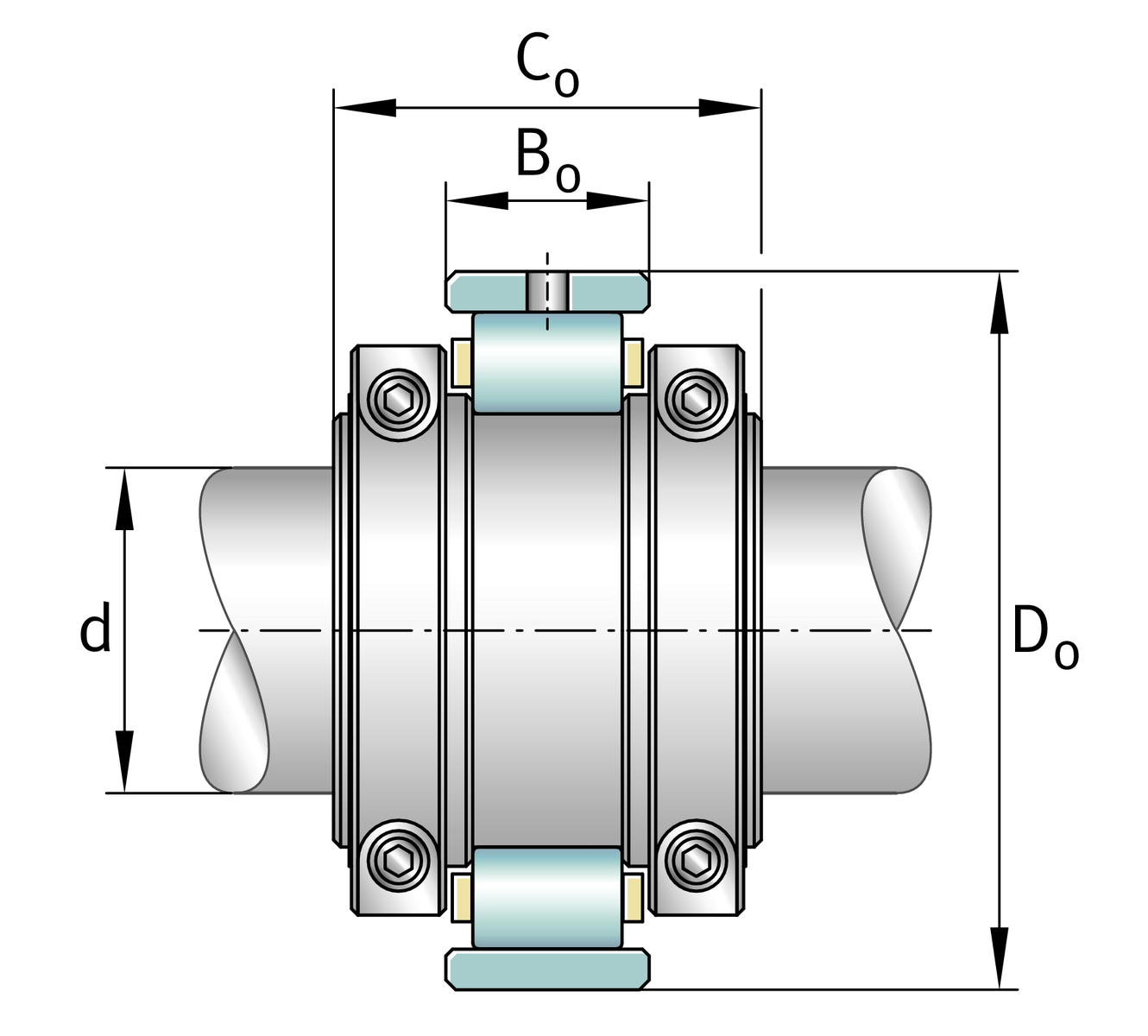

d
150.813 mm
Shaft diameter
≈m
31.933 kg
重量

尺寸
S2B-515-FL
Bearing float
S2B-515-HD
Bearing held
Ca
5,061.824 N
基本額定動載荷，軸向
Cr
655,306.048 N
基本額定動載荷，徑向
C0r
1,019,939.744 N
基本額定靜態負荷，徑向
1,450 1/min
極限轉速
D0
292.1 mm
外徑 bearing
C0
123.825 mm
內圈寬度
B0
67.767 mm
Width outer ring
