主要尺寸與性能資料
| H1 | 43 mm | |
| B | 80 mm | |
| L | 100 mm | |
| ≈m | 0.8 kg | 重量 |

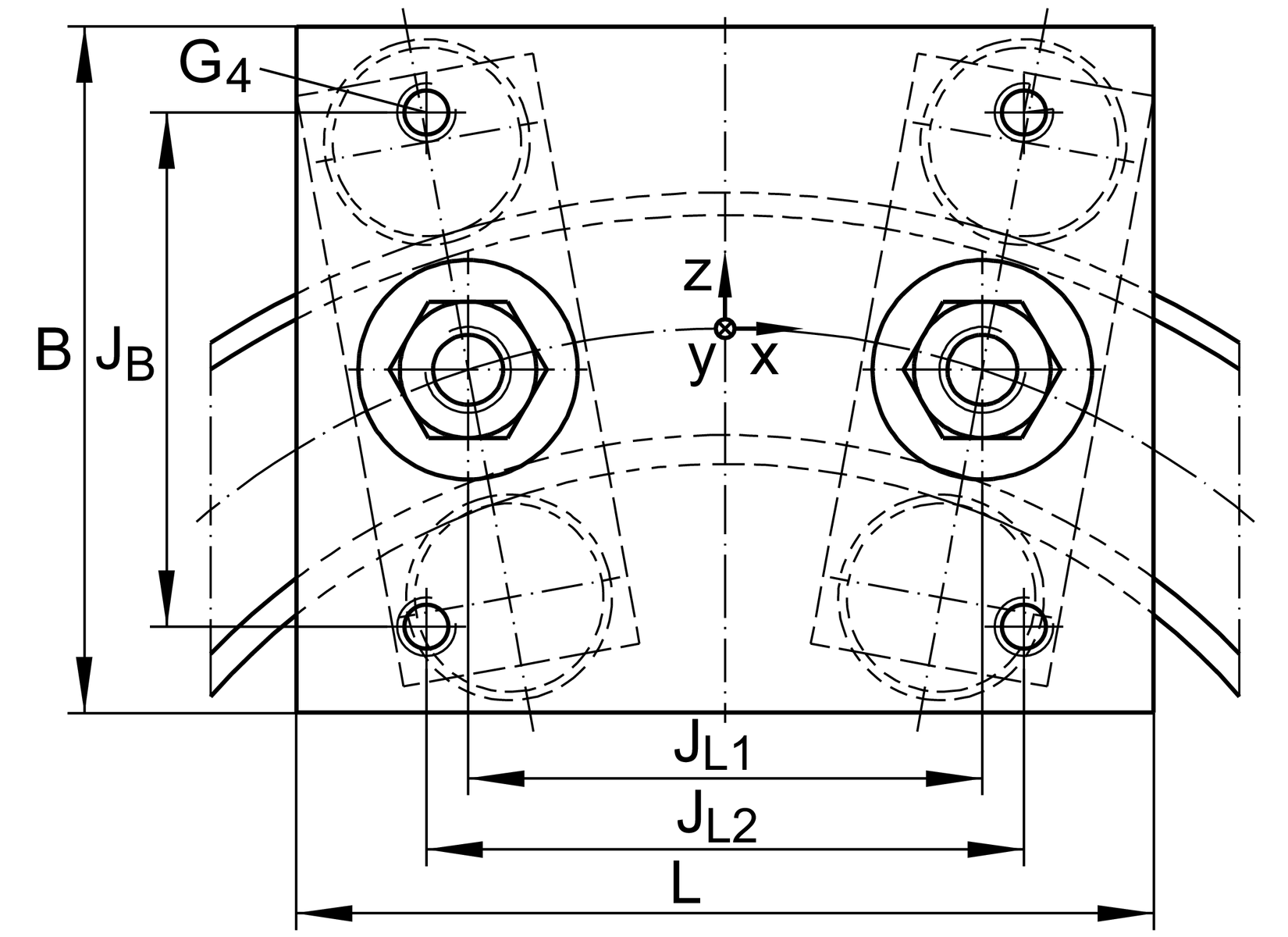

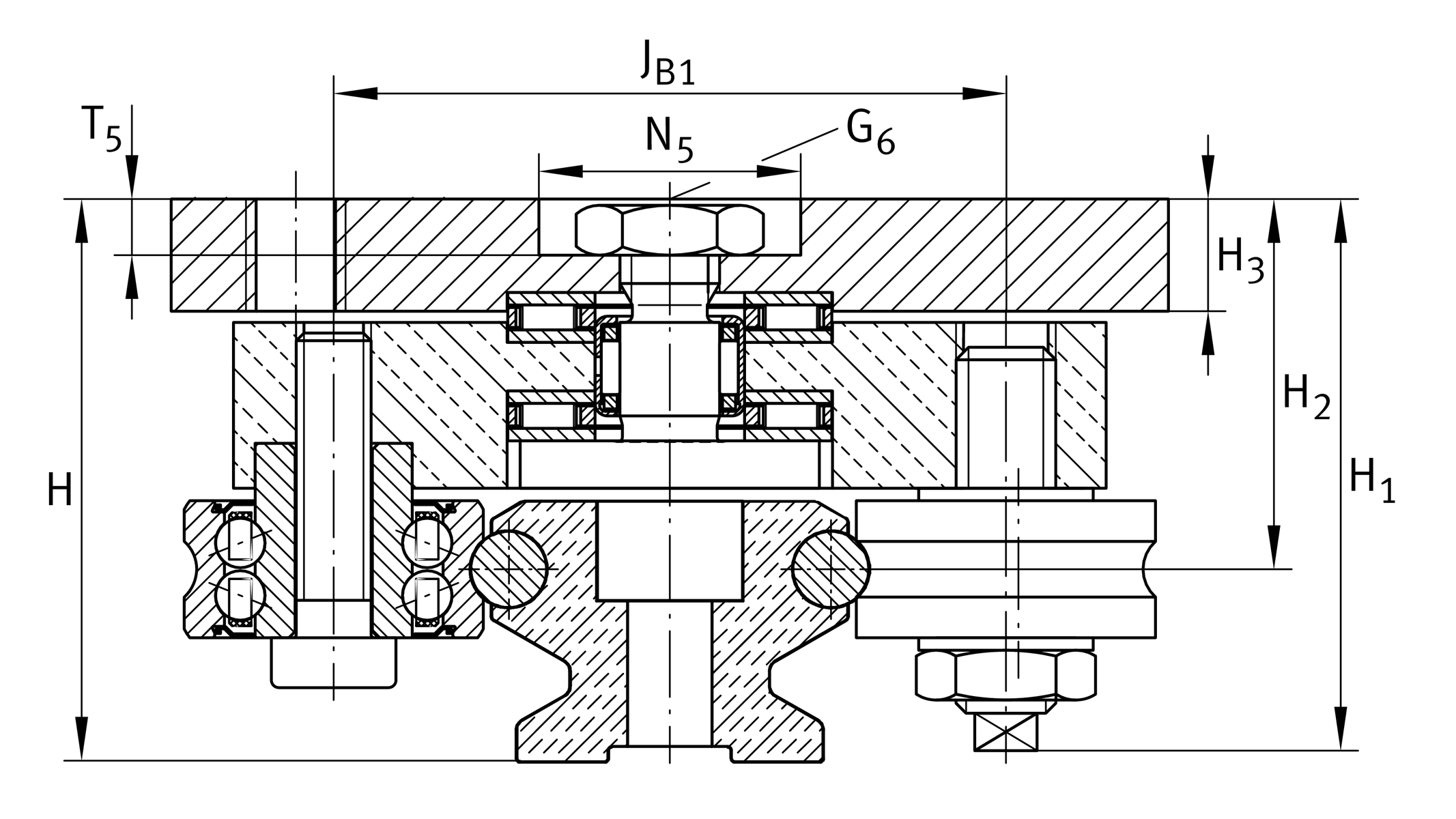

安裝尺寸
| G4 | M8 | |
| G6 | M8 | |
| H | 44.2 mm | Total height of carriage and rail at LFS, -C, -CE, -CEE, -E, -EE, -N, -NZZ |
| H2 | 29.2 mm | |
| H2 Tol | 0.3 | |
| H2 Tol | 0 | |
| H3 | 9 mm | |
| JB | 60 mm | |
| JB1 | 54 mm | |
| JL1 | 60 mm | |
| JL2 | 70 mm | |
| N5 | 21 mm | |
| T5 | 5 mm |

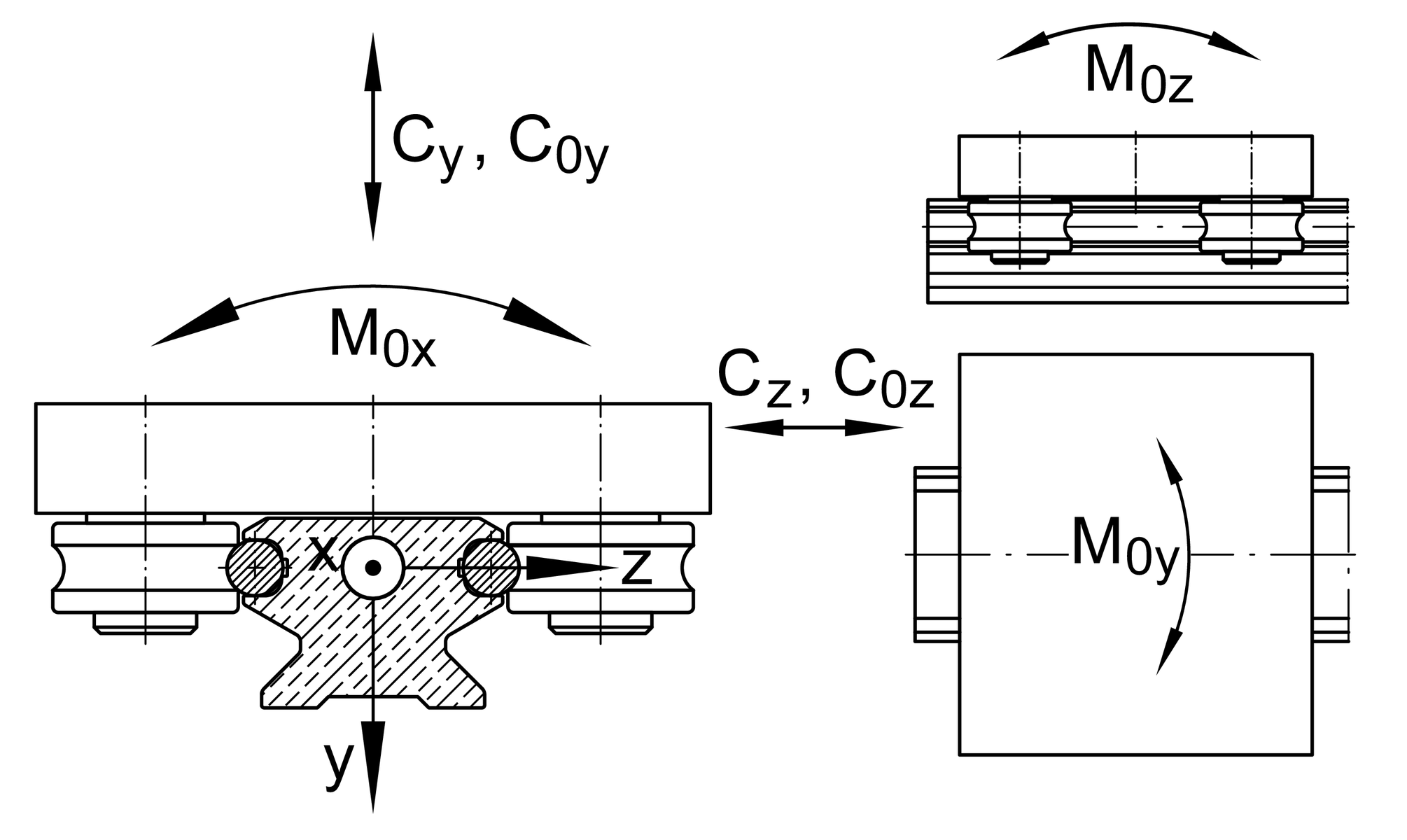

Main dimensions
| MA | 15 Nm | Tightening torque (standard version) 1 |
| Cy | 4,100 N | 基本額定動載重 in y-direction 2 |
| C0y | 2,400 N | 基本額定靜載重 in y-direction 2 |
| Cz | 6,600 N | 基本額定動載重 in z-direction 2 |
| C0z | 4,200 N | 基本額定靜載重 in z-direction 2 |
| M0x | 30 Nm | static moment about X-axis |
| M0y | 130 Nm | Static moment about Y-axis |
| M0z | 70 Nm | Static moment about Z-axis |
Related products
| LFR | LFR50/8-6-2Z | Used track roller 3 |
| LFS | LFS32 | Guide rail |
您目前的產品型號
| Size code | 32 | |
| Setting | B |
