主要尺寸與性能資料
| H | 18 mm | Height sytem |
| B | 116 mm | Width system |
| L | 96 mm | Length linear recirculating ball bearing units |
| h | 17 mm | Height rail |
| b | 71 mm | Width rail |
| lmax | 2,940 mm | Max. length rail 1 |
| C | 26,000 N | Load capacity dyn C 2 |
| C0 | 46,500 N | Load capacity dyn C0 2 |

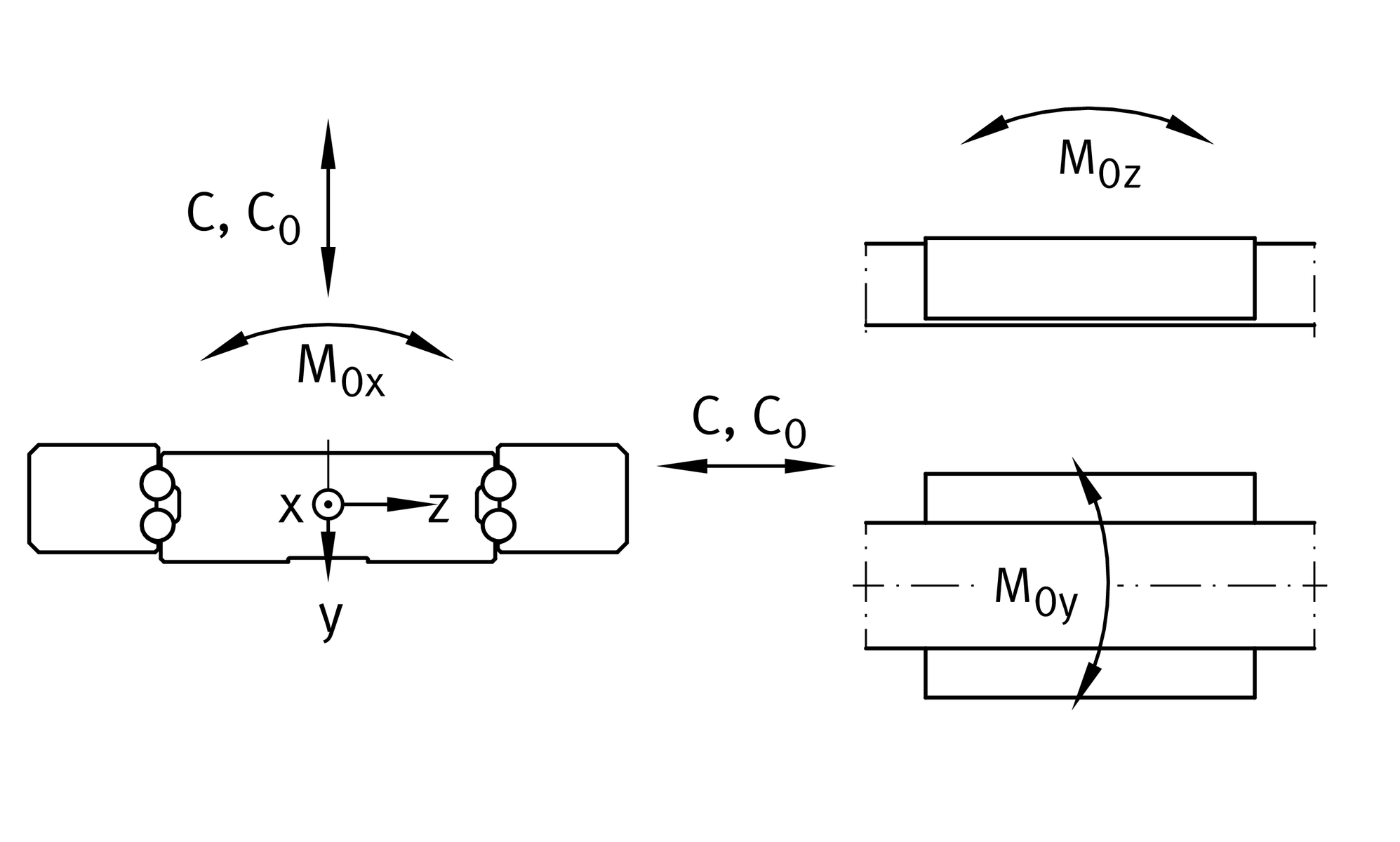

| M0X | 1,872 Nm | Moment ratings M0X |
| M0Y | 492 Nm | Moment ratings M0Y |
| M0Z | 492 Nm | Moment ratings M0Z |
| ≈m | 199 g | 重量 |

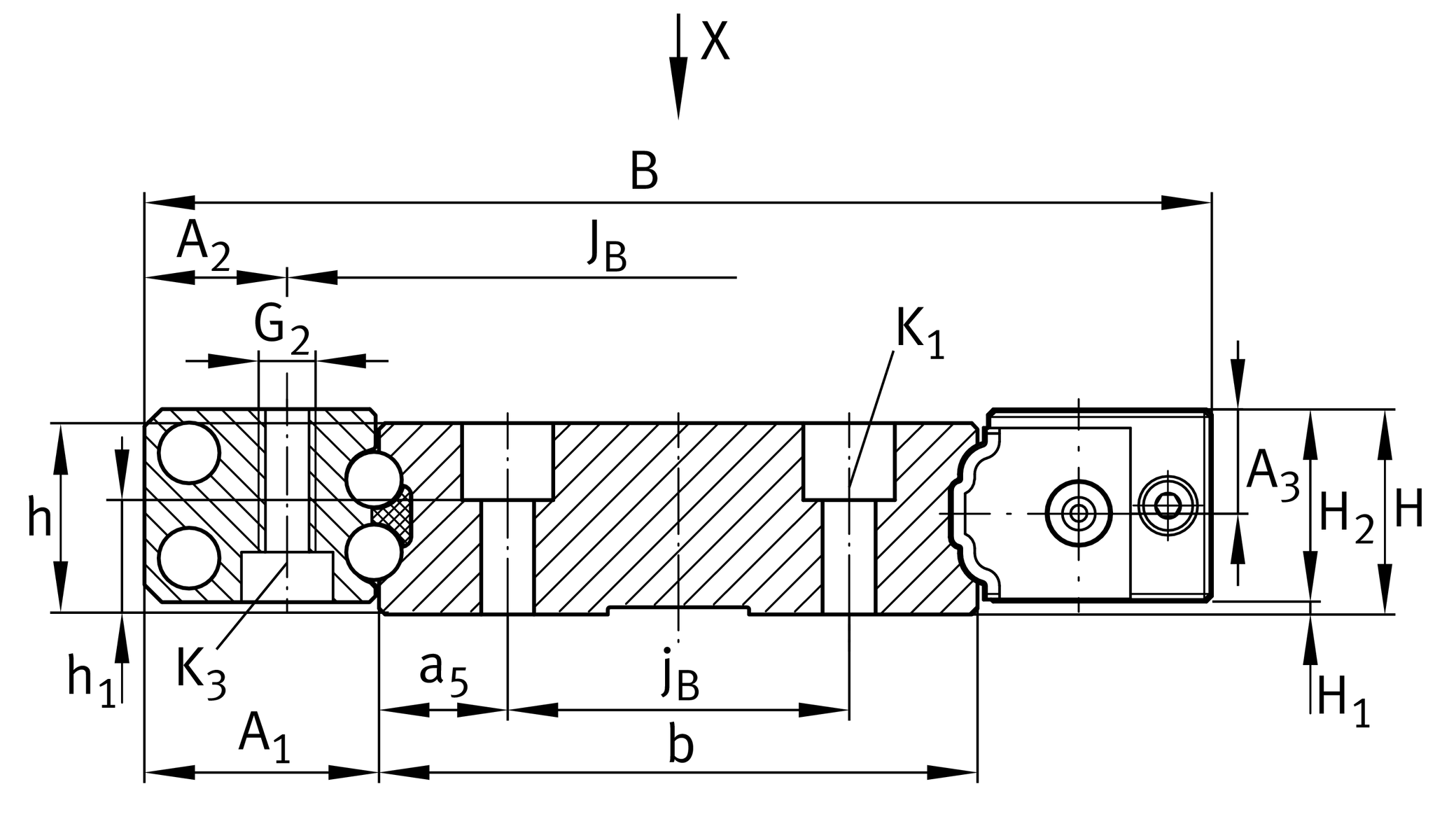

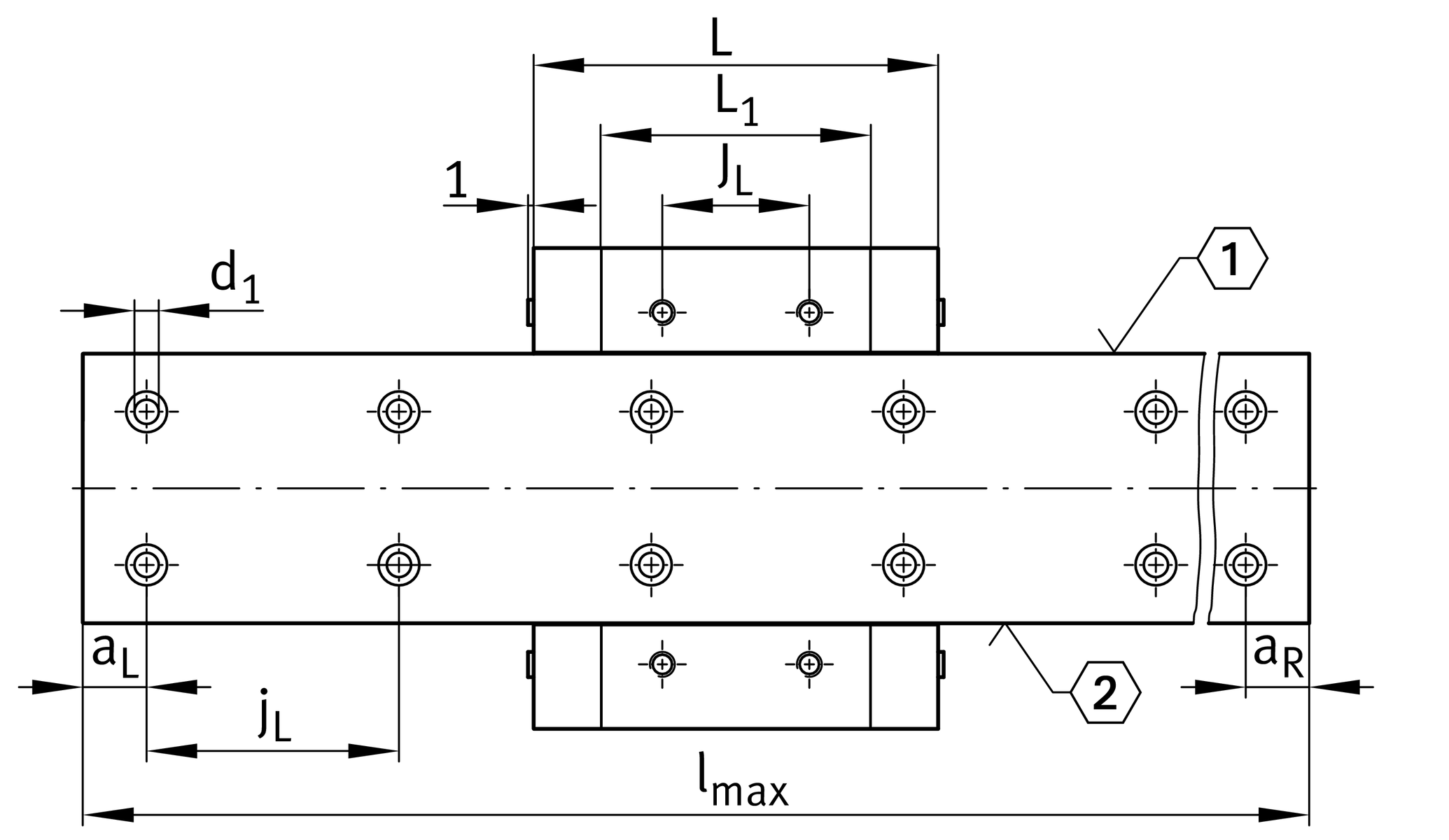

安裝尺寸
| A1 | 22.5 mm | |
| A2 | 13 mm | |
| JB | 90 mm | |
| jB | 50 mm | |
| a5 | 10.5 mm | |
| L1 | 64 mm | |
| JL | 35 mm | |
| jL | 60 mm | |
| aLmin | 20 mm | 3 |
| aLmax | 53 mm | 3 |
| aRmin | 20 mm | 3 |
| aRmax | 53 mm | 3 |
| H1 | 0.5 mm | |
| H2 | 17.5 mm | Height linear recirculating ball bearing units |
| A3 | 9.5 mm | |
| h1 | 8.3 mm | |
| K1 | M5 | 線 |
| K1 MA | 10 Nm | Tightening torque 4 |
| G2 | M6 | 線 |
| G2 MA | 10 Nm | Tightening torque 4 |
| K3 | M4 | 線 |
| K3 MA | 3 Nm | Tightening torque 4 |
| d1 | 6 mm | Diameter |

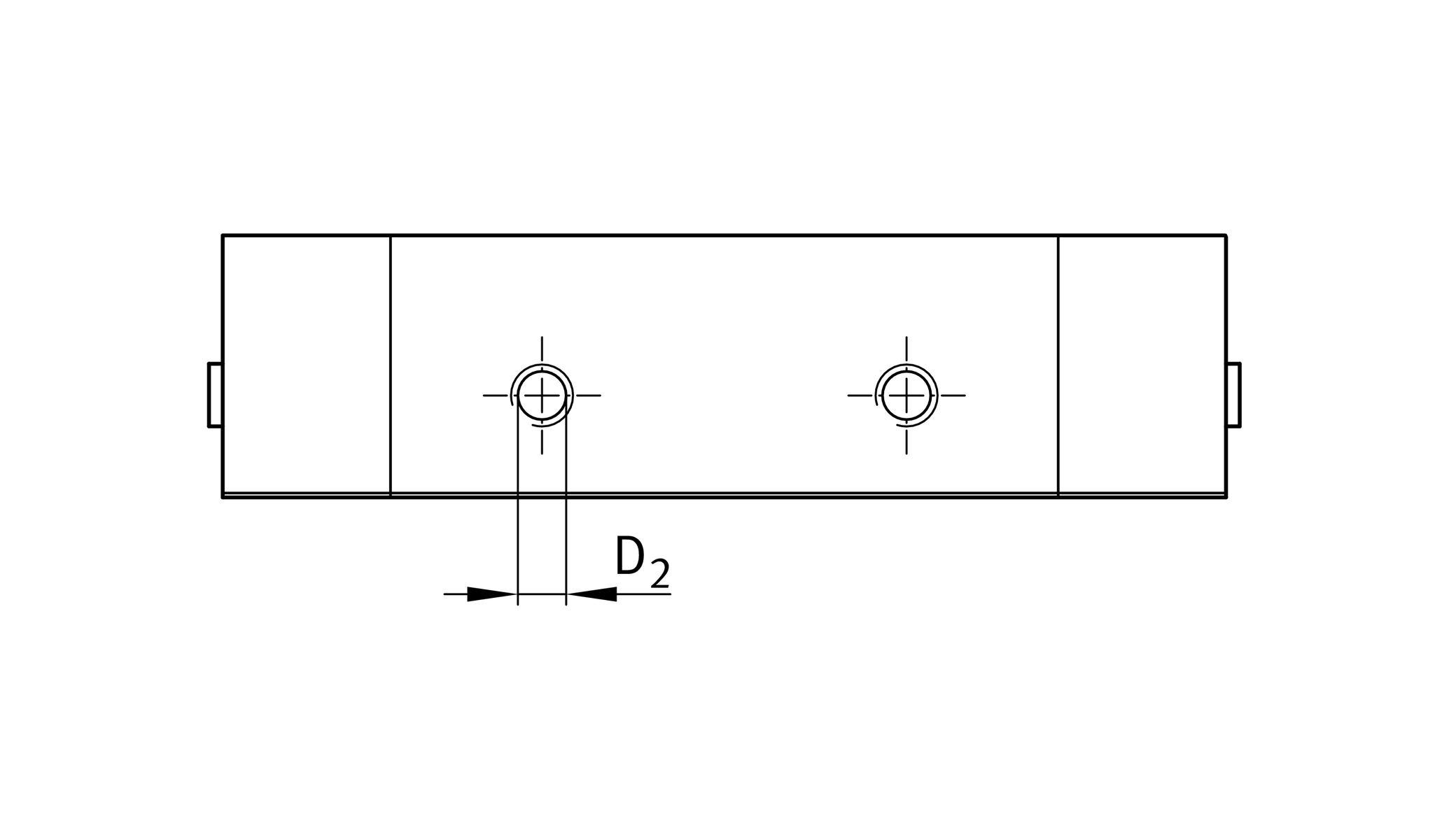

| D2 | 4.9 mm | Diameter |
Related products
TKVD71 | Associated rail(s) | |
KA10-TN | Closing plug rail |
您目前的產品型號
| Size code | 17 | |
| Suffix | B |
