S2B-1200-HD
Plummer block housing unit S2B-1200-HD
加入詢價
主要尺寸與性能資料

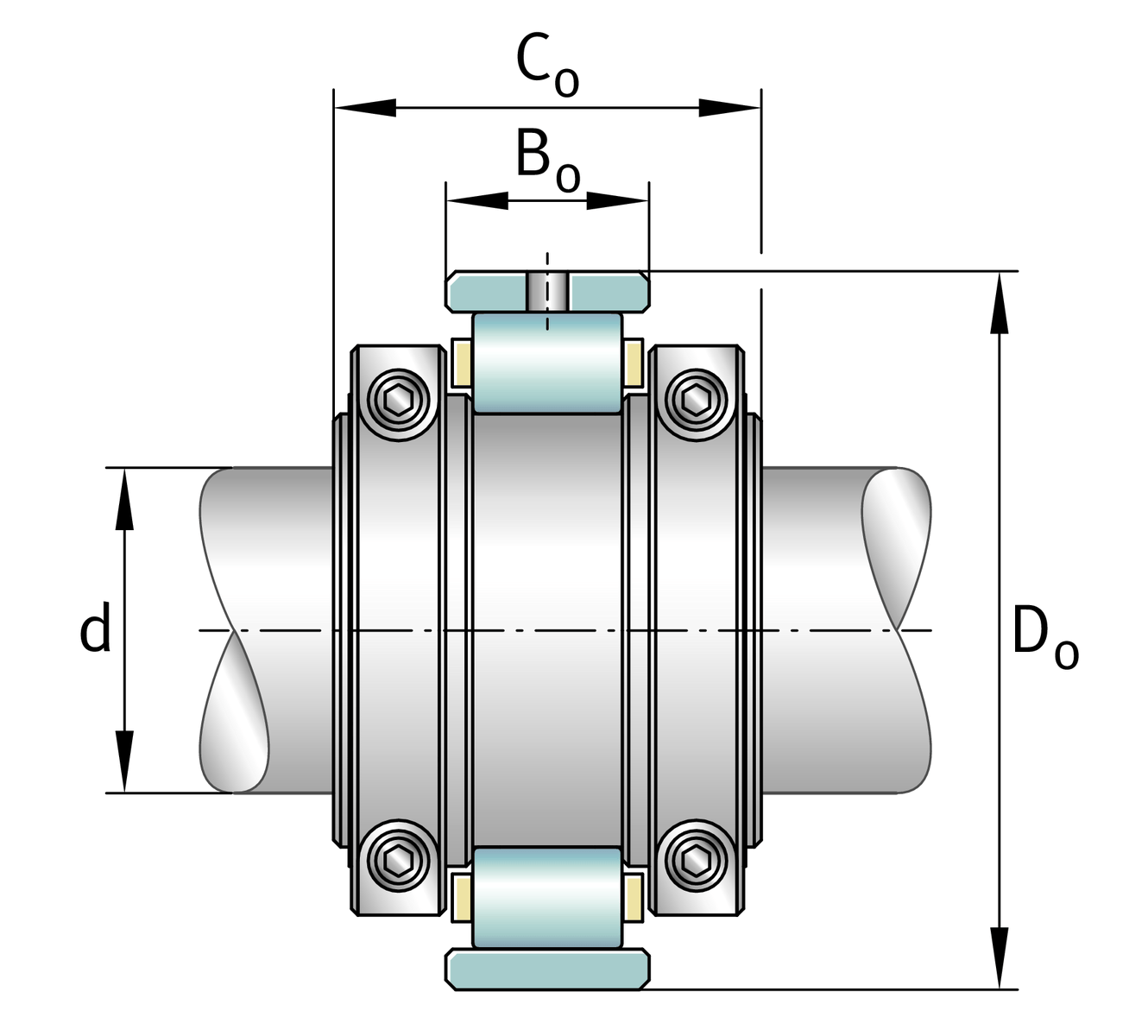

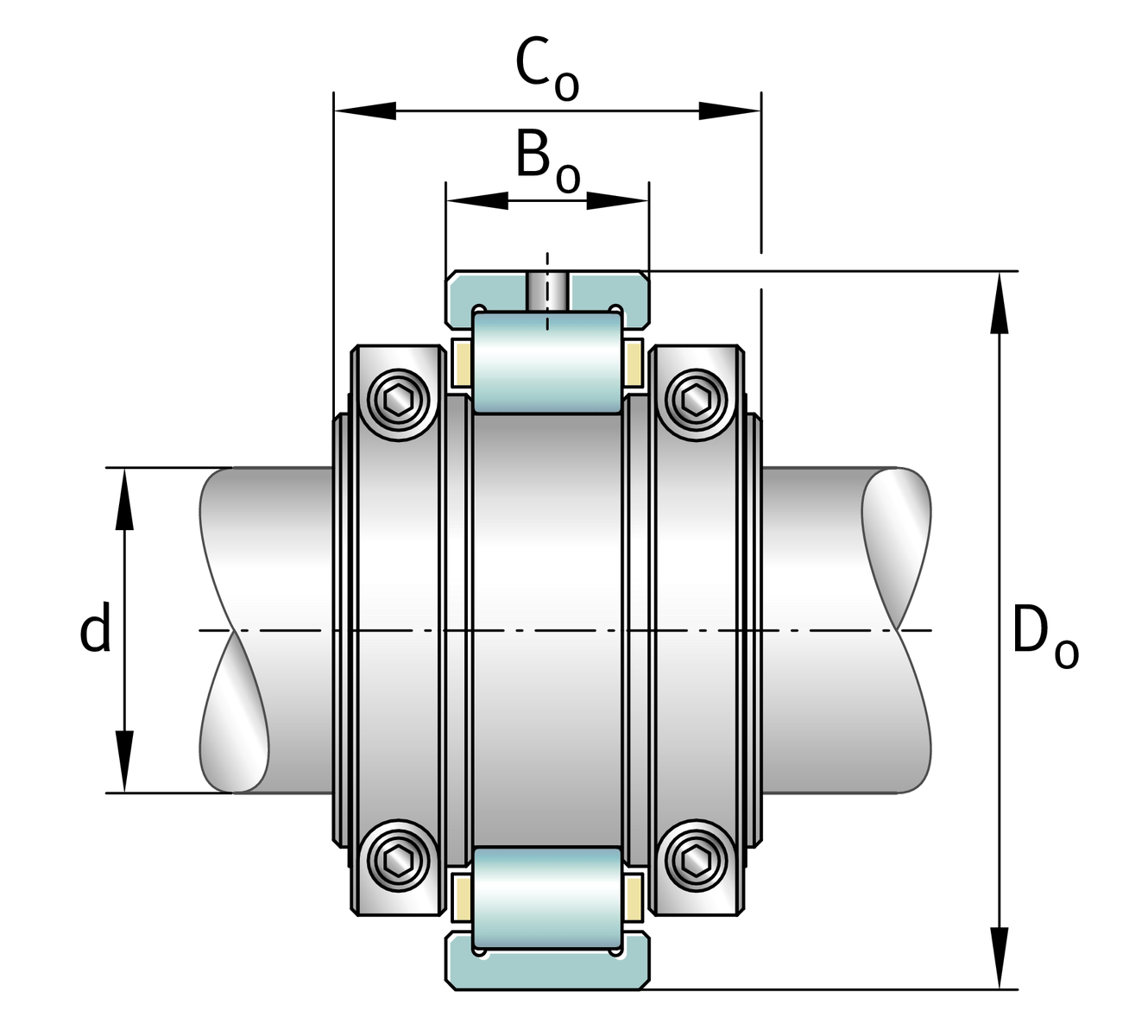

d
304.8 mm
Shaft diameter
≈m
134.717 kg
重量

尺寸
S2B-1200-FL
Bearing float
S2B-1200-HD
Bearing held
Ca
67,574.016 N
基本額定動載荷，軸向
Cr
1,339,404 N
基本額定動載荷，徑向
C0r
2,470,045.568 N
基本額定靜態負荷，徑向
850 1/min
極限轉速
D0
495.3 mm
外徑 bearing
C0
192.888 mm
內圈寬度
B0
103.2 mm
Width outer ring
