主要尺寸與性能資料
| FW | 16 mm | Diameter of ball complement |
| H | 33.5 mm | Center height |
| L | 36 mm | 長度 |
| Tol L | h12 | tolerance |
| B | 56 mm | 寬度 |
| C | 800 N | load capacity dyn. 1 |
| C0 | 620 N | load capacity stat. C0 1 |
| ≈m | 0.119 kg | 重量 |
安裝尺寸
| JB | 46 mm | |
| Tol JB | +0,15 | 公差上限 |
| Tol JB | -0,15 | 較低的公差 |
| B1 | 35 mm | |
| A5 | 28 mm | |
| Tol A5 | +0,02 | 公差上限 |
| Tol A5 | -0,02 | 較低的公差 |

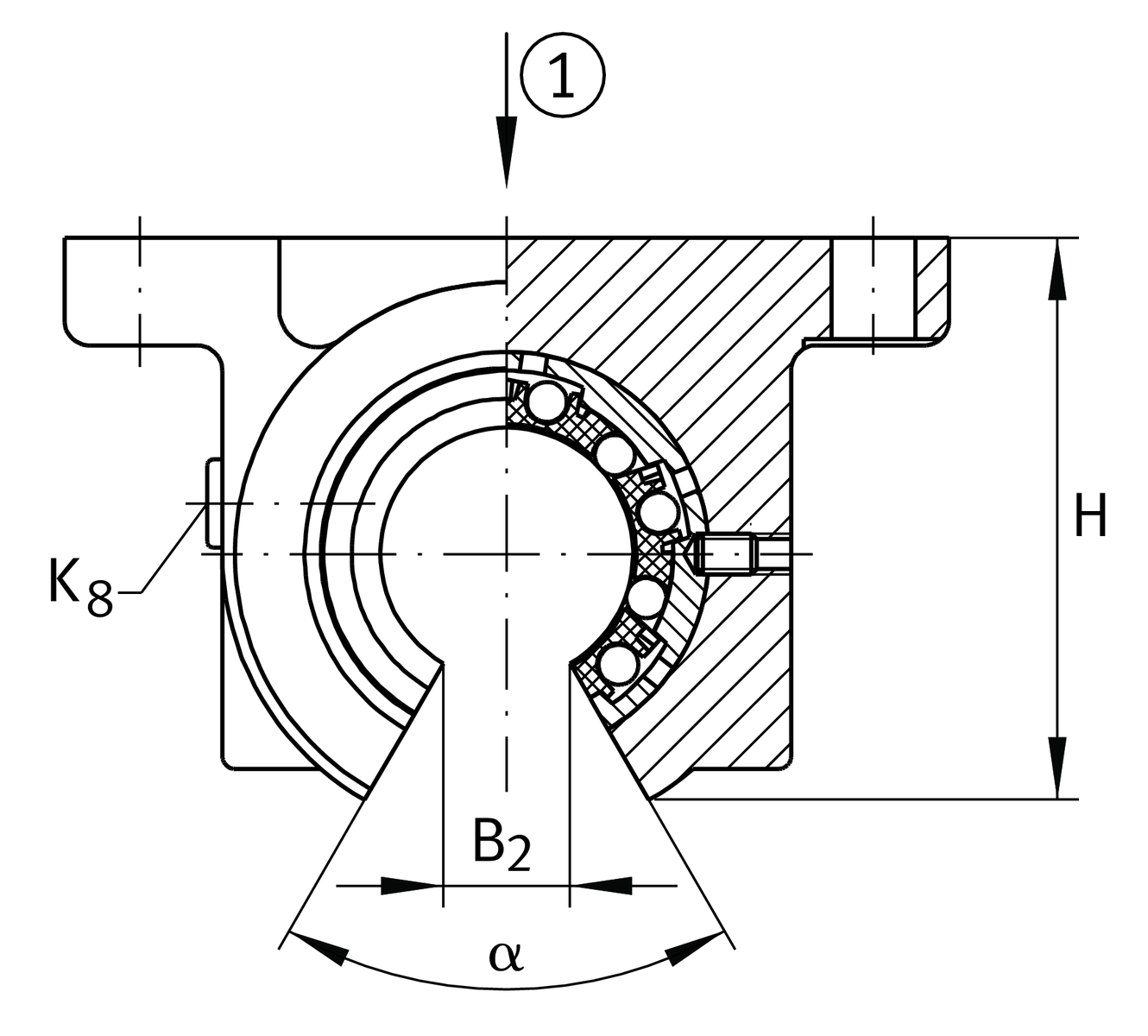

| B2 | 10.1 mm | 2 |
| L4 | 15 mm | Distance |
| L5 | 22 mm | Distance |

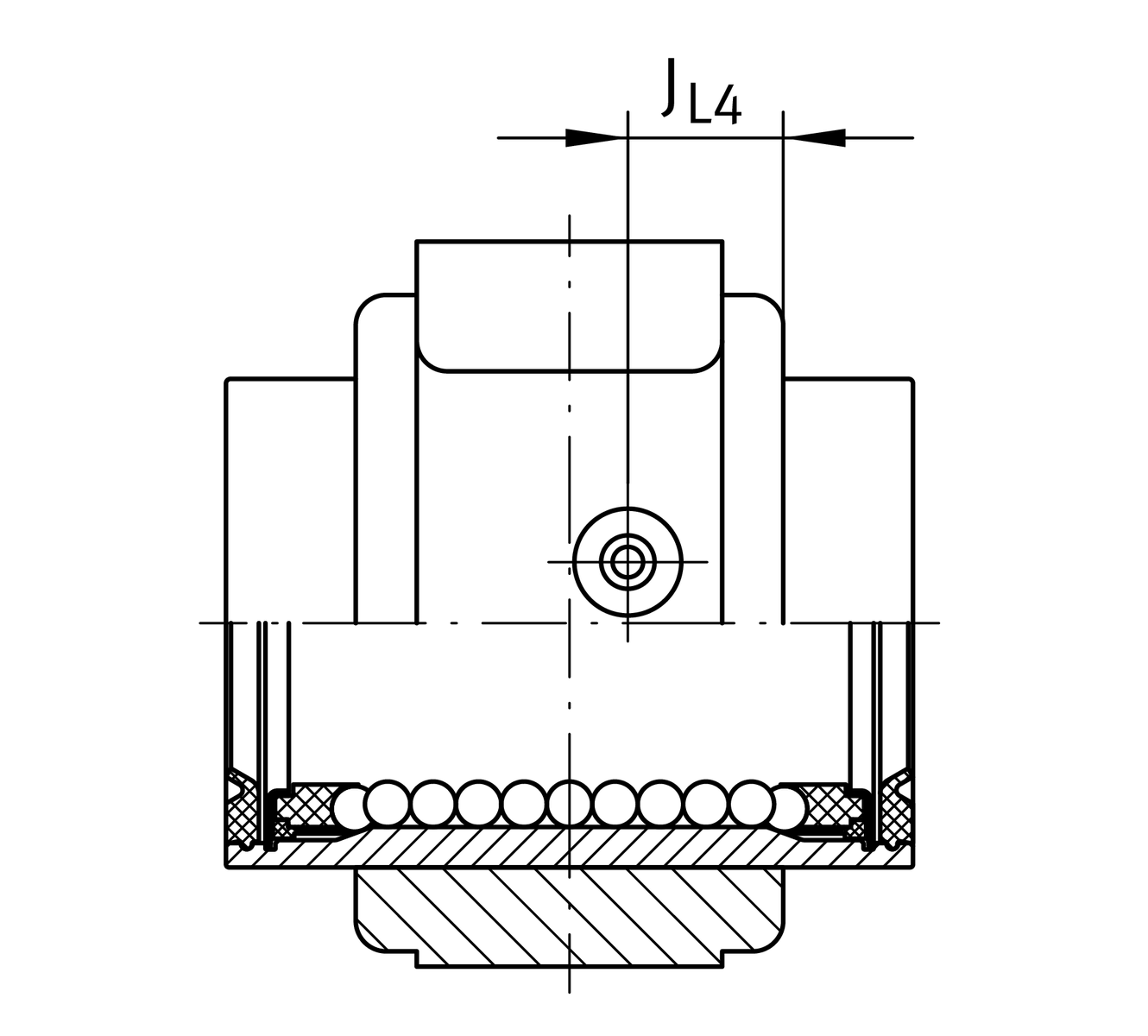

| J L4 | 6.5 mm | Distance |
| H2 | 20 mm | height shaft |
| Tol H2 | +0,015 | 公差上限 |
| Tol H2 | -0,015 | 較低的公差 |
| A3 | 15 mm | |
| H6 | 6 mm | |
| N! | 5.5 mm | |
| N3 | 10 mm | |
| K5 | M5 | 3 |
| K8 | NIPA1 | Lubrication nipple |
| α | 78 ° | Angle |
4 | Ball rows |
您目前的產品型號
| Size code | 16 | |
| Seal | PP | |
| Relubrication feature | AS |
