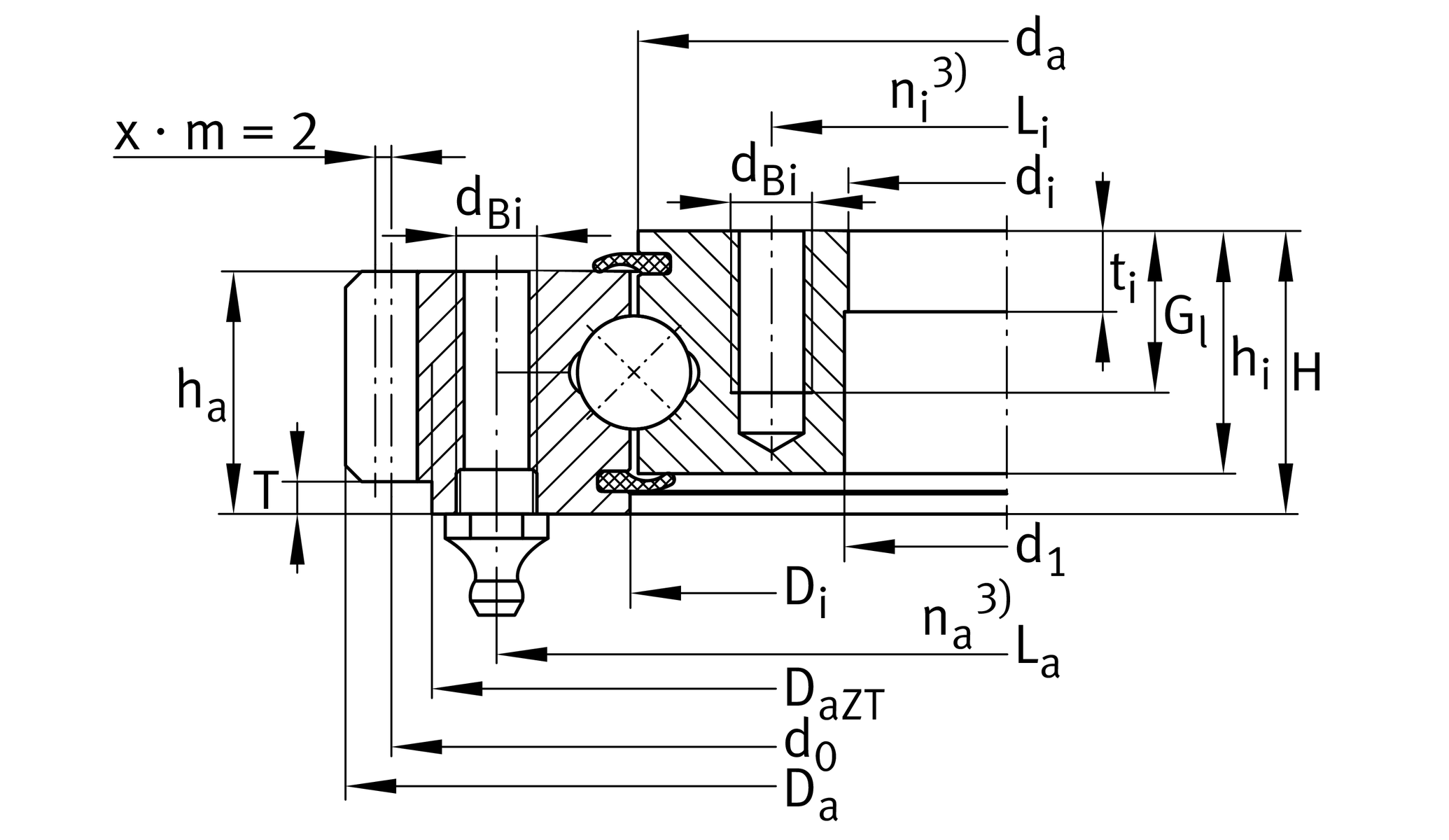

主要尺寸與性能資料
| di | 136 mm | 內徑 |
0.5 mm | 內徑公差上限 | |
-0.5 mm | 內徑公差下限 | |
| diZT | 135 mm | Diameter centring inner ring |
0.2 mm | Diameter centring inner ring 公差上限 | |
0 mm | Diameter centring inner ring 較低的公差 | |
| H | 35 mm | 高度 |
| Da | 259.36 mm | 外徑 |
| Di ZT | 238 mm | Diameter centring outer ring |
0 mm | Diameter centring outer ring 公差上限 | |
-0.07 mm | Diameter centring outer ring 較低的公差 | |
| T | 4 mm | Length centering outer ring |
| t | 10 mm | Length centering inner ring |
| ha | 30 mm | Width outer ring |
| hi | 30 mm | 內圈高度 |
0.03 mm | Normal 徑向間隙 min. | |
0.1 mm | Normal 徑向間隙 max. | |
0.05 mm | Normal axial clearance min. | |
0.2 mm | Normal axial clearance max. | |
| ≈m | 7.1 kg | 重量 |
尺寸
| Di | 189 mm | 外圈內徑 |
| da | 187 mm | 內圈外徑 |
| ni | 16 | 內圈固定孔數 |
| Li | 154 mm | 內圈螺距圓直徑固定孔 |
| na | 16 | 外圈固定孔數 |
| La | 222 mm | 外圈螺距圓固定孔直徑 |
| dBa | M10 | Tread 固定內徑 |
| Gl | 20 mm | Thread depth fixing hole |
| Fr zul | 44,800 N | Max. radial load fixing screws (friction locking) |
| d0 | 248 mm | Pitch circle diameter gearing |
| m | 4 mm | Modul of gearing |
| z | 62 | Number of teeth |
2 mm | Profile shift | |
| b | 26 mm | Width gearing |
| Fz norm | 10,400 N | Max. tooth force root fatigue strenght (at a shock factor of 1,2) |
| Fz max | 15,300 N | Max. tooth force against tooth fracture (at a shock factor of 1,35) |
溫度範圍
| Tmin | -25 °C | 最低工作溫度 |
| Tmax | 80 °C | 最高操作溫度 |
計算參數s
| Ca | 93,000 N | 基本額定動載荷，軸向 |
| C0a | 670,000 N | 基本額定靜態載荷，軸向 |
| Cr | 84,000 N | 基本額定動載荷，徑向 |
| C0r | 270,000 N | 基本額定靜態負荷，徑向 |
您目前的產品型號
| Gearing | V | Quenched and tempered gear teeth on bearing ring |
