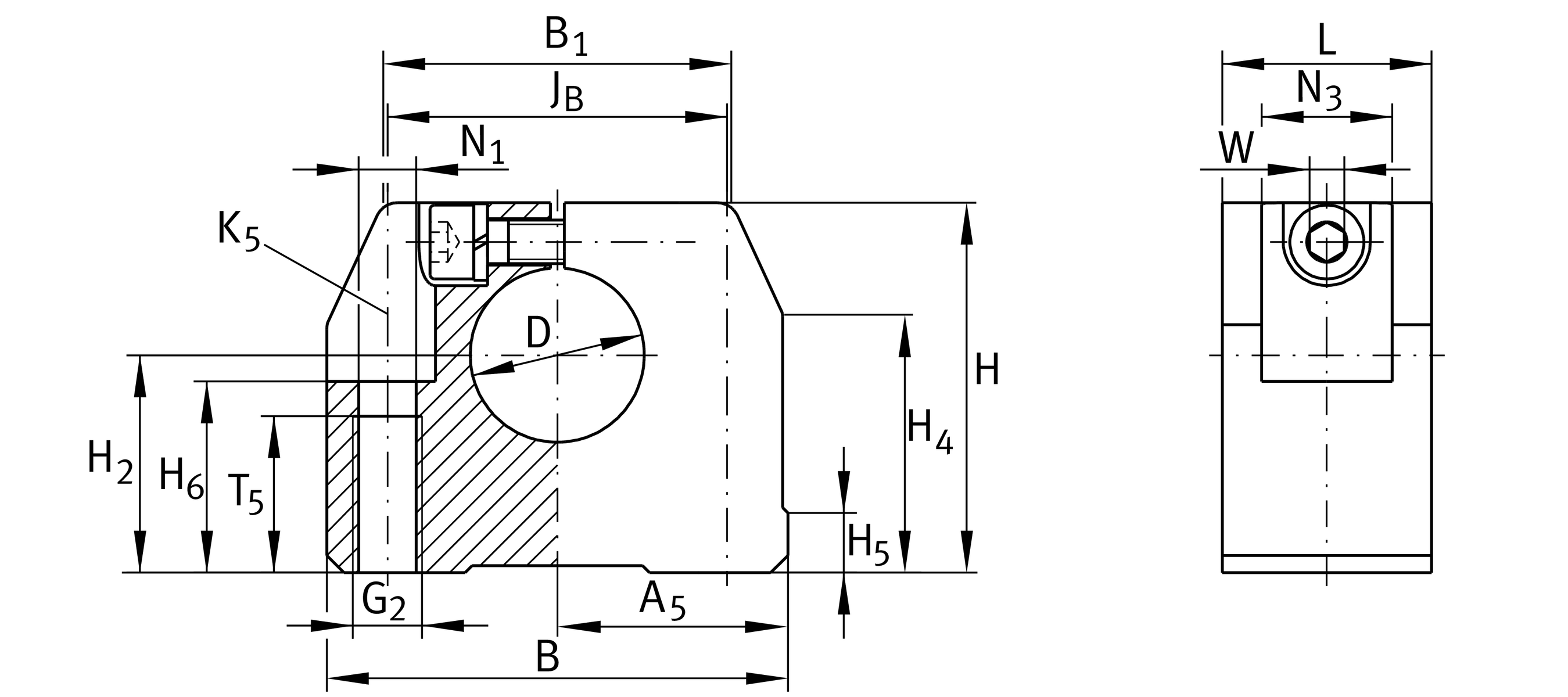

主要尺寸與性能資料
| D | 6 mm | diameter |
| Tol D | H8 | Tolerance |
| B | 32 mm | 平面寬度s |
| L | 16 mm | 長度 |
| H | 27 mm | Heigth |
| ≈m | 30 g | 重量 |
安裝尺寸
| JB | 22 mm | Mounting Dimension |
| Tol JB | ±0,15 | Tolerance |
| A5 | 16 mm | Mounting Dimension |
| B1 | 25 mm | Mounting Dimension |
| H2 | 15 mm | Mounting Dimension |
| Tol H2 | +0,1 | 公差上限 |
| Tol H2 | -0,1 | 較低的公差 |
| H4 | 20.6 mm | Mounting Dimension |
| H5 | 5 mm | Mounting Dimension |
| T5 | 11 mm | Mounting Dimension |
| H6 | 13 mm | Mounting Dimension |
| G2 | M5 | Mounting thread below |
| N1 | 4.3 mm | Mounting Dimension |
| N3 | 10 mm | Mounting Dimension |
| K5 | M4 | Sie thread fixing screws above 1 |
| W | 2.5 mm | 平面寬度 2 |
您目前的產品型號
| Size code | 06 | |
| Suffix | B | Version |
