FAG INA Schaeffler
FAG
S1B-1100-HD
Plummer block housing unit S1B-1100-HD
加入詢價
主要尺寸與性能資料

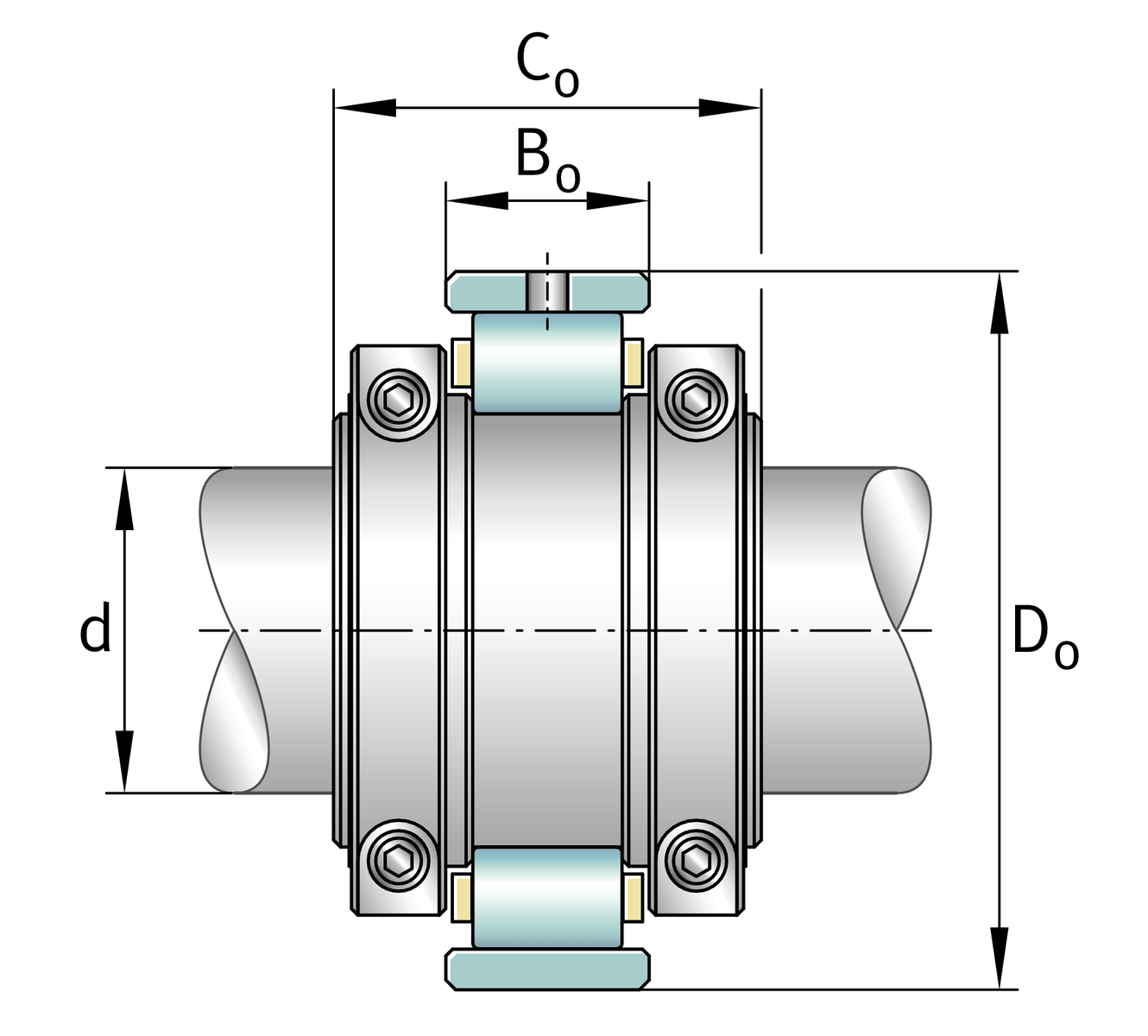

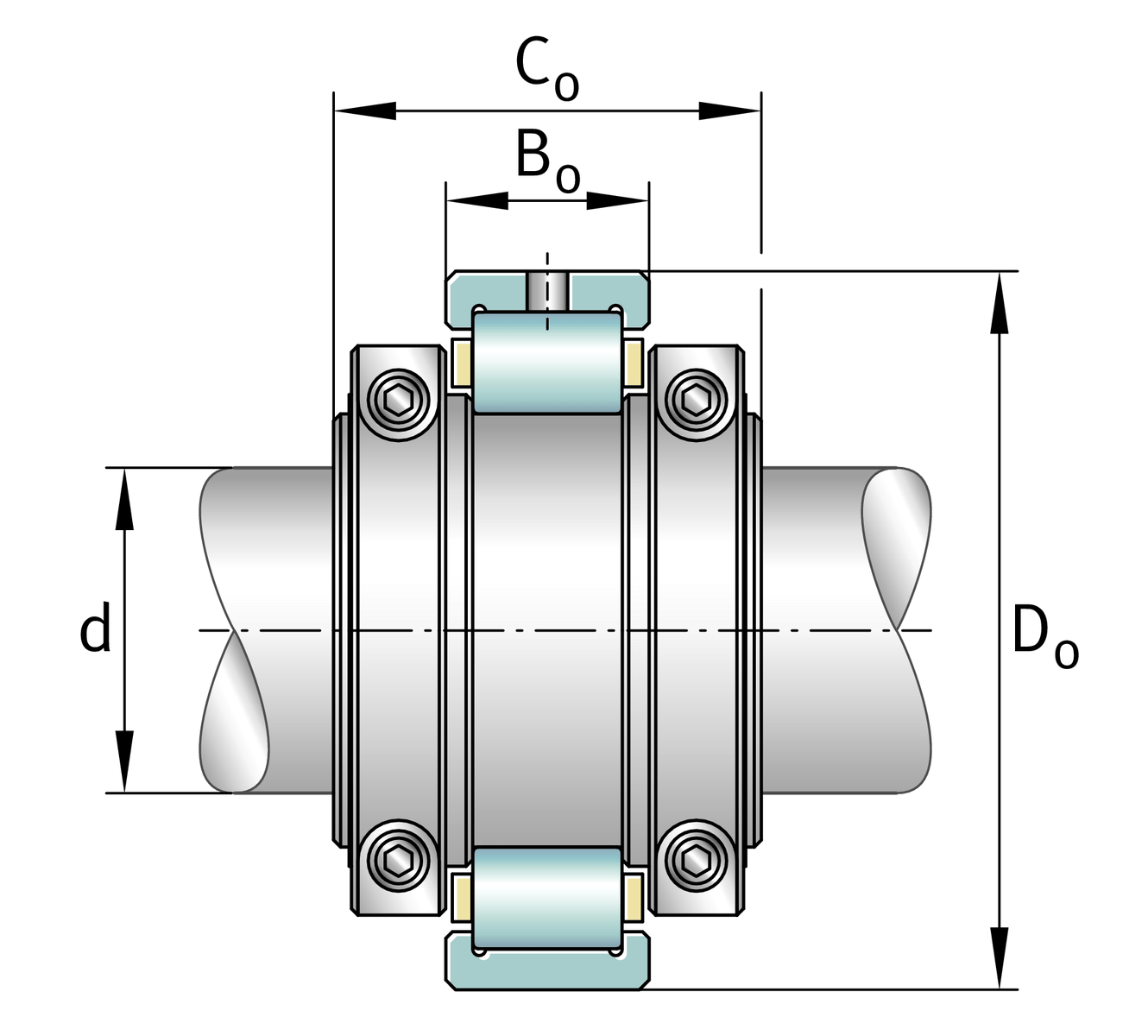

d
11 in
Shaft diameter
≈m
99.999 lbs
重量

尺寸
S1B-1100-FL
Bearing float
S1B-1100-HD
Bearing held
Ca
9,614 lbf
基本額定動載荷，軸向
Cr
155,438 lbf
基本額定動載荷，徑向
C0r
301,656 lbf
基本額定靜態負荷，徑向
990 1/min
極限轉速
D0
16 in
外徑 bearing
C0
5.039 in
內圈寬度
B0
2.719 in
Width outer ring
