PR14182-PP
Linear recirculating roller bearing unit PR14182-PP
加入詢價
主要尺寸與性能資料

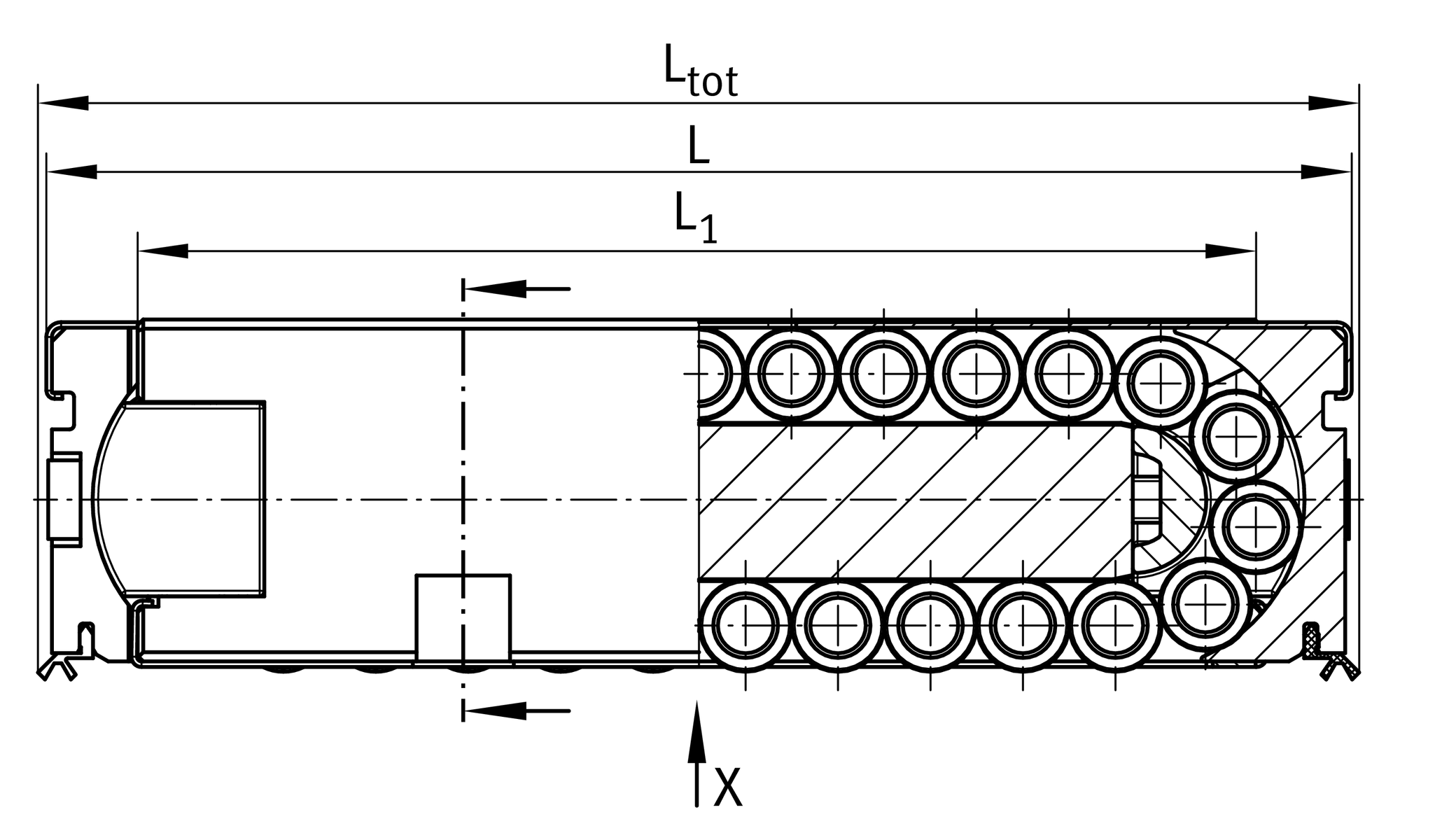

Ltot
281.9 mm
Length total

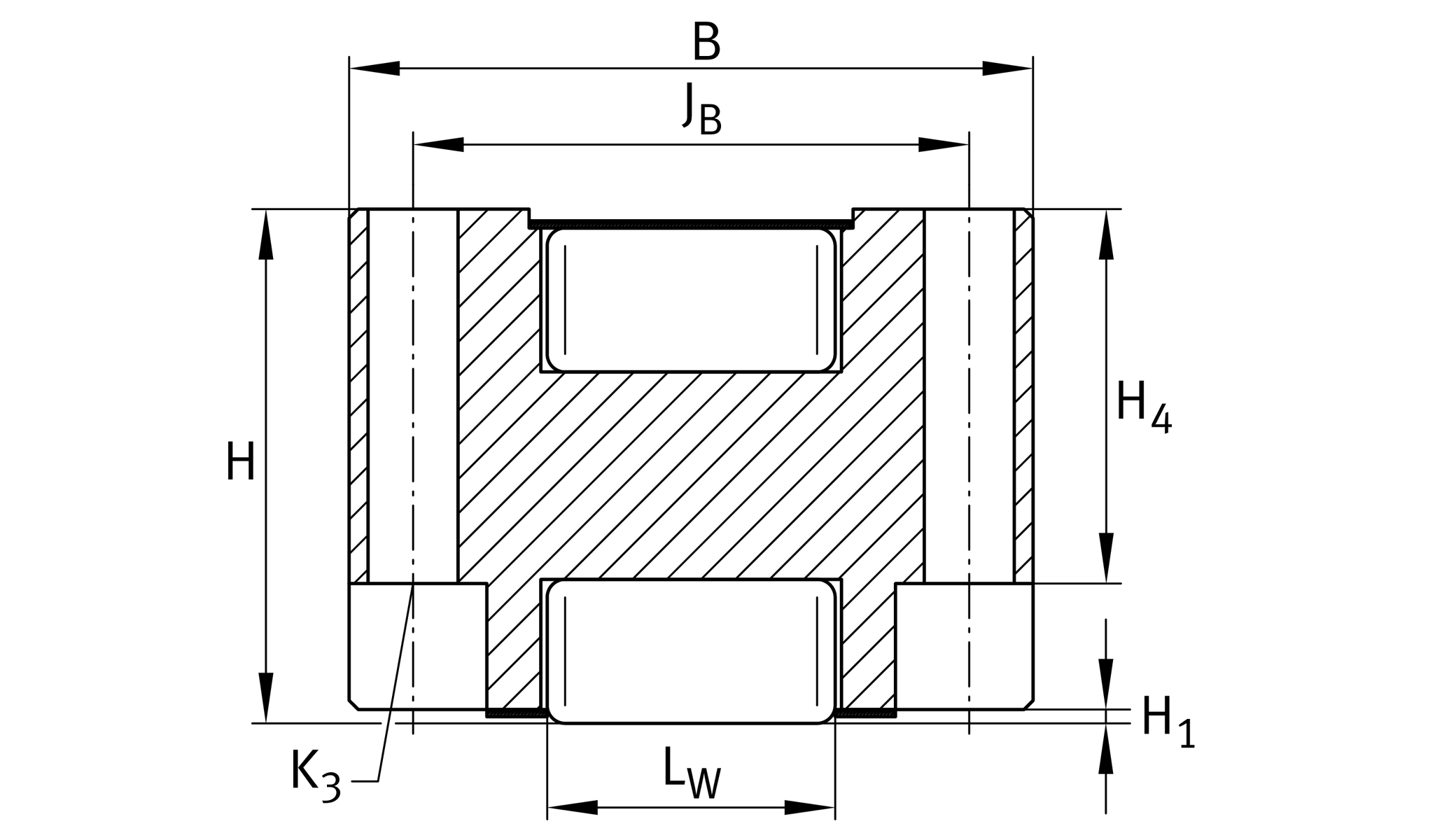

B
101.6 mm
寬度
H
76.2 mm
高度
C
790,000 N
Load capacity Dynamic
C0
1,325,000 N
Load capacity static
≈m
13.5 kg
重量

安裝尺寸
L1
211 mm
JB
82.5 mm
Mounting Dimension
Tol JB
±0,1
Tolerance
JL
101.6 mm
Mounting Dimension
Tol JL
±0,1
Tolerance
H1
0.1 mm

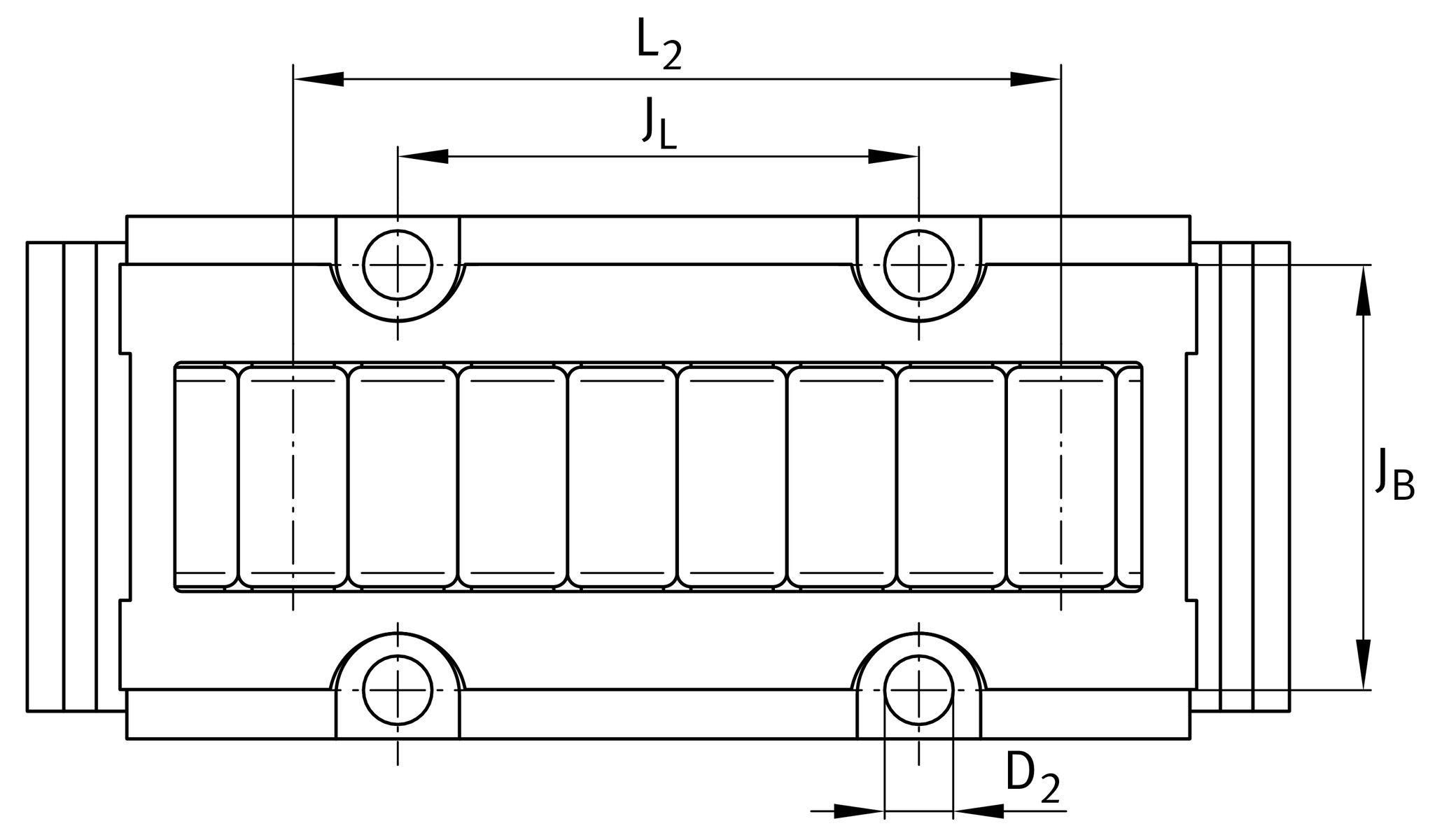

L2
167 mm
LW
40 mm
H4
56.3 mm
K3
M8
Size thread K3 1
K3 MA
41 Nm
Tightening Torque fixing screws
D2
9 mm

Related products
UFK11518, UFB14018
suitable Guide Rail

您目前的產品型號
SuffixPPwith end face wiper
Size code14182
