PR14089-PP
Linear recirculating roller bearing unit PR14089-PP
加入詢價
主要尺寸與性能資料

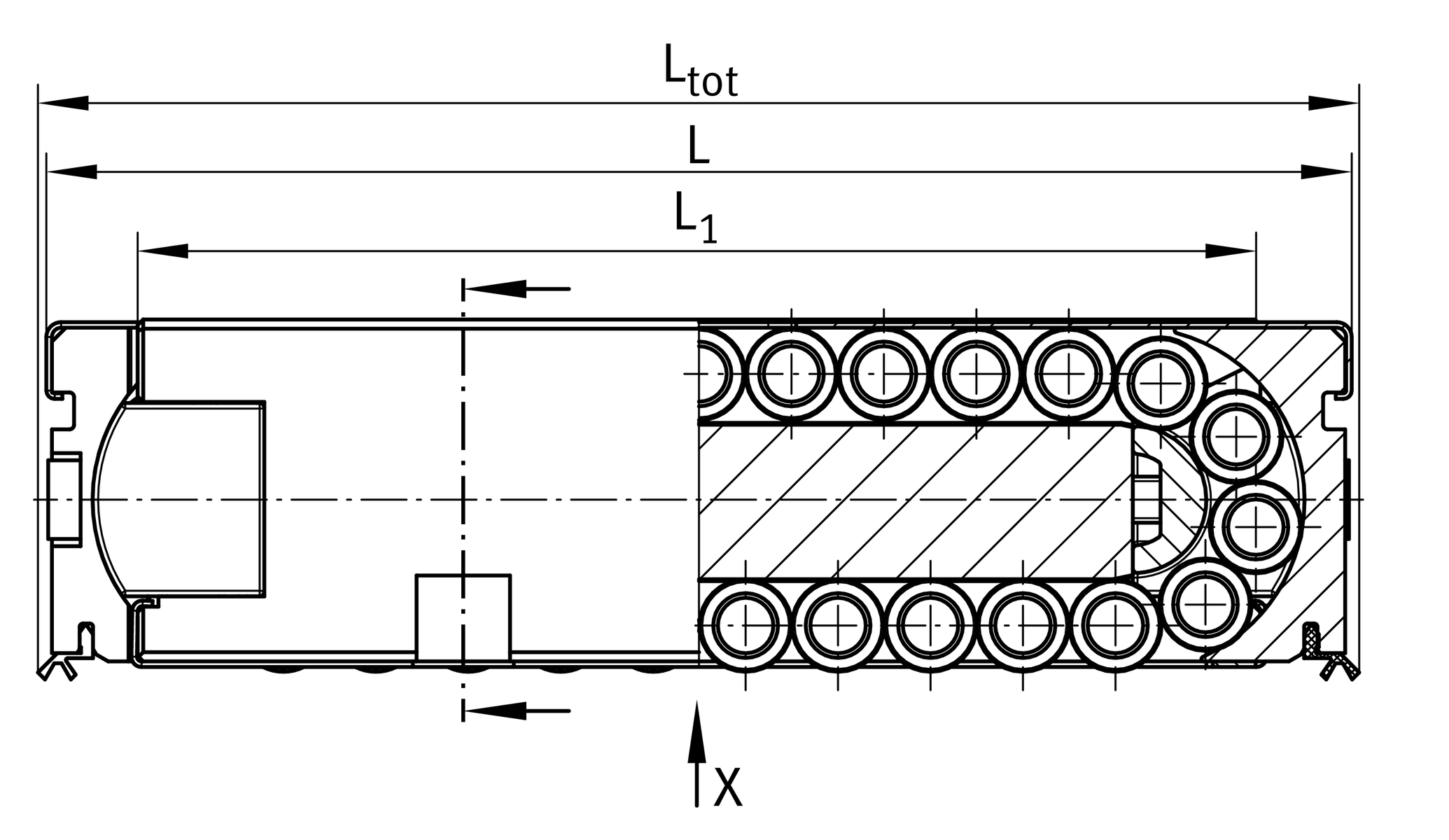

Ltot
143 mm
Length total

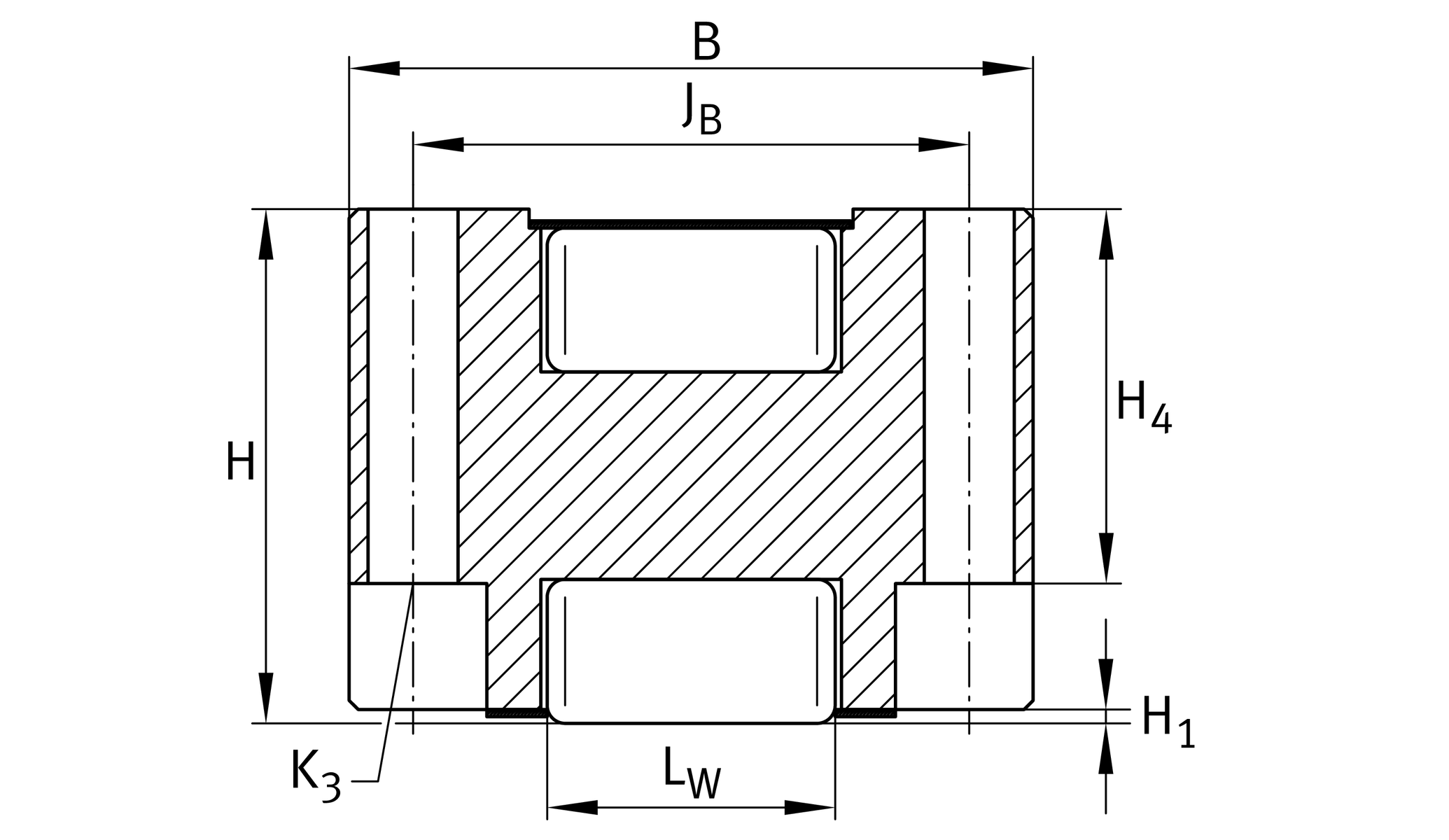

B
50.8 mm
寬度
H
38.1 mm
高度
C
205,000 N
Load capacity Dynamic
C0
354,000 N
Load capacity static
≈m
1.727 kg
重量

安裝尺寸
L1
121.5 mm
JB
41 mm
Mounting Dimension
Tol JB
±0,1
Tolerance
JL
51 mm
Mounting Dimension
Tol JL
±0,1
Tolerance
H1
0.1 mm

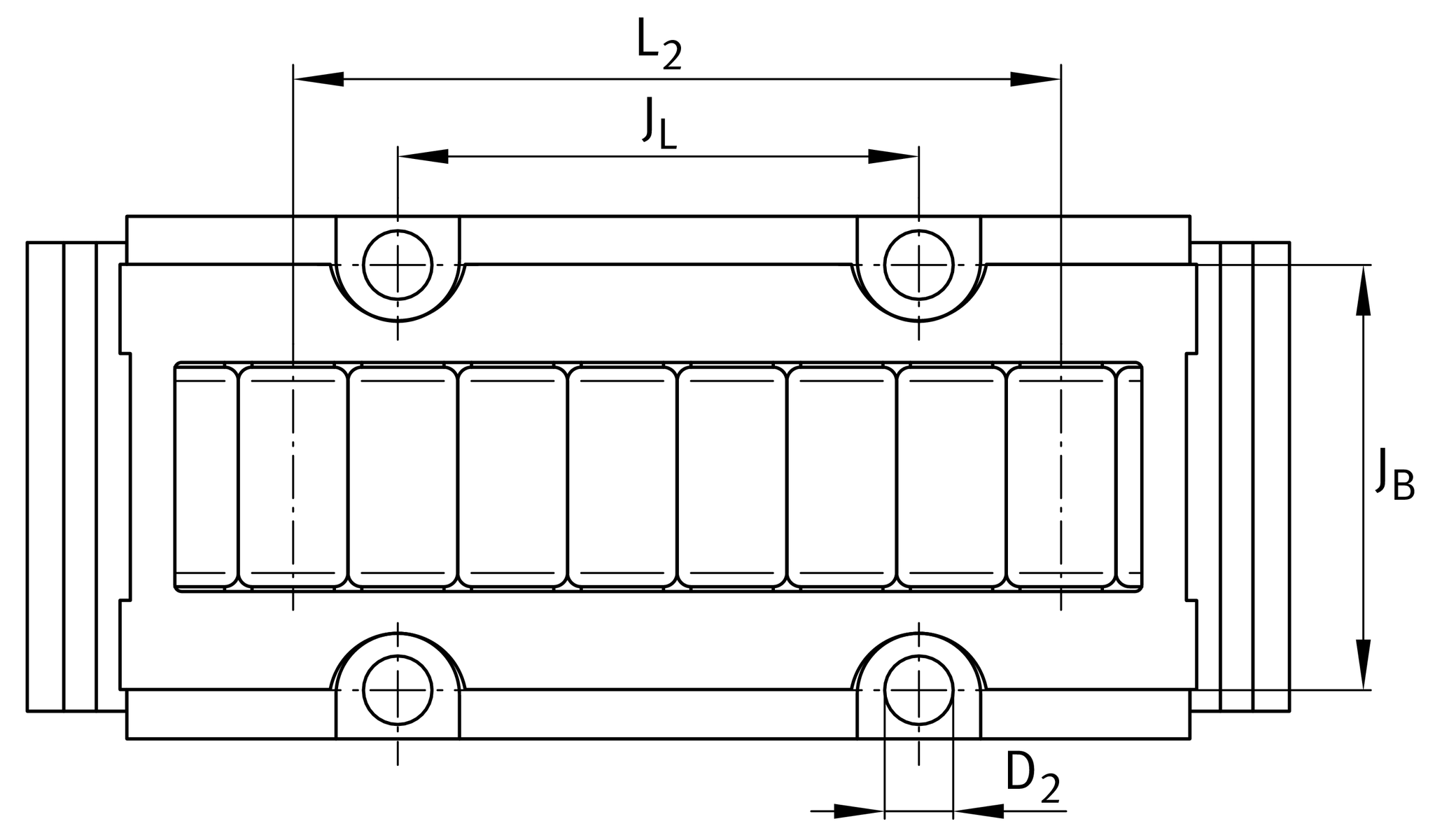

L2
90 mm
LW
20 mm
H4
27.7 mm
K3
M5
Size thread K3 1
K3 MA
10 Nm
Tightening Torque fixing screws
D2
6 mm

Related products
VUSZ24084-A
Adjustment gib
UG12553, UGN12553-A, UZ12553, UZN12553-A, UFK8815, UFB10615
suitable Guide Rail

您目前的產品型號
SuffixPPwith end face wiper
Size code14089
